M5Stack Universal IOT Experiment Kit for ESP32

Note: All products are tax-inclusive.

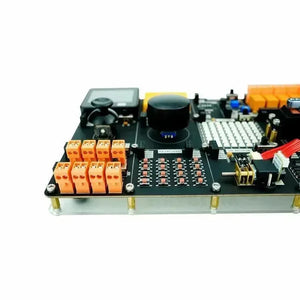

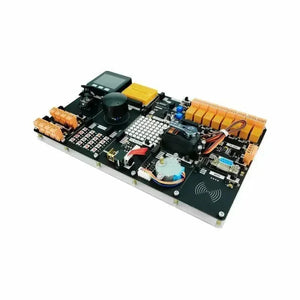

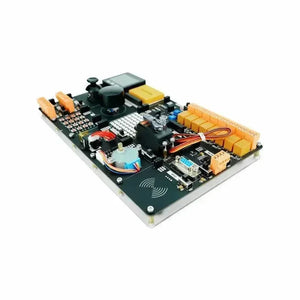

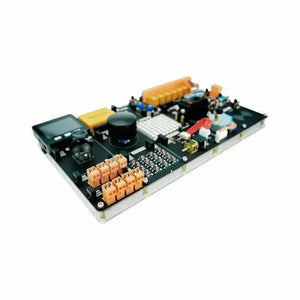

Demo Board. This is a feast of IoT stuff, powered by M5Stack. It is an all-in-one Learning board powered by ESP32, which includes anything you can imagine in IoT + industrial application scenarios. Let's see what you can do with it: Robotic movement, the most commonly used serial communication port(RS485 RS232), Relay control, all different types of Button control, RF reader, speaker, Microphone, and more all able to be developed by an M5stack core device, so you can program this ESP32 kits  with Blockly(UIFlow), Arduino, and Micropython. Based on application scenarios, we've partitioned them into different functional parts with a good-looking layout and full-function performance. Here comes the most powerful IIoT learning board.

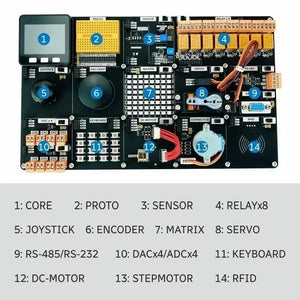

Product Features

• Fully Compatible with the M5Stack stackable and extendable system
• Protoboard, M5-BUS extension
• Each module comes with an individual power switch.
• Environment Sensor set ( Temperature, Humility, barometric pressure, light intensity, and Microphone )
• Joystick Controller
• 8 Channel of Relay output
• 4x DAC,4x ADC
• 4x4 button matrix
• 8x8 RGB LED matrix
• Encoder
• 1x Servo
• DC-Motor(with feedback encoder)
• step motor with a four-phase five-wire
• Radio Frequency Identification Reader
• RS-485,RS232 series communication

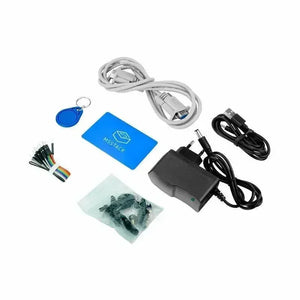

Include

• 1x Demo Board learning board
• 1x Power Adapter
• 1x RS232 cable
• 1x RFID Card
• 1x ID Card
• 16x breadboard cable

Applications

• IOT teaching experiment board
• Multi-function test board
