M5Stack Tube/Air Pressure Unit

Note: All products are tax-inclusive.

The Tube Pressure unit is a versatile air pressure sensor designed to support a wide range of pressures, specifically ranging from -100 to 200 kPa. It functions by connecting one end of the tube to the gas inlet, capturing the air pressure within the system.

This sensor converts the measured pressure into a corresponding mapping value within the range of -100 to 200 kPa. Additionally, it provides a voltage output in the range of 0.1 to 3.1V, allowing for easy integration with other systems.

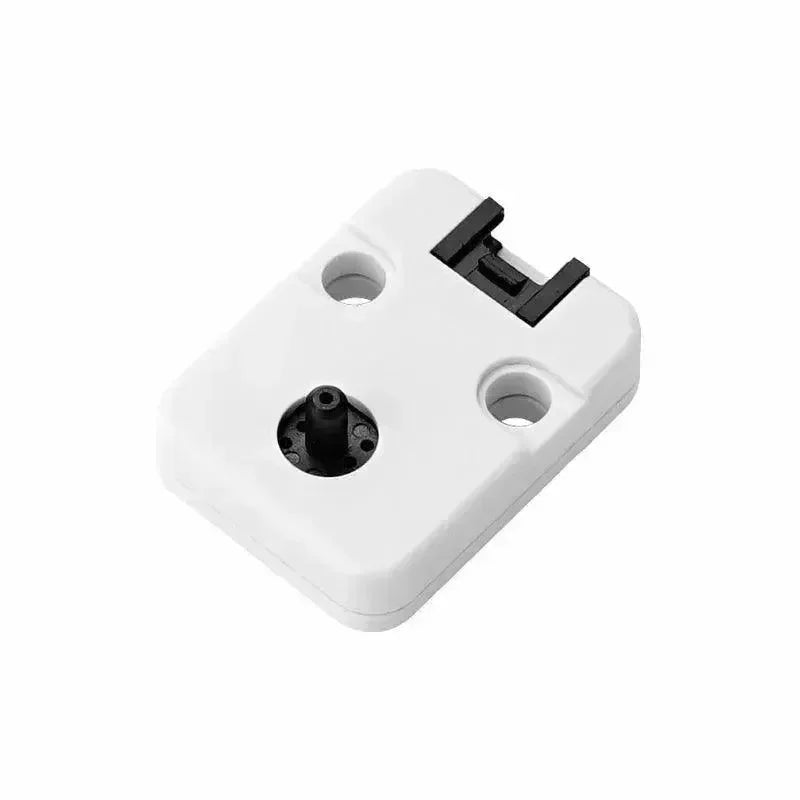

To ensure long-term stability and protection, the sensor comes with a protective housing. This housing safeguards the sensor from external factors, contributing to its durability and reliable performance over an extended period. Considering its functionality and reliability, Tube Pressure unit is an essential accessory for industrial applications. Its accurate pressure measurements and voltage output make it indispensable for various industrial processes, ensuring optimal performance and efficiency.

Product Features

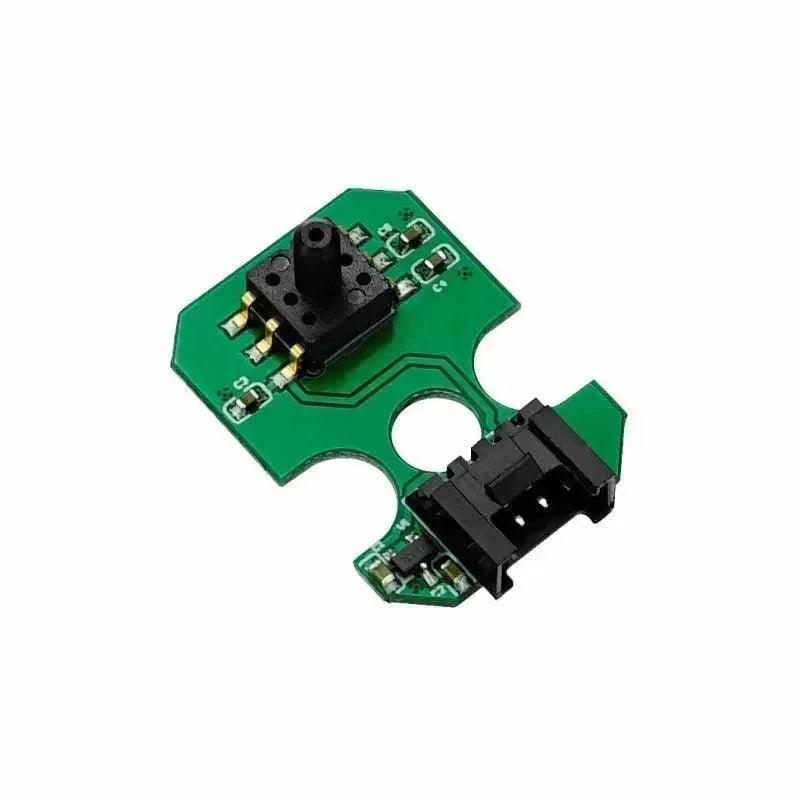

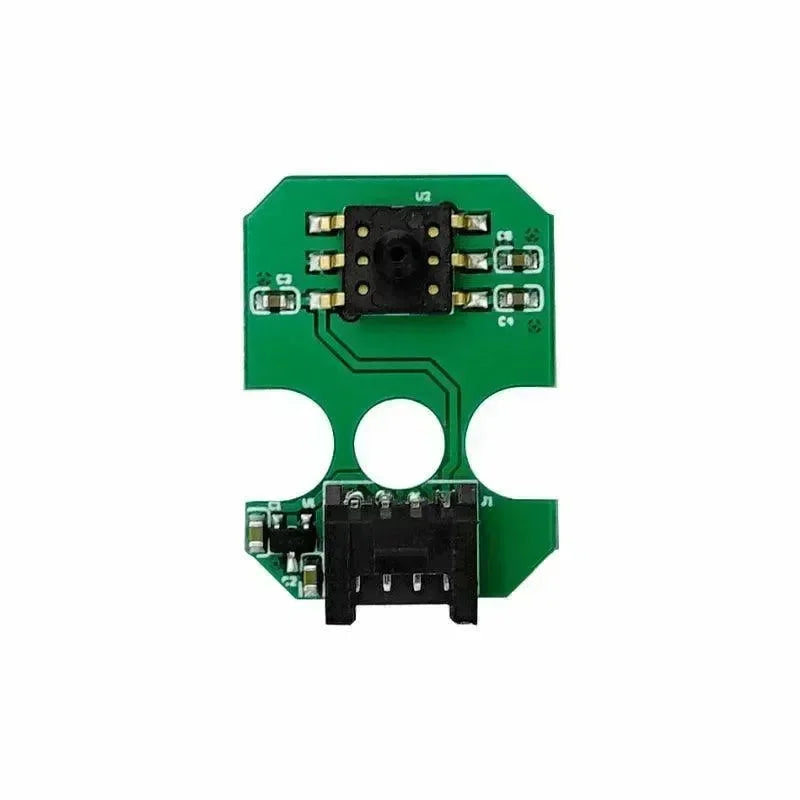

• Includes Integrated piezo-resistive pressure sensor with wide temperature compensation
• Linear output, easy to use
• Measurement range: -100 ~ 200Kpa
• Output: 0.1 ~ 3.1V
• Precision: 1.5Kpa
• 2x LEGO compatible holes
• Support UIFlow graphical programming

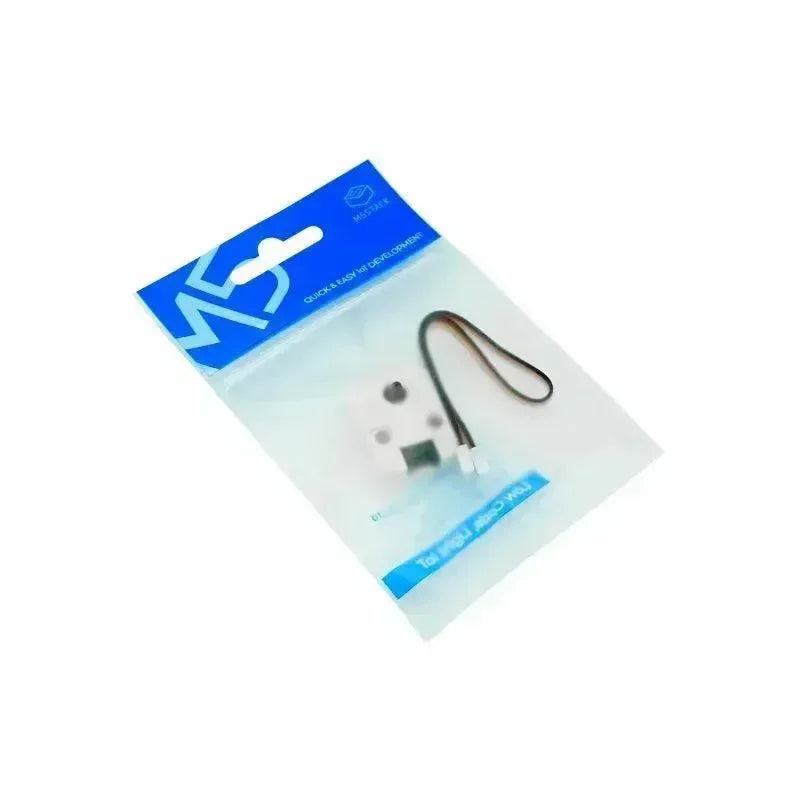

Include

• 1x Tube Pressure Unit
• 1x HY2.0-4P cable

Application

• Air pressure measurement

Specification
