The ATOM Printer is a fantastic little desktop DIY thermal printer that offers amazing value for money, combining all the latest features and capabilities in a compact form. It's got everything you need to get started with an ESP32-Pico-based IoT controller, the ATOM Lite, along a 58mm thermal printer, making it ideal for a wide range of printing tasks.
This printer is so versatile! You can use it to print text, graphics, barcodes, and even QR codes. It's perfect for all sorts of things, like labels, receipts, tickets, and more. The ATOM Lite is the heart of the printer, giving you all the control and connectivity you need. It's powered by the ESP32-Pico chip, which is super strong and supports lots of communication protocols.
The ATOM Printer comes with two different modes already set up and ready to go! We've made it super easy for you to print and get notifications! Just choose AP Connect Print and MQTT Notifications Print. The AP Connect Print mode is really handy because it lets you connect to the printer directly via Wi-Fi in access point mode. This makes it super simple to set up and print! Meanwhile, the MQTT Notifications Print mode is great for printers that need to receive and print content from MQTT (Message Queuing Telemetry Transport) sources. This makes it really easy to automate and integrate with other IoT devices or systems!
Just a heads-up: This kit doesn't come with a power adapter. We'd recommend getting a DC 12V / 2.5A power adapter with a 5.5mm jack to go with it.
Product Features
- ATOM Lite: ESP32-Pico-D4 4MB Flash IoT controller

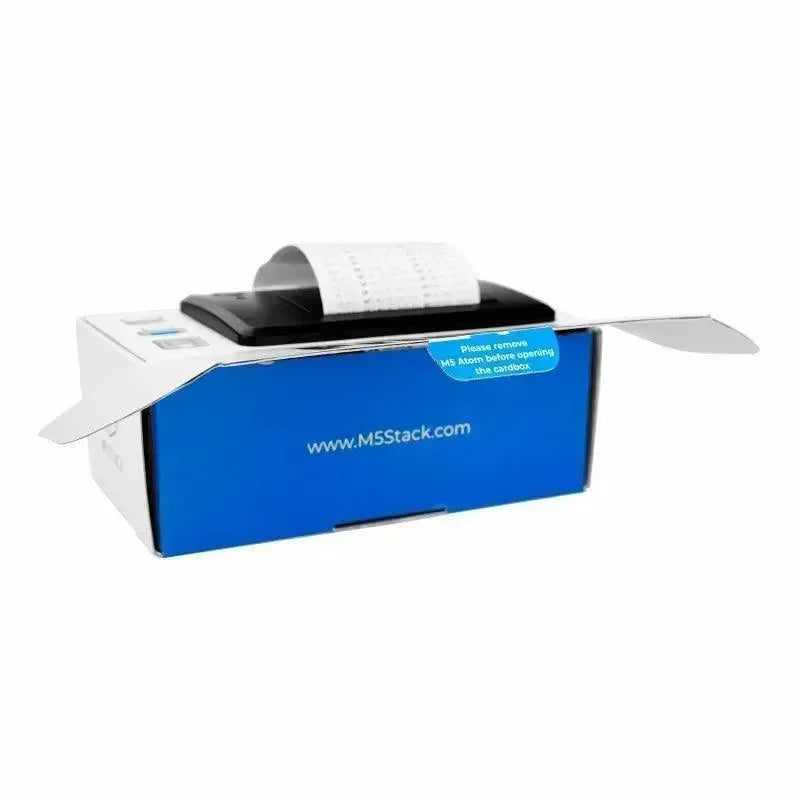

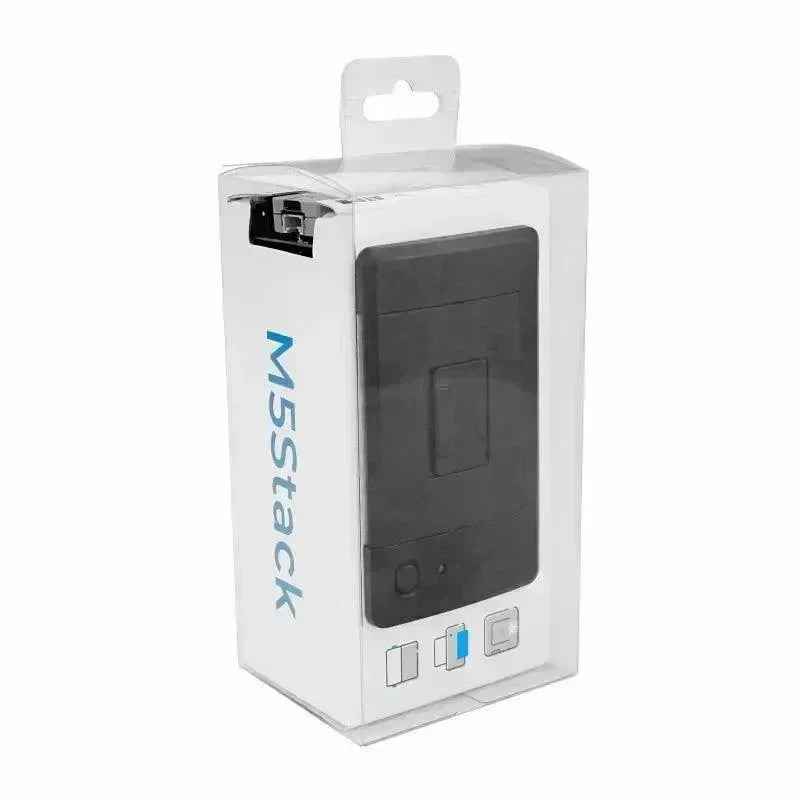

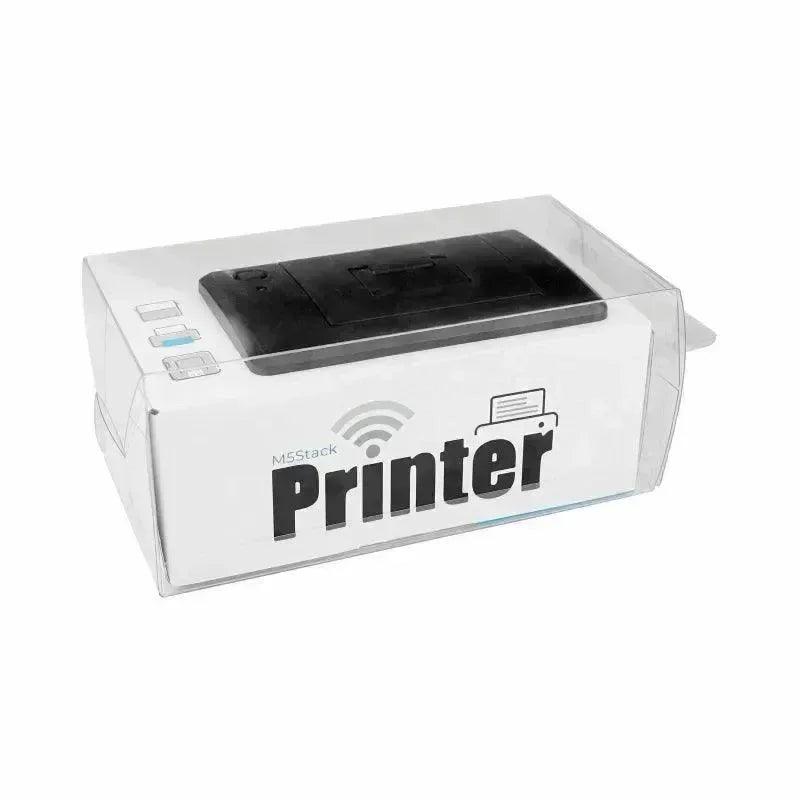

- Sleek, Geekery kraft packaging design
- Supports for text/graphics/BarCode/QRCode
- Communication interface: UART
- Fast printing, high-resolution
- How to use:
- AP hotspot connection, web-controlled printing
- Printing content sent via MQTT (Topic is device Mac address)
- Serial command control (UART 9600bps 8N1)
- Development platform: Arduino, UIFlow

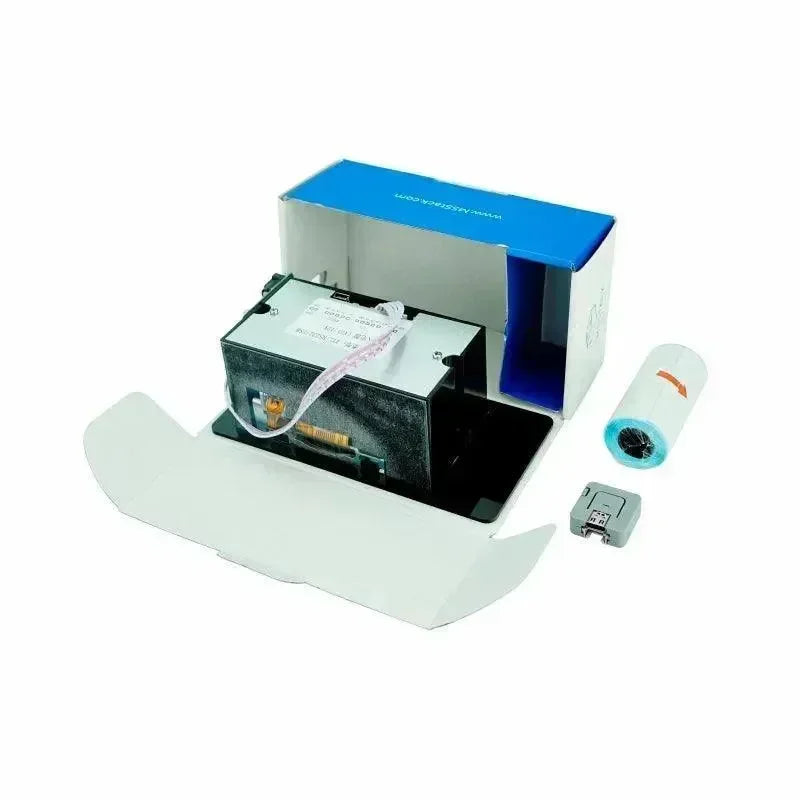

Includes
- 1x ATOM LITE
- 1x ATOM Printer
- 1x thermal paper roll
- 1x sticky thermal paper roll
Application
- Can be widely used in printing taxi bills, parking bills, express delivery invoices, restaurant orders and so on.
Specifications
| Specifications | Parameters |
|---|---|
| Printing method | Thermal printing |
| Supported text and graphics | Text, graphics, characters, BarCode(Codebar, code93, code39, code128, ENA13, ITF25, UPC-A, UPC-E), QRCode |
| Supply voltage | DC 12V |
| Working current | 2.5A |
| Print color | Monochrome |
| Print speed/resolution | 60mm/s 203dpi 8 dots/mm up to 384 dots per line |
| Printing width | 58mm |
| Service life | Printing distance 50km |
| Paper Cut | By Hands |
| Max. Diameter of Paper Roll | 58mm±0.05mm (width) 0.05~0.1mm (thickness), maximum diameter ≤40mm |
| Printing speed | 60mm/s |

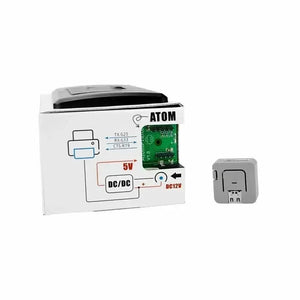

| Connectivity Technology | USB/RS232/TTL (ATOM is connected to TTL interface by default UART 9600bps 8N1) |
| Net weight | 285g |
| Gross weight | 321g |
| Product size | 151 * 79 * 66mm |
| Package size | 158 * 82 * 70mm |
