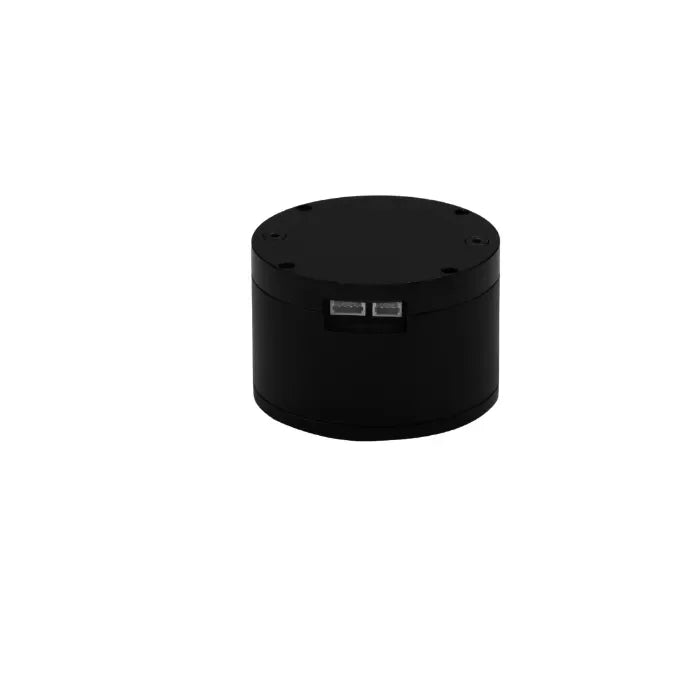

SteadyWin GIM3505-8 Robot Gear Motor – 8:1 Reducer Planetary

SteadyWin GIM3505-8 Robot Gear Motor – 8:1 Reducer Planetary

⚙️ SteadyWin GIM3505-8 – Compact Power for Precision Robotics

The SteadyWin GIM3505-8 is a high-efficiency planetary gear stepper motor engineered for robotics, automation, and embedded motion control. With a 24V input, 29W output, and an integrated 8:1 reduction gearbox, it delivers stable torque and precise positioning in a compact Ø43 mm form factor 🌀.

🔌 Optional driver modules and 14-bit magnetic encoders enable closed-loop CAN bus control, making it ideal for industrial-grade applications such as collaborative robots, exoskeletons, and mobile platforms.

Whether you're building a smart actuator or a multi-axis robotic joint, the GIM3505-8 offers the reliability and responsiveness you need—without compromising on size or efficiency 💡.

🌟 Key Features

  • 📦 Compact & Mighty Just Ø43×30 mm and weighing only 97 g, this motor is tailor-made for micro-robotics, wearable exoskeletons, and space-constrained automation systems.

  • 💪 High Torque Output Delivers a rated torque of 0.65 N·m and stall torque up to 1.27 N·m, ensuring stable and responsive performance even under demanding loads.

  • 🧠 Integrated Driver Equipped with a built-in GDS34 driver board, supporting CAN bus communication for smooth, real-time control in industrial and robotic applications.

  • 🎯 Precision Encoder Features an onboard 14-bit magnetic encoder, with options for external encoder integration and a customizable brake—ideal for closed-loop systems.

  • 🛡️ Built for Harsh Conditions Rated IP54 for dust and splash resistance, and operates reliably across a wide temperature range from –20°C to +80°C—ready for field deployment.



📊 Specifications

Feature Unit Value
Model GIM3505-8
Winding method Δ / Y (listed)
Winding method (selected) Y
Driver board model GDZ34
Rated voltage V 24
Voltage range V 12–40
Rated power W 37
Rated torque N·m 0.67
Peak torque (Stall torque) N·m 1.79
Rated speed after reduce RPM 230
Max speed after reduce RPM 400
Rated current A 1.53
Peak current (Stall current) A 3.99
Phase-to-phase resistance Ω 5.47
Phase-to-phase inductance mH 0.48
Speed constant rpm/V 16.67
Torque constant N·m/A 0.44
Number of pole pairs Pairs 11
Gear rate 8:1
Gear type Planetary
Reducer gear material ALU
Reducer gear backlash arcmin 15
Motor weight without driver g 84
Motor weight with driver g 97
Size without driver mm Ø43 × 23.6
Size with driver mm Ø43 × 30
Max axial load N 75
Max radial load N 300
Noise dB <60
Communication CAN & RS-485
Second encoder (the second encoder on the output shaft) NO
Protection grade (Motor Protection Grade) IP54
Working temperature °C -20 to +80
Resolution of the encoder on the driver Bit 14 bit
Can support separate encoder or not YES
Can support custom brakes YES



🚀Applications

  • 🤖 Robotic joint modules

  • 🦿 Exoskeleton actuators

  • 🎥 Gimbal stabilizers

  • 🚁 UAV propulsion systems

  • 🏭 Industrial automation



🔧Version Compatibility Overview

Feature V1.0 V1.1
Encoder Type AS5047P (external magnetic encoder) MT6816 / MA7XX (integrated encoder)
Driver Compatibility ❌ Not compatible with GDS/GDZ drivers ✅ Compatible with GDS34 / GDZ34
Communication Protocol SPI only CAN / RS-485
Integration Level Encoder only, no onboard driver Integrated driver + encoder
Second Encoder Support ❌ Not supported ✅ Supported (via GDZ driver with MA7XX input)
Application Focus Custom control systems, MCU integration Plug-and-play motion control, industrial use
