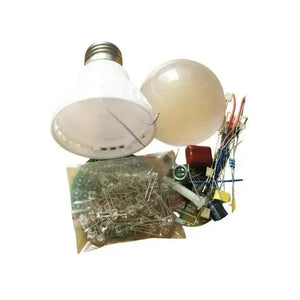

Sound and Light Controlled Energy-Saving Corridor Light DIY Kit

The Sound and Light-Controlled Energy-Saving Lamp Kit is perfect for electronic enthusiasts looking to explore practical electronics. Designed for hallway, staircase, and bathroom lighting, this DIY kit offers a smart solution with automatic control technology, integrating sound detection, light control, and delay shutoff functions.

Features

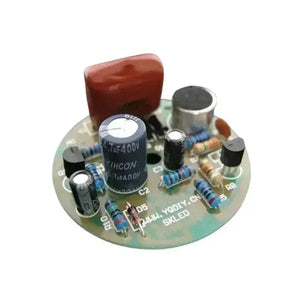

The control board and lamp board are made from military-grade A-level material, with enlarged pads to support multiple rounds of soldering and desoldering. The pads are treated with a tin-plating process, making soldering easier. The control board features an SMD (surface-mount) integrated circuit, providing an opportunity to practice soldering SMD components. This high-quality, practical kit is ideal for regional competitions, training camps, and practical training.

The sound and light-controlled LED energy-saving lamp integrates sound control, light control, and automatic delay control technologies. During the day, when the ambient light is strong, the lamp remains off due to the light control lock. However, when the environment dims in the evening, the switch enters standby mode, turning on the light instantly upon detecting sounds like talking or footsteps. The light automatically turns off after a 30-second delay. This feature helps prevent injuries from searching for switches in the dark and avoids situations where lights in hallways remain on unnecessarily.

This lamp is composed of 45 high-brightness LEDs and offers powerful sound and light control with automatic delay functions. It can be installed on staircases, hallways, and bathrooms. The sound-controlled auto-on delay time is between 30 and 60 seconds, with a static current of 0.005 mA (nearly zero) and a power-on current of 8 mA (with a power consumption of 2.3W, equivalent to a 50W incandescent bulb). It can be directly screwed into a 220V E27 lamp holder. Even after one year of use in hallways, this sound-controlled LED lamp consumes less than 1 kWh of electricity, earning it the title of an "Ultra Energy-Saving King."

Specifications: 45 LED beads, power: ≤2.3W

Note: Ensure the lamp works before attaching the lampshade, as removing the lampshade later can be difficult.

Parameters

Kit Name: Sound and Light-Controlled Delay Lamp Kit

Kit Model: SKLED

Product Dimensions: 61mm × 105mm (Diameter × Height)

Housing Material: PBT Flame-Retardant + PC Transparent Frosted Cover

Lamp Holder Model: E27 Screw Base
