Capacitive Soil Moisture Sensor V1.2 | Analog Plant Probe

SKU: TB-SEN0021
Select quantity discount: : 1x Set
Sale price 4,49 €
incl. VAT
excl. VAT
Checking inventory…

Need a larger quantity?

Need bulk pricing?

Get a formal quotation with lead time and volume pricing.

Request for Quote

For universities, companies, distributors, and project orders.

Add to Wishlist
Soil Moisture Sensor Hygrometer Module V1.2 capacitive - OpenELAB

Capacitive Soil Moisture Sensor V1.2 | Analog Plant Probe

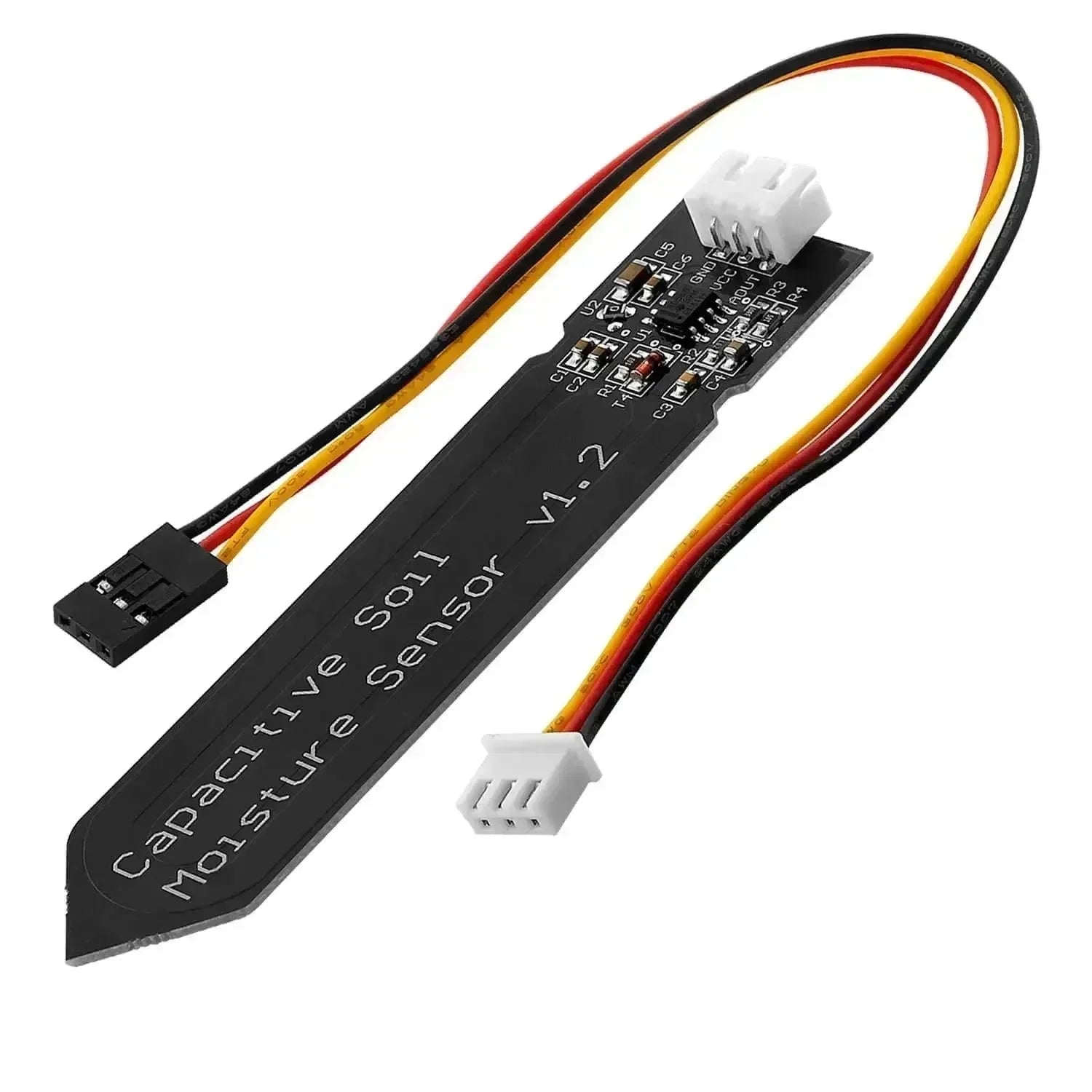

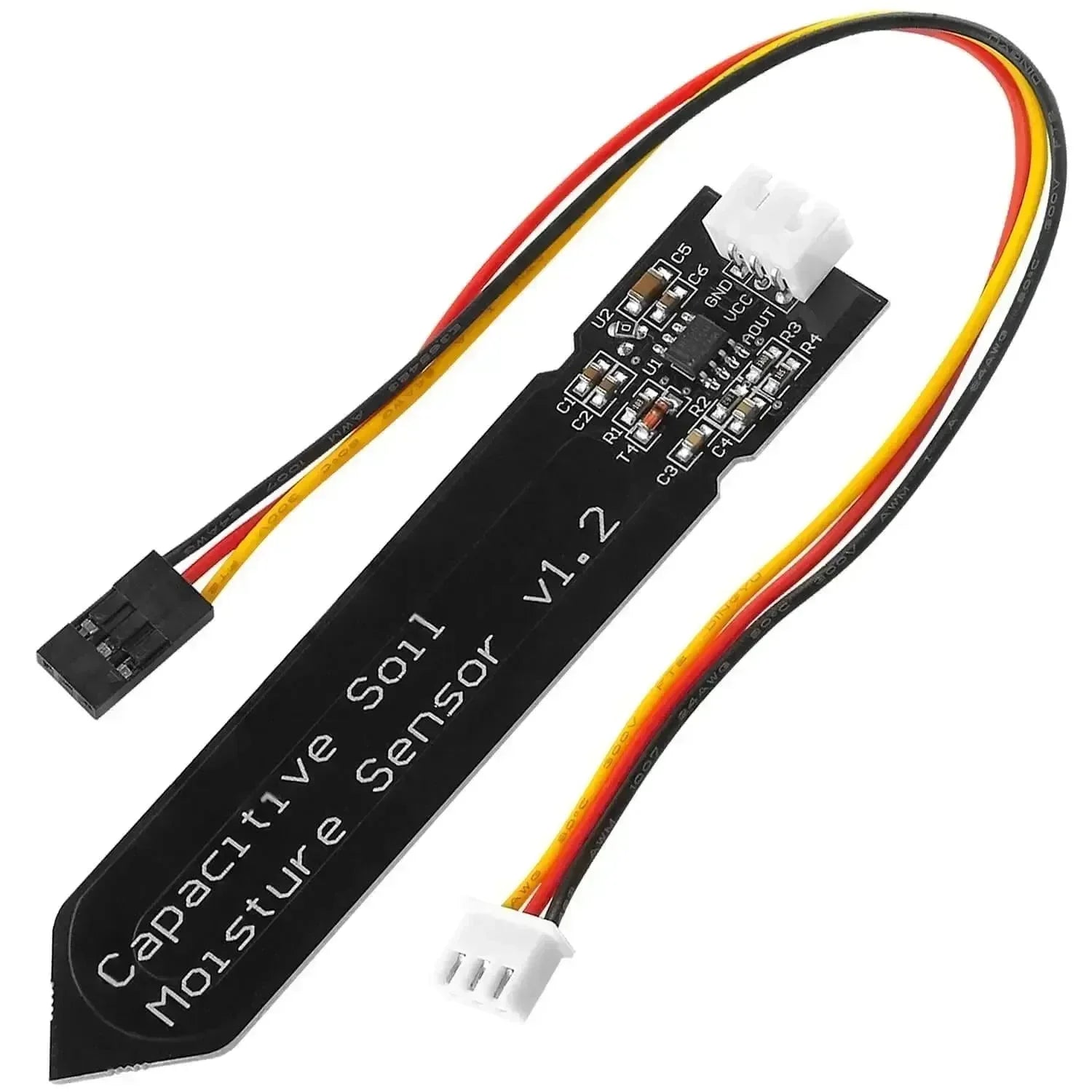

Capacitive Soil Moisture Sensor V1.2 - Analog Hygrometer Probe for Plant Watering and Smart Agriculture

The TB-SEN0021 Capacitive Soil Moisture Sensor V1.2 is an analog plant-soil moisture probe for irrigation control, greenhouse monitoring, classroom experiments, and smart gardening projects. Unlike exposed resistive probes, this capacitive design measures changes in soil moisture without relying on direct electrode corrosion, which makes it better suited for repeated plant-monitoring use.

The module outputs an analog voltage that can be read by a microcontroller ADC, letting software classify soil as dry, damp, or wet. It is easy to prototype with the ELAB Nano V3, the Raspberry Pi Pico W, or an UNO R3 Prototype Expansion Board. For air-climate context around plants, pair it with a DHT22 AM2302 sensor.

For best results, calibrate the probe in the actual soil type and pot depth where it will be installed. Soil composition, salinity, packing density, and watering method can all shift the ADC range, so fixed thresholds should be tuned per application.

Technical Specifications

Parameter Value
SKU TB-SEN0021
Variant 1x Set
Sensor Type Capacitive soil moisture hygrometer
Output Analog voltage
Operating Voltage 5V DC, per current listing
Interface PH2.0-3P
Dimensions 22 x 97 x 9mm
Cable Approx. 190mm 3-wire cable, per current listing
Measurement Principle Capacitive moisture sensing
Host Requirement Analog input / ADC
Applications Plant watering, irrigation, soil monitoring, agriculture demos

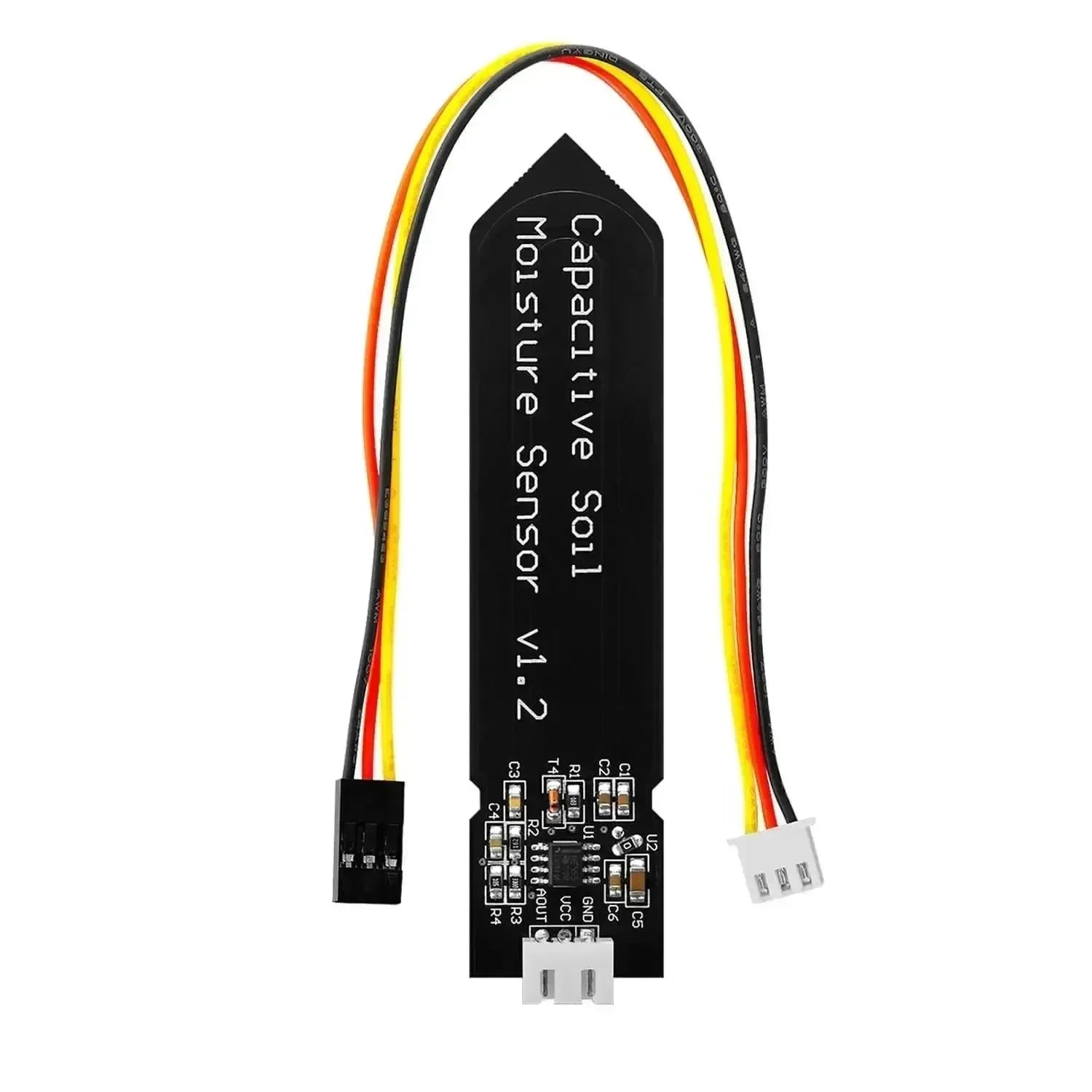

Board Layout & Label Guide

  • Probe Area - Insert into soil up to the recommended sensing region, avoiding the electronics end.
  • VCC - Connect to 5V as listed for this module.
  • GND - Common ground with the controller.
  • Analog Output - Connect to an ADC pin to read soil moisture level.
  • PH2.0 Connector - Three-wire connector for power, ground, and signal.
  • Coated Probe - Capacitive design reduces corrosion compared with bare resistive probes.
  • Calibration Point - Measure dry-air, dry-soil, and saturated-soil values before setting thresholds.
  • Installation Note - Keep the upper electronics section dry and away from irrigation spray.

Application Scenarios

1. Arduino Soil ADC Readout

Read raw analog values to find dry and wet calibration points.

const int soilPin = A0;

void setup() {
  Serial.begin(115200);
}

void loop() {
  Serial.println(analogRead(soilPin));
  delay(1000);
}

2. Automatic Watering Trigger

Use a relay output when soil becomes drier than the selected threshold.

const int soilPin = A0;
const int relayPin = 8;
const int dryThreshold = 620;

void setup() {
  pinMode(relayPin, OUTPUT);
}

void loop() {
  int soil = analogRead(soilPin);
  digitalWrite(relayPin, soil > dryThreshold ? HIGH : LOW);
  delay(2000);
}

3. ESP32 Percentage Display

Convert calibrated ADC readings into a percent moisture estimate.

const int soilPin = 34;
const int wetValue = 1200;
const int dryValue = 3000;

void setup() {
  Serial.begin(115200);
}

void loop() {
  int raw = analogRead(soilPin);
  int percent = map(raw, dryValue, wetValue, 0, 100);
  Serial.println(constrain(percent, 0, 100));
  delay(2000);
}

4. MicroPython Plant Monitor

Log soil readings from a Pico ADC pin.

from machine import ADC, Pin
import time

soil = ADC(Pin(26))

while True:
    print(soil.read_u16())
    time.sleep(5)

Packing List

  • 1 x Capacitive Soil Moisture Sensor Hygrometer Module V1.2 Set

FAQ

Q: What does TB-SEN0021 include?
A: It is the 1x Set variant for this capacitive soil moisture sensor page.

Q: Is this analog or digital?
A: It provides analog output.

Q: Why capacitive instead of resistive?
A: Capacitive sensing reduces corrosion because the probe does not depend on exposed resistive electrodes.

Q: Can I use it with Arduino?
A: Yes, connect the output to an analog input.

Q: Does every soil need calibration?
A: Yes, calibrate for your soil type and watering range.

Q: Can the whole board be buried?
A: No, insert only the probe section and keep electronics dry.

Q: Can it run at 3.3V?
A: The current listing states 5V DC, so verify behavior before 3.3V use.

Q: Why do readings change after watering?
A: Water distribution through soil takes time, so readings may settle gradually.
