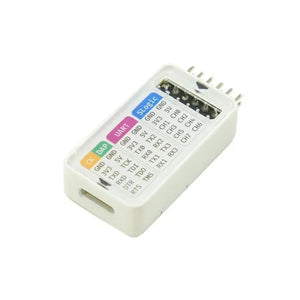

SLogic Combo 8 Multi-function Development Tool-1

SLogic Combo 8 Multi-function Development Tool

€14,90

The SLogic Combo 8 is a powerful and versatile development tool that combines the functions of:

  • Logic Analyzer

  • CKLink Debugger

  • DAPLink Debugger

  • USB2UART Serial Module

This compact 4-in-1 device supports a sampling rate up to 80 MHz, up to 8 channels, and is compatible with various platforms. It supports over 130+ common protocols, making it ideal for developers working on protocol analysis, embedded debugging, and education.



Powerful 4-in-1 Debugger

Easily switch modes with a button:

  • Logic Analyzer: Capture digital signals up to 80 MHz

  • CKLink/DAPLink: Debug RISC-V / ARM chips

  • UART Module: Up to 4 serial ports, 20 Mbps baud rate



 Powerful Features

  • 4-in-1 multifunction design

  • Maximum sampling rate: 80 MHz

  • Supports up to 8 channels

  • Supports 130+ analysis protocols

  • Ultra-compact size

  • Multi-platform compatibility



Supported Protocols

Supports both basic protocols (SPI, I2C, UART, etc.) and high-level protocols (JTAG, LIN, SWD, CAN, etc.) for broad compatibility with industrial, embedded, and consumer applications.



Function Indicators

  • Blue: SLogic Analyzer Mode

  • Green: DAPLink + UART

  • Orange: CKLink + UART

  • Pink: UART x4

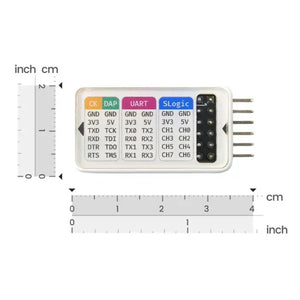

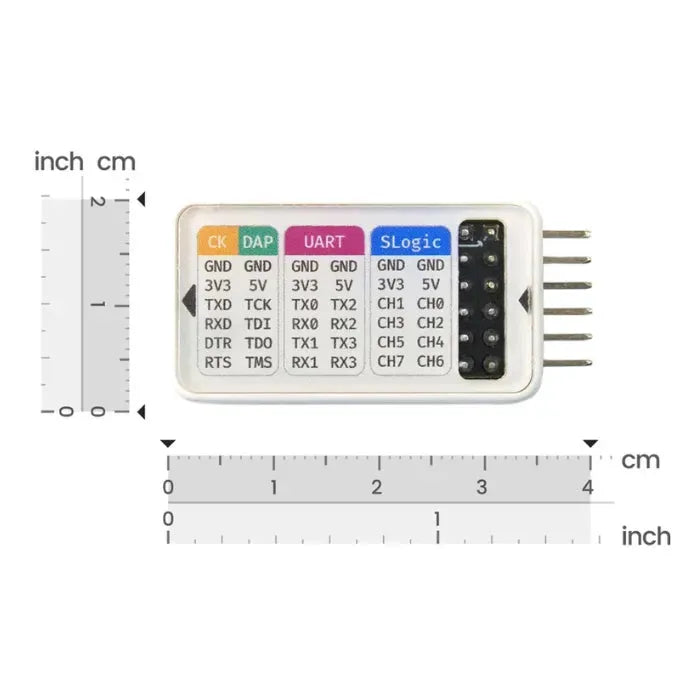

 Panel Pin Layout

Clearly marked pinout for each mode makes wiring and switching modes simple and intuitive.



Applications

  • Embedded system development & debugging

  • Protocol & signal analysis

  • UART/serial communication

  • Education and electronics training

  • Hardware R&D and testing

  • Microcontroller development



Specifications

SLogic Function

  • Max Channels: 8

  • Max Sampling Rate: 80 MHz

  • Transmission Bandwidth: 320 Mb/s

  • Signal Input: 0–3.6 V

  • Thresholds: VIH > 2 V, VIL < 0.8 V

  • Configurations: 80M@4CH, 40M@8CH

CKLink

  • JTAG Clock: 16 MHz

  • Dump Speed: 1200 KB/s

  • Debug Port: Up to 20 Mbps

DAPLink

  • Debug Port: Up to 20 Mbps

  • Flash Speed: 110 KB/s

UART

  • 4 ports supported

  • Baud Rate: 2×20 Mbps + 2×1 Mbps

  • Bandwidth: 42 Mbps

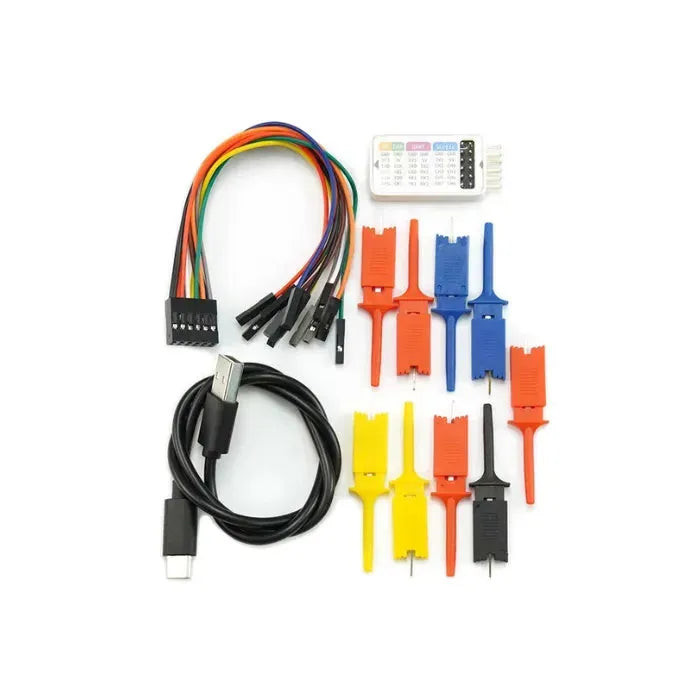

Shipping List

  • SLogic Combo 8 Tool ×1

  • USB Type-C Cable ×1

  • Female-to-Female Dupont Cable ×1

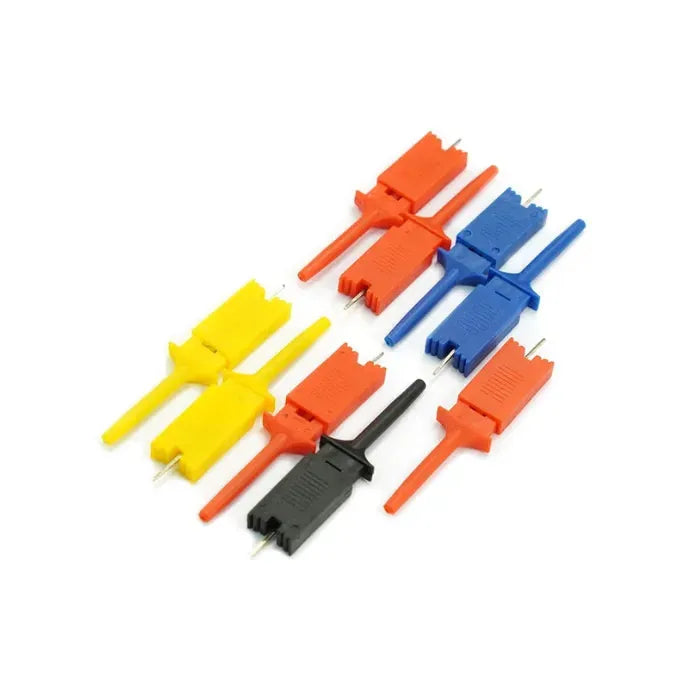

  • Test Clips ×10
