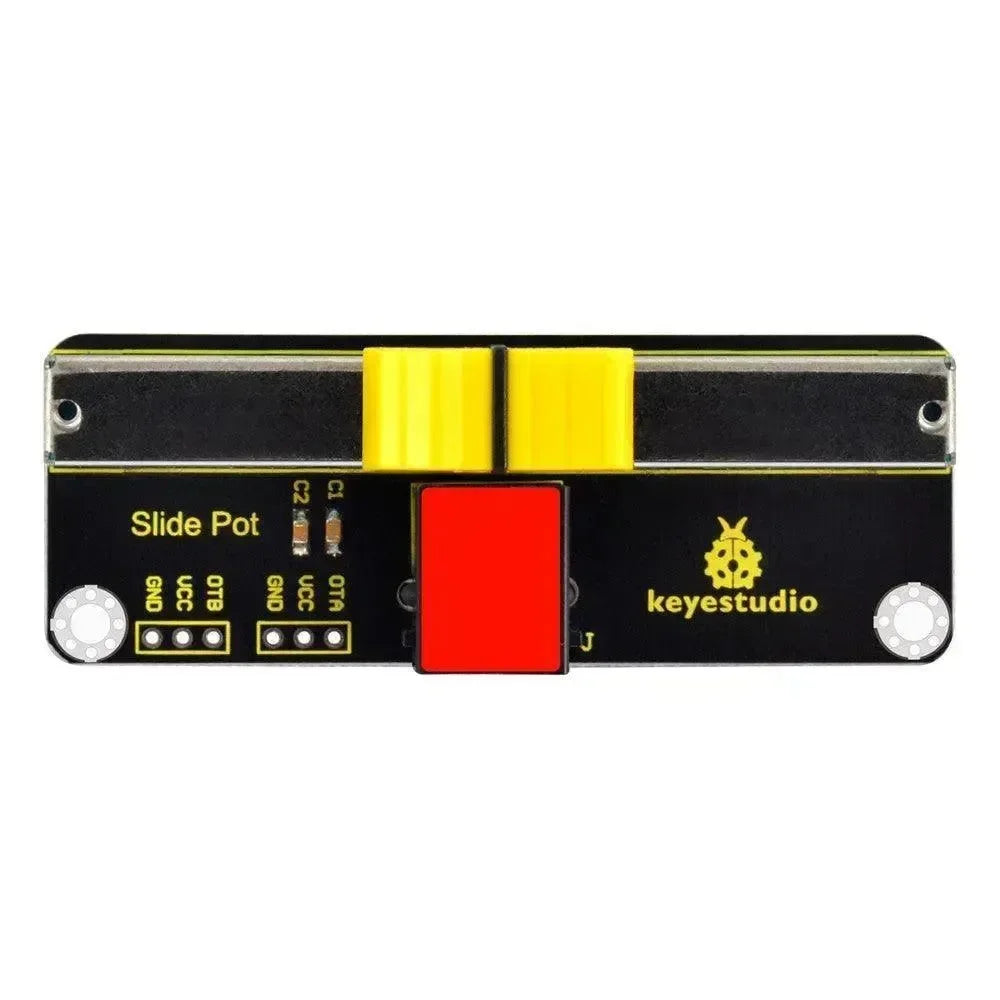

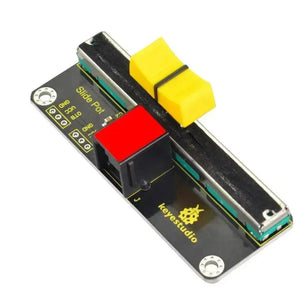

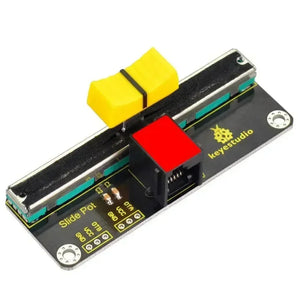

The EASY plug slide potentiometer uses high-quality sliding appliances for stable and reliable performance. It is a dual analo g output that outputs a 0-VCC analo g voltage signal.

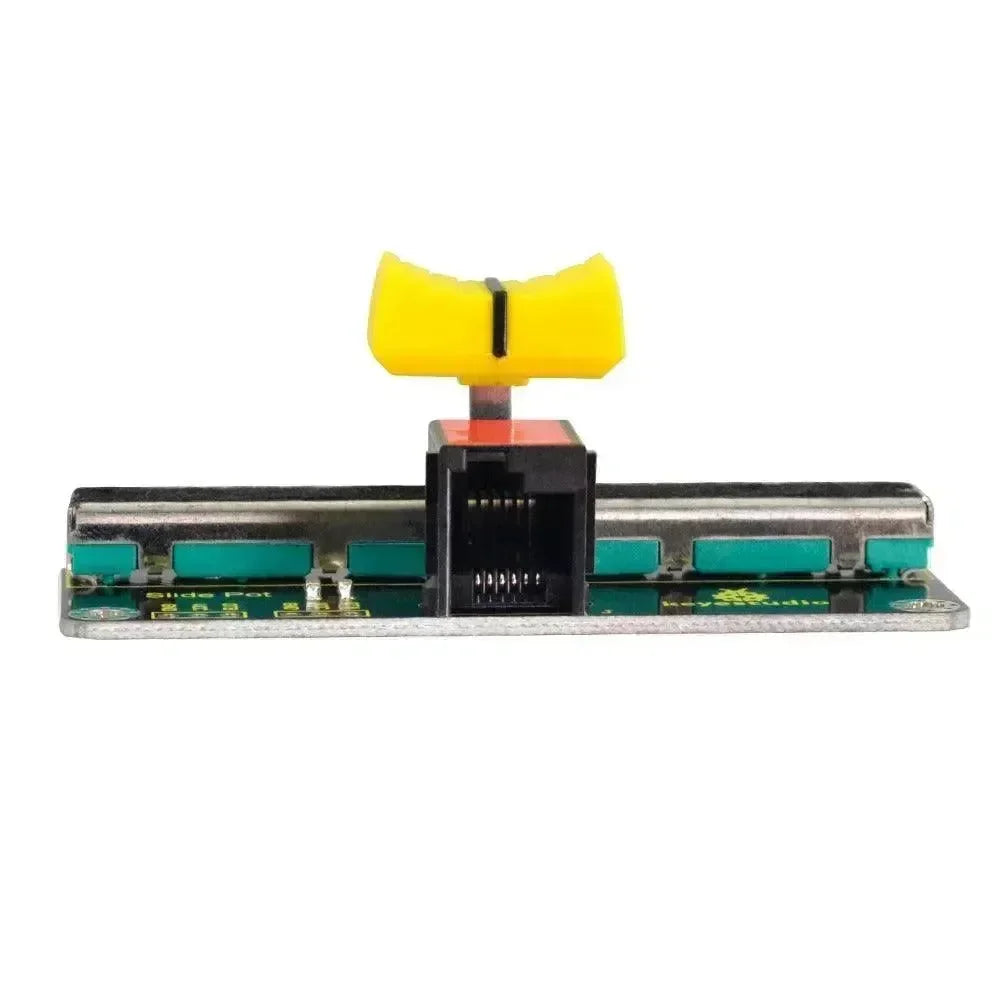

The module pins are extended into Registered jack, so you can easily connect it to EASY Plug control board using a RJ11 cable.

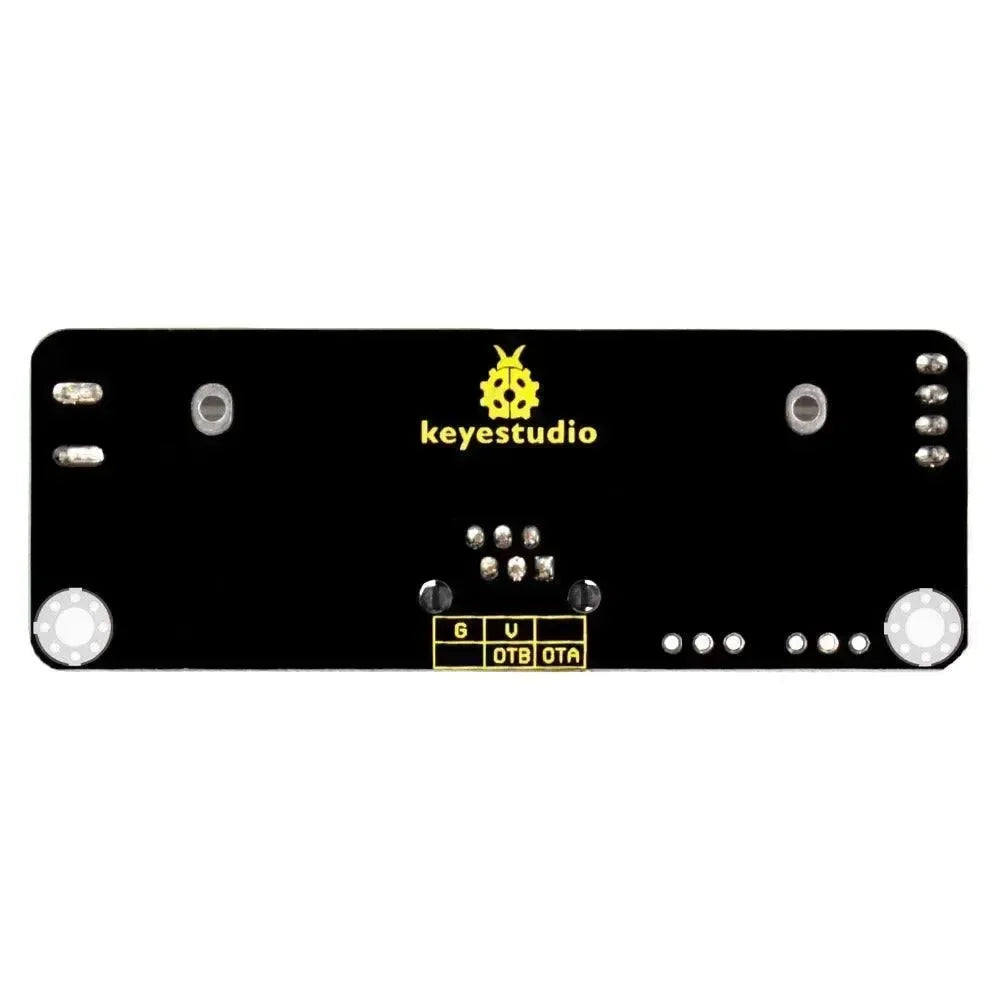

There are 6 pad interfaces on the module. So you can solder two 3pin headers with a pitch of 2.54mm on the module.

It can be used to connect with other MCUs. The signal terminal outputs two analo g values. The sum of the two analo g values is 1023.

Note: this module should be used together with EASY plug control board.

Features

• Operating Voltage: DC 3.3V-5V

• Resistance: 5K

• Port: analog quantity

• Property: ROHS

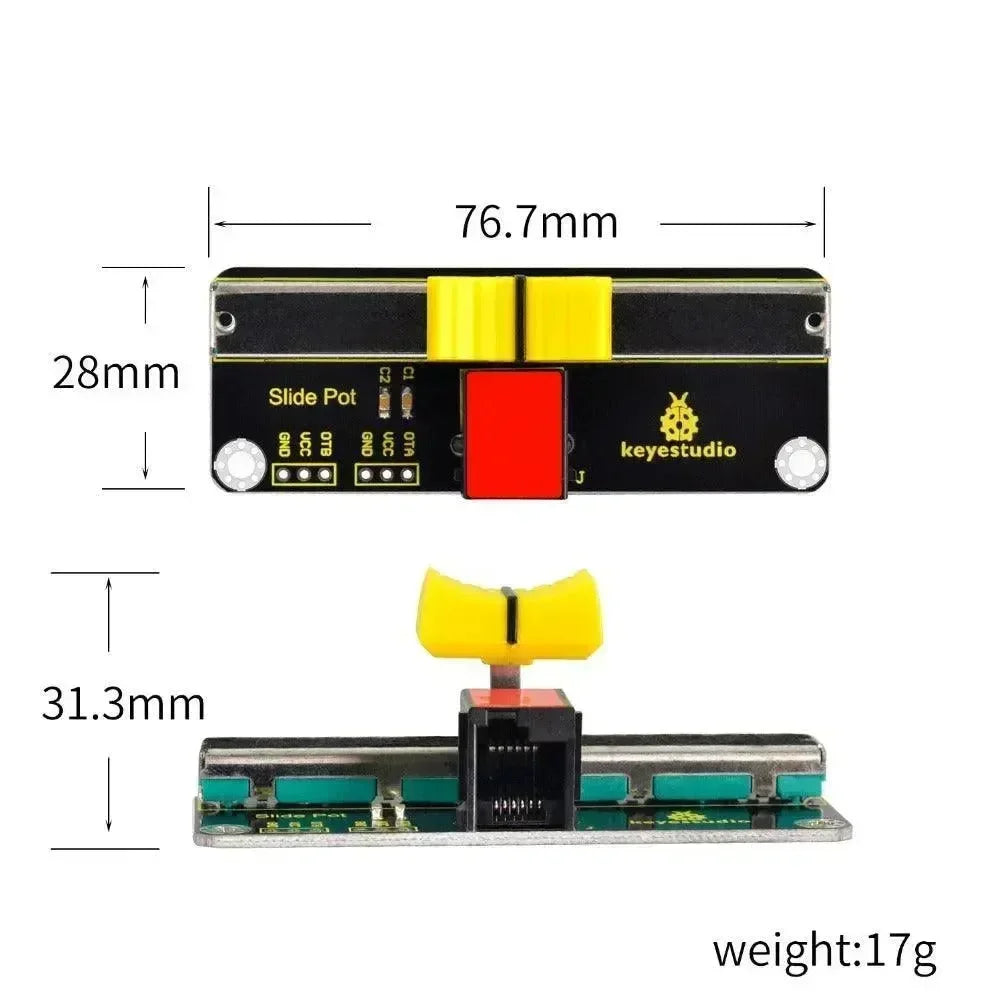

• Dimensions: 28mm*76.7mm*31.3mm

• Weight: 17g
