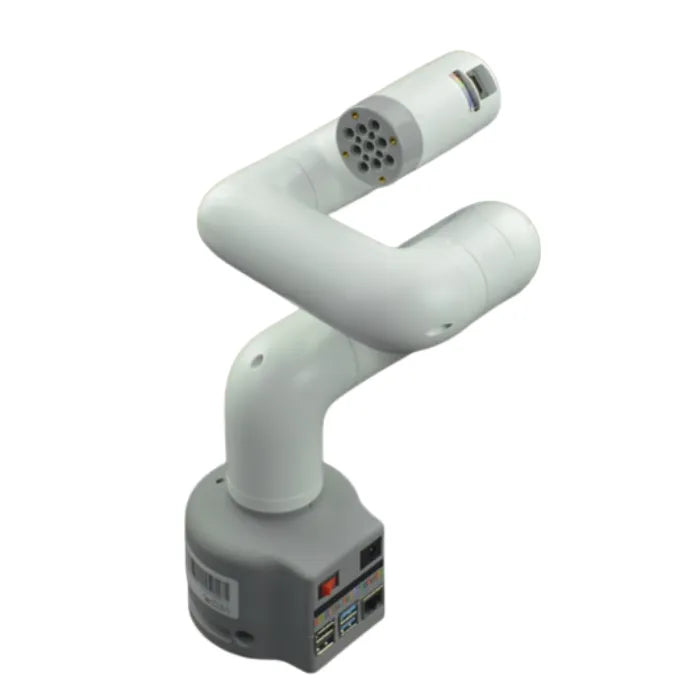

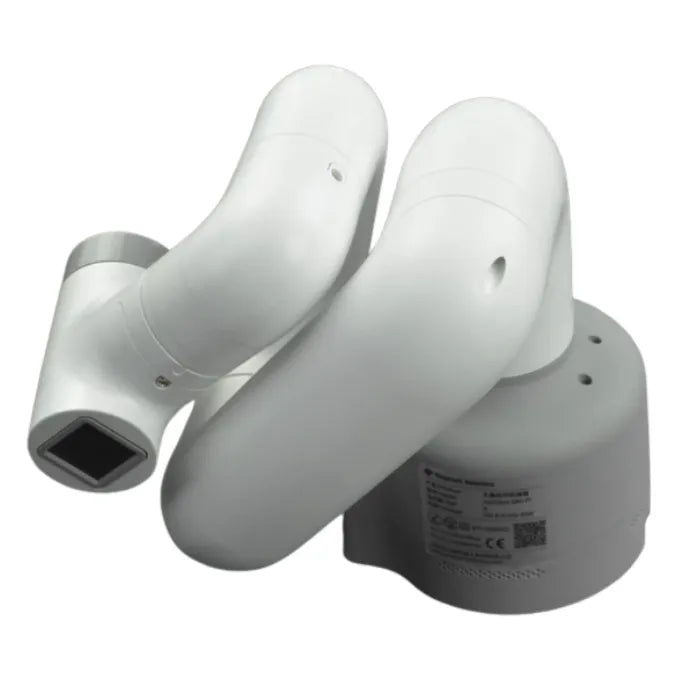

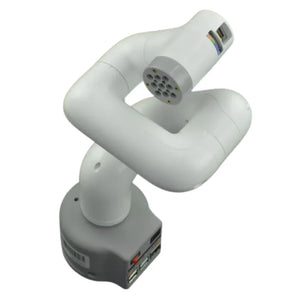

Six-axis Robotic Arm (Based on a Raspberry Pi) With Flat Base
The Six-axis Robotic Arm with Flat Base is a compact, portable, and highly functional robotic platform built on a Raspberry Pi microprocessor and pre-installed with an Ubuntu operating system. Featuring a 280mm working radius and six degrees of freedom (6 DoF), it supports independent operation without a PC, making it ideal for robotics development, education, research, and light industrial applications.

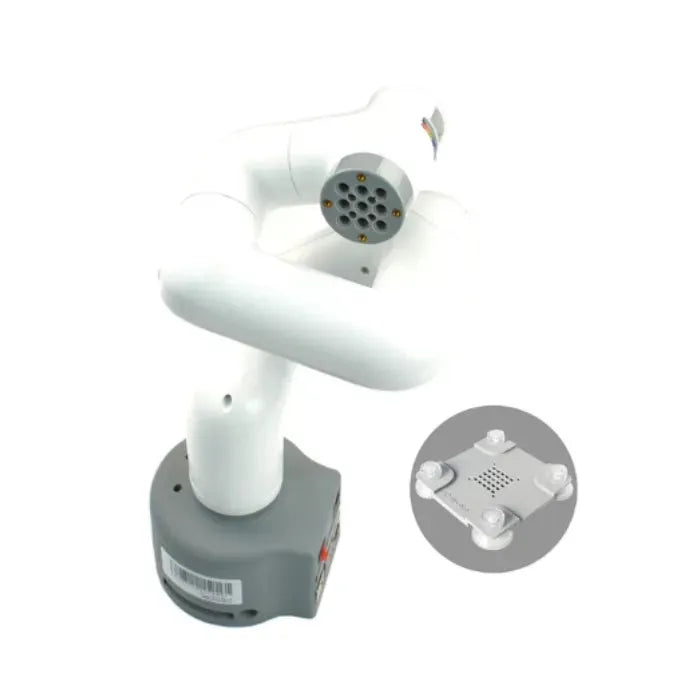

This version comes with a flat base, equipped with suction cups for quick, stable installation on smooth surfaces.
Key Features
-
Runs independently without the need for a PC
-
Based on Raspberry Pi (BCM2711, 1.5GHz Quad-Core CPU)
-
Supports ROS, Python, C++, C#, and graphical programming (myBlockly, Mind+)
-
High-precision control with ±0.5mm positioning accuracy
-
6 high-performance servo motors ensure smooth and responsive movement
-
Plug-and-play design with LEGO-compatible connectors for expansion
-
Built-in image recognition, color tracking, QR code, and gesture recognition
-
Compatible with various USB cameras and accessories (displays, grippers, suction pumps)
-
Lightweight and portable, easy to disassemble and replace
Applications
-
Scientific research and education
-
Smart home automation
-
Light industrial automation
-
Robot algorithm development
-
ROS simulation and real-world testing
Specifications
-
Degrees of Freedom (DoF): 6
-
Working Radius: 280mm
-
Payload: 250g
-
Repeated Positioning Accuracy: ±0.5mm
-
Power Input: 8V–12V, 5A
-
Weight: 850g
-
Operating Temperature: -5°C to 45°C
Hardware and Interfaces
-
SOC: Broadcom BCM2711
-
CPU: Quad-Core 1.5GHz
-
USB Ports: 2x USB 3.0, 2x USB 2.0
-
HDMI: 2x Micro HDMI
-
IO Interface: 40-pin GPIO
-
Communication: Type-C
-
Wireless: Wi-Fi and Bluetooth supported
-
OS Platform: Debian / Ubuntu
-
Programming: Embedded ROS, Python, and graphical environments
Flat Base Installation Guide
-
Attach the suction cups to the four corners of the base and tighten.
-
Secure the robotic arm to the flat base using included LEGO-compatible connectors.
-
Press the suction cups onto a smooth surface. A small amount of non-conductive liquid can be added under each cup to enhance absorption and stability.

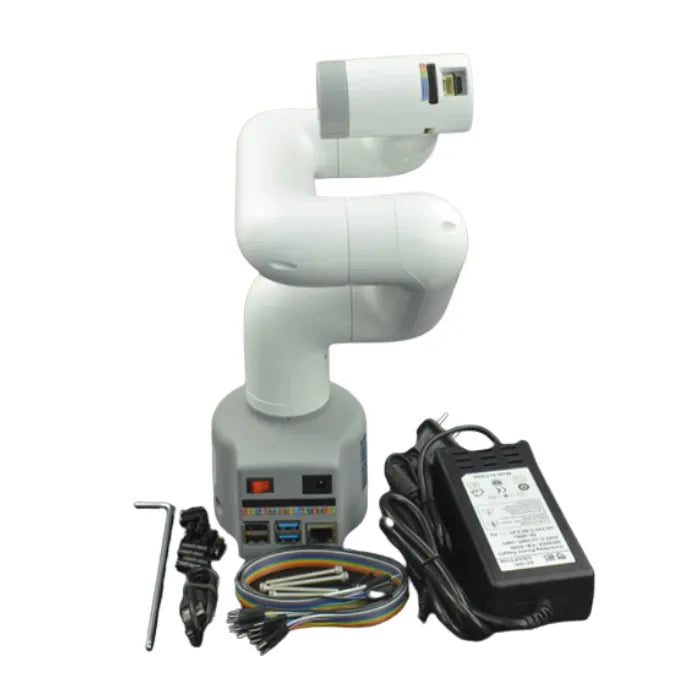

Shipping List
-
Six-axis Robotic Arm (Raspberry Pi-based) ×1
-
Flat Base ×1
-
Power Supply Adapter ×1
-
Type-C Cable ×1
-
Screw Package ×1
-
Allen Wrench ×1
-
Jump Wires ×1
