Six-axis Robotic Arm (Based on a Raspberry Pi)

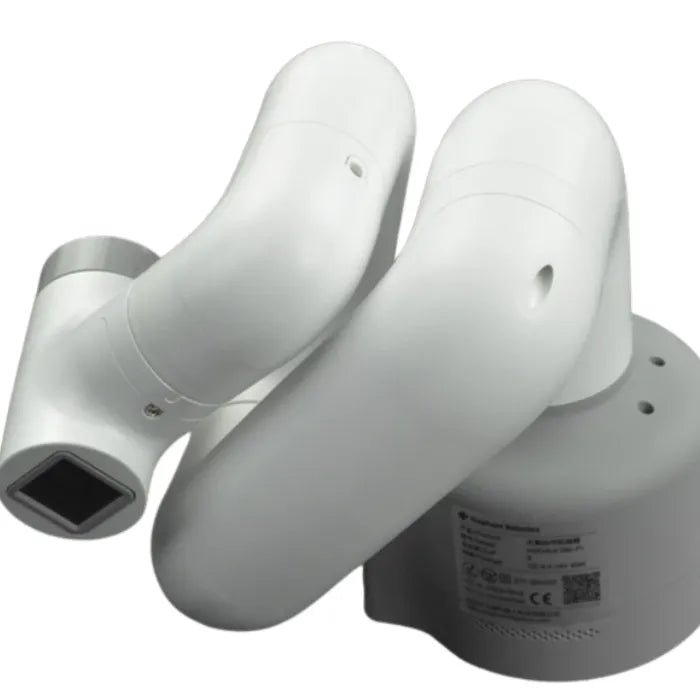

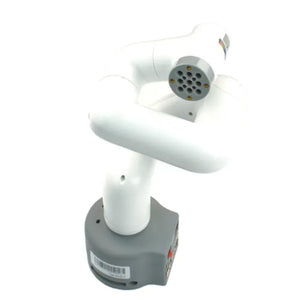

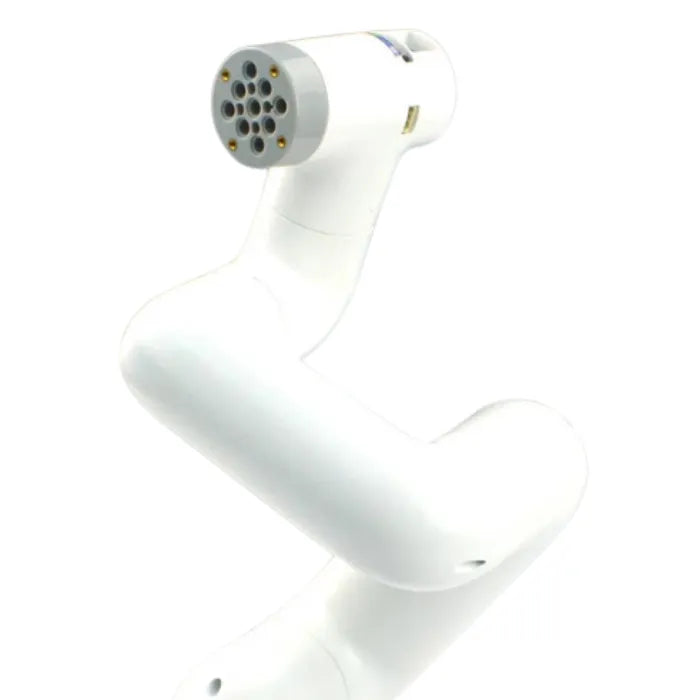

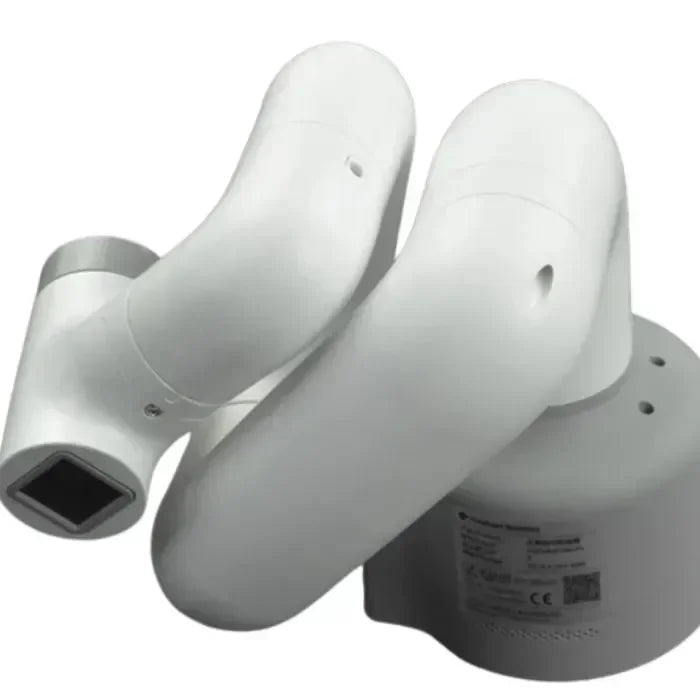

The Six-axis Robotic Arm is a compact, powerful, and portable robotic system built on the Raspberry Pi microprocessor. With a 280mm working radius, six degrees of freedom (6 DoF), and independent operation without a PC, it is an ideal platform for robotic development, research, education, and commercial applications. Running on an Ubuntu-based environment, it supports ROS, Python, C++, and graphical programming through myBlockly or Mind+.
Key Features
-
Powered by Raspberry Pi (BCM2711, 1.5GHz Quad-Core)
-
Runs independently with pre-installed Ubuntu OS
-
Supports ROS, Python, C++, C#, and graphical programming platforms
-
Working radius of 280mm, with ±0.5mm positioning accuracy
-
Plug-and-play design with easy disassembly and portability
-
Integrated image recognition, QR code, and gesture detection
-

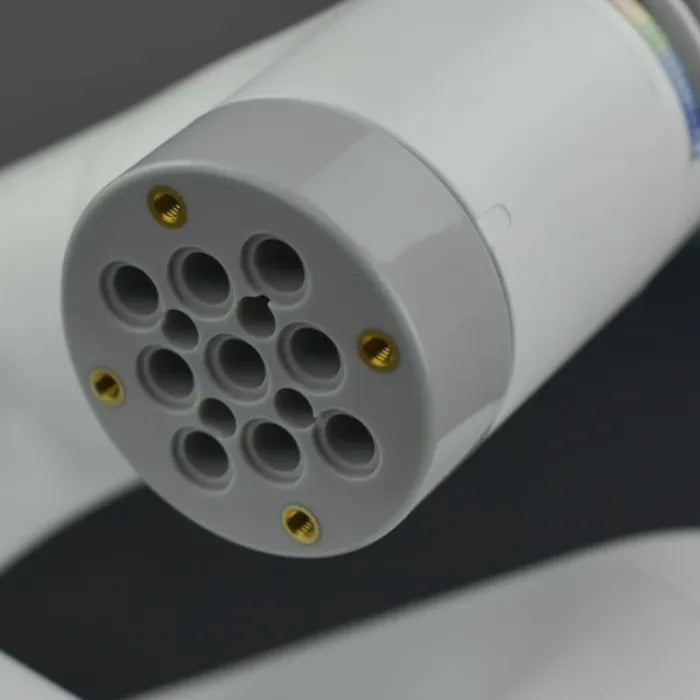

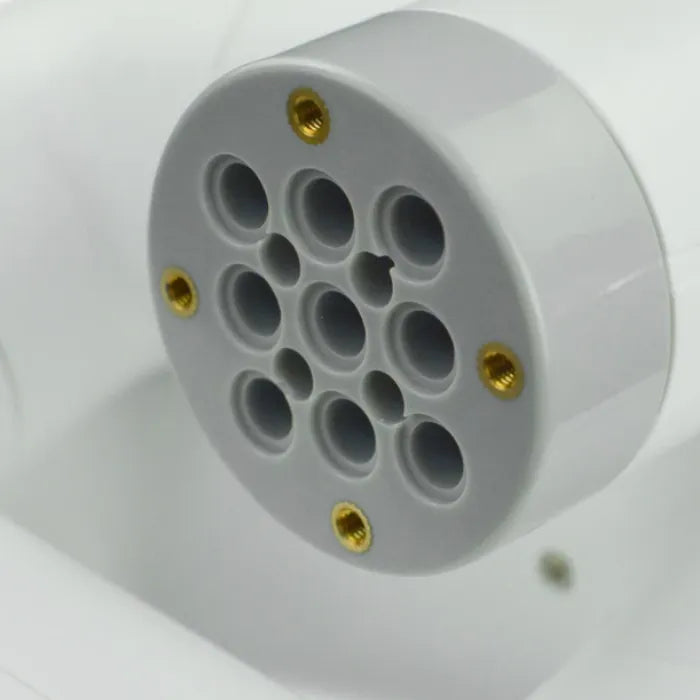

Equipped with LEGO-compatible base and end connectors for custom expansions
-
Compatible with a variety of USB cameras and accessory modules
-
Supports wireless and Bluetooth connectivity
-
Ideal for STEM education, smart home projects, light industrial automation, and more
Specifications
-
Degrees of Freedom: 6
-
Payload: 250g
-
Working Radius: 280mm
-
Repeated Positioning Accuracy: ±0.5mm
-
Power Input: 8V–12V, 5A
-
Weight: 850g
-
Operating Temperature: -5°C to 45°C

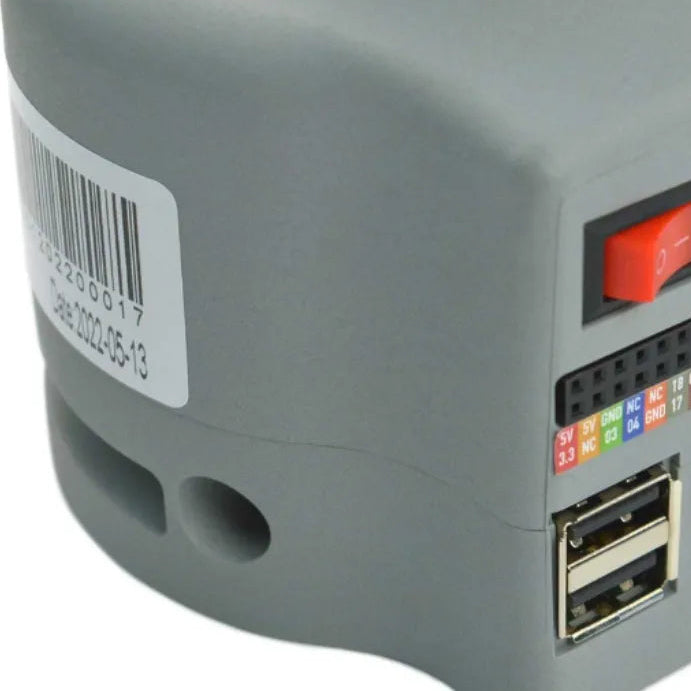

Hardware Interfaces
-
CPU: Broadcom BCM2711, 1.5GHz, Quad-Core
-
USB Ports: 2x USB 3.0, 2x USB 2.0
-
HDMI: 2x Micro HDMI
-
IO Ports: 40-pin GPIO
-
Communication Interface: Type-C
-
Operating System: Ubuntu / Debian
-
Programming Support: ROS, Python, C++, C#, myBlockly, Mind+
-
Wireless & Bluetooth: Supported
-
Camera Compatibility: Compatible with various USB cameras
Applications
-
Scientific Research and Teaching
-
Smart Home Automation
-
Light Industry Use
-
Robot Algorithm Development
-
ROS Simulation Projects
-
Vision-based Object Tracking and Manipulation

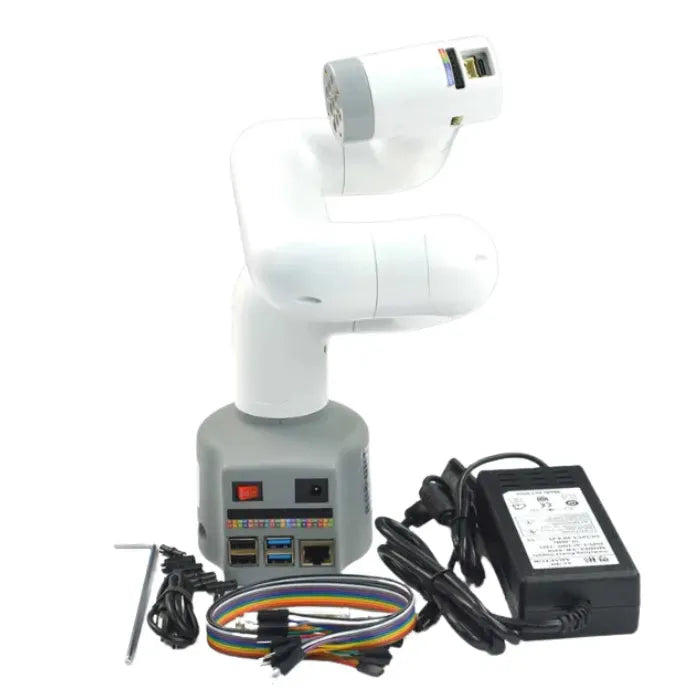

Shipping List
-
Six-axis Robotic Arm (Raspberry Pi-based) x1
-
Power Supply Adapter x1
-
Type-C Cable x1
-
Screw Package x1
-
Allen Wrench x1
-
Jump Wires x1
