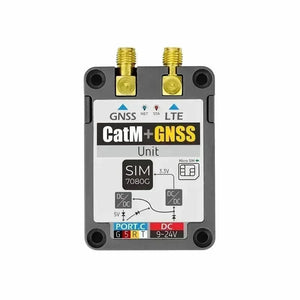

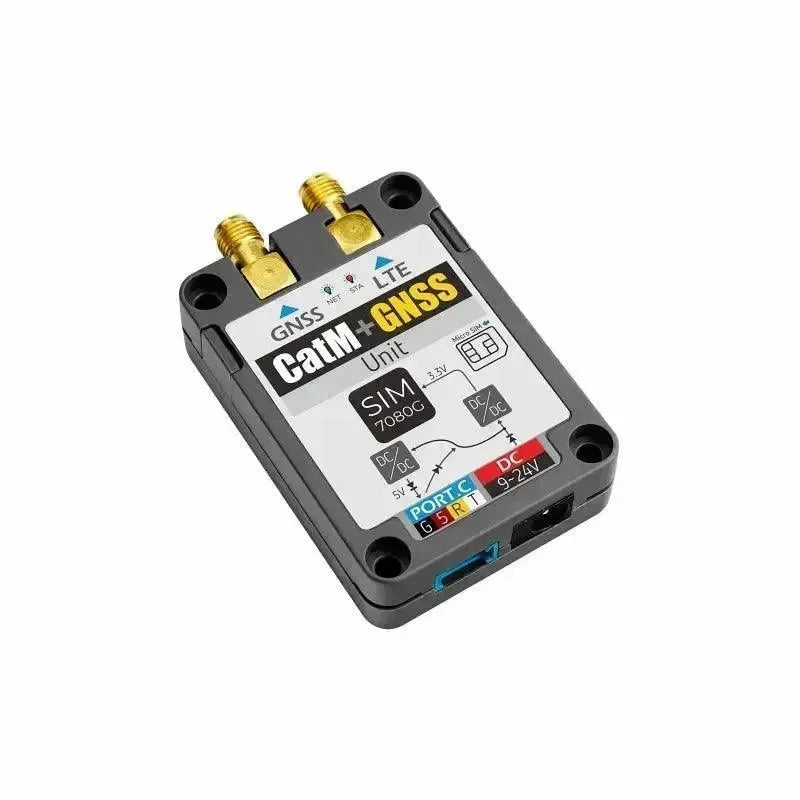

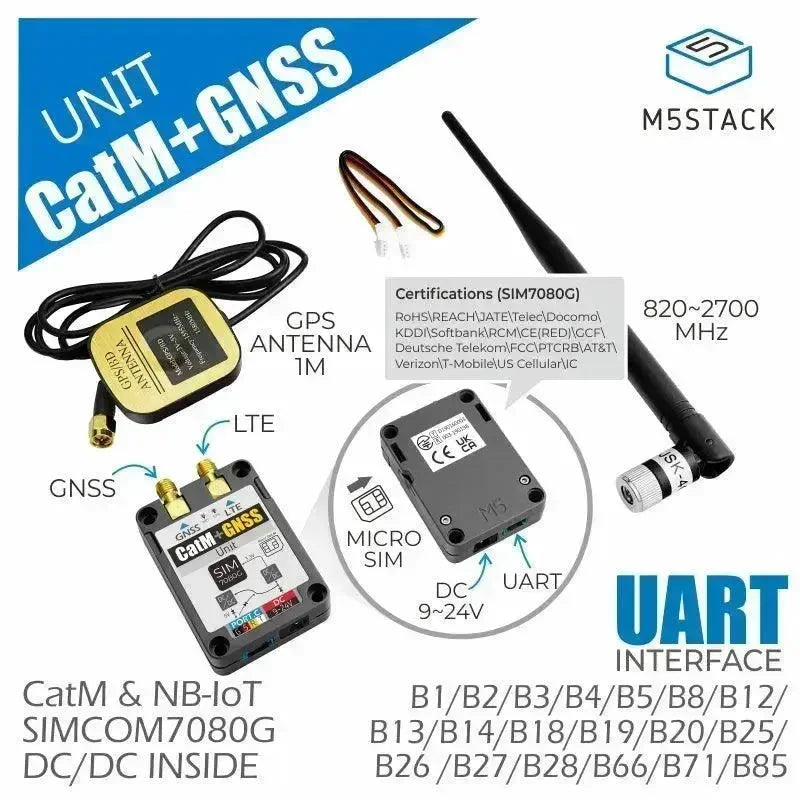

SIM7080G CAT-M/NB-IoT+GNSS Unit with Telec Antenna

CatM+GNSS unit is a global version of a wireless communication module that supports both CAT-M (Category M) and NB-IoT (Narrowband Internet of Things) dual-mode connectivity. The module, powered by the SIM7080G internal module, is designed to operate on CAT-M and NB-IoT bands globally, making it compatible with various cellular networks worldwide.

In addition to wireless communication capabilities, CatM+GNSS unit also features GNSS (Global Navigation Satellite System) support. This allows it to receive location data from satellite systems such as GPS, GLONASS, and BeiDou, enabling accurate positioning and tracking functionality.

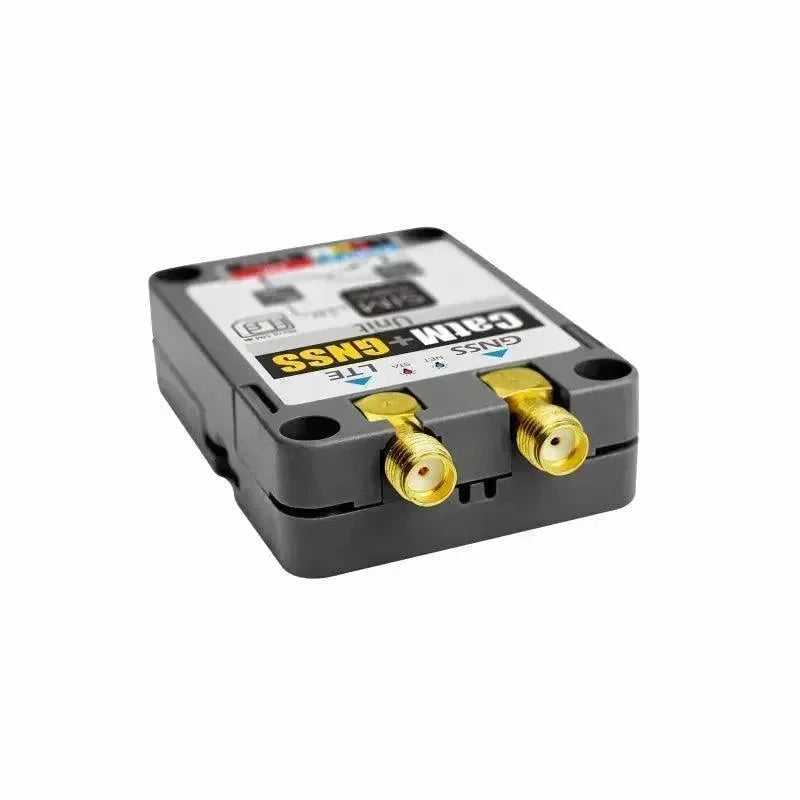

The unit utilizes serial communication and can be controlled using AT commands, providing a straightforward interface for integration and control within IoT applications. It supports multiple communication protocols, allowing for compatibility with various systems and platforms. To enhance communication quality and signal stability, CatM+GNSS unit is equipped with dual SMA external antenna interfaces for LTE (Long-Term Evolution) and GNSS signals. This ensures reliable connectivity and improved signal reception, particularly in remote or challenging environments.

CatM+GNSS unit is well-suited for a range of IoT applications, including remote control, remote monitoring, asset tracking, and other applications that require reliable and global wireless connectivity with location capabilities.

Product Features

• Integrated Communication+Positioning, Dual SMA antenna interfaces
  • Cat-M & NB-IoT modes with Global Coverage
    • Uplink: & Downlink:
      • Cat-M: Uplink: 1119Kbps Downlink: 589Kbps
      • NB-IoT: Uplink: 150Kbps Downlink: 136Kbps
    • Supported protocols:
      • TCP/UDP/HTTP/HTTPS/TLS/DTLS/PING/LWM2M/COAP/MQTT and others
    • Certifications:
      • Softbank/Telec/RoHS/REACH/JATE/Docomo/KDDI/RCM/CE(RED)/GCF Deutsche Telekom/FCC/PTCRB/AT&T/Verizon/T-Mobile/US Cellular/IC
  • GNSS: GPS/GLONASS/BeiDou/Galileo
  • MicroSIM card slot

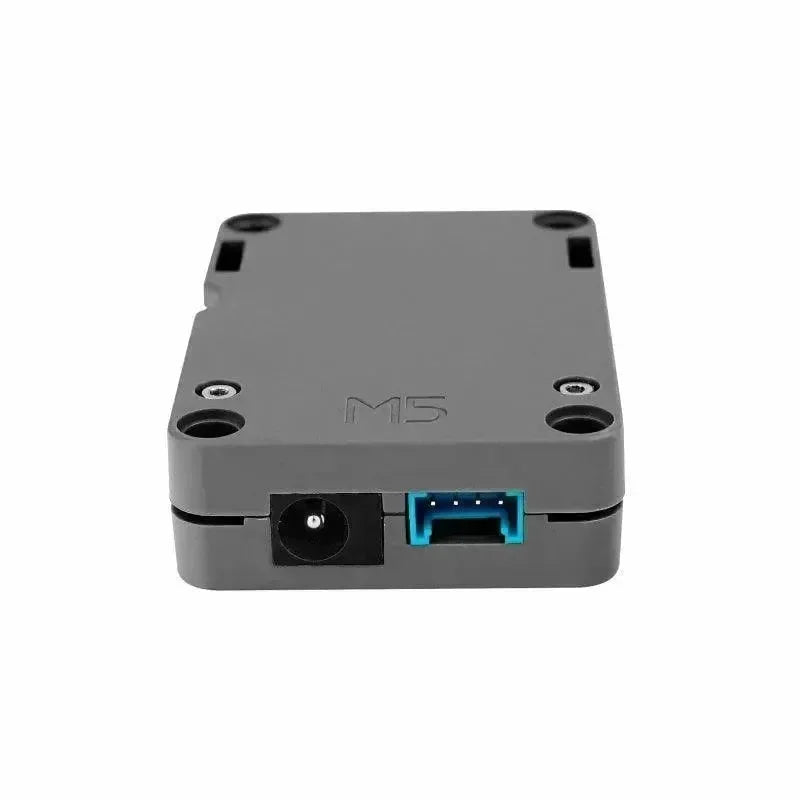

• Two power supply：
  • External DC 9-24V (5.5/2.1mm DC socket) input, built-in DC/DC circuit, to converter 9-24V to 5V
  • External DC 5V power through HY2.0-4P cable
• Communication interface: UART(3.3V TTL), AT Command control
• Supported platform: Arduino IDE, UIFlow

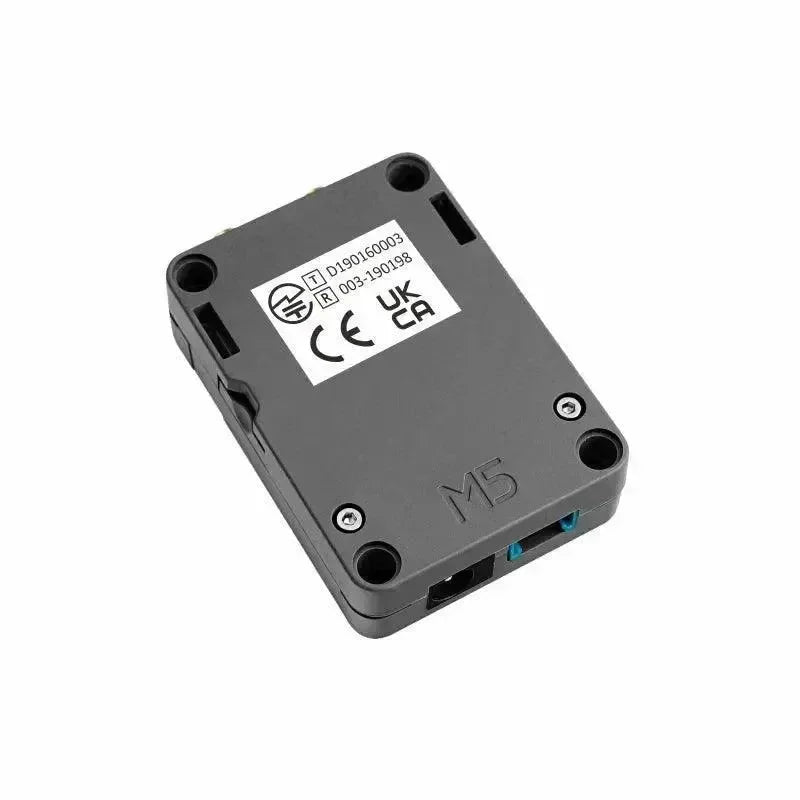

• Reserved 4 installation holes, suitable for multiple installations

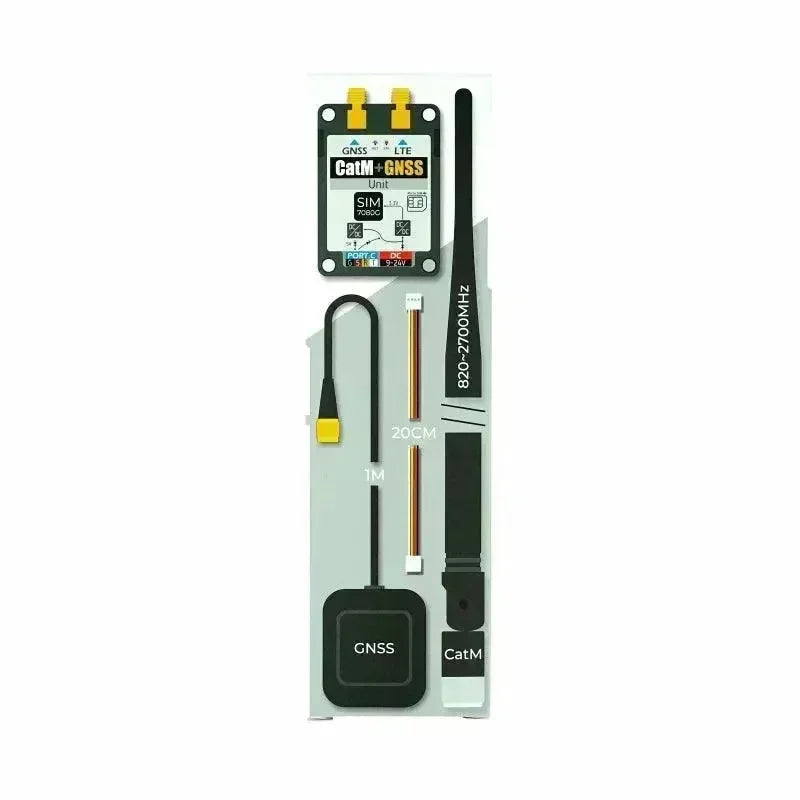

Included

• 1x Unit CatM+GNSS
• 1x 4G Antenna (Telec)
• 1x GPS Antenna
• 1x HY2.0-4P cable (20cm)

Applications

• Remote Control
• Remote Monitor
• AGV

Specification
