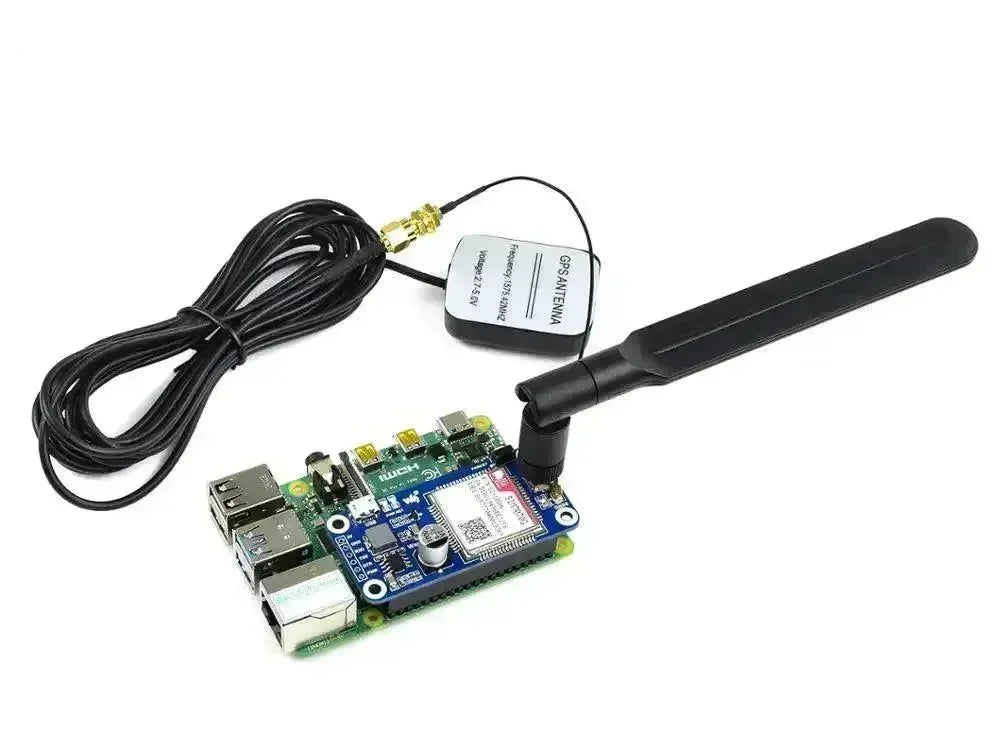

SIM7070G NB-IoT / Cat-M / GPRS HAT For Raspberry Pi, Global Band Support, With GNSS Positioning
NB-IOT / CAT-M / GPRS / GNSS HAT
Low Power Narrow Band Cellular IoT Communication Module For Raspberry Pi
Based on SIM7070G, Global Band Support
This is a telecommunication HAT for Raspberry Pi which supports global bands of NB-IoT, Cat-M, and GPRS, as well as GNSS positioning function. Due to its advantages such as small size, low delay, and wide coverage, it is the ideal choice for IoT applications such as intelligent instruments, asset tracking, remote monitoring, e-health, and so on.
Compared to SIM7080G, this module also supports GPRS (2G); compared to SIM7000C/E, it is more generic due to the global bands support.
Features At A Glance
-
Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards
-
Supports communication protocols such as TCP/UDP/HTTP/HTTPS/TLS/DTLS/PING/LWM2M/COAP/MQTT
-
Supports GNSS positioning (GPS, BeiDou, GLONASS, Galileo)
-
Onboard USB interface, to test AT Commands, get GPS positioning data, and so on
-
Breakout UART control pins, to connect with host boards like Arduino/STM32
-
SIM card slot supports ONLY 1.8V SIM card (3V SIM card is not available)
-
2x LED indicators, easy to monitor the working status
-
Baudrate: 300~3686400 bps
-
Common baud rate auto-negotiation: 9600/19200/38400/57600/115200 bps
-
Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32)
Specifications
| NB-IOT/CAT-M/2G | |
|---|---|
| Band | NB-IoT: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B26/B28/B66/B71/B85 |
| Cat-M: B1/B2/B3/B4/B5/B8/B12/B13/B14/B18/B19/B20/B25/B26/B27/B28/B66/B85 | |
| GSM/GPRS/EDGE: 850/900/1800/1900MHz | |
| Data rate | NB-IoT: 136Kbps(DL)/150Kbps(UL) |
| Cat-M: 589Kbps(DL)/1119Kbps(UL) | |
| GPRS: 85.6Kbps(DL)/85.6Kbps(UL) | |
| EDGE: 236.8Kbps(DL)/236.8Kbps(UL) | |
| SIM card support | NB-IoT/Cat-M/2G card (1.8V SIM card ONLY) |
| Applicable region | global |
| GNSS | |
| Receiver type | 16-channel |
| C/A Code | |
| Band | GPS L1: 1575.42 ± 1.023MHz |
| GLONASS L1: 1598.0625 ~ 1605.375MHz | |
| BDS B1: 1559.052 ~ 1591.788MHz | |
| Galileo L1: 1575.42 ± 1.023MHz | |
| Data format | NMEA-0183 |
| Antenna | Active antenna |
| OTHER | |
| Power supply | 5V |
| Operating voltage | 5V / 3.3V (configured via 0Ω resistor) |
| Current consumption | about 41mA (idle mode) |
| Operating temperature | -40°C ~ 85°C |
| Storage temperature | -45°C ~ 90°C |
| Dimensions | 30.50mm × 65.00mm |
Standard Raspberry Pi 40PIN GPIO
Compatible With Raspberry Pi Series Boards
Global Band Support Of NB-IoT/Cat-M/2G
NB-IoT: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B26/B28/B66/B71/B85
Cat-M: B1/B2/B3/B4/B5/B8/B12/B13/B14/B18/B19/B20/B25/B26/B27/B28/B66/B85
GSM/GPRS/EDGE: 850/900/1800/1900MHz
Cloud Communication
Supports Communication Protocols Including TCP/UDP/HTTP/HTTPS/TLS/DTLS/PING/LWM2M/COAP/MQTT
GNSS Positioning
Supports GPS, BeiDou, GLONASS, Galileo Positioning

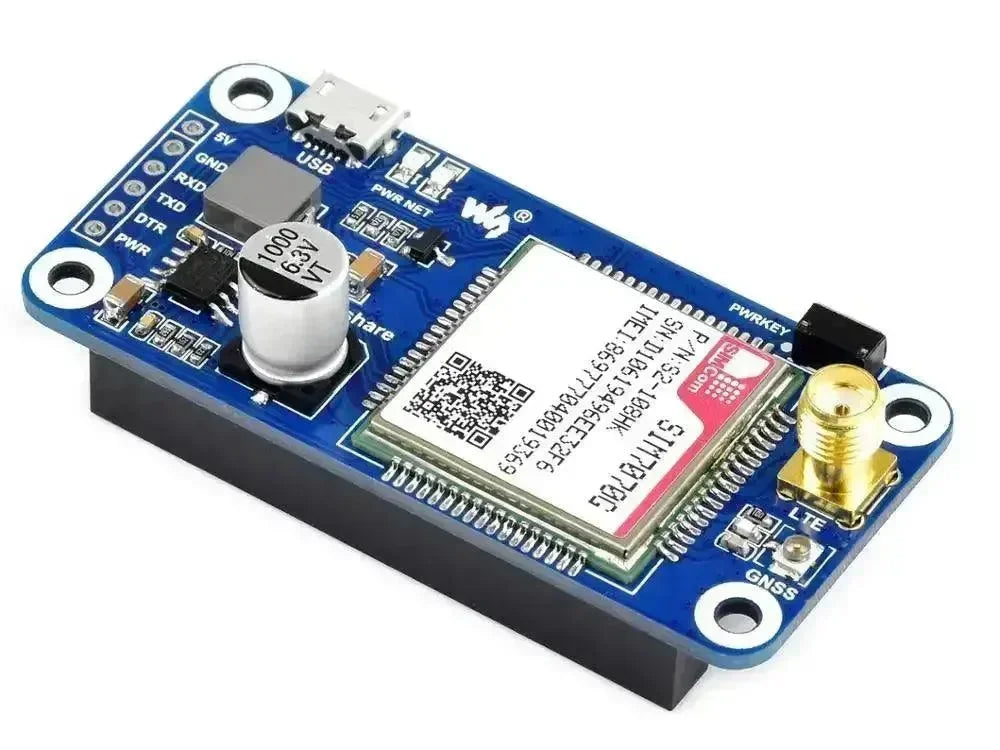

What's On Board
-

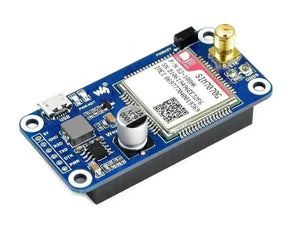

SIM7070G
-
MP1482 power chip
-
RT9193-33 power chip
-

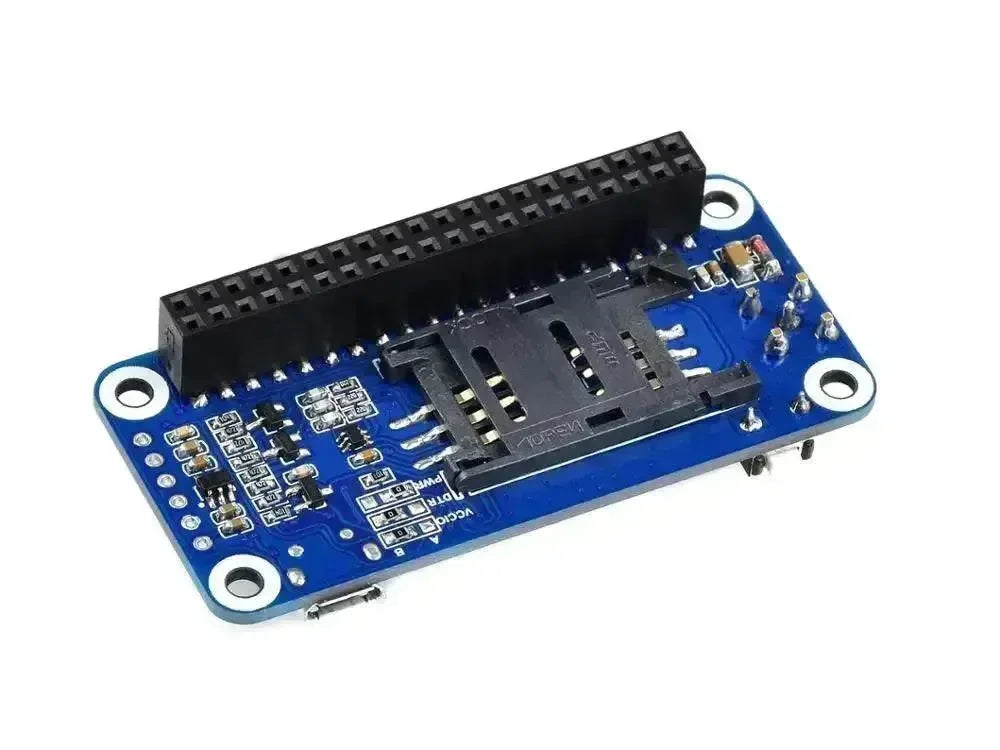

Raspberry Pi GPIO header
for connecting with Raspberry Pi
-
USB interface
for testing AT Commands, getting GPS positioning data, etc.
-
SIM7070G control interface
for connecting with host boards like Arduino/STM32
-

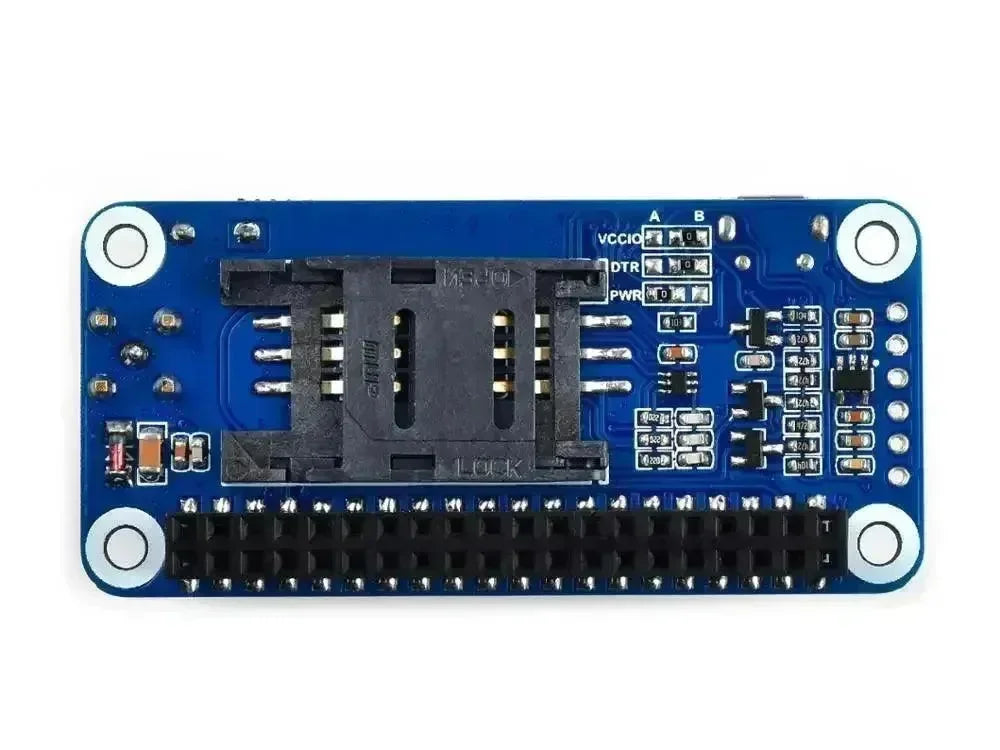

SIM card slot
supports 1.8V SIM card ONLY
-
GNSS antenna connector
-
LTE antenna connector
-
Module power key
-
Network status indicator
-
Power indicator
-
Operating voltage selection
A: set IO level as 5V
B: set IO level as 3.3V (default)
-
DTR selection
A: DTR is connected to P26
B: DTR is disconnected (default)
-
PWR selection
A: PWR is connected to P4 (default)
B: PWR is connected to the power supply
Selection Guide
| CAT-M & NB-IOT & GSM | CAT-M & NB-IOT | NB-IOT | ||||
|---|---|---|---|---|---|---|
| SIM7000C | SIM7000E | SIM7070G | SIM7080G | SIM7020C | SIM7020E | |
| Applicable regions | China | Europe / Africa / Australia / Southeast Asia | Global | China | Europe / Africa / Australia / Southeast Asia | |
| Band | ||||||
| NB-IoT | LTE-FDD: B1/B3/B5/B8 | LTE-FDD: B3/B8/B20/B28 | B1/B2/B3/B4/B5/B8/B12/B13/B18/B19 /B20/B25/B26/B28/B66/B71/B85 |
LTE-FDD: B1/B3/B5/B8 |
LTE-FDD: B1/B3/B5/B8/B20/B28 |
|
| Cat-M | B1/B2/B3/B4/B5/B8/B12/B13/B14/B18 /B19/B20/B25/B26/B27/B28/B66/B85 |
N/A | ||||
| GSM | GPRS/EDGE 900/1800 MHz | GSM/GPRS/EDGE 850/900/1800/1900MHz | N/A | N/A | ||
| GNSS | GPS, GLONASS, BeiDou, Galileo | N/A | ||||
| Data Rate | ||||||
| NB-IoT(Kbps) | 34(DL)/66(UL) | 136(DL)/150(UL) | 136(DL)/150(UL) | 26.15(DL)/62.5(UL) | ||
| Cat-M(Kbps) | 300(DL)/375(UL) | 589(DL)/1119(UL) | 589(DL)/1119(UL) | |||
| EDGE(Kbps) | 236.8(DL)/236.8(UL) | 236.8(DL)/236.8(UL) | ||||
| GPRS(Kbps) | 85.6(DL)/85.6(UL) | 85.6(DL)/85.6(UL) | ||||
| Software Features | ||||||
| Network protocol | TCP/UDP/HTTP/HTTPS/TLS/DTLS/PING/LWM2M/COAP/MQTT, etc. | |||||
| Firmware upgrade | USB | UART | ||||
| Hardware Interfaces | ||||||
| SIM card slot | 1.8V/3.3V | 1.8V | 1.8V | 1.8V/3.3V | ||
| UART | Supports AT commands | Supports AT commands, firmware upgrading | ||||
| USB | Supports AT commands testing, GPS positioning, firmware upgrading, etc. | For external power supply ONLY | ||||
| Antenna connector | LTE antenna (SMA) + GNSS antenna (IPEX) | LTE antenna (IPEX) + GNSS antenna (IPEX) | LTE antenna (SMA) | |||
| Applications | ||||||
| Examples | Meters, remote control, smart home, smart city, intelligent agriculture, and so on | |||||
PACKAGE CONTENT
Weight: 0.148 kg

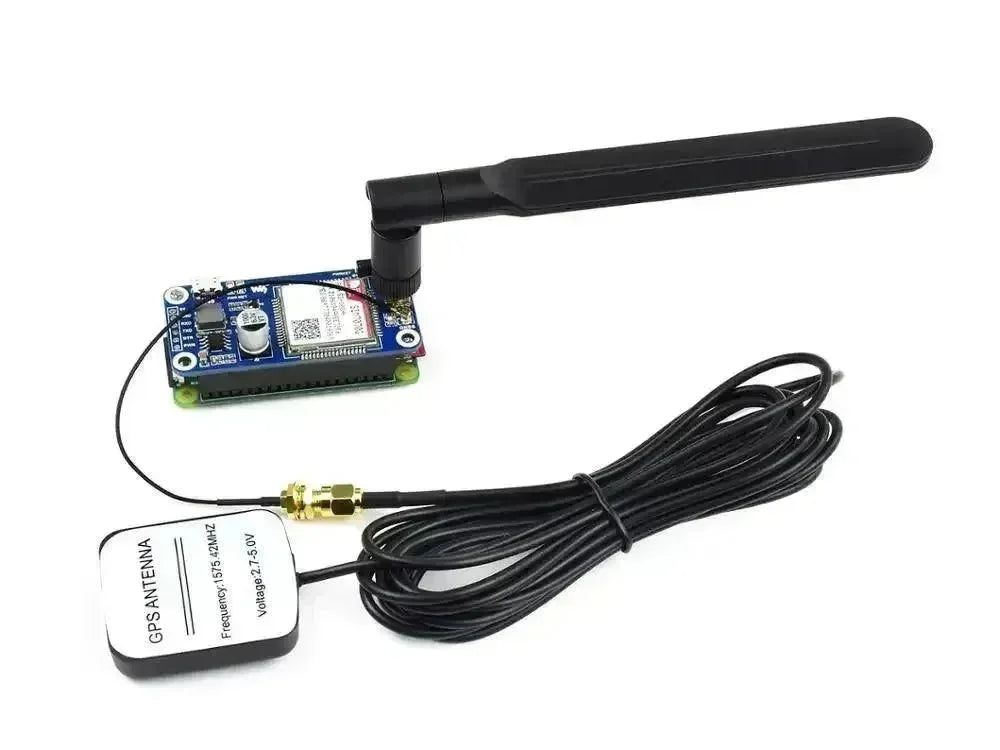

- SIM7070G Cat-M/NB-IoT/GPRS HAT x1
- LTE Antenna x1
- GPS External Antenna (B) x1
- USB-A to Micro-B cable x1
- Standoffs pack x1
