KeyeStudio EASY PLUG Servo Module and Micro Servo

EU
Sale price €3,45
SKU: KY-KS0372
Add to Wishlist Add to Compare

Visa
PayPal
Mastercard
American Express
Shop Pay
Keyestudio EASY PLUG Servo Module and Micro Servo - OpenELAB

KeyeStudio EASY PLUG Servo Module and Micro Servo

€3,45

Shipping & Delivery Information

🚚 In-Stock Items: Orders for in-stock products are shipped within 24 hours after the order is placed.

📦 Pre-order Items: If a product is marked as "Pre-order", it means it is currently out of stock. We'll dispatch your order once we have restocked, usually within 10 working days. For special pre-sale items, the expected arrival date will be noted in the product description.

✈️ Express Shipping: Need your order urgently? Please contact us via email or live chat, and we’ll help arrange express delivery for you.

If you want to use the Micro Servo and EASY PLUG control board to make experiments, you need to use the EASY plug Servo extension module.

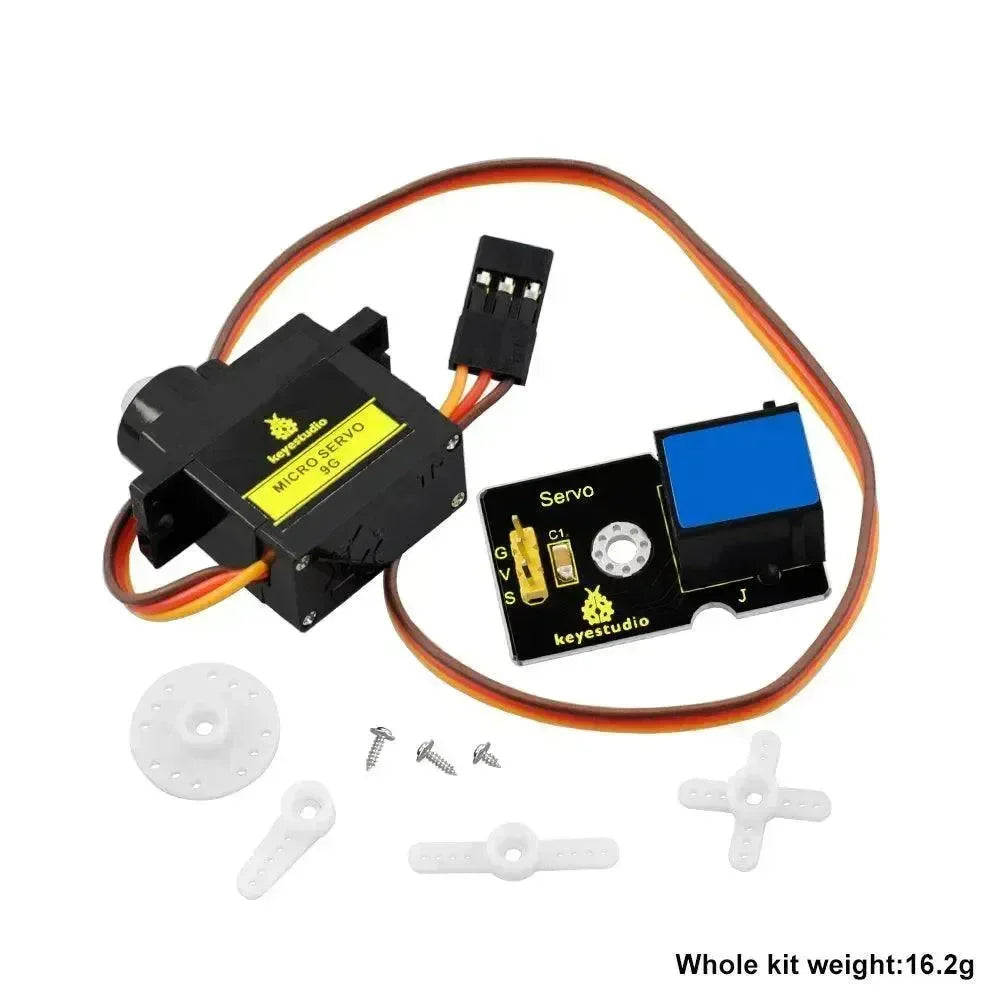

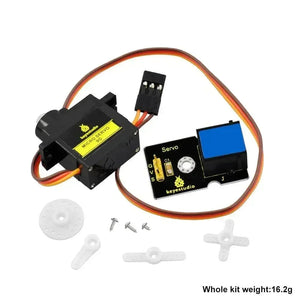

Here comes EASY plug Servo module and a 180° Micro Servo together in the package.


Special Note:
The sensor/module is equipped with the RJ11 6P6C interface, compatible with our keyestudio EASY plug Control Board with RJ11 6P6C interface.
If you have the control board of other brands, it is also equipped with the RJ11 6P6C interface but has different internal line sequence, can’t be used compatibly with our sensor/module.

The EASY plug Servo module is extended into Registered Jack, so you can connect it to EASY PLUG control board using only a RJ11 cable.

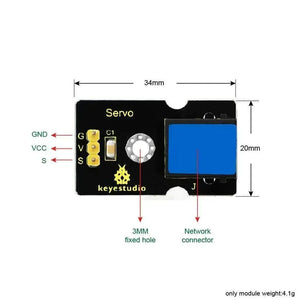

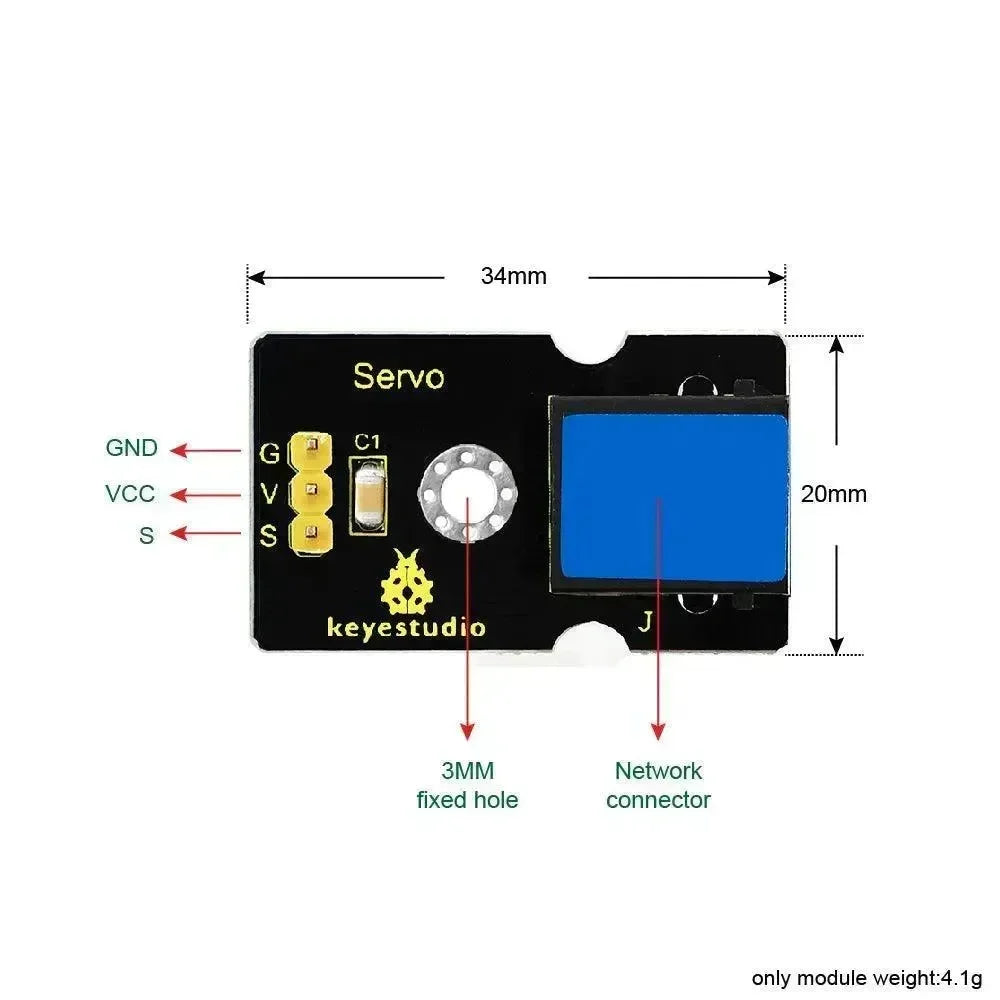

The Servo module also comes with 3pins of 2.54mm pin pitch, fully compatible with servo pins.

Servo motor comes with many specifications. But all of them have three connection wires, distinguished by brown, red, orange colors. Brown one is for ground, red one for power positive, orange one for signal line.Included with your Micro Servo you will find a variety of white motor mounts that connect to the shaft of your servo. You may choose to attach any mount you wish for the circuit. It will serve as a visual aid, making it easier to see the servo spin.
The rotation angle of Servo motor is controlled by regulating the duty cycle of PWM (Pulse-Width Modulation) signal. The standard cycle of PWM signal is 20ms (50Hz).
Theoretically, the width is distributed between 1ms-2ms, but in fact, it’s between 0.5ms -2.5ms. The width corresponds to the rotation angle from 0° to 180°.
thumb

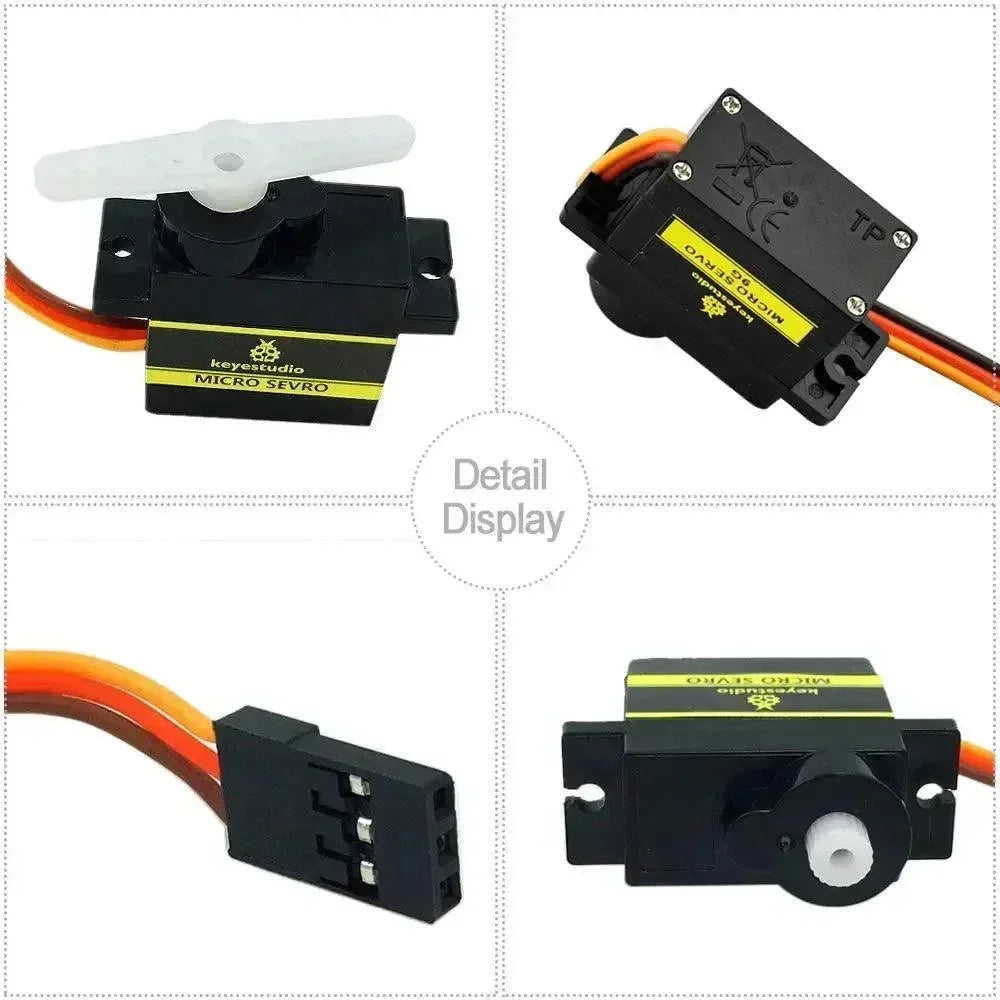

Micro Servo Parameters

  • Operating voltage: DC 4.8V〜6V
  • Angle range: about 180°(in 500→2500μsec)
  • Pulsewidth range: 500→2500μsec
  • No-load speed: 0.12±0.01 sec/60(DC 4.8V); 0.1±0.01 sec/60(DC 6V)
  • No-load current: 200±20mA(DC 4.8V); 220±20mA(DC 6V)
  • Stop torque: 1.3±0.01kg/cm(DC 4.8V); 1.5±0.1kg/cm(DC 6V)
  • Stop current: ≦850mA(DC 4.8V); ≦1000mA(DC 6V)
  • Standby current: 3±1mA(DC 4.8V); 4±1mA(DC 6V)
  • Operation temperature: -10℃〜50℃
  • Save temperature: -20℃〜60℃
  • Motor wire length: 250 ± 5 mm

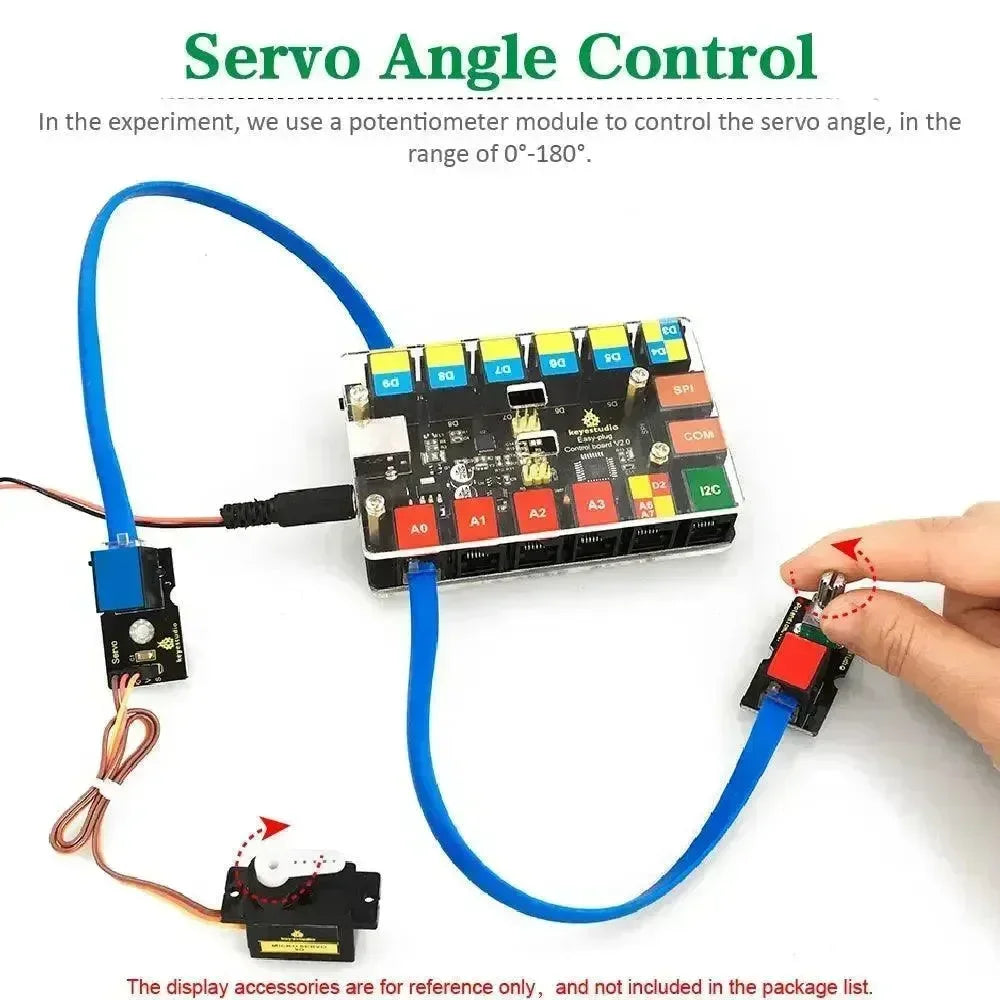

Connect It Up

Connect the EASY Plug servo module and micro servo to control board using an RJ11 cable.
Connect the servo motor to EASY Plug Servo module. Brown line is for ground, red one for V pin, orange one for signal pin.
Then connect the control board to your PC with a USB cable.
thumb

Upload the Code

Below is an example code. Open or drag below code to Mixly Blocks and upload.

thumb



What You Should See


thumb

After uploading the code, open the serial monitor, enter the number 1 to 9, and click Send, it will control the servo motor rotate at a certain angle.
thumb

thumb



Rotating back and forth

Complete the above project, you can also upload the code below to control the servo motor rotating back and forth at a certain angle.

Test Code:

thumb

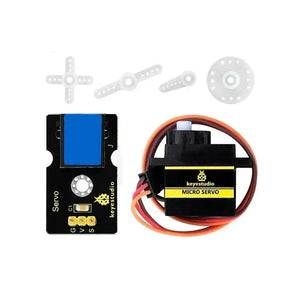

Package Includes:

  • EASY plug Servo Module *1
  • Micro Servo *1
