Home Seeed Studio XIAO nRF54L15 Sense 0.6uA Ultra-Low Power BLE6.0

Seeed Studio XIAO nRF54L15 Sense 0.6uA Ultra-Low Power BLE6.0

EU
Sale price €19,95
SKU: Seeed-101991422
Add to Wishlist Add to Compare

Visa
PayPal
Mastercard
American Express
Shop Pay
Seeed Studio XIAO nRF54L15 Sense 0.6uA Ultra-Low Power BLE6.0

Seeed Studio XIAO nRF54L15 Sense 0.6uA Ultra-Low Power BLE6.0

€19,95

Shipping & Delivery Information

🚚 In-Stock Items: Orders for in-stock products are shipped within 24 hours after the order is placed.

📦 Pre-order Items: If a product is marked as "Pre-order", it means it is currently out of stock. We'll dispatch your order once we have restocked, usually within 10 working days. For special pre-sale items, the expected arrival date will be noted in the product description.

✈️ Express Shipping: Need your order urgently? Please contact us via email or live chat, and we’ll help arrange express delivery for you.

🤏✨ The Seeed Studio XIAO nRF54L15 Sense is a thumb-sized powerhouse tailored for cutting-edge IoT applications. Built around Nordic's advanced nRF54L15 SoC, it features:

  • 🔄 128 MHz Arm Cortex-M33 core

  • 💾 1.5 MB NVM

  • 🔐 A dedicated RISC-V security coprocessor (SoC level)

🌐 Comprehensive wireless protocol support includes:

  • BLE 6.0, Matter, Thread, Zigbee, and Amazon Sidewalk

🔋 Engineered for ultra-low power consumption, it’s ideal for battery-powered edge devices, supported by:

  • ⚡ Integrated battery charging circuit

  • 🔌 USB Type-C interface

  • 🔢 14 versatile GPIOs

🎤📈 What makes the Sense version unique?

  • 🧭 6-axis IMU for motion detection

  • 🎙️ Digital microphone for sound-based interactions

🛡️ Robust security suite enables trusted deployments, while developers benefit from:

  • ⚙️ Full support for nRF Connect SDK

  • 🧰 Workflow-ready with PlatformIO and Zephyr RTOS



Feature

⚙️ Powerful SoC with Advanced Connectivity & Security

The XIAO nRF54L15 Sense packs Nordic's latest nRF54L15 SoC—featuring:

  • 💻 128 MHz Arm Cortex-M33 core

  • 🧠 1.5 MB NVM

  • 🔐 A dedicated RISC-V security coprocessor

📶 Supports a full suite of wireless protocols:

  • 🟦 BLE 6.0, 🔵 Matter, 🧵 Thread, 🧿 Zigbee (IEEE 802.15.4-2020)

  • ⚡ Includes 4 Mbps mode for proprietary 2.4 GHz protocols

  • 🌐 Seamless with Amazon Sidewalk, Apple Find My, and Google Find My Device via nRF Connect SDK

🛡️ Security Features:

  • 🧰 Secure boot & firmware updates

  • 🧊 Secure storage

  • 🧩 TrustZone-based trusted execution

  • 🔑 Crypto acceleration with side-channel protection

  • 🚨 Tamper detection


🔋 Ultra-Low Power Efficiency

Perfect for battery-powered edge devices, with:

  • 🌱 System OFF mode at just 0.6 µA (SoC-level)

  • 🔌 Integrated battery charging circuit 🧮 Final board-level consumption data coming soon


🎤🎽 Audio & Motion Sensing Built In

  • 🎙️ High-quality digital microphone

  • 🧭 6-axis IMU — ideal for gesture and movement detection


🚀 Streamlined Development Experience

  • 🧵 Full support for nRF Connect SDK

  • 🔧 Works with PlatformIO (Zephyr RTOS)

  • 🚫 Note: Arduino IDE not yet supported



Specification

Product Name

Seeed Studio XIAO nRF54L15

Seeed Studio XIAO nRF54L15 Sense

XIAO nRF52840 - Tiny Arduino Board Supports Bluetooth 5.0

XIAO nRF52840 - Tiny Arduino Board Supports Bluetooth 5.0

Chipset

nRF54L15 ultra-low-power wireless SoC - nordicsemi.com

nRF52840 - Bluetooth 5.4 SoC - nordicsemi.com

Processor

Arm® Cortex®-M33 128 MHz

Arm® Cortex®-M4 32-bit processor with FPU 64 MHz

RISC-V 128 MHz Coprocessor

RAM

256KB

256KB

Flash

1.5 MB Non-volatile Memory (NVM)

1MB internal Flash + 2MB external Flash

Interface

16x GPIO(PWM) Pin

14x GPIO(PWM) Pin

11x GPIO(PWM) Pin

16x Digital Pin

14x Digital Pin

11x Digital Pin

6x Analog Pin

6x Analog Pin

6x Analog Pin

2x I2C

1x I2C

1x I2C

1x UART

1x UART

1x UART

2x SPI

2x SPI

1x SPI

1x NFC

1x NFC

1x NFC

Onboard

1x User LED (1 Color)

1x User LED (3 Colors)

1x Charge LED (Battery Charging Indicator)

1x Charge LED (Battery Charging Indicator)

1x Reset Button

1x BlueTooth Antenna

1x User Button

1x Reset Button

1x Onboard Ceramic Antenna

1x Onboard Ceramic Antenna

1x IPEX4 Connector (for external antenna)

/

/

1x 6-Axis IMU

/

1x 6-Axis IMU

1x PDM Microphone

1x PDM Microphone

Wireless Connectivity

Bluetooth LE 6.0(include Channel Sounding)

Bluetooth LE 5.2

Bluetooth Mesh

Bluetooth Mesh

NFC

NFC

Thread

Thread

Zigbee

Zigbee

Matter

Matter

Amazon Sidewalk

Proprietary 2.4 GHz protocols

Proprietary 2.4 GHz protocols

/

Power Input

Type-C: 5V

Battery: 3.7V

Low Power Mode

The test results will be finalized soon. Please stay tuned.

5uA

Software

Compatibility

Nordic nRF Connect SDK

Arduino IDE

PlatformIO

PlatformIO

Zephyr RTOS

MicroPython

/

CircuitPython

/

Zephyr RTOS

Working

Temperature

-40°C to 105°C

-40 to 85°C

Dimensions

21 x 17.8mm


Hardware Overview

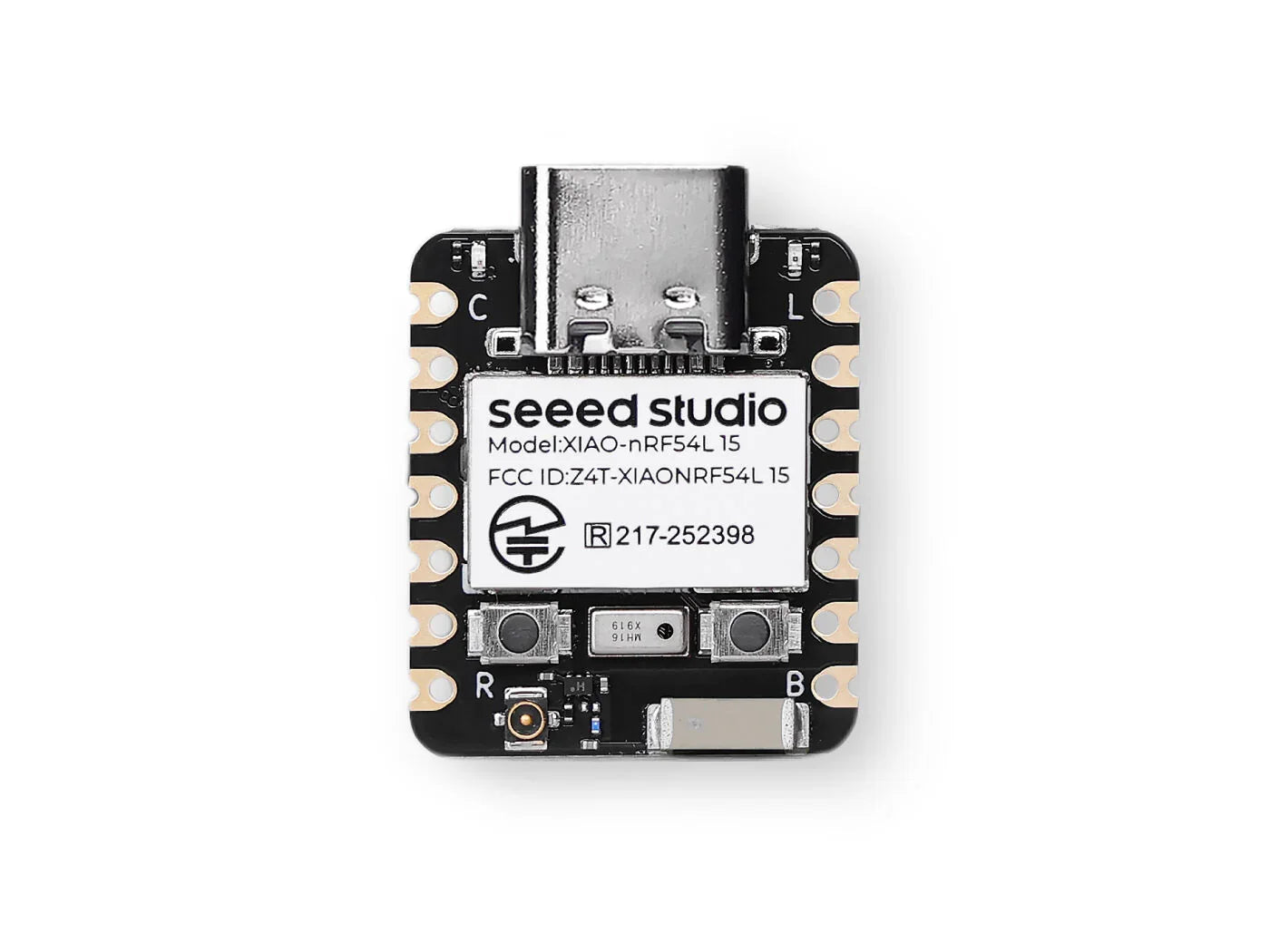

FRONT

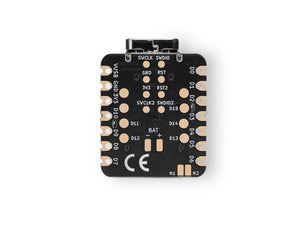

BACK

PinOut


Application

🧍♂️📿 Wearable Devices

Design sleek, intelligent wearables for all-day functionality:

  • 🏃♂️ Fitness trackers with advanced sensor fusion

  • 💍 Secure smart rings with gesture control & NFC payments


🏡🌐 Smart Home & IoT Hubs

Create powerful central hubs or border routers that:

  • 🧵 Support Matter + Thread networks

  • 🔊 Detect wake words for voice command activation

  • 📡 Bridge multiple wireless protocols with ease


🏭🔧 Industrial IoT (IIoT) Sensors

Build smart industrial sensors featuring:

  • 🤖 On-device TinyML for predictive maintenance

  • 🔐 Hardware-level security for data integrity and reliability


🛠️🚀 Advanced Prototyping

Deploy as a developer’s Swiss army knife to:

  • 🧪 Rapidly prototype secure, low-power wireless devices

  • 🕸️ Debug complex multi-protocol networks with ease



Documents

ECCN/HTS


HSCODE 8543709990
USHSCODE 8517180050
UPC
EUHSCODE 8543709099
COO CHINA

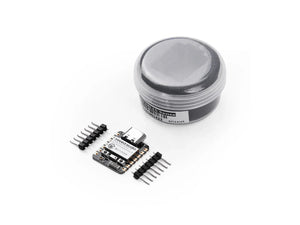

Part List

Seeed Studio XIAO nRF54L15 Sense

X1

7-Pin Header (2.54mm)

X2
