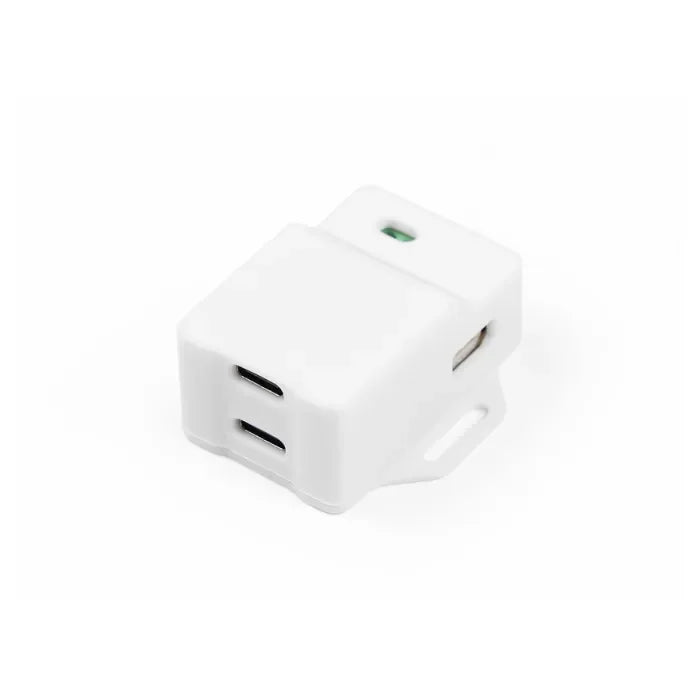

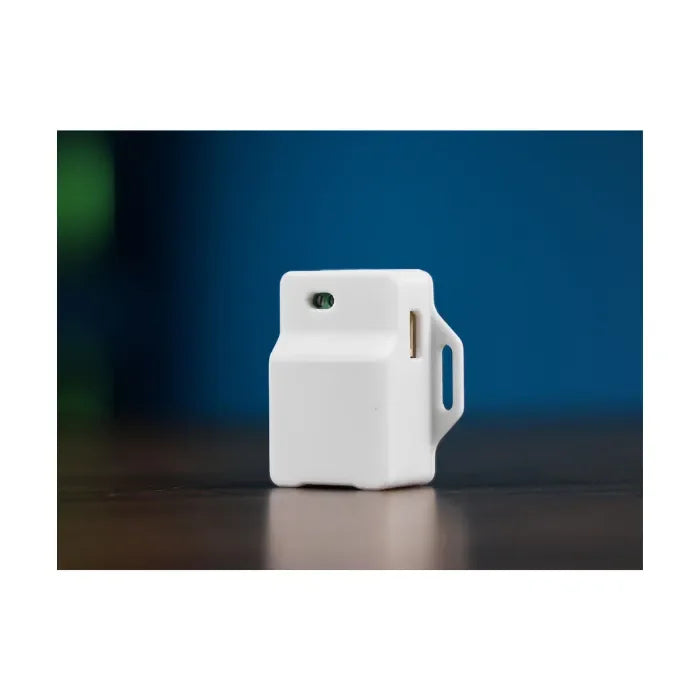

Seeed Studio XIAO Bus Servo Adapter
Powered by the XIAO ESP32-C3, this compact Bus Servo Adapter provides seamless UART control over ST/SC series servos. Ideal for any robotics project, its pocket-sized design and easy installation enable you to build and control dynamic systems in just minutes. Build smarter and move precisely—begin dictating motion immediately!
Feature
Note:Early Build provides beta products (featuring 3D-printed cases) and evolving software before final release. We welcome your feedback and suggestions to shape the product's evolution. Enjoy exploring!
- ST/SC Servo Control by UART:

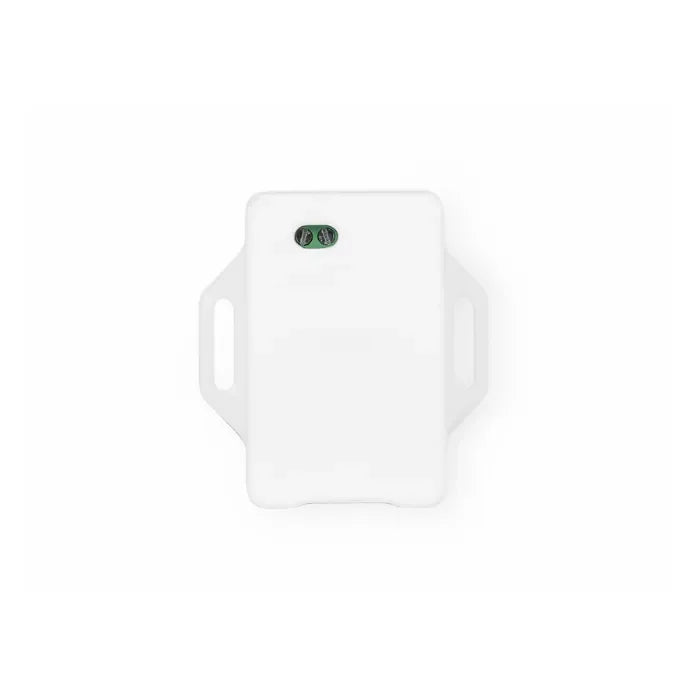

Powered by XIAO ESP32-C3, you can directly drives ST/SC bus servos (require sufficient power) via UART while powering them with 5–12V through a robust 2P 3.5mm screw terminal, ensuring load-synchronized operation.
- Pocket-Sized Agility & Quick-Mount:

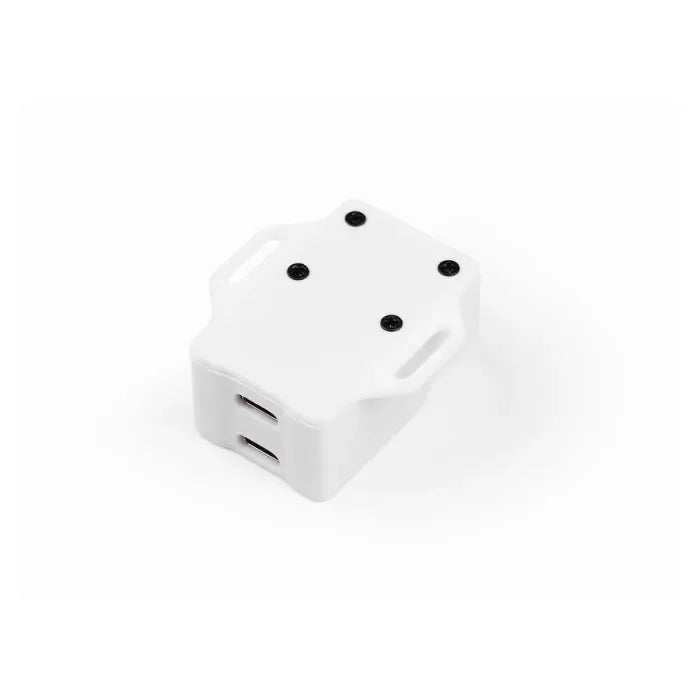

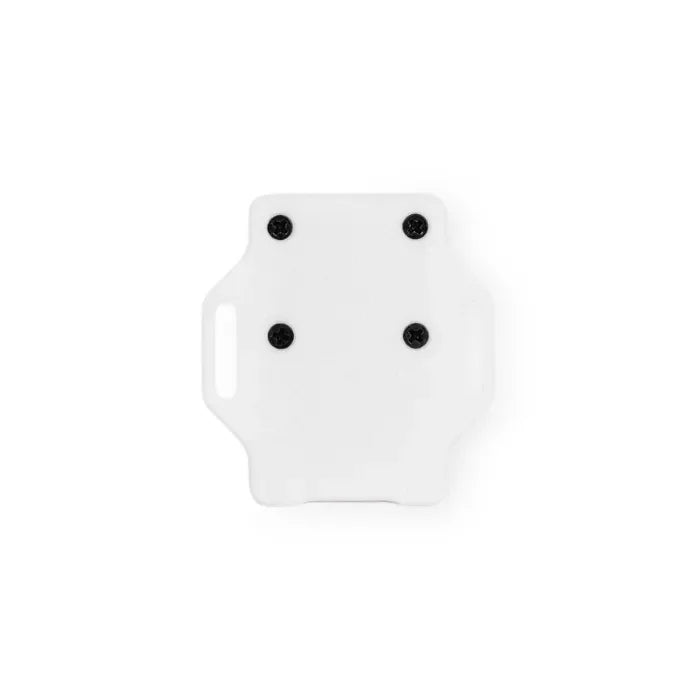

Ultra-compact 42mm × 25mm footprint with protruding side flanges featuring reinforced mounting holes, enabling rapid screw-based installation in embedded projects.
- Versatile Applications - Robotic Arm, Hexapod Robot, Humanoid Robot:
Orchestrate complex kinematics like 6-DOF robotic arms, hexapods, or bipedal robots. Offers demo-ready compatibility with popular kits like the SO-ARM101 Low-Cost AI Arm—ideal for AI vision projects and educational prototyping.
- Open-Source for Custom Development:
Full Arduino IDE support enables bespoke motion programming, while the 3D-printed enclosure is open source, providing a starting point to customize your casing design.
Specification
|
Parameter |
Description |
|
MCU |
|
|
Input Voltage Range |
5-12V DC (dependent on servo voltage) |
|
Communication Protocol |
Serial bus protocol (compatible with ST/SC servos) |
|
Compatible Servo Types |
ST/SC series serial bus servos |
|
Servo Control Quantity |
Multiple |
|
Control Interface |
UART / USB |
|
Power Supply Interface |
2P 3.5mm screw terminal |
|
Servo Interface |
3P 2.5mm terminal |
|

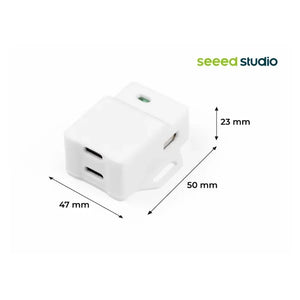

Dimensions |
42mm x 25mm |
|
Weight |
15g |
|
Operating Temperature |
10°C ~ 60°C |
FAQs
Q: How do I power the Bus Servo Driver Board?
A: Connect the power supply via the onboard 2P 3.5mm screw terminal. The input voltage range is 5-12V DC, which must match the rated voltage of the servos used and provide sufficient current to support all connected servos during operation.
Q: How do I connect servos and control devices to the board?
A: Servos are connected to the driver board via the 2.5mm 3P terminal, ensuring proper wiring (power, ground, signal lines). Control devices can be connected to a computer via the USB interface or to a microcontroller via the UART interface, with the specific mode determined by the jumper settings.
Q: How many servos can this driver board control?
A: It can control multiple ST/SC series serial bus servos, with the exact number depending on the power supply capacity and bus load conditions. Theoretically, it supports a large number of servos working together.
Hardware Overview
Note: If you'd like to control the bus servos via USB Type-C, you can purchase Bus Servo Driver Board for Seeed Studio XIAO!



Application
- Supports serial bus servo driving for robotic arms
- Enables servo control in hexapod robots
- Provides servo driving for humanoid robots
- Assists wheeled robots with servo support
- Facilitates servo use in DIY and educational projects
| HSCODE | 8503001000 |
| USHSCODE | 8503003500 |
| UPC | |
| EUHSCODE | 8471707000 |
| COO | CHINA |
Part List
|
XIAO Bus Servo Adapter |
×1 |
