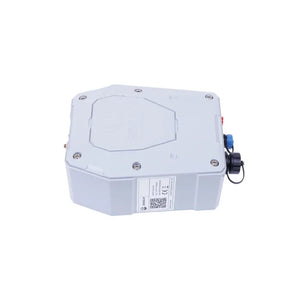

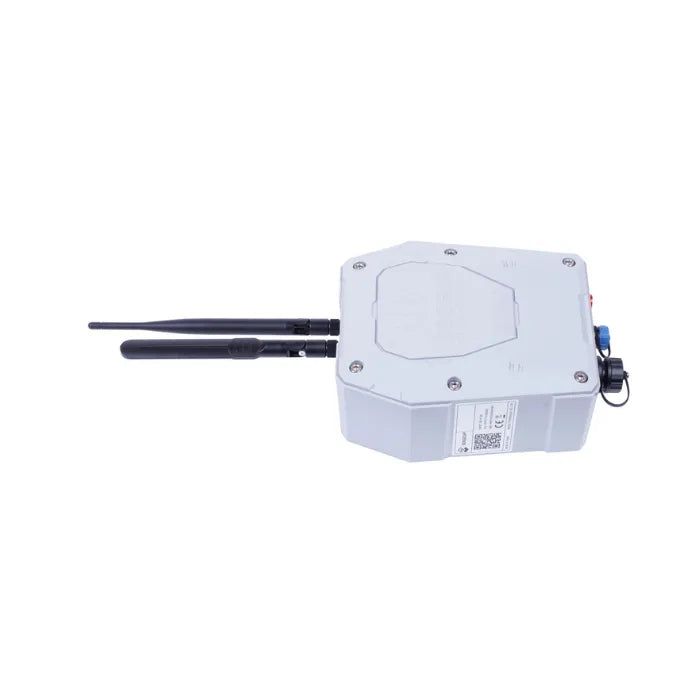

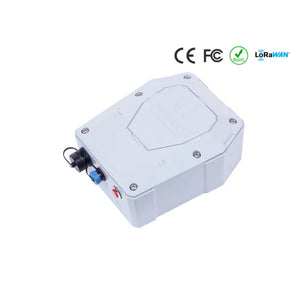

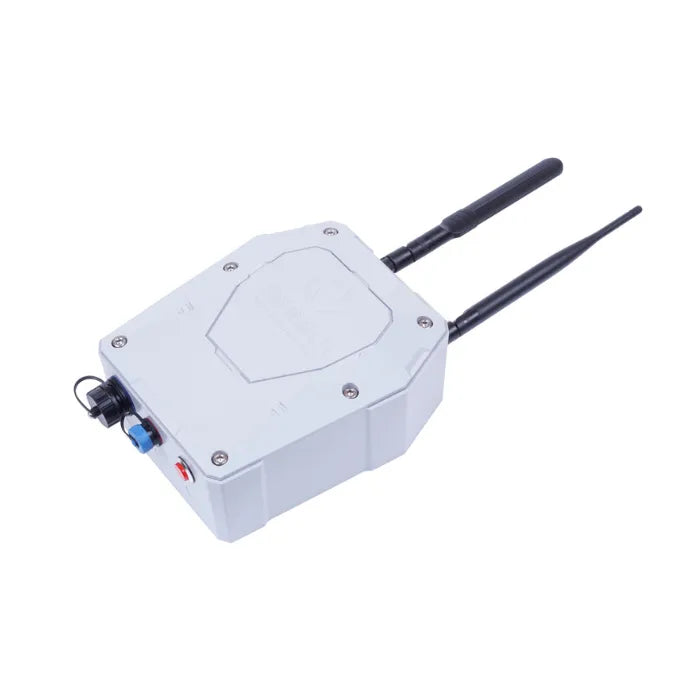

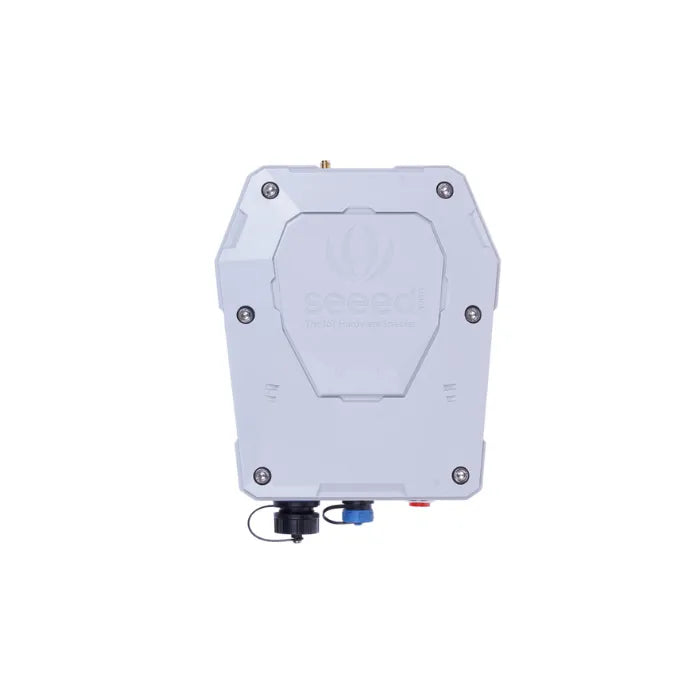

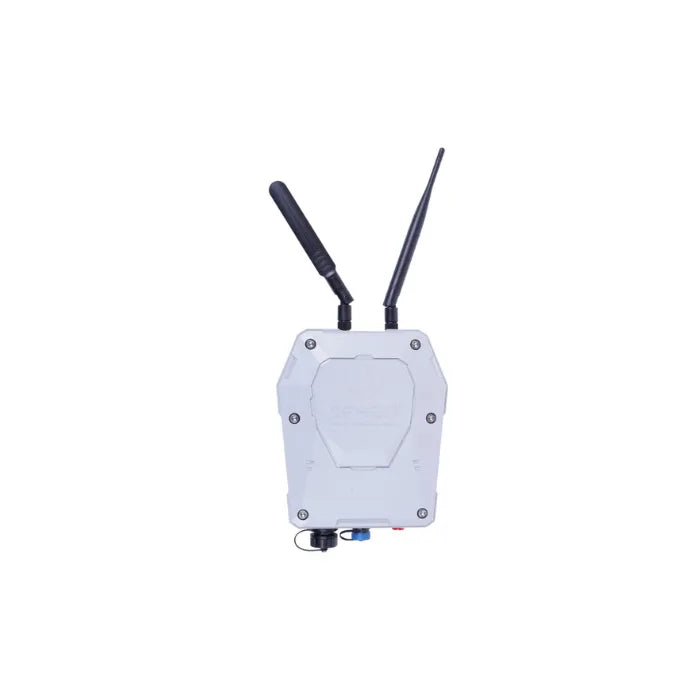

Seeed Studio SenseCAP Outdoor Gateway LoRaWAN US915MHz
Seeed Studio SenseCAP Gateway – LoRaWAN is an IP66 industrial‑grade outdoor IoT gateway engineered for reliable performance across a wide operating temperature range, even in harsh and remote environments. With its low‑power, long‑range LoRaWAN communication capability, the gateway provides stable and efficient data transmission for large‑scale IoT networks. This makes it an ideal solution for smart agriculture, environmental monitoring, remote sensing, and other long‑distance, distributed data‑collection applications.
Note: Please be aware that this product does not support the Helium LongFi network. Kindly note that products that are free from any quality defect are not eligible for return and refund.
Features
-
High-Performance Processor: Equipped with a Cortex A8 1GHz processor and a stable Linux system.
-
LoRaWAN Protocol Support: Supports Class A LoRaWAN and ultra-low-power SenseCAP Sensors.
-
Powerful Transmission: Features 8 RX and 1 TX transceivers with a maximum transmit power of 27dBm.
-
Global ISM Bands: Fully compatible with CN470, EU868, US915, AU915, and AS923.
-
Flexible Network Access: Supports multiple connectivity methods including 4G LTE and Ethernet.
-
Ultra-Long Range: Transmission distance up to 10 km (Line of Sight) and approximately 2 km in urban settings.
-
Industrial Protection: IP66-rated enclosure, operating temperatures from -40℃ to 70℃, suitable for outdoor use.
-
Easy Deployment: Rapid provisioning and straightforward installation for professional industrial projects.
SenseCAP Architecture

Industry Applications

-
Smart Agriculture (Precision Farming)
-
Smart Building (Facility Automation)
-
Environmental Monitoring (Remote Sensing)
-
Other wireless sensing applications
Technical Specifications
| General Parameters | |
|---|---|
| Product Model | Long Range -G-915-E/4G |
| CPU | TI AM3358 Cortex-A8 1GHz |
| System | Linux Debian |
| RAM | DDR3 512MB |
| Memory | 8GB eMMC |
| Channel Plan | 902~928MHz |
| Long Range Power Output | 25dBm |
| Long Range Sensitivity | -139dBm (SF12BW125) |
| Ethernet | 100Mbps FE (RJ-45) |
| 4G Band |
LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28 LTE-TDD: B38/B39/B40/B41 WCDMA: B1/B2/B4/B5/B6/B8/B19 GSM: 850/900/1800/1900MHz |
| 4G Features |
Support non-CA Cat 4 FDD and TDD LTE-FDD: Max 150Mbps (DL), Max 50Mbps (UL) LTE-TDD: Max 130Mbps (DL), Max 30Mbps (UL) |
| UMTS Features |
Support 3GPP R8 DC-HSDPA, HSPA+, HSDPA, HSUPA and WCDMA DC-HSDPA: Max 42Mbps (DL) HSUPA: Max 5.76Mbps (UL) WCDMA: Max 384Kbps (DL), Max 384Kbps (UL) |
| Long Range Antenna |
2.5dBi gain / Vertical polarization / Omni-directional / SMA-J connector |
| 4G Antenna |
0-4dBi gain / Linear polarization / Omnidirectional / SMA-J connector |
| LED Indicator | Indicating network condition (online/ offline) |
| Grounding | Reserved 1 screw hole for GND |
| Power Consumption | 3.6W |
| Power Supply | DC 12V/2A |
| IP Rating | IP66 |
| UV Resistance | anti-aging (from rain/sun exposure): UL746C F1 |
| Enclosure Material | PC |
| Operating Temperature | -40 ℃ to +70 ℃ |
| Operating Humidity | 0 to 100 %RH (non-condensing) |
| Installation Method | Wall or pole mounting |
| Device Weight | 777g |

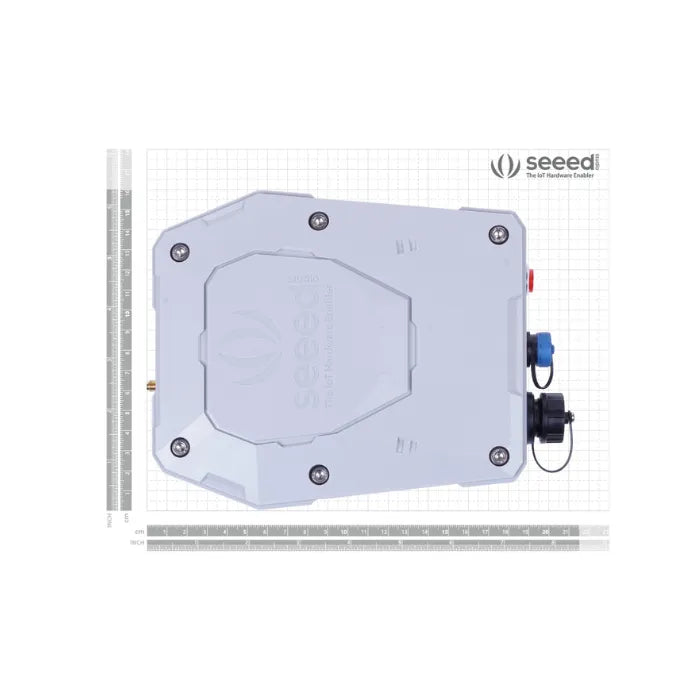

| Device Dimensions | 256mm * 160mm * 81mm |
| Certification | CE, FCC, RoHS |
Interfaces

Compliance & Logistics
| Item | Value |
|---|---|
| HS Code | 8517629990 |
| US HS Code | 8517620010 |
| UPC | — |
| EU HS Code | 8517180000 |
| Country of Origin | China |
Part List
| Package Contents (Part List) | ||
|---|---|---|
| 1 | Long Range Gateway | x1 |
| 2 | LoRa Antenna | x1 |
| 3 | 4G Antenna | x1 |
| 4 | Allen Hex Key | x1 |
| 5 | Mounting Brackets | x4 |
| 6 | Power Adapter | x1 |
| 7 | Power Extension Cable (5M) | x1 |
| 8 | Zip Ties | x2 |
| 9 | M5 Self-drilling Screws | x8 |
