Seeed Studio reComputer Super J401 Board for Jetson Orin™ Nano/NX

Seeed Studio reComputer Super J401 Board for Jetson Orin™ Nano/NX

209,00 €

Seeed Studio reComputer Super J401 is a versatile, high-performance edge AI carrier board built for fast prototyping and industrial deployment. Designed to work seamlessly with NVIDIA Jetson Orin Nano and Orin NX modules in Super/MAXN mode, it delivers up to 157 TOPS of AI computing capability. With a wide operating temperature range of –20°C to 65°C, it ensures dependable performance for autonomous systems and edge AI workloads.

Featuring advanced connectivity such as Wi-Fi, Bluetooth, 4G LTE, and dual Gigabit Ethernet, the J401 integrates easily into complex environments. It is an ideal platform for intelligent video analytics (IVA), sensor fusion, and cutting-edge robotics solutions.



Features

  • High AI Performance: Compatible with Orin Nano and Orin NX modules, delivering up to 157 TOPS, perfect for vision AI, robotics, and generative AI workloads.
  • Flexible Power Modes: Adjustable from 10W to 40W, balancing efficiency and computing power.
  • Reliable Thermal Design: Stable operation from -20°C to 60°C at 40W, and up to 65°C at 25W.
  • Comprehensive Interfaces: Includes 2x RJ45, SIM card slot, 4× USB 3.2, HDMI 2.1, and CAN bus, plus M.2 Key E/M, Mini-PCIe, and 4x CSI for camera and expansion connectivity.
  • Deployment Ready: Supports AI frameworks such as NVIDIA Isaac, Hugging Face, and ROS2/1, enabling quick development and integration of AI applications.

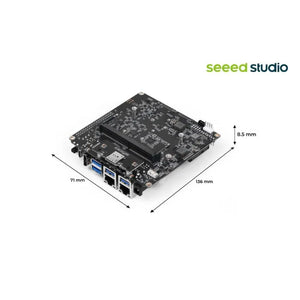

reComputer Super J401 Carrier Board Dimensions

reComputer Super J401 Interface Layout


Technical Specifications

Carrier Board Connectivity & Storage

Storage

1x M.2 KEY M PCIe for high-speed NVMe SSD

Networking

M.2 KEY E

1x M.2 Key E for Wi-Fi/Bluetooth module

Mini PCIe

1x mini-PCIe for LTE 4G module expansion

Ethernet

2x RJ45 Gigabit Ethernet ports

I/O Ports

USB

4x USB 3.2 Type-A (5Gbps); 1x USB 2.0 Type-C (Debug/Recovery)

Camera

4x mipi CSI (2-lane 15-Pin connectors)

CAN Bus

1x CAN (4-Pin Header)

Display

1x HDMI 2.1

Fan Control

1x 4-Pin 1.25mm (5V PWM) & 1x 4-Pin 2.54mm (12V PWM)

Expansion

1x 40-Pin extension header; 1x 12-Pin Control/UART

RTC

1x 2-pin header & 1x RTC Battery Socket

Indication

2x LED (Power and Activity)

Buttons

Power and Reset buttons

Flash Mode

1x Recovery Switch

Power Supply

12-19V via 5525 Barrel DC Jack

Physical

Dimensions

136mm x 71mm x 8.5mm

Weight

155.8g

Mounting

Desktop/Chassis (Copper columns included)

Operating Temp

-20℃ to 65℃ (25W Mode) / -20℃ to 60℃ (MAXN Mode)

Compliance RoHS, REACH, CE, FCC, KC


Hardware Overview

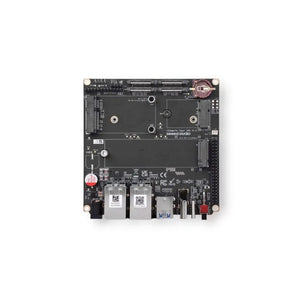

reComputer Super J401 Front View

reComputer Super J401 Connectors


Application

The NVIDIA AI software stack is designed for accelerate AI application and deployment:

Designed for Edge AI Computer Vision Applications:

Jetson Platform Services provide a platform to simplify development, deployment and management of Edge AI applications on NVIDIA Jetson like BEV sensing demo with 4 USB cameras.

Designed for demanding AI applications:

Such as AMR, smart retail, industrial automation, and video surveillance, smart video analysis scenario


Certification

HSCODE 8473309000
USHSCODE 8473309100
UPC
EUHSCODE 8471707000
COO CHINA

Part List

Seeed Carrier Board (reComputer Super J401)

x1

SIM Board

x1

M3 Stud

x5

M3 Screw

x5
