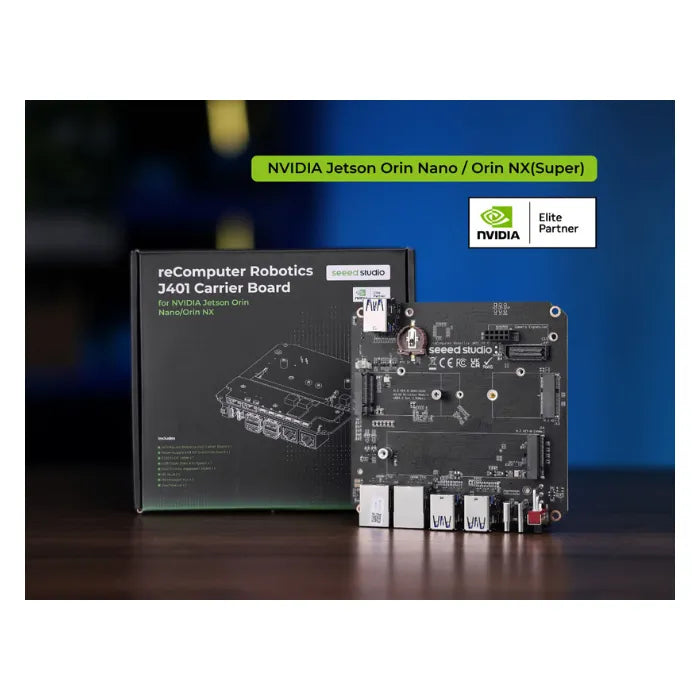

Seeed Studio reComputer Robotics J401 Carrier Board for Jetson Orin Nano/Orin NX

Seeed Studio reComputer Robotics J401 Carrier Board for Jetson Orin Nano/Orin NX

268,95 €

Seeed Studio reComputer Robotics Carrier Board is a high-performance expansion platform designed for NVIDIA Jetson Orin NX and Orin Nano modules, enabling advanced robotics and AI applications. With its compact design, rugged build, and rich connectivity options, it provides developers with the flexibility to build autonomous robots, drones, and industrial automation systems.

Note: To use carrier board in super mode, users would need to design thier own heat dissipation solutions (Thermal Design Guide Provided in Documents section).



Feature

  • Jetson Compatibility: Fully supports Jetson Orin NX and Orin Nano, delivering scalable AI computing power for robotics workloads.

  • Multi-Camera Support: Equipped with multiple CSI interfaces and expansion options, ideal for computer vision, SLAM, and multi-sensor fusion.

  • Industrial Connectivity: Includes Gigabit Ethernet, CAN bus, UART, I2C, and USB ports, ensuring seamless integration with sensors, actuators, and industrial equipment.

  • Expansion Flexibility: Offers M.2 and PCIe slots for wireless modules, SSDs, or additional accelerators, enabling customized robotics solutions.

  • Durable Design: Built for 24/7 operation in demanding environments, making it reliable for mission-critical robotics and edge AI deployments.

  • Compact Form Factor: Easy to integrate into robotic systems, autonomous vehicles, and embedded AI projects.

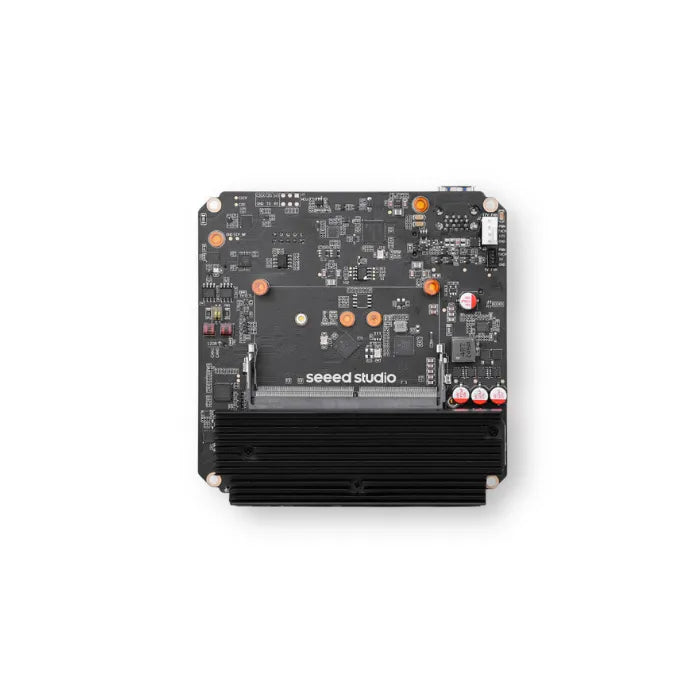

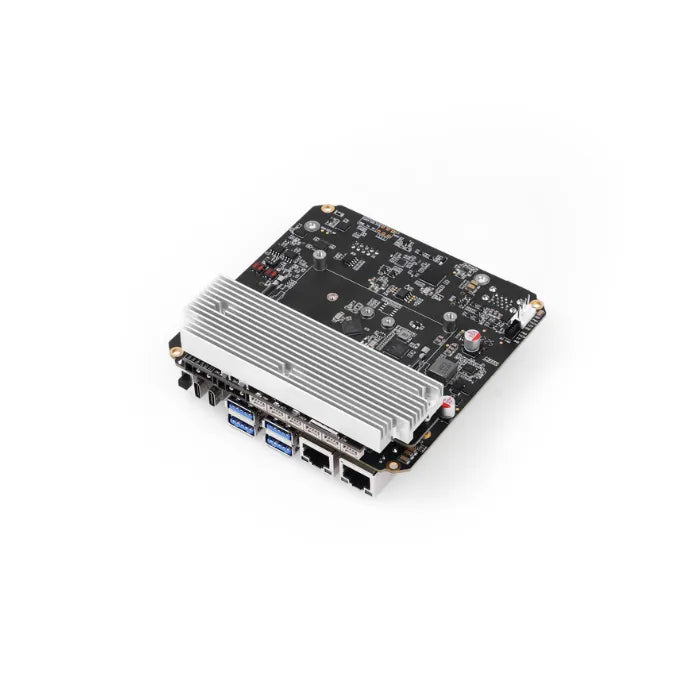

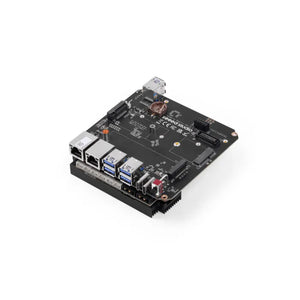

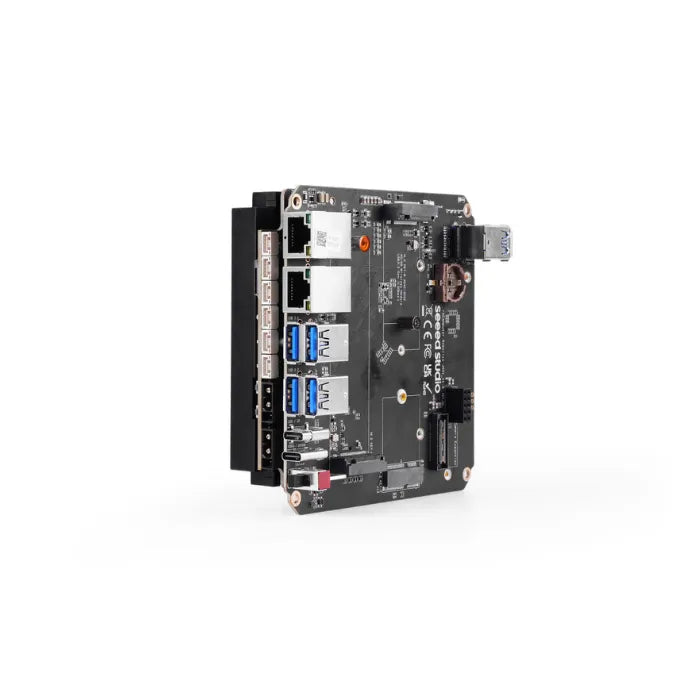

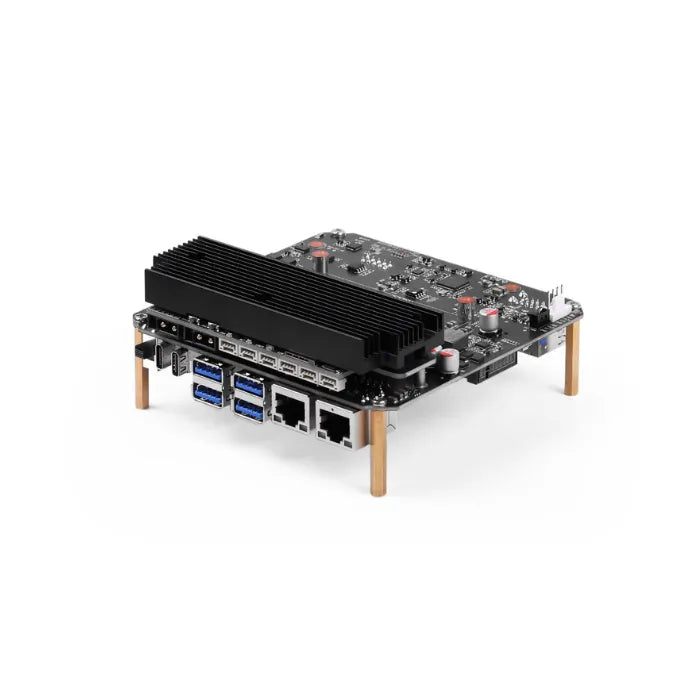

Carrier Board Image



Jetson Modules Performance with Super Mode

  • Enhanced power management
  • Improved higher frame rate processing
  • Reduced inference time

Jetson Performance Image



Specification

Carrier Board

Supported Jetson Module

Jetson Orin Nano/Orin NX

Supported Module Power

7W | 10W | 15W | 20W | 25W | 40W

Storage

1x M.2 KEY M PCIe

Networking

M.2 KEY E

1x M.2 Key E for WiFi/Bluetooth module

M.2 KEY B

1x M.2 Key B for 5G module

Ethernet

2x RJ45 Gigabit Ethernet

I/O

USB

6x USB 3.2 Type-A (5Gbps);

1x USB 3.0 Type-C (Host/DP 1.4)

1x USB 2.0 Type-C (Device Mode/Debug);

Camera

1x 4 in 1 GMSL2(mini fakra)(optional board)

CAN

2x CAN0(XT30(2+2))

3x CAN1(4-Pin GH-1.25 Header)

Display

1x DP1.4(Type C Host)

UART

1 x UART 4-Pin GH-1.25 Header

I2C

2x I2C 4-Pin GH-1.25 Header

Fan

1x 4-Pin Fan Connector (5V PWM)

1x 4-Pin Fan Connector (12V PWM)

Extension Port

1x Camera Expansion Header(for GMSL2 board)

RTC

1x RTC 2-pin

1x RTC Socket

LED

3x LED(PWR, ACT and User LED)

Pinhole Button

1x PWR

1x RESET

DIP Switch

1x REC

Antenna Hole

5x Antenna Hole

Power

19-54V XT30(2+2) (XT30 to 5525 DC Jack Cable included)

Jetpack Version

Jetpack 6.2

Mechanical

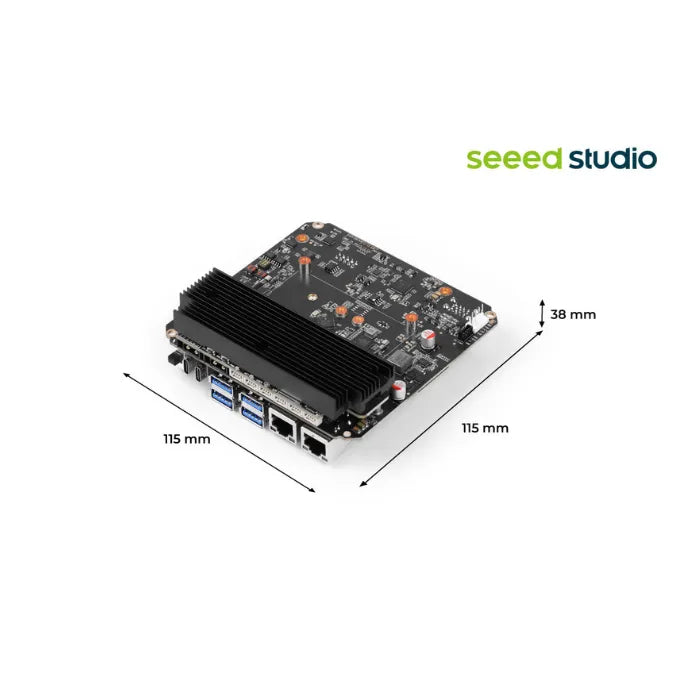

Dimensions (W x D x H)

115mm x 115mm x 38mm

Weight

200g

Installation

Desk, Wall-mounting

Operating Temperature

-20℃~60℃(25W Mode)

-20℃~55℃(MAXN Mode)

(with reComputer Robotics heat sink with fan)

Warranty

2 Years

Certification

RoHS, REACH, CE, FCC, UKCA, KC





Robotics Carrier

A608

Voltage

19-54V

9-20V

USB

6x USB 3.0/3.2 Type-A

4x USB 3.2 Type-A

CAN

2x CAN

1x CAN

GMSL

GMSL Extension available

4-lane CSI

N/A



Hardware Overview

Hardware Overview Image 1

Hardware Overview Image 2

Hardware Overview Image 3

Application
The NVIDIA AI software stack is designed for accelerate AI application and deployment:

Designed for Edge AI Computer Vision Applications:

Jetson Platform Services provide a platform to simplify development, deployment and management of Edge AI applications on NVIDIA Jetson like BEV sensing demo with 4 USB cameras.

Designed for demanding AI applications：

Such as AMR, smart retail, industrial automation, and video surveillance, smart video analysis scenario

We have Jetson-example prepared for you! It offers one-line deploy projects edge AI applications of generative AI including Ollama, Llama3; computer vision including YOLOv8, and others. We have configured all environment for you to provides single command deployment of projects.


Certification

HSCODE 8543909000
USHSCODE 8517180050
UPC
EUHSCODE 8543709099
COO CHINA

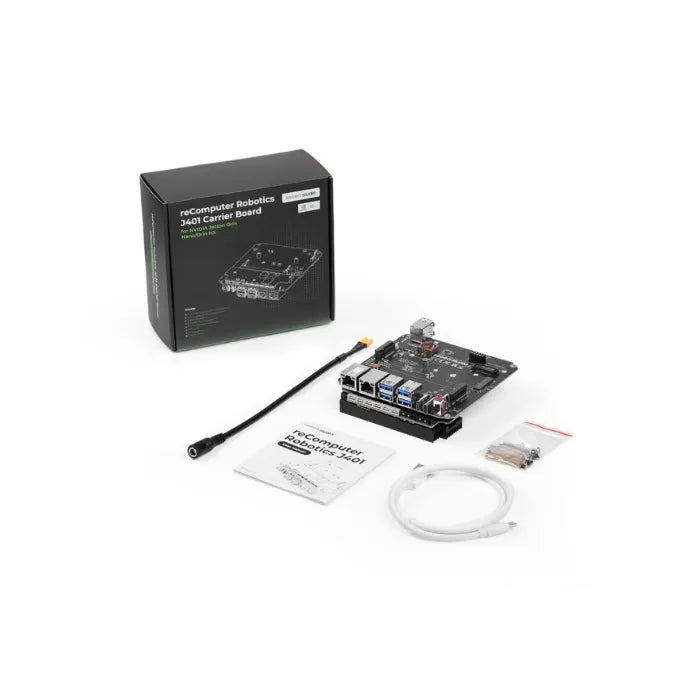

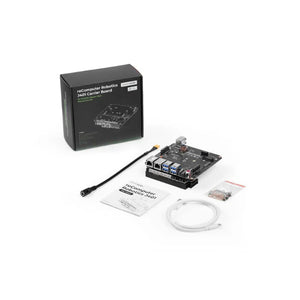

Part List

reComputer Robotics J401 Carrier Board x 1

x1

Power Supply and JST expansion board x 1

x1

XT30 to DC cable x 1

x1

USB Cable, Type A to Type C x 1

x1

Heat Sink for expansion board

x 1

Stud(M3*30)

x 5

M3 Hexagon nut

x 5

Screw(CM2.5*L.4) for Jetson Module and M.2 Key M

x 3

Screw(CM2*3.0) for M.2 Key E

x 1

Stud(M2*2.0) for M.2 Key B

x 1

Screw(CM3*4.0) for M.2 Key B

x 1

User Manual

x 1
