Seeed Studio reComputer Robotics GMSL Board

Seeed Studio reComputer Robotics GMSL Board

69,95 €

Seeed Studio reComputer Robotics GMSL Board is a GMSL (Gigabit Multimedia Serial Link) extension board purpose-built for the reComputer Robotics series powered by NVIDIA Jetson Orin NX and Orin Nano. By transmitting both data and power through coaxial cables, it ensures reliable, high-speed communication for demanding robotics and computer vision workloads.



Features

  • Deserializer Chip: Built with MAX96712, ensuring compatibility with GMSL cameras using MAX96717 or MAX9295A serializers.

  • Multi-Camera Support: Connect up to 4 GMSL cameras simultaneously, enabling wide coverage and multi-angle vision for robotics and autonomous systems.

  • Native Compatibility: Supports multiple Sensing cameras and the Orbbec Gemini 335LG, providing flexibility for depth sensing and stereo vision.

  • Industrial Reliability: Designed for robotics and edge AI deployments, ensuring stable performance in real-world environments.

  • Compact & Easy Integration: Small form factor makes it simple to integrate into reComputer Robotics setups without additional complexity.



Specification

Product

reComputer Robotics GMSL Board

Deserializer

MAX96712

Operating Temperature

-20℃~60℃

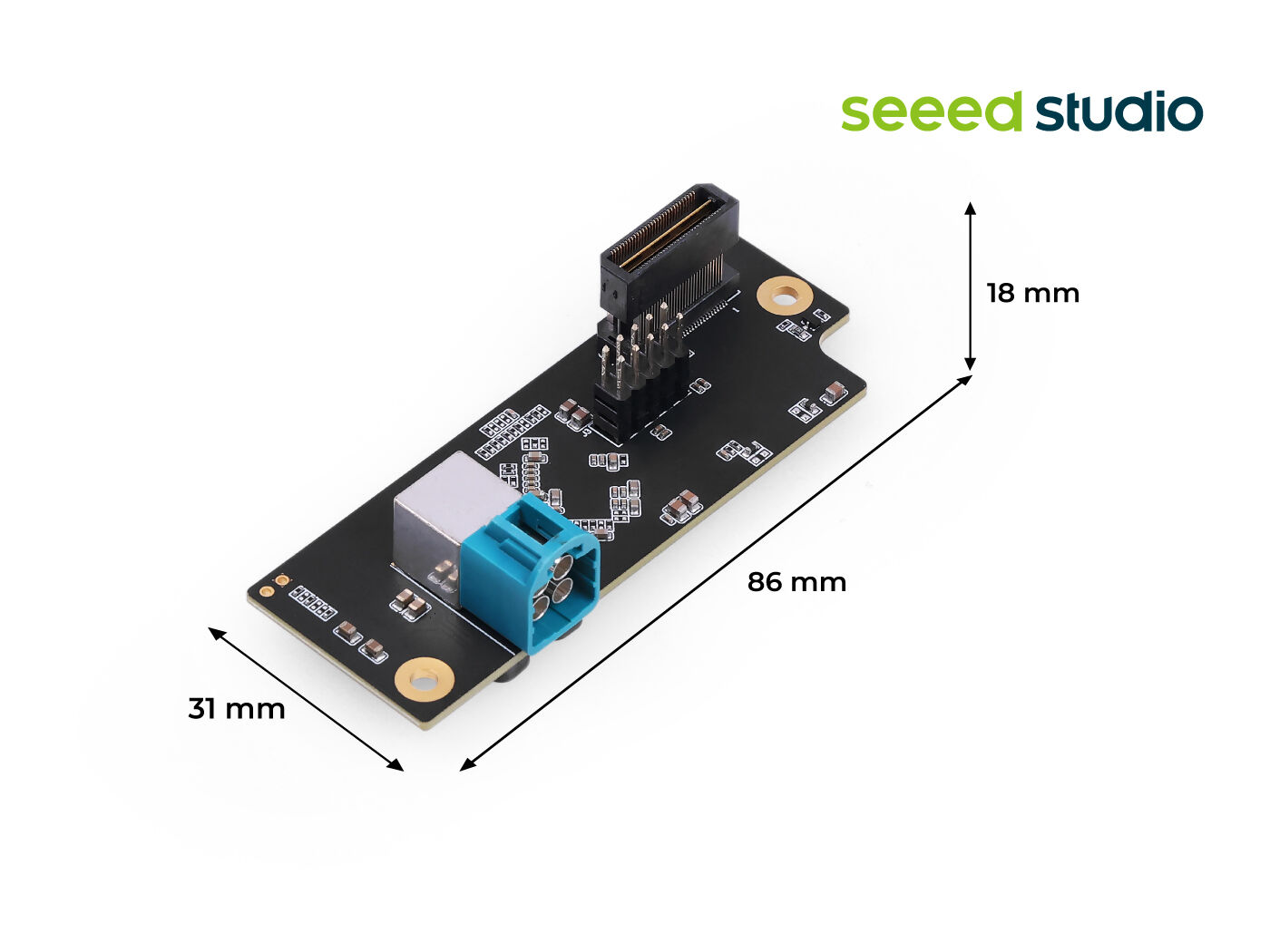

Mechanical Dimension

86mm x 31mm x 18mm



Cameras Supported in Jetpack

Manufactuer

Model

Resolution

Sensing

SG3S-ISC031C-GMSL2F

1920H*1536V

SG2-AR0233C-5200-G2A

1920H*1080V

SG2-IMX390C-5200-G2A

1920H*1080V

SG8S-AR0820C-5300-G2A

3840H*2160V

Orbbec

Orbbec Gemini 335Lg

3D



Hardware Overview



Application

    • Robotics (Object detection and 3D reconstruction)

    • BEV Detection


    • High-Performance Vision for Robotics

    Combining a GMSL 2 camera with a reComputer Robotics enables advanced vision-based robotics. Sensing 3MP GMSL 2 camera supports real-time object detection, panoramic environment awareness, and multi-camera 3D reconstruction . The high-bandwidth, low-latency GMSL 2 link supports long cable runs and multi-camera setups, while the Jetson Orin NX delivers real-time AI processing for perception, mapping, and control.

    • 3D Vision and GMSL 2 Connectivity for Robotics

    The reComputer Robotics GMSL Extension supports the Orbbec Gemini 335LG Stereo Vision 3D Camera, providing accurate real-time 3D perception for advanced robotics. With the MAX96712 deserializer and mini-FAKRA connector, it ensures secure, low-latency, and reliable data transmission, ideal for AMRs, robotic arms, and collaborative robots. Precise depth sensing enables smarter navigation, robust object recognition, and reliable obstacle avoidance across mobile robots, delivery systems, and shelf-stocking applications.


    Documents



    Certification

    HSCODE 8473309000
    USHSCODE 8473309100
    UPC
    EUHSCODE 8471707000
    COO CHINA


    Part List

    reComputer GMSL Board

    x1

    M3 Stud

    x2

    M3 Screw

    x2
