Seeed Studio reComputer Mini J501 Carrier Board for Jetson AGX Orin™
Description

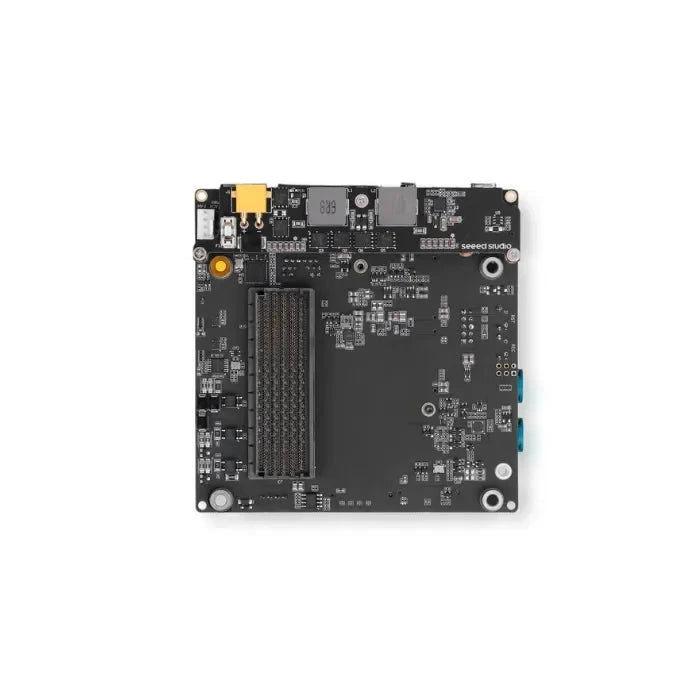

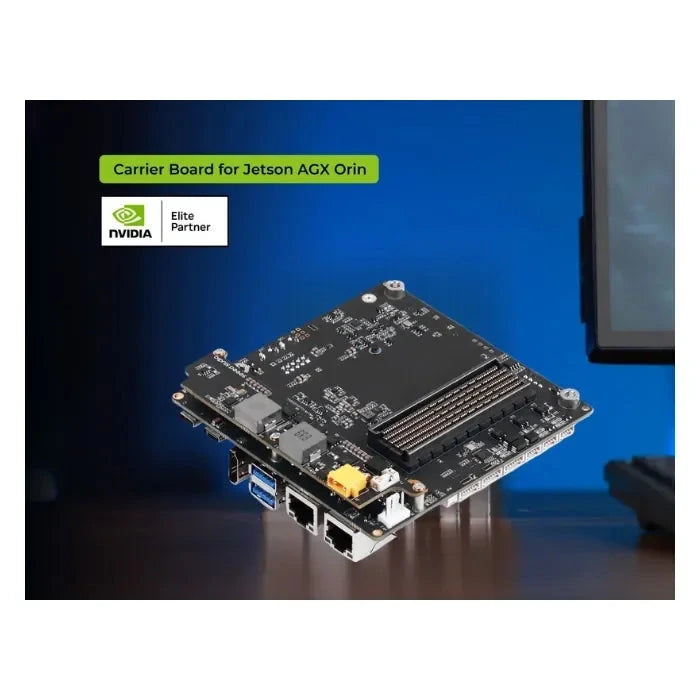

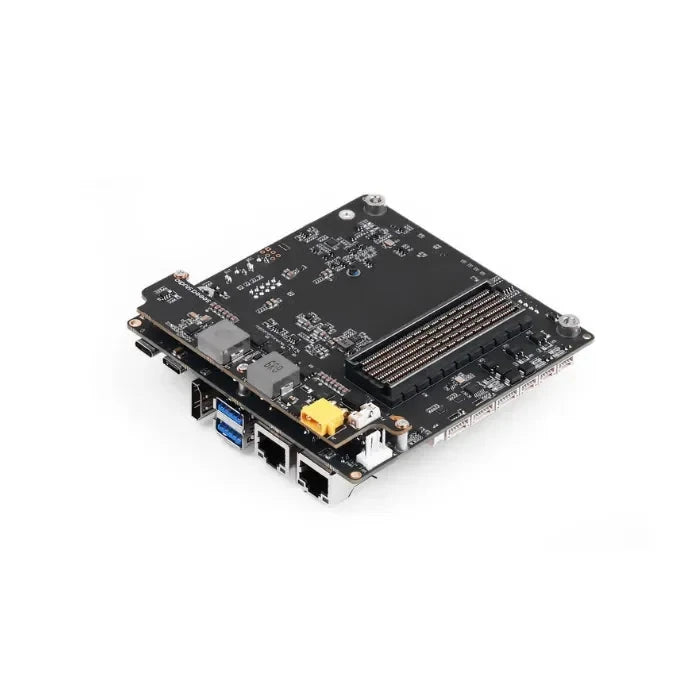

Seeed Studio reComputer Mini J501 is a compact Jetson AGX Orin carrier board built for developers who need a powerful platform for robotics, edge AI, autonomous machines, and embedded vision. This Seeed Studio reComputer Mini J501 design supports NVIDIA Jetson AGX Orin 32GB and 64GB modules and gives system builders a smaller, deployment-friendly baseboard for advanced robot controller, sensor fusion, and high-performance AI integration work.
Because reComputer Mini J501 is a dedicated Jetson AGX Orin carrier board rather than a fixed finished AI computer, it gives engineers more freedom to build a custom robot controller, industrial AI node, or compact embedded platform around the exact module, storage, and wireless stack they want. For teams that need a compact robotics carrier board with 10G Ethernet, 1G Ethernet, CAN-FD, RS-485, USB 3.2, and optional GMSL2 camera expansion, Seeed Studio reComputer Mini J501 is a strong fit.

Features
- Seeed Studio reComputer Mini J501 carrier board for Jetson AGX Orin 32GB and 64GB modules.
- Compact Jetson AGX Orin carrier board layout for robotics, autonomous systems, and enclosure-constrained edge AI builds.
- Robotics carrier board I/O including 10GbE, 1GbE, CAN-FD, RS-485, I2S, DI/DO, UART, RTC, HDMI 2.1, and USB 3.2.
- M.2 Key M for NVMe SSD and M.2 Key E for Wi-Fi / Bluetooth expansion.
- Optional GMSL2 camera expansion for machine vision and multi-camera robotics systems.
- 19V to 48V XT30 power input for mobile robots, industrial cabinets, and field edge AI deployments.
- 110mm x 110mm footprint that helps Seeed Studio reComputer Mini J501 fit where larger Jetson developer kits are harder to integrate.
Specifications
| Category | Item | Details |
|---|---|---|
| Compatibility | Module Support | NVIDIA Jetson AGX Orin 32GB / 64GB |
| Storage | M.2 Key M | 1 x M.2 Key M PCIe, supports M.2 NVMe 2280 SSD |
| Expansion | M.2 Key E | 1 x M.2 Key E for Wi-Fi / Bluetooth module |
| Networking | Ethernet | 1 x RJ45 10GbE, 1 x RJ45 1GbE |
| I/O | USB | 2 x USB 3.2 Type-A 10Gbps, 1 x USB 2.0 Type-C debug, 1 x USB 3.0 Type-C recovery/debug |
| I/O | Camera | 2 x 4-in-1 GMSL2 Mini-Fakra connector, optional |
| I/O | CAN | 2 x CAN, CAN-FD supported |
| I/O | DI/DO | 1 x DI JST 6-pin, 1 x DO JST 5-pin |
| I/O | I2S | 1 x I2S JST 6-pin |
| I/O | RS-485 | 1 x RS-485 JST 4-pin |
| I/O | UART | 1 x UART JST 6-pin, multiplexed with DO |
| I/O | Display | 1 x HDMI 2.1 |
| I/O | Fan | 1 x 4-pin fan connector, 12V PWM |
| I/O | Extension | 2 x camera expansion header for GMSL2 board |
| I/O | RTC | 1 x RTC 2-pin |
| I/O | LED | 1 x PWR LED, 1 x SSD LED, 1 x USR RGB LED |
| I/O | Button | 1 x Recovery button, 1 x Reset button |
| Power | Input | 19V to 48V XT30, XT30 to 5525 DC jack cable included |
| Software | JetPack | JetPack 6.2.1 |

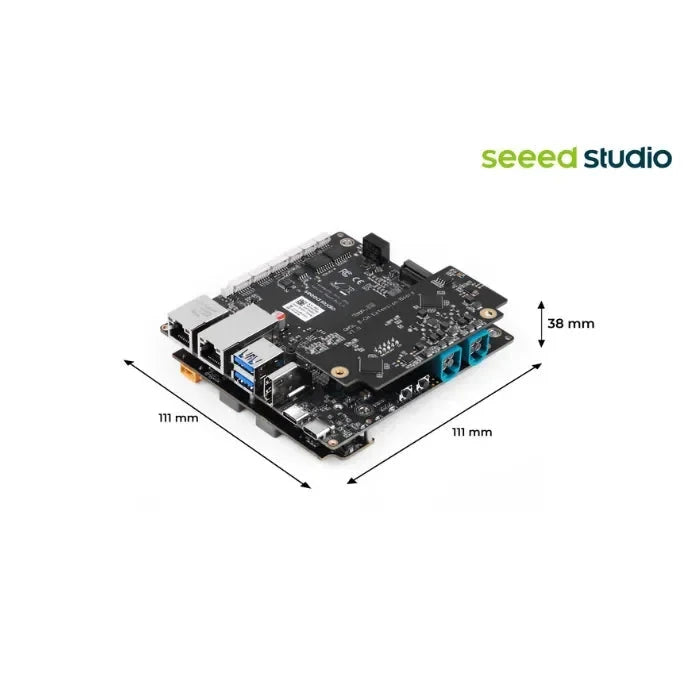

| Mechanical | Dimensions | 110mm x 110mm x 38mm |
| Mechanical | Weight | 200g |
| Mechanical | Installation | Desk, wall-mounting |
| Environment | Operating Temperature | -20℃ to 60℃ in 25W mode, -20℃ to 55℃ in MAXN mode, with reComputer Robotics heat sink with fan |
| Compliance | Certification | RoHS, REACH, CE, FCC, UKCA, KC |
Applications
- Robotics carrier board for humanoid robotics, AMR, AGV, and autonomous robot controller development.
- Jetson AGX Orin carrier board for edge AI systems that need high-speed networking, CAN-FD, and industrial serial interfaces.
- Seeed Studio reComputer Mini J501 projects for multi-sensor fusion using LiDAR, GMSL2 cameras, GPS, IMU, and CAN-connected subsystems.
- Compact Jetson AGX Orin carrier board builds for embedded vision, VLM, robotics perception, and AI inference at the edge.
- Robot controller platforms that need 10GbE, 1GbE, RS-485, and modular NVMe / Wi-Fi expansion in a small footprint.

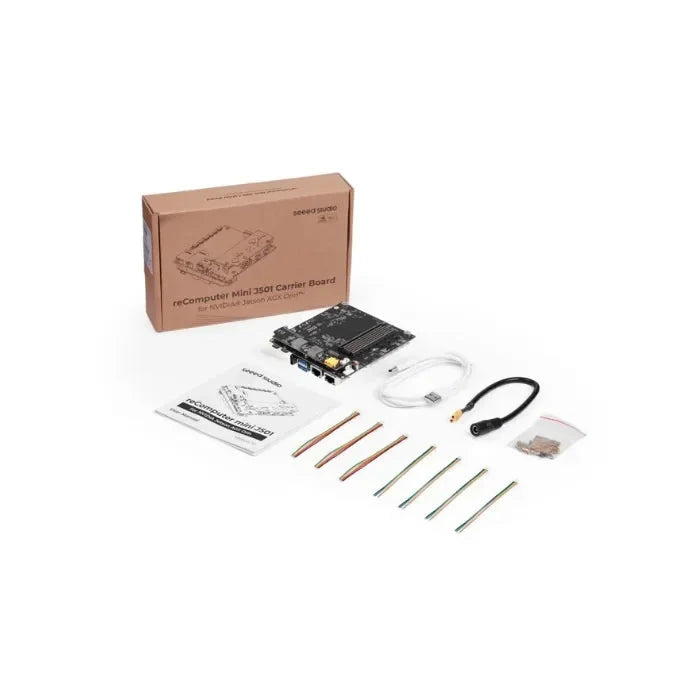

Product List
- Robotics J501-Mini Carrier Board x 1
- Power Supply and JST expansion board x 1
- XT30 to DC cable x 1
- USB Cable, Type A to Type C x 1
- Heat Sink for expansion board x 1
- Stud(M3*30) x 5
- M3 Hexagon nut x 5
- Screw(CM2.5*L.4) for Jetson Module and M.2 Key M x 3
- Screw(CM2*3.0) for M.2 Key E x 1
- Stud(M2*2.0) for M.2 Key B x 1
- Screw(CM3*4.0) for M.2 Key B x 1
- User Manual x 1
Other Content
Integration Positioning: Seeed Studio reComputer Mini J501 is a Jetson AGX Orin carrier board, not a complete AI box. You still add the Jetson AGX Orin module, storage, wireless module, and system-level accessories based on your project. That makes reComputer Mini J501 attractive for custom robotics carrier board projects where enclosure size, power architecture, and sensor mix all matter.

High-Speed and Industrial I/O: One of the biggest reasons to choose this Jetson AGX Orin carrier board is the balance between compact size and deployment-ready connectivity. Seeed Studio reComputer Mini J501 gives robotics teams 10GbE for high-bandwidth links, 1GbE for standard networking, CAN-FD for robot buses, RS-485 for industrial devices, and optional GMSL2 for camera-heavy machine vision systems.

Deployment Fit: The 19V to 48V XT30 power input and 110mm square footprint make Seeed Studio reComputer Mini J501 easier to integrate into mobile robots, compact edge AI boxes, industrial cabinets, and rugged embedded systems than a larger development platform. For teams that specifically need a compact Jetson AGX Orin carrier board, this model balances I/O, power flexibility, and mechanical practicality well.

Resources
- Seeed Wiki: reComputer Mini J501 Getting Started
- reComputer Mini J501 Datasheet PDF
- Seeed Linux for Tegra Source
- NVIDIA Isaac Robotics Platform
- Ultralytics YOLO on NVIDIA Jetson Guide
FAQ
Q: Is Seeed Studio reComputer Mini J501 a complete computer?
A: No. Seeed Studio reComputer Mini J501 is a Jetson AGX Orin carrier board. You still need a compatible Jetson AGX Orin module to build a complete system.
Q: Which module is this Jetson AGX Orin carrier board designed for?
A: It is designed for NVIDIA Jetson AGX Orin 32GB and 64GB modules.
Q: When should I choose reComputer Mini J501 instead of a larger developer kit?
A: Choose reComputer Mini J501 when you need a more compact robotics carrier board with high-speed networking, CAN-FD, RS-485, flexible storage expansion, and easier enclosure integration for real-world robotics or edge AI deployment.
Q: Does Seeed Studio reComputer Mini J501 support camera-heavy robotics projects?
A: Yes. This Jetson AGX Orin carrier board supports optional GMSL2 camera expansion, which is useful for advanced robotics, embedded vision, and multi-camera AI systems.
