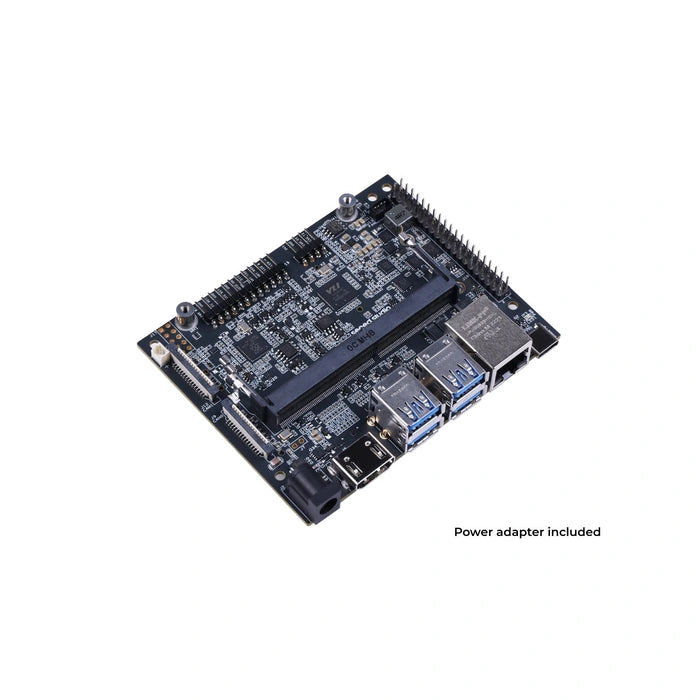

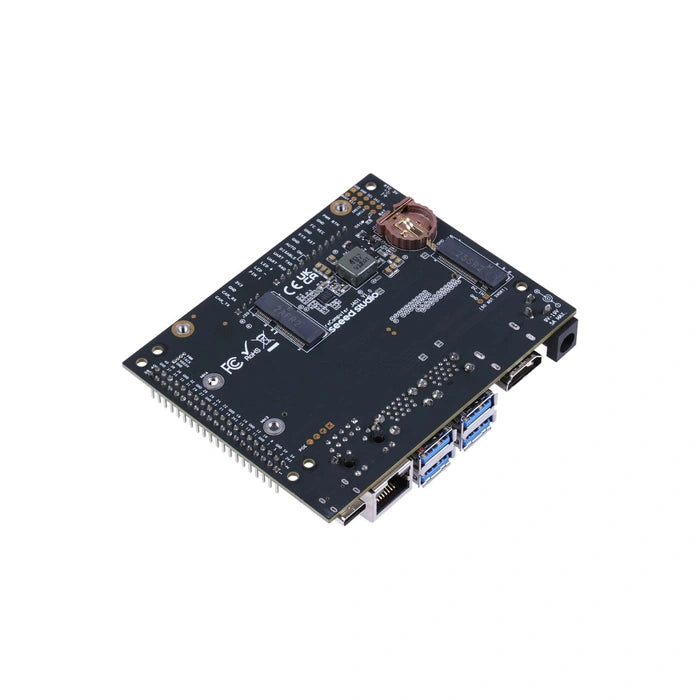

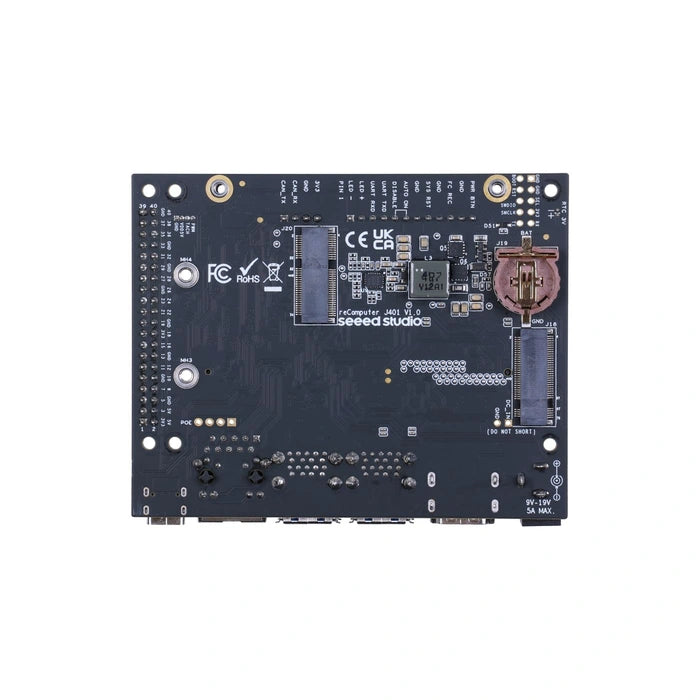

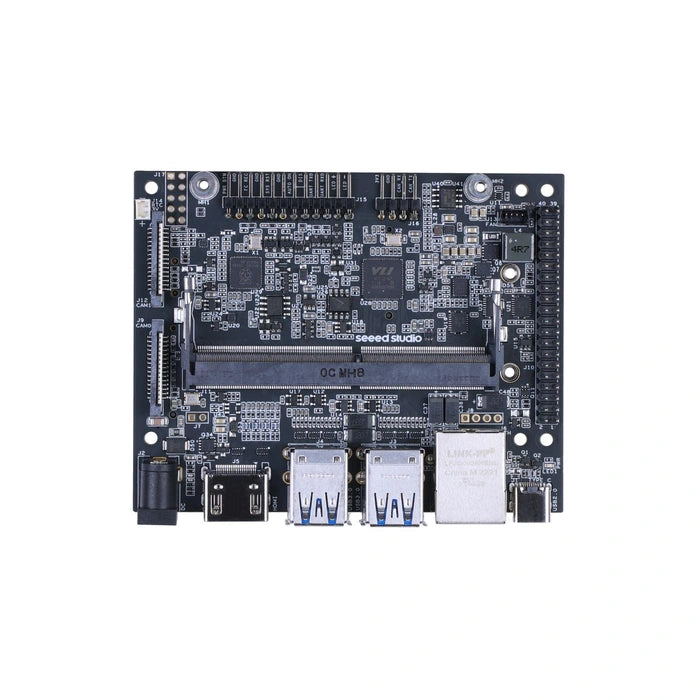

Seeed Studio reComputer J401 Carrier Board for Jetson Orin NX/Orin Nano
Seeed Studio reComputer J401 Carrier Board for Jetson Orin NX/Orin Nano
Description
Seeed Studio reComputer J401 Carrier Board is an open-source carrier board designed for NVIDIA Jetson Orin NX and Jetson Orin Nano modules. It breaks out the high-speed and low-speed interfaces needed for real edge AI deployment, giving you a compact foundation for machine vision, robotics, AI video analytics, industrial gateways, and embedded Jetson development.
Unlike a complete edge AI computer, this product is a carrier board, so it is ideal when you want to choose your own Jetson module, storage, wireless module, and enclosure strategy. The board keeps a practical interface mix with Gigabit Ethernet, 4 x USB 3.2 Type-A, USB Type-C for flashing and device mode, HDMI 2.1, 2 x CSI camera connectors, M.2 Key M for NVMe SSD, M.2 Key E for Wi-Fi / Bluetooth, and a 40-pin Raspberry Pi compatible header.
When paired with the right Jetson module, the reComputer J401 Carrier Board can support demanding AI workloads while keeping integration simple. It is a strong fit for teams that want to move from prototyping to productization with a flexible Jetson Orin platform.
Features
- Built for Jetson Orin NX and Orin Nano: Choose the module that fits your performance target, then build around a stable open-source carrier board platform.
- Ready for edge AI deployment: Suitable for machine vision, robotics, AI video processing, and embedded inference systems.
- Fast storage and expansion: Includes M.2 Key M for 2280 NVMe SSD and M.2 Key E for Wi-Fi / Bluetooth modules.
- Rich external connectivity: Provides Ethernet, 4 x USB 3.2, HDMI 2.1, USB Type-C, dual CSI, CAN, fan header, RTC support, and GPIO expansion.
- Raspberry Pi compatible 40-pin header: Makes it easier to integrate HATs, sensors, UART, I2C, SPI, and PWM peripherals.
- Open-source hardware support: Backed by official datasheets, wiki documentation, and hardware files for development and customization.
Specifications
| Product Type | Carrier board only, Jetson module not included |
| Module Compatibility | NVIDIA Jetson Orin NX / Jetson Orin Nano |
| Form Factor | Same functional design and size as the Jetson Orin Nano Developer Kit carrier board |

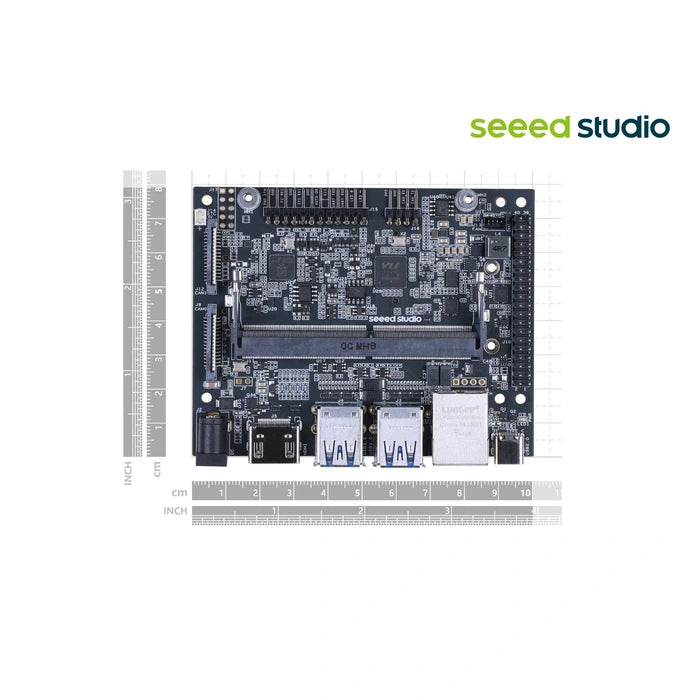

| Dimensions | 100 x 80 mm |
| Operating Temperature | -10°C to 60°C |
| Power Input | 9V to 19V DC |
| Included Power Adapter | 12V / 5A power adapter |
| Storage | 1 x M.2 Key M for 2280 NVMe SSD, PCIe Gen 4.0 x4 |
| Wireless Expansion | 1 x M.2 Key E for Wi-Fi / Bluetooth |
| Networking | 1 x Gigabit Ethernet, 10 / 100 / 1000 Mbps |
| USB | 4 x USB 3.2 Type-A, 1 x USB 2.0 Type-C |
| Display | 1 x HDMI 2.1, up to 4K output |
| Camera | 2 x CSI, 2-lane 15-pin |
| GPIO Header | 40-pin Raspberry Pi compatible header |
| CAN Bus | 1 x CAN bus, supports CAN FD |
| Fan Control | 1 x 4-pin 5V PWM fan header |
| RTC | CR1220 backup support, battery not included |
| Other Control Interfaces | 12-pin control and UART header for debug, reset, recovery, and power control |
Applications
- Jetson AI development: Build custom Jetson Orin systems for inference, robotics, and vision projects without starting from a carrier board design from scratch.
- Machine vision: Use the dual CSI interfaces for stereo vision, object detection, quality inspection, and smart camera pipelines.
- Robotics and automation: Combine CAN, GPIO, USB, and CSI to connect sensors, controllers, and motor systems in robotic platforms.
- AI video analytics: Pair J401 with Jetson Orin modules for multi-stream video analytics, edge security, and industrial monitoring systems.
- Embedded product integration: Useful for OEM and project teams that want a customizable Jetson carrier board with strong documentation and expansion options.

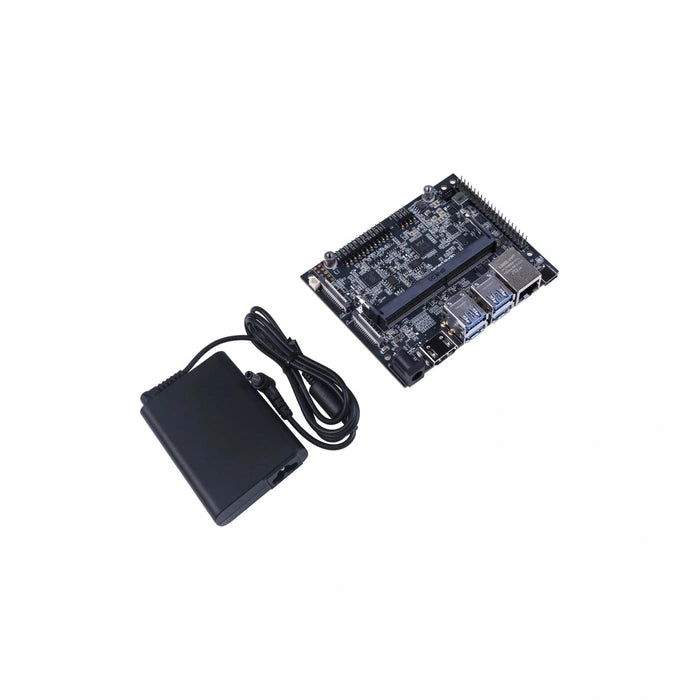

Product List
| reComputer J401 Carrier Board | x1 |
| 12V / 5A Power Adapter | x1 |
Note: Jetson module and AC power cord are not included.
Other Content
Storage expansion is straightforward: the M.2 Key M slot lets you add a high-speed NVMe SSD, which is especially useful for AI models, datasets, and local video recording.
Wireless expansion is also built in: use the M.2 Key E slot when your project needs Wi-Fi or Bluetooth connectivity for remote access, wireless networking, or device-to-device communication.
Dual CSI camera support makes the J401 especially useful for AI vision and robotics workflows, including stereo vision, depth-aware applications, and multi-camera edge inference.
The 40-pin header and control header give you practical access to GPIO, UART, I2C, SPI, PWM, reset, recovery, and debug functions, which helps a lot during bring-up and field maintenance.
Resources
- reComputer J401 Datasheet
- J401 Carrier Board Documentation Hub
- J401 Carrier Board Hardware Interfaces Usage
- Open Source Hardware Files
- NVIDIA JetPack SDK
- NVIDIA SDK Manager
- OpenELAB J401 Carrier Board Guide
- OpenELAB reComputer Selection Page
FAQ
Does the reComputer J401 Carrier Board include a Jetson module?
No. This product is a carrier board only. You need to add your own Jetson Orin NX or Jetson Orin Nano module.
What is the difference between the J401 Carrier Board and reComputer J4012 Edge?
The J401 Carrier Board is for users who want to choose the Jetson module and build a more customizable system. The reComputer J4012 Edge is a complete edge AI computer with Jetson module and system integration already handled, so it is faster to deploy if you want a ready-to-use platform.
How is J401 different from reComputer Robotics J4011 or Robotics J4012?
reComputer Robotics J4011 and Robotics J4012 are more deployment-oriented robotics systems. The J401 Carrier Board is the better choice if you want a board-level platform for custom enclosure design, hardware integration, and deeper system customization.
Should I choose J401 Carrier Board or reComputer Super J401?
If you want a carrier-board-level platform for custom builds, choose J401. If you want a more complete, higher-end Jetson platform aimed at heavier edge AI deployment, compare it with reComputer Super J401.
Can I use Raspberry Pi HATs and GPIO accessories?
Yes. The board provides a 40-pin Raspberry Pi compatible header, which is useful for many HATs, sensor boards, and peripheral integrations, though software and power requirements should still be checked case by case.
Does the board support NVMe SSD and Wi-Fi modules at the same time?
Yes. The board includes M.2 Key M for NVMe SSD and M.2 Key E for Wi-Fi / Bluetooth, so both can be used together in a typical build.
Is J401 suitable for machine vision and AI camera projects?
Yes. The dual CSI camera connectors, fast storage support, and Jetson Orin compatibility make it a strong choice for machine vision, stereo vision, AI camera, and edge analytics systems.
