Seeed Studio Grove - CAN BUS Module based on GD32E103

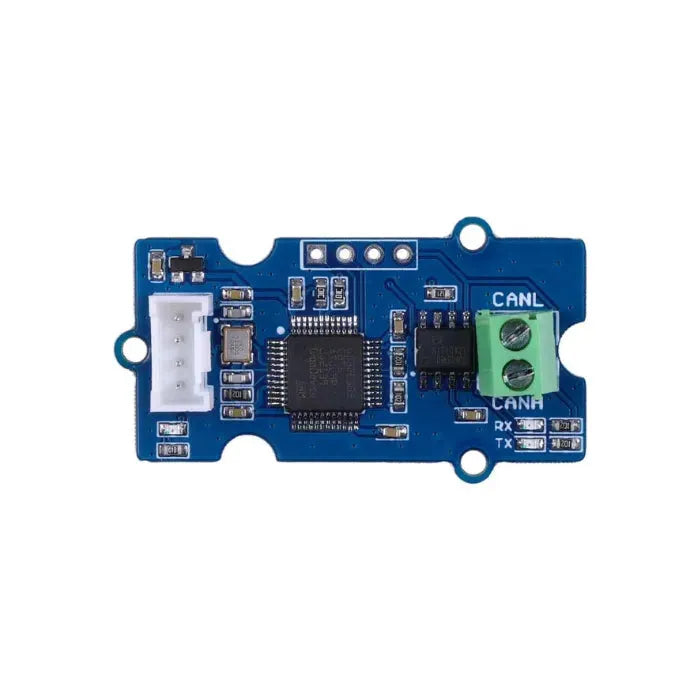

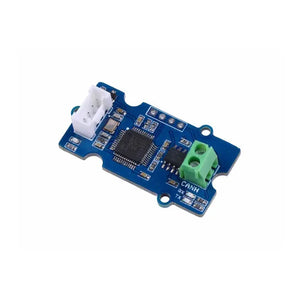

This Grove - CAN BUS Module based on GD32E103 adopts a brand-new design, uses the cost-effective and high-performance GD32E103 microcontroller as the main control and cooperates with a firmware we wrote to complete the function of the serial port to CAN FD.
Features
- Support CAN communication: Implements CAN FD at up to 5Mb/s
- Easy to program: Support AT command which enables simple serial port programming

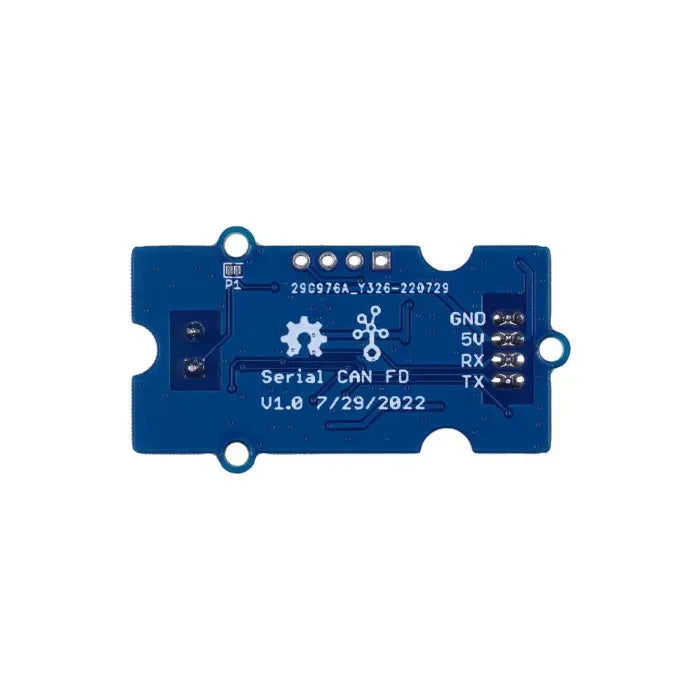

- Grove ecosystem: 20mm x40mm x10mm small size, 4pin Grove connector to plug and play, Arduino compatible
- Grove - 3-Axis Digital Accelerometer(±1.5g) -- Sensing data changes for devices' fall detection, monitor if your car is tilted.
- Grove - Multichannel Gas Sensor v2 -- Provides a stable and reliable gas detecting function besides Carbon monoxide (CO), Nitrogen dioxide (NO2), Ethyl alcohol(C2H5CH), Volatile Organic Compounds (VOC)
- Grove - Ultrasonic Distance Sensor -- To measure the car-to-object distance and provide audible cues and visual aids to the driver for backing up parking, and vehicle proximity awareness
- Grove - PIR Motion Sensor -- To measure infrared light radiating from objects in its field of view
Free Shipping NoteThis product is available with free shipping via 4px shipping methods for orders under $40.
*Disclaimer: Unfortunately, some countries and regions may not have the free 4PX shipping option due to the fact that they are not serviced by 4PX at the national or regional level.
*Disclaimer: Unfortunately, some countries and regions may not have the free 4PX shipping option due to the fact that they are not serviced by 4PX at the national or regional level.
What is CAN-BUS?
CAN stands for Controller Area Network, it is used to allow microcontrollers and devices to communicate with each other within a vehicle without a host computer which allows for control and data acquisition.
How does CAN-BUS work?
Every node has an ID, where the ones with the higher priority ID can have the priority to “talk” first while the others “listen”. This is to ensure that there are never two nodes talking at the same time. The biggest benefit of CAN-BUS is to be able to just connect components without having to worry about signal routing.Learn more about CAN-BUS here.
Application
-
Car hacking: allows different parts of the vehicle to talk to each other, including the engine, the transmission, and the brakes. Windows, doors, and mirror adjustment.
-
3D Printers
-
Building automation
-
Lighting control systems
-
Medical instruments and equipment
Specification
| MCU | GD32E103 |
| UART baud rate | Up to 115200(default 9600) |
| CAN FD baud rate | Up to 5Mb/s |
| Indicator | TX and RX led |
| Working voltage | 3.3V |
| Grove connector | 4pin Grove connector to plug and play |

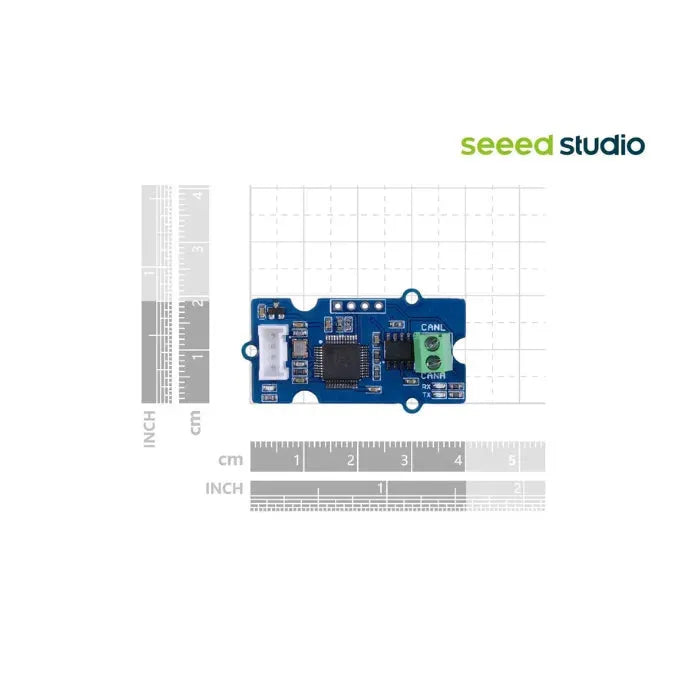

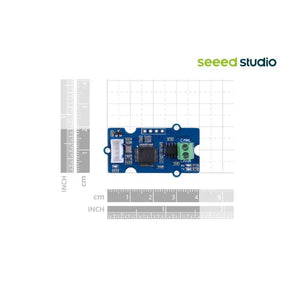

| Size | 20mm x40mm x10mm |
Documents

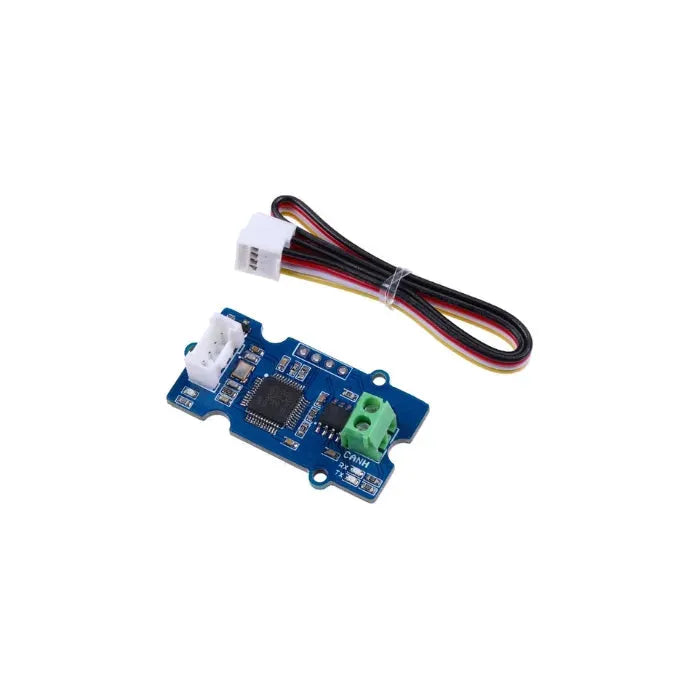

Partlist
| Grove - CAN BUS Module based on GD32E103 | 1 |
| Grove cable | 1 |
