Seeed Studio EdgeBox RPi 200 4GB RAM,16GB eMMC, WiFi

Seeed Studio EdgeBox RPi 200 4GB RAM,16GB eMMC, WiFi

359,00 €

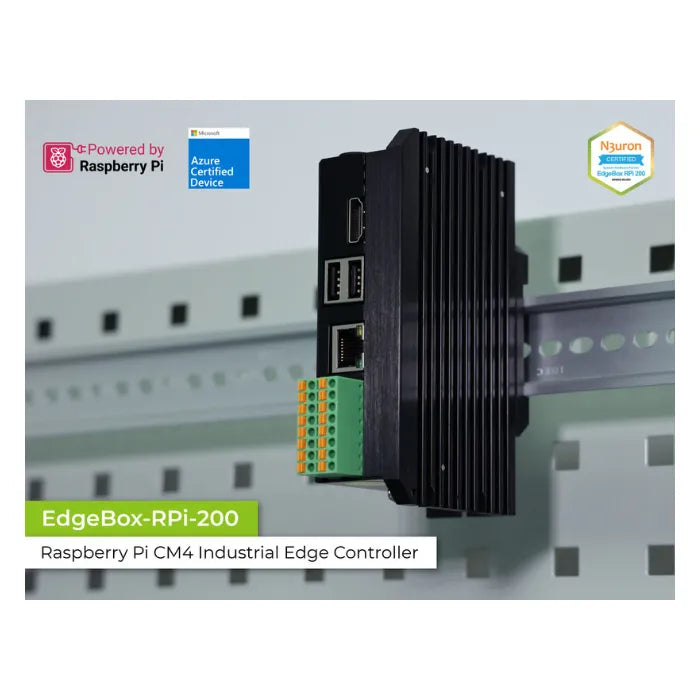

Seeed Studio EdgeBox RPi 200 is a next-generation Industrial IoT gateway and edge computing controller powered by the Raspberry Pi CM4. It integrates multiple industrial functions into one compact solution, operating as a PLC, OPC UA Server, IIoT Gateway, and Industrial PC. Designed for smart automation and edge control, it delivers scalability, rugged durability, and rich I/O resources supported by the Raspberry Pi industrial ecosystem.

The EdgeBox RPi 200 series provides versatile options for enhancing factory automation, IIoT deployments, and smart manufacturing. Compact yet powerful, it supports real-time operations and multi-process control, making it an ideal choice for industrial edge computing projects.

For a detailed comparison and to identify the best fit for your application, check our EdgeBox Series Comparison Table.



Key Features

  • All-in-one IIoT Edge Gateway – Combines PLC, PAC, IoT gateway, edge controller, and industrial PC functions in one device.
  • High-performance Raspberry Pi CM4 – Up to 8GB RAM and 32GB eMMC storage for demanding industrial workloads.
  • Extensive Communication Protocols – Supports RS485, RS232, Modbus, OPC UA, TCP/IP, plus Gigabit Ethernet and wireless connectivity (cellular, LoRa®) with AWS and Azure cloud integration.
  • Rugged Industrial-grade Design – Fanless aluminum enclosure with integrated thermal management, DIN rail and wall mounting support for harsh environments.
  • Rich Industrial Software Ecosystem – Compatible with Codesys, N3uron, balena, and fleet management platforms for scalable automation and IIoT solutions.



Powerful and Flexible Processors

EdgeBox RPi 200 utilizes the AI-enabled Raspberry Pi Compute Module 4 (CM4), running up to 1.5GHz, equipped with 8GB RAM and 32GB eMMC. Operating on Linux with Debian OS, it ensures reliable industrial automation and edge computing performance.

EdgeBox RPi 200 Processor



Rich IO Interfaces with Industrial Protocols

This industrial edge controller is equipped with multiple isolated interfaces, supporting a wide range of industrial bus protocols for reliable data transmission. It also offers extended SSD storage and enhanced display output for improved data acquisition and visualization.

Protocols and Standards Support

● RS485 / RS232

● TCP/IP

● Modbus

● OPC UA

● IEC 61131-3 compliant



Multiple Communication Capabilities & Cloud Integration

The EdgeBox RPi 200 integrates advanced communication options, including Gigabit Ethernet, cellular, and LoRa® wireless connectivity. It supports leading cloud services for Industrial IoT, making it an ideal IoT gateway for scalable deployments.

Cloud Services Support

● AWS

● Azure



Robust Raspberry Pi Industrial Software Ecosystem

With the extensive Raspberry Pi industrial software ecosystem, the EdgeBox RPi 200 supports platforms like Codesys, N3uron, and balena. Backed by massive documentation and open communities, developers benefit from faster troubleshooting and flexible integration for smart automation and IIoT solutions.

















Note: The EdgeBox-RPi 200 can't directly flash the OS. An additional carrier board is required to flash the OS.



Robust Hardware Design

The Seeed Studio EdgeBox RPi 200 features a rugged, fanless industrial design with integrated thermal management and a full aluminum heatsink enclosure. Lightweight yet durable, it supports 35mm DIN rail and wall mounting, making it ideal for industrial IoT edge computing in limited spaces and extreme environments, including in-vehicle and in-rack applications.



Applications

EdgeBox RPi 200 Applications

  • Smart Building: Building Management Systems (BMS), Building Automation Systems (BAS), and advanced Building Automation & Control Systems (BACS).
  • Smart Farming: Intelligent irrigation, greenhouse condition monitoring, localized automation, and precision agriculture.
  • Energy Management: Power monitoring, home energy management, and microgrid control for sustainable energy solutions.
  • Manufacturing: Defect detection, workplace safety monitoring, and smart packaging automation.
  • Industrial Automation: Water management, forest monitoring, fire detection & prevention, and scalable IoT automation systems.

Unlock the potential of EdgeBox RPi 200 across diverse industries. Embrace digital transformation with this powerful Industrial IoT gateway, empowering businesses with edge computing and automation-ready solutions.



Specification

Parameter

Description

Basic

CPU

Raspberry Pi CM4, Quad-core Cortex-A72@ 1.5GHz

 RAM

1GB/2GB/4GB/8GB

eMMC

Lite/8GB/16GB/32GB

Operating System

Raspbian, Debian

Wireless

WiFi

2.4 GHz, 5.0 GHz IEEE 802.11 b/g/n/ac equipped*

Bluetooth

Bluetooth 5.0, BLE equipped*

Cellular

Mini-PCIe support 4G LTE(Quectel EC20/EC25 tested)*

LoRa®

Mini-PCIe support LoRaWAN®

Interface

Ethernet

1 x 1000M RJ45

HDMI

HDMI 2.0 up to 4k@60fps

USB

2 x USB2.0 A

RS Serial

1 x RS485 (isolated)

1 x RS232

M.2 socket

2242 NVME SSD card

DI

2 x isolated DI ports

Input Voltage: 24V DC; Current: 1000mA

DO

2 x isolated DO ports

Output voltage: <60 V; Current: 500 mA

Extra features

Power Supply

DC 12V - 36V

RTC

RTC

Watchdog Timer

Stand alone

Encryption Chip

ATECC608A*

Uninterrupted Power Supply

UPS*

Operation temperature

-20 ~ 60 °C

Certification

RoHS, CE, FCC, TELEC, UKCA

Note: Options marked with * require additional purchase of module or antenna according to accerrories list.

Note: 4G and LoRa® cannot be used at the same time, because EdgeBox have only one Mini-PCIe slot.



FAQ

Q. How can I get started with EdgeBox RPi 200?

The EdgeBox RPi 200, pre-loaded with Debian Buster Linux, can be powered via HDMI and Ethernet for the first boot. You can also access it remotely with SSH for initial configuration without a monitor. Once set up, switch to VNC for a graphical interface, enabling rapid deployment of Industrial IoT applications.

Q. What kinds of 4G and LoRa® modules can I use?

You can integrate Quectel EC20/EC25 modules for 4G LTE connectivity and the Seeed WM1302 module for LoRaWAN® applications, expanding your edge computing gateway capabilities.

Q. Can I use 4G and LoRa® at the same time?

Currently, the EdgeBox RPi 200 does not support simultaneous use of 4G and LoRa® modules.

Q. How to reflash the OS?

The EdgeBox RPi 200 is an open-source industrial hardware solution supporting protocols such as RS485, RS232, Modbus, Ethernet/IP, TCP/IP, and wireless networks. It can interact with third-party software like Codesys, Node-RED, N3uron, Ignition Edge, and cloud services including AWS and Azure. Reflashing the OS can be done via the Dual Gigabit Ethernet Carrier Board with official documentation provided.

EdgeBox RPi 200 FAQ

Documents

Certification

HS Code 8471419000
US HS Code 8517180050
UPC
EU HS Code 8471707000
Country of Origin CHINA
