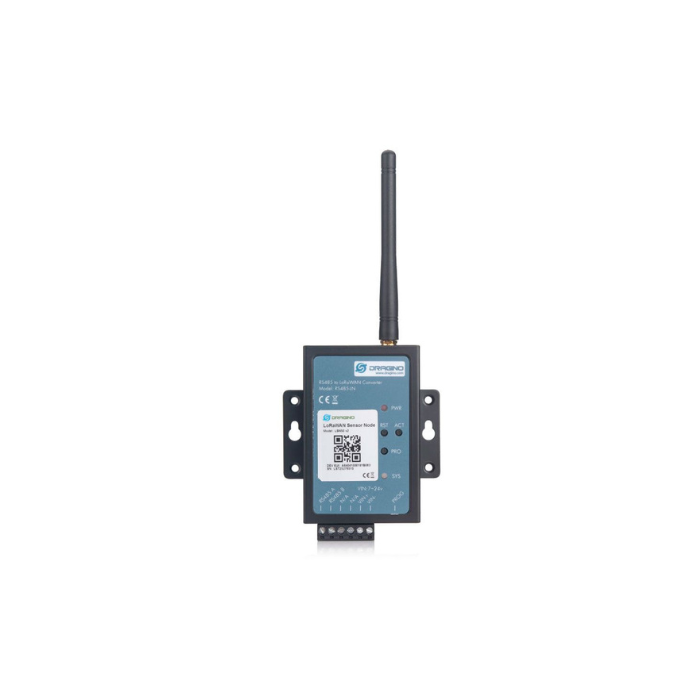

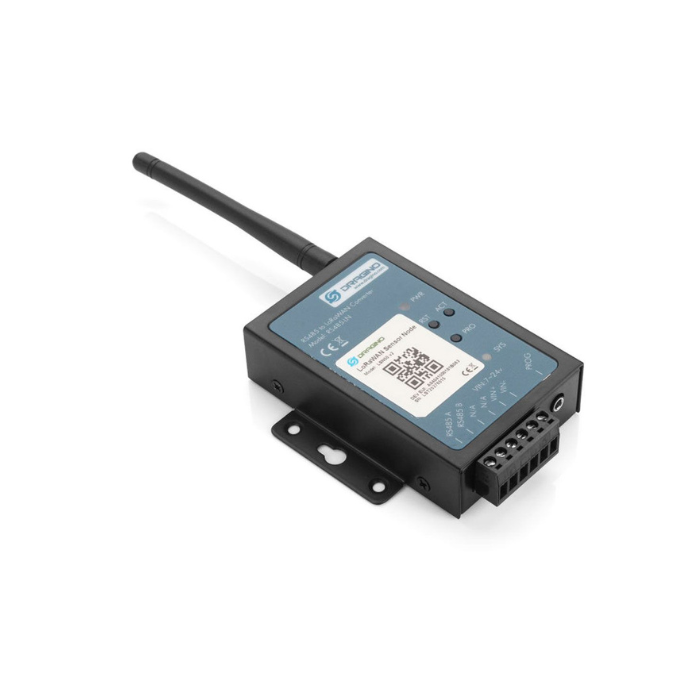

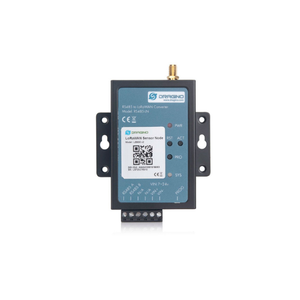

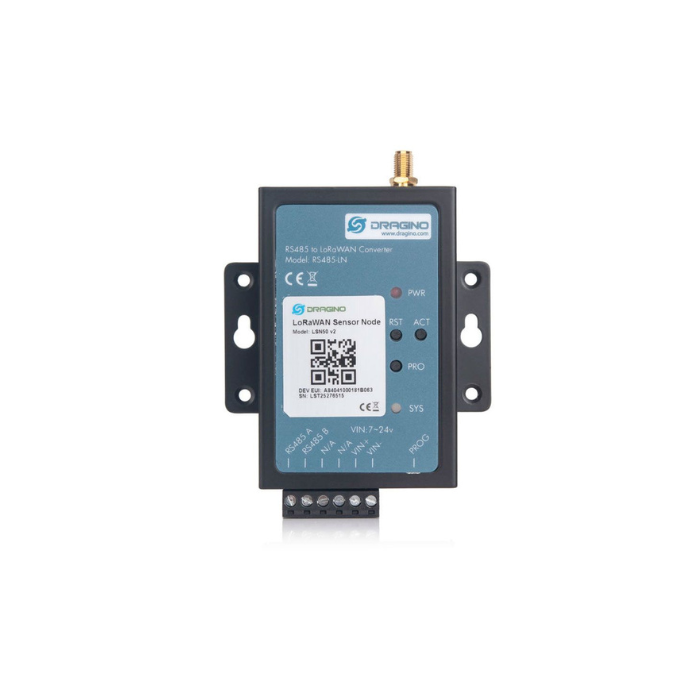

Seeed Studio Dragino RS485 to LoRaWAN Converter (SX1276) RS485-LN-EU868MHz

Seeed Studio Dragino RS485 to LoRaWAN Converter (SX1276) RS485-LN-EU868MHz

65,95 €

The RS485‑to‑LoRaWAN Converter, powered by the high-performance SX1276 LoRa chip, provides a seamless bridge between RS485 industrial signals and long‑range LoRaWAN wireless networks. This robust device enables efficient data transmission to a LoRaWAN gateway over vast distances, making it the perfect solution for Industrial IoT (IIoT) integration, remote sensor monitoring, and low‑power wide-area network (LPWAN) applications.

As Industrial IoT (IIoT) continues to evolve, LoRa technology has emerged as a cornerstone for smart cities, smart buildings, and industrial automation. For terminal devices such as Arduino or Raspberry Pi that utilize the RS485 interface, this RS485-to-LoRaWAN converter acts as a critical communication bridge.

The device functions as a smart bridge: For Uplink: It sends user-defined commands to RS485 sensors, collects the response data, and processes it into a payload based on custom rules for the LoRaWAN server. For Downlink: Operating in Class C, the converter receives commands from the server and forwards them directly to the RS485 field devices.



Features

  • Industrial Master Control: Equipped with the STM32L072CZT6 MCU for stable processing.
  • Advanced Wireless Connectivity: Integrated SX1276 LoRa chip for superior range.
  • Protocol Compatibility: Fully supports LoRaWAN Class A & Class C protocols.
  • Universal RS485 Integration: Flexible rule-based system to connect and poll various RS485 Modbus devices.
  • Customizable Configuration: Supports AT Commands for rapid parameter adjustment.



Technical Specifications

Category Specification
Hardware System STM32L072CZT6 MCU
SX1276 Wireless Chip
Power Consumption Idle: 32 mA @ 12V
20 dB Transmit: 65 mA @ 12V
Interface RS485
Power Input 7 ~ 24V DC
LoRa Spec – Frequency Band 1 (HF): 862 ~ 1020 MHz
Band 2 (LF): 410 ~ 528 MHz
Link Budget 168 dB maximum
RF Output +20 dBm – 100 mW constant
Bit Rate Programmable up to 300 kbps
Sensitivity Down to -148 dBm
Front End Bullet-proof, IIP3 = -12.5 dBm
Immunity Excellent blocking immunity
RX Current 10.3 mA
Register retention: 200 nA
Synthesizer Fully integrated, resolution 61 Hz
PA Efficiency +14 dBm high-efficiency PA
Modulation FSK, GFSK, MSK, GMSK, LoRa™, OOK
Synchronizer Built-in bit synchronizer for clock recovery
Detection Preamble detection
RSSI Range 127 dB Dynamic Range RSSI
Packet Engine Up to 256 bytes with CRC
RF Sense & CAD Automatic RF Sense and CAD with ultra-fast AFC



Compliance & Logistics

HS CODE 8517709000
US HS CODE 8517790000
EU HS CODE 8517180000
COO CHINA

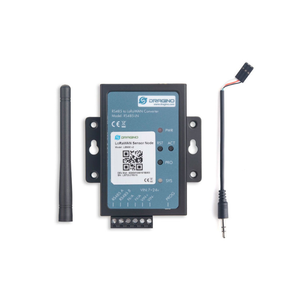

Part List

Item Quantity
RS485-LN 1
DIN holders 2
LoRa Antenna 1
Program cable 1
