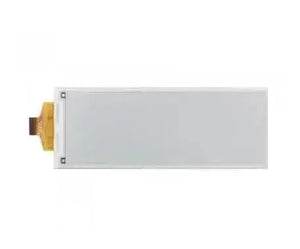

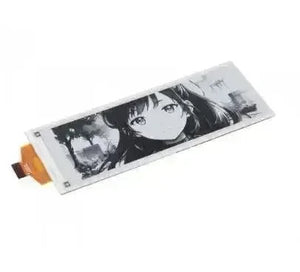

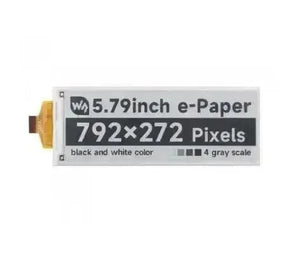

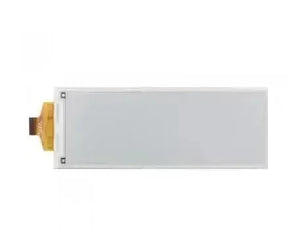

Waveshare 5.79 inch Raw E-Ink Display 792x272 E-Paper
📦 Location of the warehouse: China
Free shipping for you
Free Shipping from 30€ in Germany, 50€ in the EU!
Trustpilot rating: 4/5
Thank you for your support - rate us on Trustpilot!
Waveshare 5.79 inch Raw E-Ink Display 792x272 E-Paper
PACKAGE CONTENT
Weight: 0.035 kg
- 5.79inch e-Paper x1
Low Power, Wide Viewing Angle, Paper-Like Effect Without Electricity
Ideal for price tags, shelf labels, industrial instruments...
-
Size
5.79″
-
Resolution
792×272
-
Viewing Angle
>170°
-
Display Color
Black/White
-
Grey Scale
4
-
-
Communication
SPI
-
Display Panel
E-paper
-
Experience
Paper-like
-
Environment
Ambient Light Required
-
Display Type
Passively Reflective
-
Refreshing
Partial Refresh Support
- No backlight, keeps displaying last content for a long time even when power down
- Ultra low power consumption, basically power is only required for refreshing
- Comes with online development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)
|
OPERATING VOLTAGE |
3.3V |
DISPLAY COLOR |
Black/White |
|
INTERFACE |
3-wire SPI, 4-wire SPI |
GREY SCALE |
4 |
|
OUTLINE DIMENSIONS |
150.92 × 56.94 × 1.00mm |
FULL REFRESH TIME |
3.5s |
|
DISPLAY SIZE |
139.00 × 47.74mm |
PARTIAL REFRESH TIME |
0.8s |
|
DOT PITCH |
0.1755 × 0.1755mm |
REFRESH POWER |
<50mW |
|
VIEWING ANGLE |
>170° |
STANDBY CURRENT |
<0.01uA (almost none) |
|
RESOLUTION |
792 × 272 pixels |
||
Advantages Of EINK
E-paper display utilizes microcapsule electrophoretic technology for displaying, the principle is: charged particles suspended in clear fluid will move to sides of microcapsule when electric field is applied, making the microcapsule become visible by reflecting ambient light, just as traditional printed paper.
E-paper display will clearly display images/texts under lamplight or natural light, requires no backlight, and features nearly up to 180° viewing angle. It is usually used as e-reader due to its paper-like effect.
Suitable For Price Tags, Asset/Equipment Tags, Shelf Labels, Conference Name Tags...
