M5Stack ESP32 PSRAM Timer Camera Fisheye

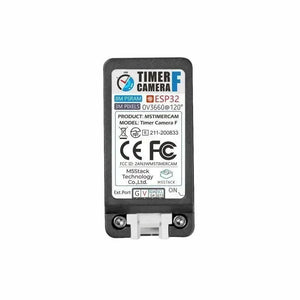

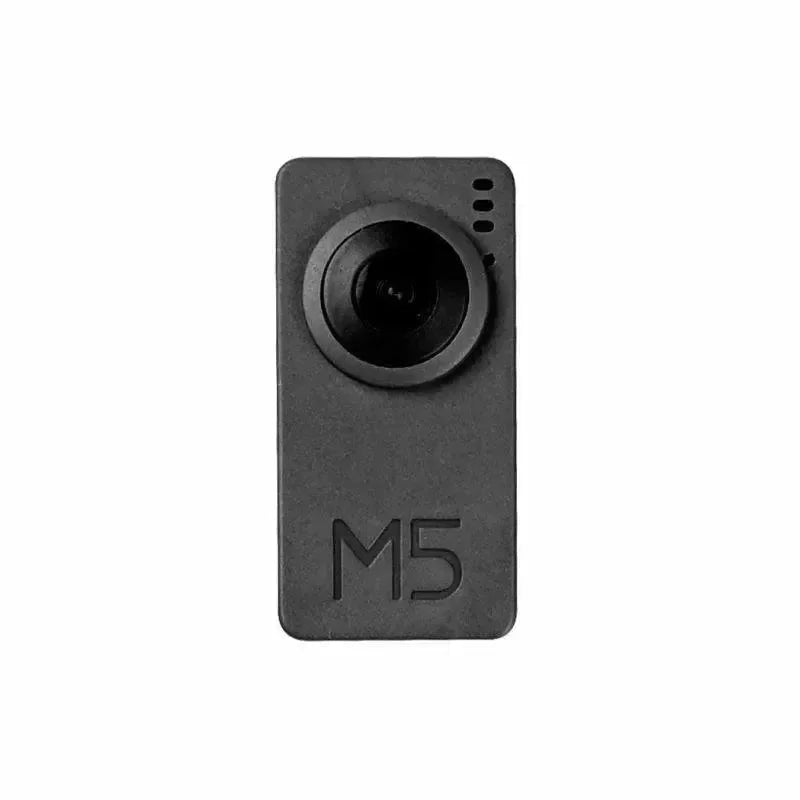

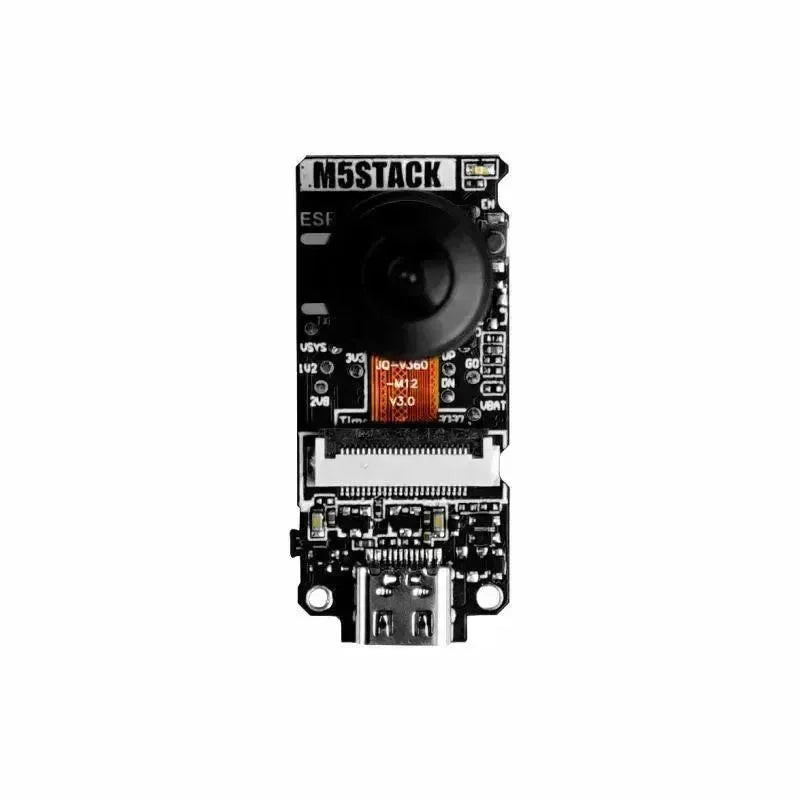

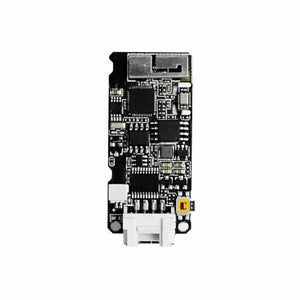

The Timer Camera F is a fisheye camera module based on ESP32-D0WDQ6-V3 with 8M PSRAM and 4M Flash on board. 3.0-megapixel camera (OV3660) with DFOV 120° and a maximum resolution of 2048x1536 photos can be captured. The camera features an ultra-low-power design, and the internal integrated RTC (BM8563) draws out the IRQ signal, which can be used for sleep and timer wake-up (sleep current down to 2μA). The built-in 270mAh battery provides more than one month of battery life with timed pictures (one per hour) enabled. This esp32 cam supports Wi-Fi image transfer and USB port debugging, and the HY2.0-4P output on the bottom can be used to expand other peripherals. The on-board LED status indicator and reset button facilitate program development and debugging. In terms of application, M5Stack provides a number of simple and efficient application development methods and interfaces for the TimerCAM series, making it easy for users to use and develop their applications. (including PC/Mobile photo shooting APP, cloud image HTTP interface for timer shooting, cloud AI recognition interface (not online yet), etc.)
Product Features
- Design based on esp32
- Wi-Fi image transmission
- Timed sleep wakes up
- Status indicator
- Ultra-low power design
- Built-in 270mAh battery
- Programming platform: ESP-IDF/Arduino/UIFlow

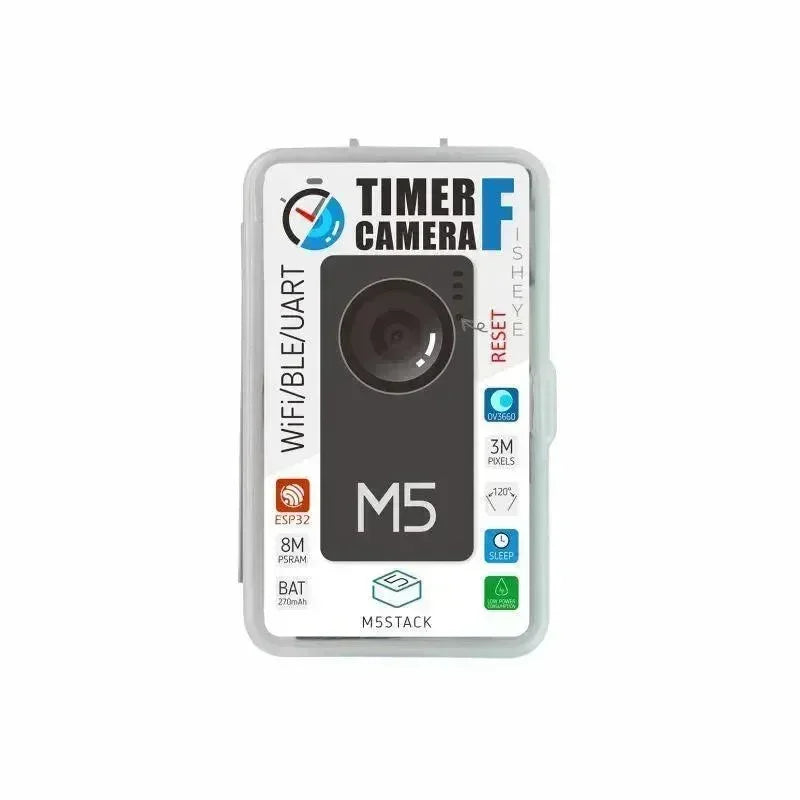

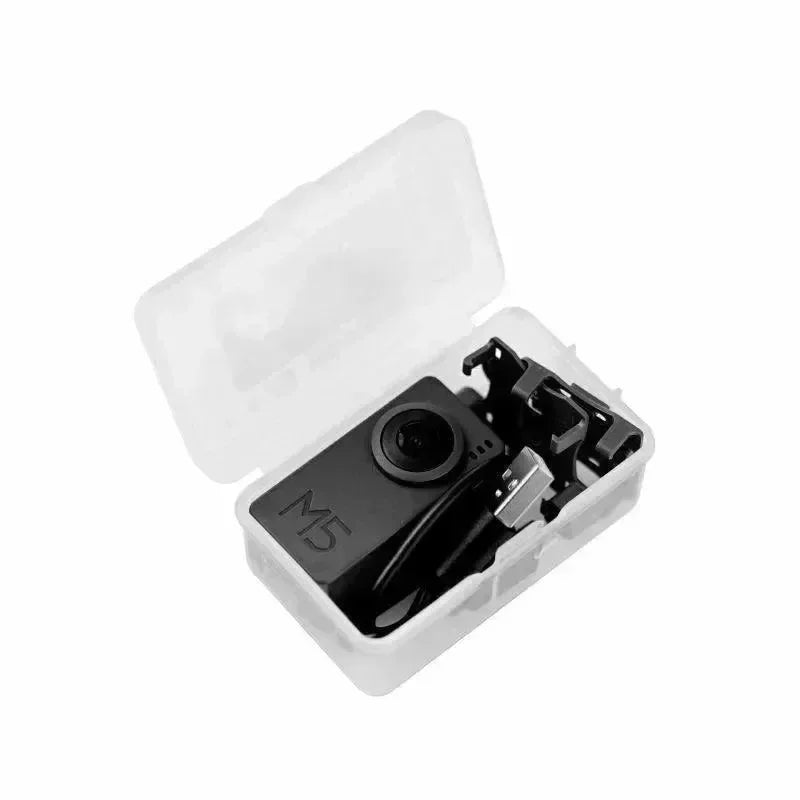

Includes
- 1x Timer Camera F

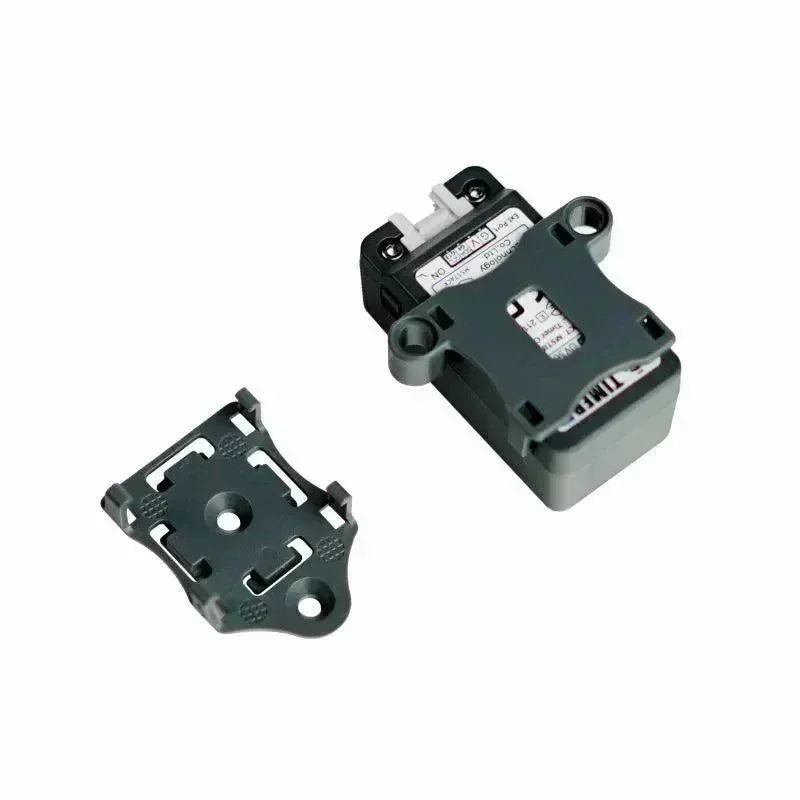

- 1x LEGO Adapter
- 1x Wall-1515
- 1x Type-C USB(20cm)
Applications
- Take pictures regularly
- Remote video monitoring
Specification
| Resources | Parameter |
|---|---|
| PSRAM | 8MB |
| Flash | 4M |
| Battery | 270mAh |
| Image Sensor | OV3660 |
| Maximum resolution | 3M pixels |
| Output format | 8/10-Bit RAW, RGB, and YCbCr output, compression. |
| DFOV | 120° |
| Net weight | 21g |
| Gross weight | 44g |
| Product Size | 48*24*22.6mm |
| Package Size | 75*45*30mm |
