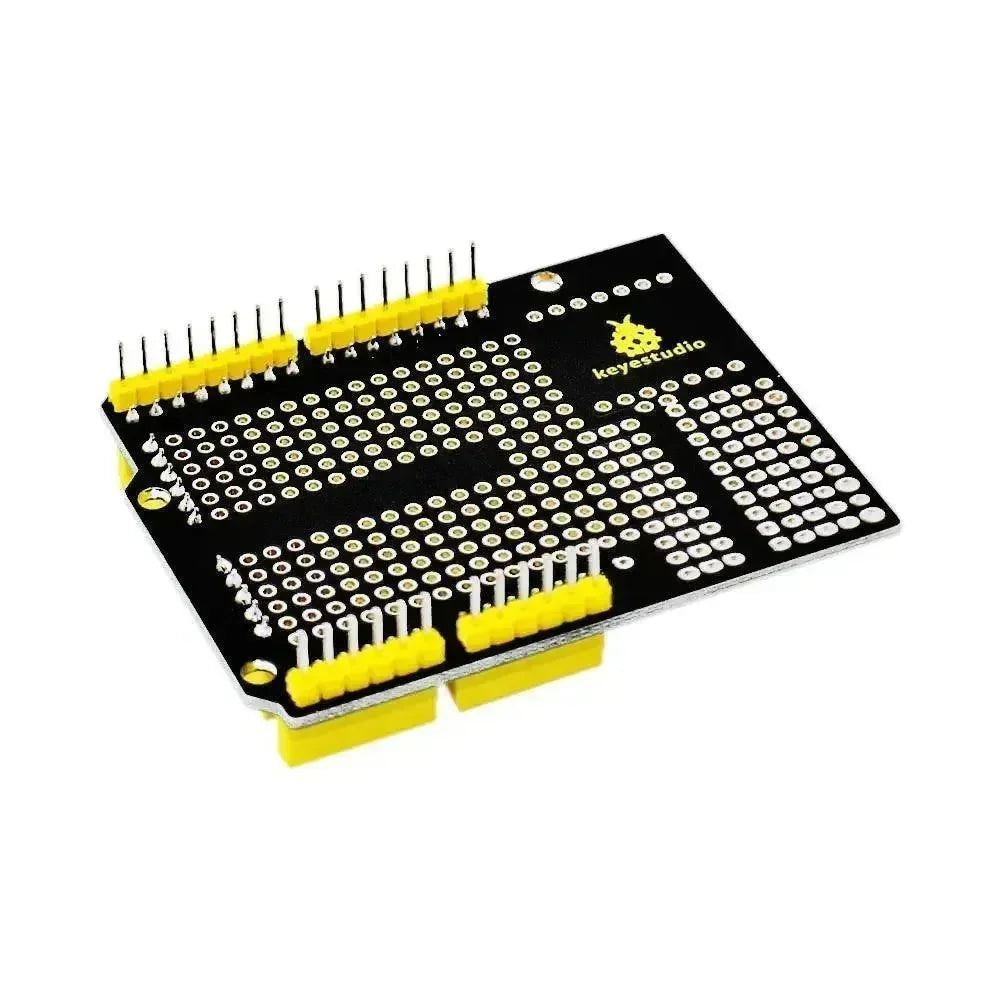

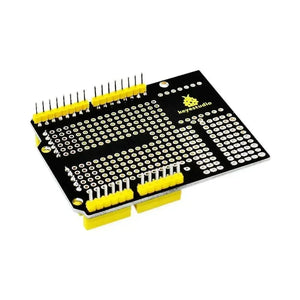

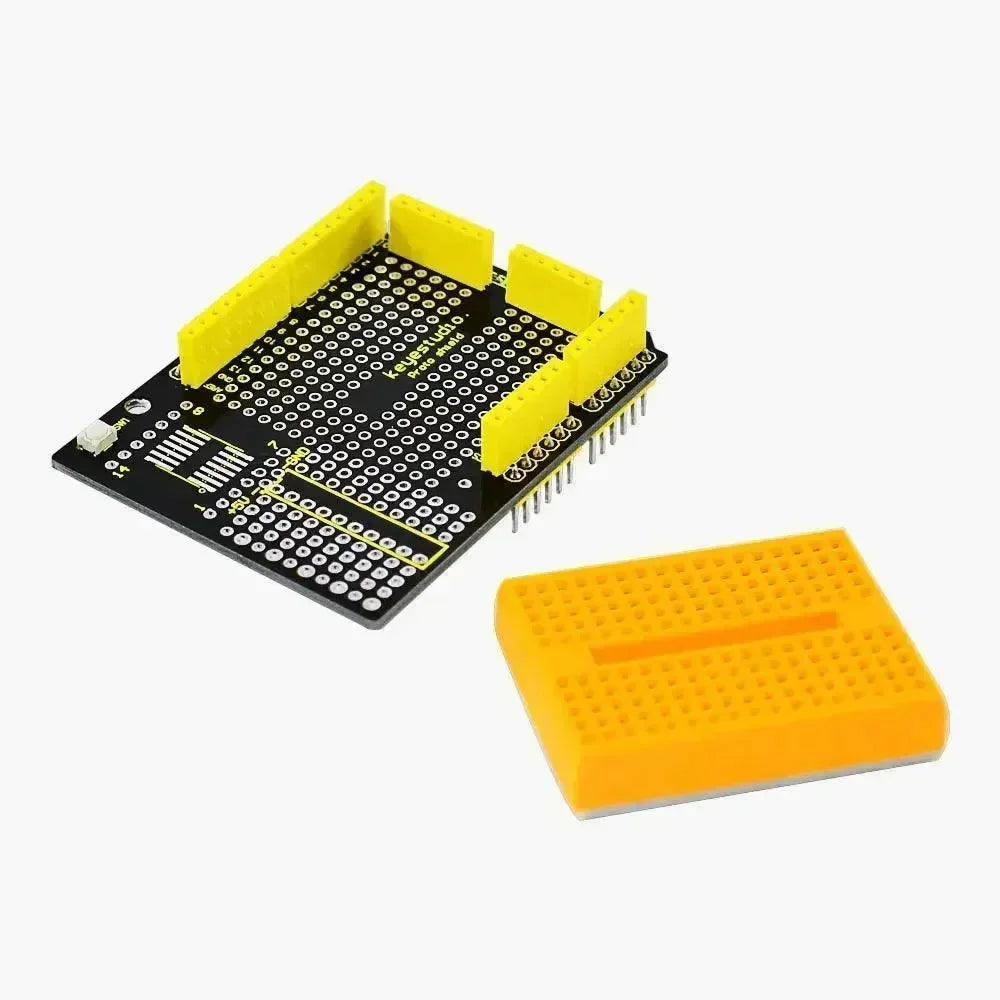

Proto Shield is particularly designed for the Arduino UNO R3. It makes it easy for you to design custom circuits and solder electronics directly on it. For convenient use, there is a large prototyping space of both connected and unconnected spaced through holes on the shield.
There is also a soldering position reserved for the SMD chip on the protoshield. You can easily solder SMD ICs on the prototyping area to test them with your Arduino board. It also extends out a row of power and ground spaced through-holes, giving enough port resources.

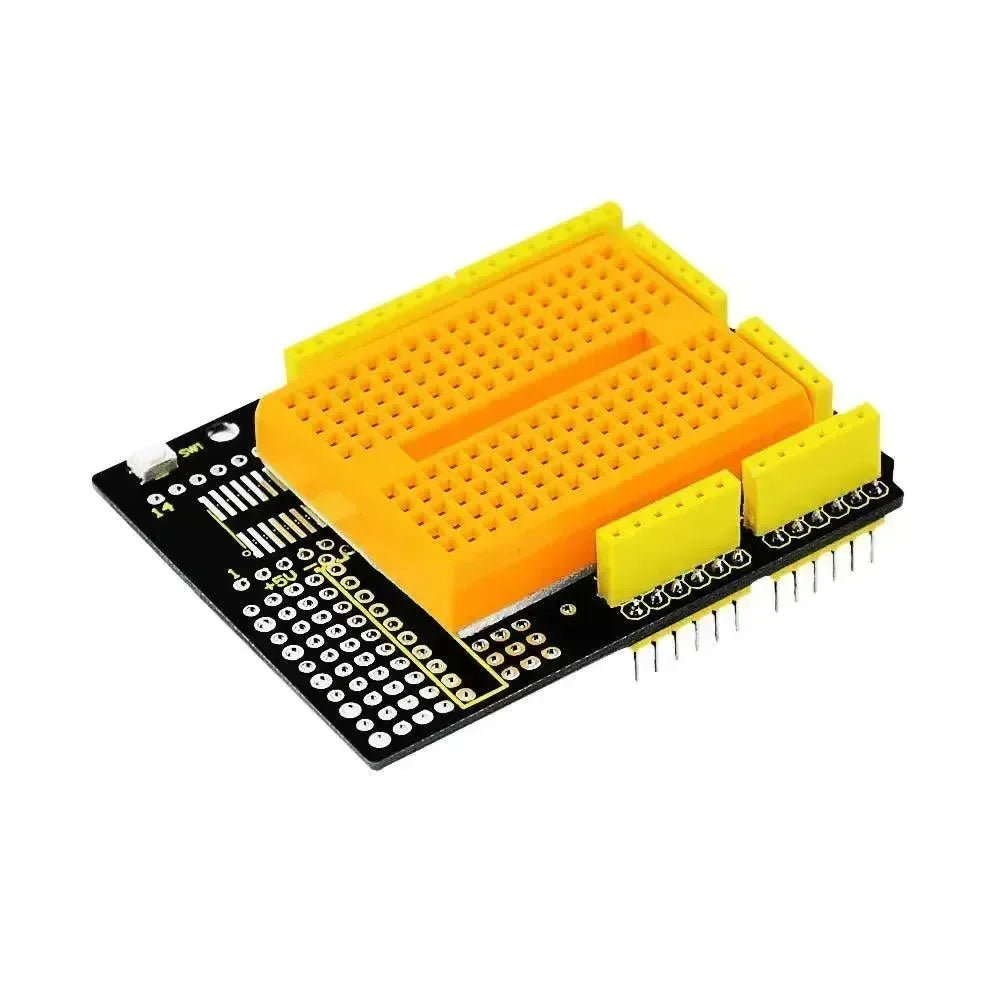

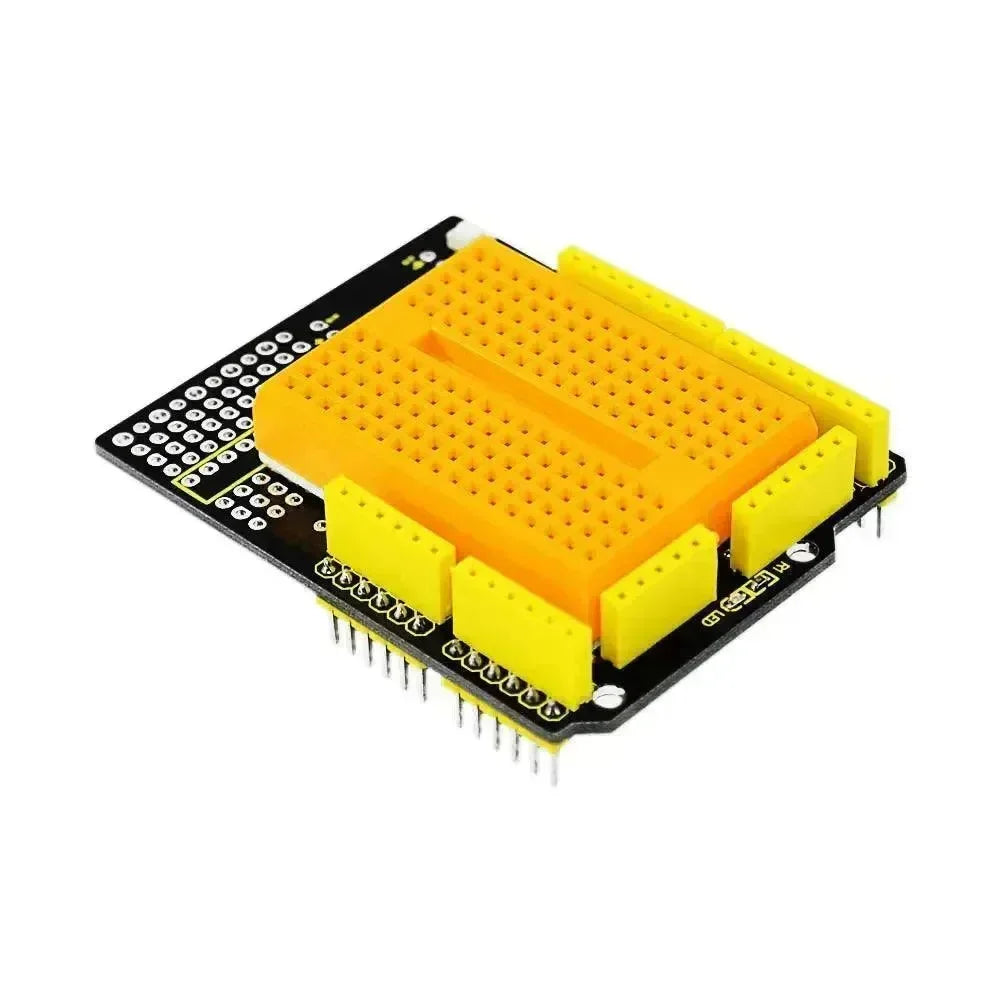

You can even stick a mini 170-holes breadboard (included) on the prototyping area. You can weld elements on the shield directly or connect circuits with the mini breadboard.
Can be plugged into the Arduino controller.
Extend 5V, 3V, and Arduino Vin pins.
Comes with a Reset button.
Extend out all control pins and power pins of the Arduino.
Able to build the prototyping circuits matched with Arduino.

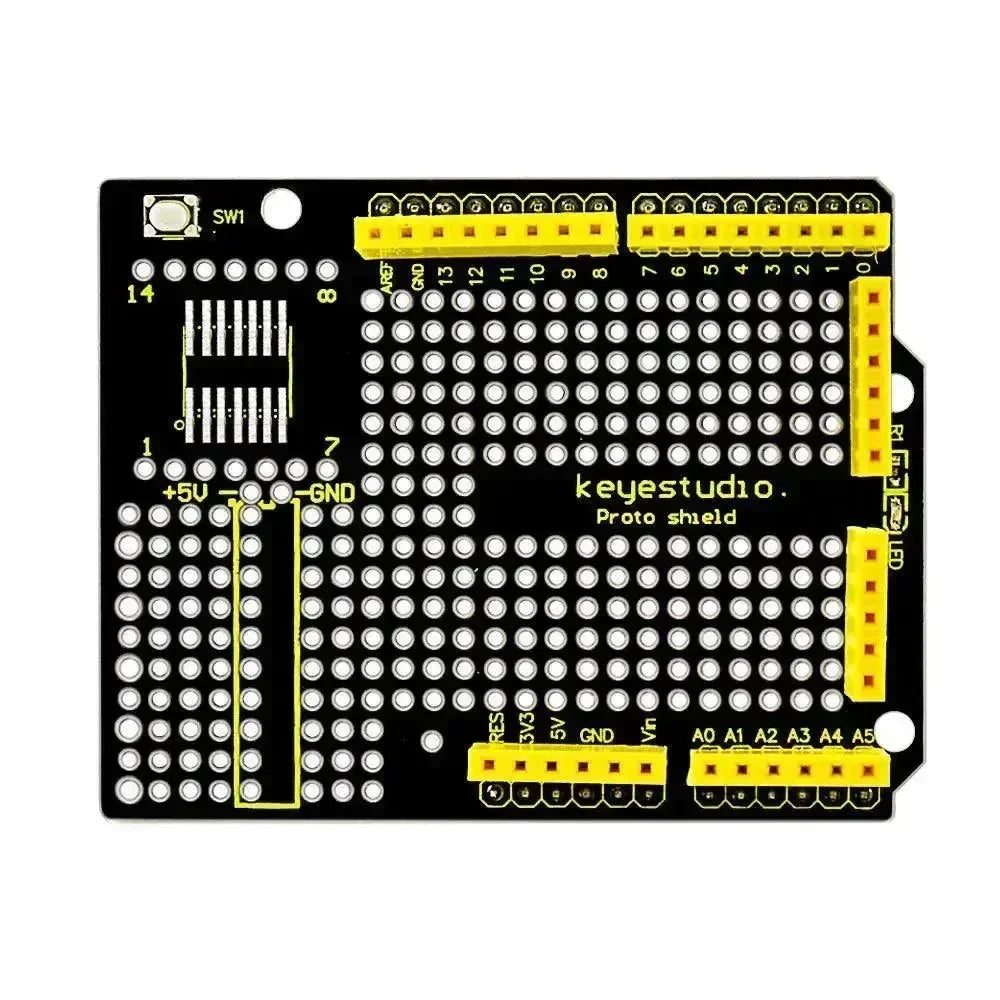

Access to SOIC SMD pin, supporting the soldering of SOIC chips up to 14pin.

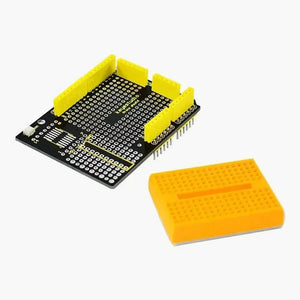

Includes a 170-hole breadboard.
