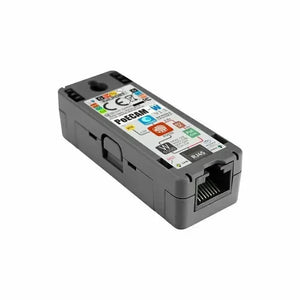

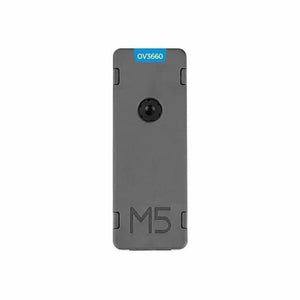

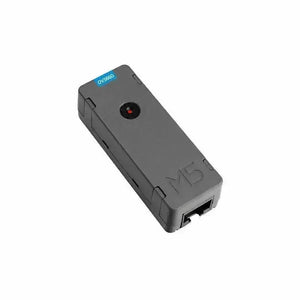

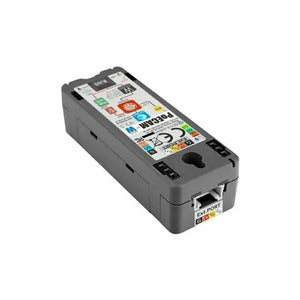

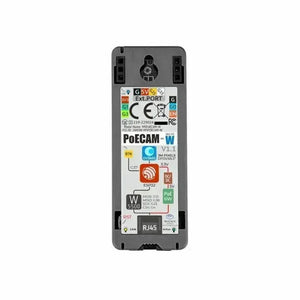

M5PoECAM-W V1.1 is a programmable PoE camera based on the "ESP32+W5500" solution, featuring a 3-megapixel OV3660 image sensor with a 65° field of view. It integrates PoE (power over Ethernet, max power consumption 6W) and Wi-Fi functionality. Equipped with 16MB Flash and 8MB PSRAM, programs can be downloaded via the Micro-USB interface. This camera offers a variety of interfaces and functional modules, including a G37 button, LED indicator light (G0), Grove interface (EXT_PORT), and expansion pins. It also comes with a camera mounting clip and LEGO-compatible clip. Suitable for image monitoring, remote acquisition, smart home, industrial automation, and scenarios requiring devices powered through PoE cabling.
Features
- Built-in ESP32-D0WDQ6-V3（Support 2.4G Wi-Fi）
- 3 million pixel camera OV3660
- Ethernet chip W5500
- LAN speeds up to 10M or 100M (depending on the line provided)
- PoE IEEE802.3 AF specification（Maximum power 6W）
- Built-in prompt LED light
- Ethernet standard interface RJ45
- Standard LEGO interface and camera mount
- Development platform: Arduino、ESP-IDF
Includes
- 1x M5PoECAM-W V1.1

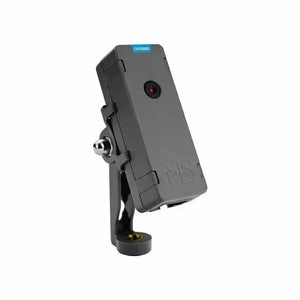

- 1x Camera mount clip
- 1x Brick-compatible clip
Applications
- Warehouse monitoring
- Timed photograph
- Machine vision
- Smart home monitoring
Specification
| Resources | Parameters |
|---|---|
| SoC | ESP32-D0WDQ6-V3 |
| Camera Module | OV3660 @3 Megapixel |
| DFOV | 65.5° |
| Ethernet Chip | W5500 |
| FLASH | 16MB |
| PSRAM | 8MB |
| Wi-Fi | 802.11 b/g/n |
| Pixel Size | 1.75µm x 1.75µm |
| Output Format | RAW RGB565/555/444 YUV422/420 YCbCr422 JPEG |
| Automatic image control functions | Automatic Exposure Control (AEC) Automatic Gain Control (AGC) Automatic White Balance (AWB) Automatic Band Filter (ABF) and Automatic Black-Level Calibration (ABLC) |
| FOV | 65° |
| Supports Hardwired TCP/IP Protocols | TCP、UDP、ICMP、IPv4、ARP、IGMP、PPPoE |
| Ethernet interface specifications | RJ45 |
| PoE | PoE IEEE802.3AF specification (Max power 6w) |
| Product Size | 64*24*18mm |
| Package Size | 80*37*32mm |
| Product Weight | 38g |
| Package Weight | 45g |
Download
Download M5PoECAM-W V1.1 Factory Firmware Easyloader
M5Stack PoE Camera with Wi-Fi Project
Arduino
- PoECAM-W V1.1 Firmware
- PoE CAM-W V1.1 button
- PoE CAM-W V1.1 capture
- PoE CAM-W V1.1 http_post
- PoE CAM-W V1.1 led
- PoE CAM-W V1.1 rtsp_stream
- PoE CAM-W V1.1 web_cam
