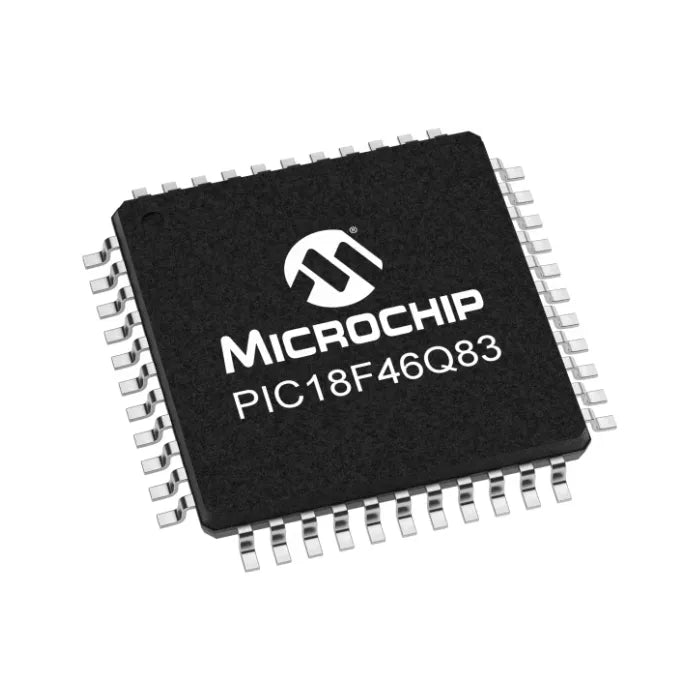

PIC18F46Q83-E/PT 8-Bit Microcontroller Microchip Technology
📦 Location of the warehouse: China
🚚 We will ship your order within 1-3 working days after the order is taken.
Free Shipping from 30€ in Germany, 50€ in the EU!
- EU & US Countries Delivery Time: 5~10 working days.
- Other Countries Delivery Time: 2~2.5 weeks.
- Pre-Ordering: If an item is unavailable, you can pre-order it. We'll dispatch once stock is replenished. For specific delivery times, please feel free to contact us for inquiries.
- Express Shipping: Need it faster? Contact us via email or through our live chat support, and we'll arrange expedited delivery for you.
PIC18F46Q83-E/PT 8-Bit Microcontroller Microchip Technology
The PIC18-Q83 family enhances the 8-bit MCU lineup by integrating a wide range of Core Independent Peripherals (CIPs) alongside Controller Area Network (CAN) capabilities. These cost-effective MCUs are available in configurations with up to 48 pins and 128 KB of flash memory, featuring time-saving CIPs. The family also introduces innovative features and peripherals, such as the customizable Universal Timer (UTMR) and context switching for the 12-bit ADC, which facilitates automated analog signal analysis for real-time responses. Moreover, it offers standard industry options like JTAG Boundary Scan and a 32-bit Cyclic Redundancy Check (CRC) with memory scan on startup, enhancing system safety. System designers can significantly save time, as configuring a hardware-based peripheral is much simpler than developing and validating a complete software routine for task execution.
Key Features:
-
Memory Configuration:
- Flash Memory: Up to 64 KB
- Data SRAM: 8192 bytes
- Data EEPROM: 1024 bytes
-
Pin Configuration: Available in a 48-pin package, offering various I/O interfaces for flexible applications.
-
Core Independent Peripherals (CIPs): Integration of various peripherals, including:
- 12-bit ADC with computation and context-switching capabilities for automated signal analysis, reducing application complexity.
- Four 16-bit PWM modules, supporting multiple operating modes.
- Multiple timers and counters to meet precise timing control requirements for different applications.
-
Communication Interfaces: Supports CAN, UART, SPI, and I2C protocols, ensuring efficient communication with other devices.
-
Safety and Monitoring: Built-in 32-bit Cyclic Redundancy Check (CRC) for monitoring program memory, ensuring the reliability and safety of the system.
Applications:
- Automotive electronics
- Industrial control
- Consumer electronics
- Medical devices
Power and Operating Characteristics:
-
Operating Voltage Range: From 1.8V to 5.5V
-
Temperature Range:
- Industrial grade: -40°C to 85°C
- Extended grade: -40°C to 125°C
-
Low Power Modes: Capable of operating in various low-power modes to extend battery life.
Development Support and Tools:
Microchip provides comprehensive development tools and support, including MPLAB X IDE, to help developers quickly build, test, and deploy applications. A wealth of online resources and documentation supports a smoother development process.
