Orange Pi 5 Plus is a high-performance, cutting-edge single-board computer powered by the advanced Rockchip RK3588 8-core 64-bit processor, featuring a quad-core Cortex-A76 and quad-core Cortex-A55 architecture built on an 8nm LP process for faster speed and better performance. It operates at up to 2.4GHz and integrates the powerful ARM Mali-G610 GPU, supporting OpenGL ES1.1/2.0/3.2, OpenCL 2.2, and Vulkan 1.2 for excellent 3D graphics and computing capabilities. The embedded NPU supports INT4/INT8/INT16/FP16 mixed-precision computing with up to 6 TOPS, making it highly suitable for AI edge computing, mini machine vision, and other high-end embedded applications.
Orange Pi 5 Plus supports flexible memory and storage configurations, offering 8GB and 16GB LPDDR4/4X memory variants and an eMMC socket that can accommodate modules ranging from 16GB to 256GB for massive capacity expansion. It supports multiple operating systems including the official Orange Pi OS, Android 12, Debian 11, and Ubuntu 22.04, providing a versatile development environment.
The board features abundant and versatile connectivity options, including dual HDMI output ports and one HDMI input port for rich display possibilities. It supports HDMI 2.1 8K video output, Type-C (DP1.4A), and MIPI DSI video output, capable of driving up to four simultaneous displays—ideal for VR cameras and deep vision systems. Networking is enhanced by dual PCIe 2.5G high-speed Ethernet ports, ensuring fast and stable data transfer.
Storage and wireless expansion are supported via M.2 slots: an M.2 M-Key slot for high-speed NVMe SSDs and an M.2 E-Key slot for Wi-Fi 6 and Bluetooth modules, ensuring both ultra-fast storage and robust wireless connectivity. Additional interfaces include two USB 3.0 ports, two USB 2.0 ports, and two Type-C connectors, one of which is dedicated as a power connector.
Key features of the Orange Pi 5 Plus
- Rockchip RK3588 8-core 64-bit processor, up to 2.4GHz main frequency
- ARM Mali-G610 GPU supporting advanced graphics APIs
- NPU with 6 TOPS computing power optimized for AI applications
- Support for 8GB and 16GB LPDDR4/4X memory
- eMMC storage expansion from 16GB to 256GB
- Dual HDMI output ports and one HDMI input port, supporting 8K video decoding
- Dual PCIe 2.5G Ethernet ports for high-speed networking
- M.2 M-Key slot for NVMe SSDs and M.2 E-Key slot for Wi-Fi 6/BT modules
- Multiple USB ports: 2 x USB 3.0, 2 x USB 2.0
- Dual Type-C connectors (one for power)
Orange Pi eMMC Module
256GB capacity options with fast read/write speeds, exceptional compatibility, and stability—designed to meet the stringent demands for high-performance, low-power, and reliable eMMC storage.
Provides abundant interfaces
Orange Pi 5 Plus offers a wealth of I/O options: dual HDMI 2.1 outputs and an HDMI input; two PCIe-enabled 2.5 GbE ports; an M.2 M-Key slot for NVMe SSDs; and an M.2 E-Key slot for Wi-Fi 6/BT modules. You also get two USB 3.0 ports, two USB 2.0 ports, and two USB-C ports (one dedicated to power).
Its versatility makes Orange Pi 5 Plus ideal for embedded-system enthusiasts and enterprise users alike. Whether you’re prototyping IoT devices or building compact machine-vision systems with multiple high-speed Ethernet links, Orange Pi 5 Plus delivers the performance and customization options you need.
Supports Wi-Fi6/BT modules
Supports NVMe SSD for massive capacity expansion
8K video decoding for clear and realistic picture
With support for up to 8K@60Hz, the powerful video codec allows for clearer images and more detailed picture quality.
High-quality and smooth gaming experience
8-core CPU + 8nm process + 8K video decoding for a smoother, more stable gaming experience
Explore Endless Possibilities with Orange Pi 5 Plus
Supports Orange Pi OS (Droid)
Orange Pi 5 Plus Pin Definition
Product display

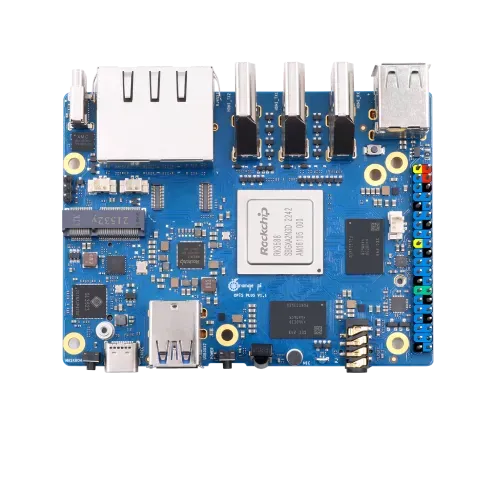

Top View
Hardware Parameters
| SoC | Rockchip RK3588 (8nm LP process) |
| CPU | • 8-core 64-bit processor • 4 x Cortex-A76(2.4GHz), 4 x Cortex-A55(1.8GHz) and separate NEON co-processors |
| GPU | • Arm Mali-G610 • Built-in 3D GPU • Compatible with OpenGL ES1.1/2.0/3.2, OpenCL 2.2 and Vulkan 1.2 |
| NPU | Embedded NPU supports INT4/INT8/INT16/FP16 mixed operation, with up to 6Tops computing power |
| PMU | RK806-1 |
| RAM | 4GB/8GB/16GB （LPDDR4/4X） |
| Memory | • QSPI Nor FLASH: 16MB/32MB • MicroSD card slot: up to 128GB • eMMC socket: 16GB/32GB/64GB/128GB/256GB eMMC module can be attached • M.2 2280 slot for NVMe SSDs (PCIe 3.0 x4) up to 2,000 MB/s |
| USB | USB3.0 × 2 USB2.0 × 2 Type-C ×1 |
| Video | • 2x HDMI 2.1 out up to 8k@60FPS • 1x Type-C with DP TX 1.4A，up to 8K@30FPS • 1x HDMI in with up to 4K@60FPS • 1 x MIPI DSI TX 4 Lane，up to 4K @60Hz |
| TP interface | 1x 6Pin FPC socket |
| Camera | • 1XMIPI CSI 4 Lane |
| Audio | CODEC:ES8388 • 1xAudio 3.5mm jack with mic • 1xMIC In • 1xHDMI 2.1 eARC • 1xSPK |
| Ethernet | 2xPCIe 2.5G LAN（RTL8125BG) |
| Expansion Port | 40Pin dual row pins with the following multiplexing functions: UART, I2C, SPI, CAN, I2S, PDM, AUDDSM, SDIO, PWM, GPIO |
| PCIe M.2 M-KEY Socket | M.2 connector M key (bottom) for NVMe with PCIe 3.0 x4 lanes 2280 SSD |
| PCIe M.2 E-KEY Socket | M.2 connector E key (top) for connectivity with PCIe 2.0 x1/PCM/UART/USB2.0,2230 Wi-Fi6 /BT supported |
| Button | 1×MaskROM key 1xRecovery 1×on/off key |
| Power Source | Support Type-C power supply, 5V@4A |
| IR receiver | 1x IR receiver tube |
| LED | RGB LED side light |
| FAN | 5V FAN |
| RTC | 2Pin: RTC backup battery |
| Debugging | 3Pin debug serial port (UART) |
| Supported OS | Orangepi OS（Droid）、Orangepi OS（Arch）、Ubuntu22.04、Debian11、Android12 |
Appearance specification introduction
| Dimension | 100mm * 75mm |
| Weight | 86.5g |
