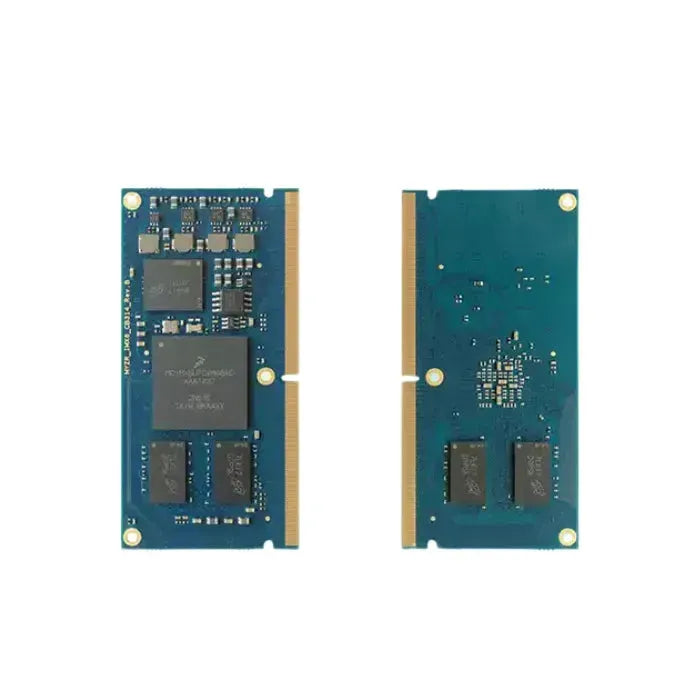

MYZR I.MX6 CB314 6S7C Cortex A9 NXP Single Core Industrial Grade

The MYZR I.MX6 CB314 represents a high-performance core board based on the NXP i.MX 6QP/Q/U/S series processors, which are equipped with an ARM Cortex-A9 architecture. This module is specifically designed for applications in industrial, commercial, and artificial intelligence sectors. It offers multiple configurations, including single-core, dual-core, and quad-core options, thereby ensuring efficient computing capabilities accompanied by low power consumption.

Key Features

Powerful Processing Performance

• Equipped with NXP i.MX 6QP/Q/U/S processors
• Clock speed up to 1.2GHz
• Single-core, dual-core, and quad-core configurations available

Flexible Memory and Storage

• Supports 16-bit DDR3/DDR3L RAM (512MB / 1GB / 2GB)
• Integrated eMMC 4GB / 8GB (expandable up to 64GB)
• 2MB SPI-NOR Flash for stable data storage

Industrial-Grade Reliability

• Commercial Grade: 0°C ~ 70°C
• Industrial Grade: -40°C ~ 85°C
• Automotive Grade: -40°C ~ 125°C

Rich Expansion and Interface Options

• SPI, I2C, UART, SD Card, CAN Bus, SATA, PCIe
• Multiple display and multimedia interfaces
• Gigabit Ethernet (10/100/1000Mbps)
• USB 2.0 Host & OTG

Advanced Display & Multimedia Support

• HDMI 1.4 (1920×1080 @ 60Hz)
• MIPI-DSI (up to 1.5Gbps)
• LVDS (1366×768 resolution)
• RGB display support
• 8-bit parallel camera interface, MIPI-CSI for vision applications

Multi-System Compatibility

• Supports Linux 3.0.35, 3.14.52, 4.1.15
• QT 4.8, QT 5.5, Ubuntu 12.04, Android 5.1

Application Scenarios

• Self-service vending machines
• Commercial advertising displays
• Educational interactive terminals
• Medical devices & healthcare applications
• Industrial automation & smart control systems
• Robotics & AI applications
• Smart transportation & city infrastructure

Specifications

CPU

• NXP i.MX 6QP/Q/U/S ARM Cortex-A9, up to 1.2GHz

Memory & Storage

• 16-bit DDR3/DDR3L (512MB / 1GB / 2GB)
• eMMC 4GB / 8GB (expandable to 64GB)
• 2MB SPI-NOR

Operating Temperature

• Commercial: 0°C ~ 70°C
• Industrial: -40°C ~ 85°C
• Automotive: -40°C ~ 125°C

Connectivity & Expansion Ports

• Gigabit Ethernet (10/100/1000Mbps)
• USB 2.0 Host & OTG
• SPI, I2C, UART, SDIO, SATA, PCIe, CAN Bus

Display Support

• HDMI 1.4 (1920×1080 @ 60Hz)
• MIPI-DSI (1.5Gbps)
• LVDS (1366×768 resolution)
• RGB display support

Multimedia & Audio

• 8-bit parallel camera interface
• MIPI-CSI camera input
• S/PDIF stereo audio

Operating System Support

• Linux 3.0.35, 3.14.52, 4.1.15
• QT 4.8, QT 5.5, Ubuntu 12.04, Android 5.1

Why Choose MYZR I.MX6 CB314?

• Scalable performance with single-core, dual-core, and quad-core options
• Industrial-grade reliability for extreme temperature conditions
• Rich interface support with multiple communication and expansion options
• Optimized for embedded applications including AI, automation, and industrial control
