Micro Maqueen Plus V2 an Advanced STEM Education Robot for micro:bit
Micro Maqueen Plus V2 an Advanced STEM Education Robot for micro:bit
Shipping & Delivery Information
🚚 In-Stock Items: Orders for in-stock products are shipped within 24 hours after the order is placed.
📦 Pre-order Items: If a product is marked as "Pre-order", it means it is currently out of stock. We'll dispatch your order once we have restocked, usually within 10 working days. For special pre-sale items, the expected arrival date will be noted in the product description.
✈️ Express Shipping: Need your order urgently? Please contact us via email or live chat, and we’ll help arrange express delivery for you.

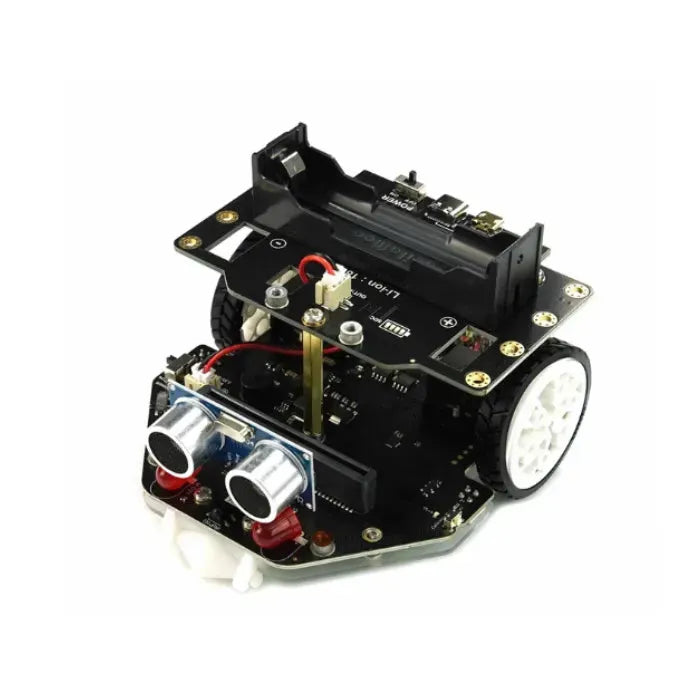

DFRobot Micro Maqueen Plus V2 (MBT0021) is the latest upgrade of the Maqueen Series educational robot by DFRobot, specifically designed for primary and secondary STEM education. With a larger body, more IO expansion ports, and support for richer peripherals, this version delivers enhanced compatibility, flexibility, and ease of use. Whether you're new to the Maqueen Series or an experienced user, Maqueen Plus V2 is easy to get started with and perfect for both classroom teaching and robot competitions.
Key Features
- No complex assembly, get started in minutes
- More IO expansion ports: 3.3V IO×7, 5V IO×3, I2C×3
- 5 line-tracking sensors, reliable and flexible
- Larger body, more flexible expansion methods
- Two versions to choose from: AA battery and 18650 battery
AA battery version supports 1.2V Ni MH battery or 1.5V alkaline battery, while 18650 battery version supports 3.7V 18650 battery - Works well with HuskyLens AI camera
- Rich peripherals: IR receiver, LED car lights, RGB ambient lights, buzzer, ultrasonic sensor, etc.
- Frosted acrylic protective plate at the bottom
- Storage box with a deeper base to provide enough room for the assembled Maqueen Plus car
What's New in Maqueen Plus V2
-
Two battery versions: AA battery and 18650 battery
-
Deeper storage box for easier transport and protection
-
Added frosted acrylic protective base
-
Line-tracking sensors changed from 6 to 5 for easier programming
-
Same motor specs as previous version for stable performance
-
SR04 ultrasonic sensor for easier installation
-
Base now includes 4 RGB ambient lights
-
Replaced magnetic encoder for simpler design
Applications
-
STEM Education in classrooms
-
Robotics competitions
-
Hands-on learning for coding and electronics
-
After-school activities and extended exercises
Specifications
- Power Supply: MBT0021-EN-18650: 18650 Lithium battery (3.6V or 3.7V) x 1, onboard charging circuit, MicroUSB and TYPE-C charging interfaces, 4 hours to charge fully
- Support micro:bit V1 and V2
- N20 All-metal Gear Motor x 2
- Buzzer x 1
- 5V IO (P0 P1 P2) x 3
- 3.3V IO (P0 P1 P2 P8 P12 P13 P14 P15)
- 3.3V I2C x 2
- 5V I2C x 1
- Large Size LED Car Lights x 2
- RGB Ambient Lights x 4
- Line-tracking Sensor x 5
- Line-tracking Sensor with One-key Calibration
- IR Receiver x 1
- SRO4 Ultrasonic Module x 1
- Dimension: 136mm×65mm/5.35×2.56"
- Programming Platform: Mind+, MakeCode
- Wiki Address:
- MakeCode Library Address: https://github.com/DFRobot/pxt-DFRobot_MaqueenPlus_v20
Shipping List
-
Maqueen Plus V2 Vehicle Body × 1
(Pre-installed: motor, wheels, support wheel, battery panel) -
SR04 Ultrasonic Sensor × 1
-
Line-tracking Map × 1 （Note: Batteries are not included.）
