Have you met with these troubles? when connecting a couple of sensor modules to the MEGA 2560 control board, sometimes power output interfaces are not enough, so need to use the breadboard and the wiring is rather troublesome.

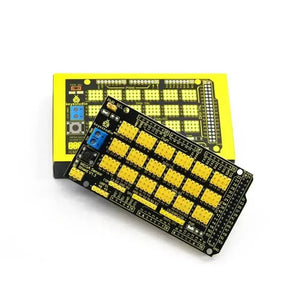

Now don’t worry about that. You can use this key studio MEGA sensor shield.
It is fully compatible with MEGA 2560 control board, so you can easily stack the MEGA sensor shield onto the MEGA 2560 control board.
The shield comes with digital and analog interfaces in 3PIN (G V S), easy to connect the 3PIN sensor modules. Besides, it comes with communication pins of 2.54mm pin pitch, such as serial and SPI communication.
It comes with a reset button and 2 signal indicators as well.
Note: for the 3PIN interface, the voltage of Analog pins (labeled V) is 5V; while the voltage of Digital pins (labeled V) is VCC, that is, the voltage input via a blue terminal block, default by jumper connected, connecting the voltage to 5V on the shield.
Can be plugged into the MEGA 2560 control board
Comes with a Reset button
Comes with a power LED and a D13 indicator

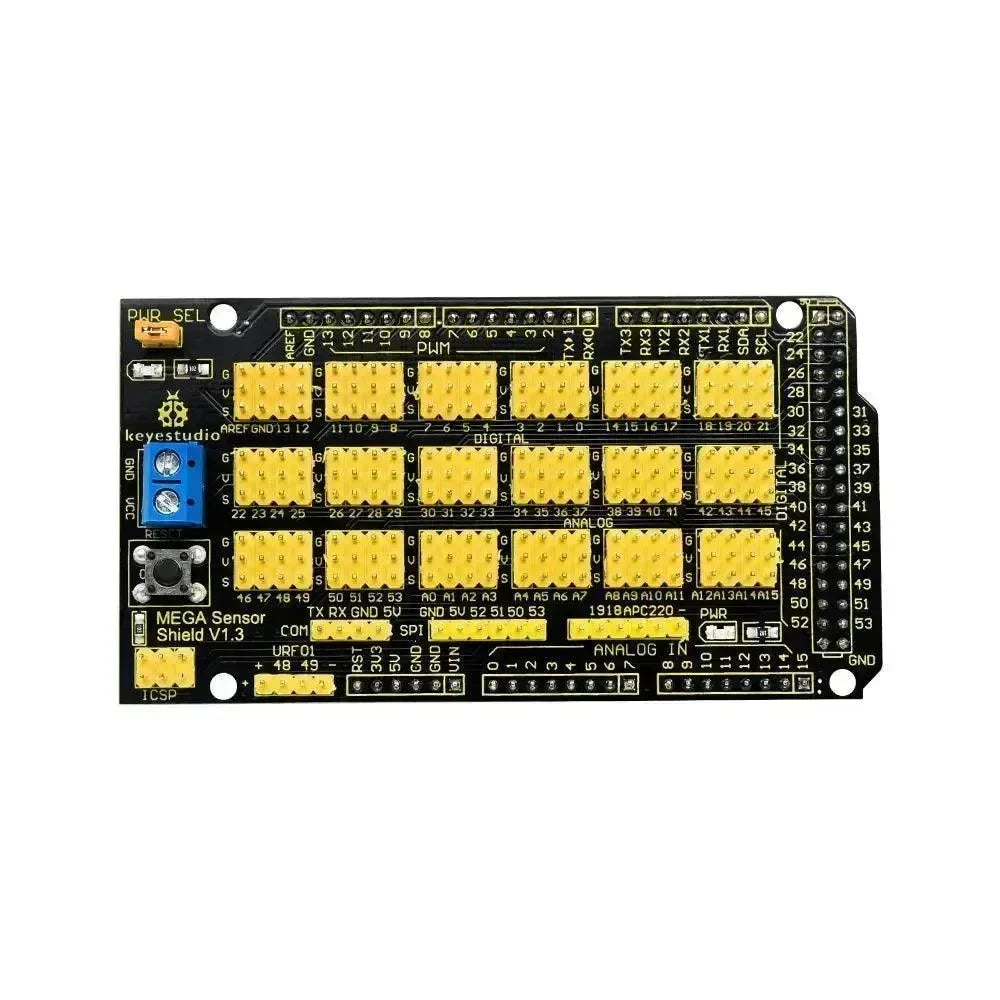

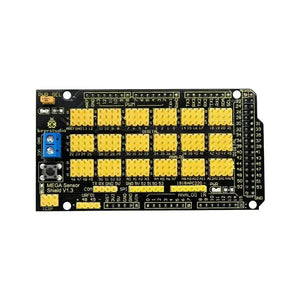

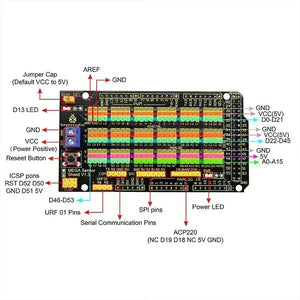

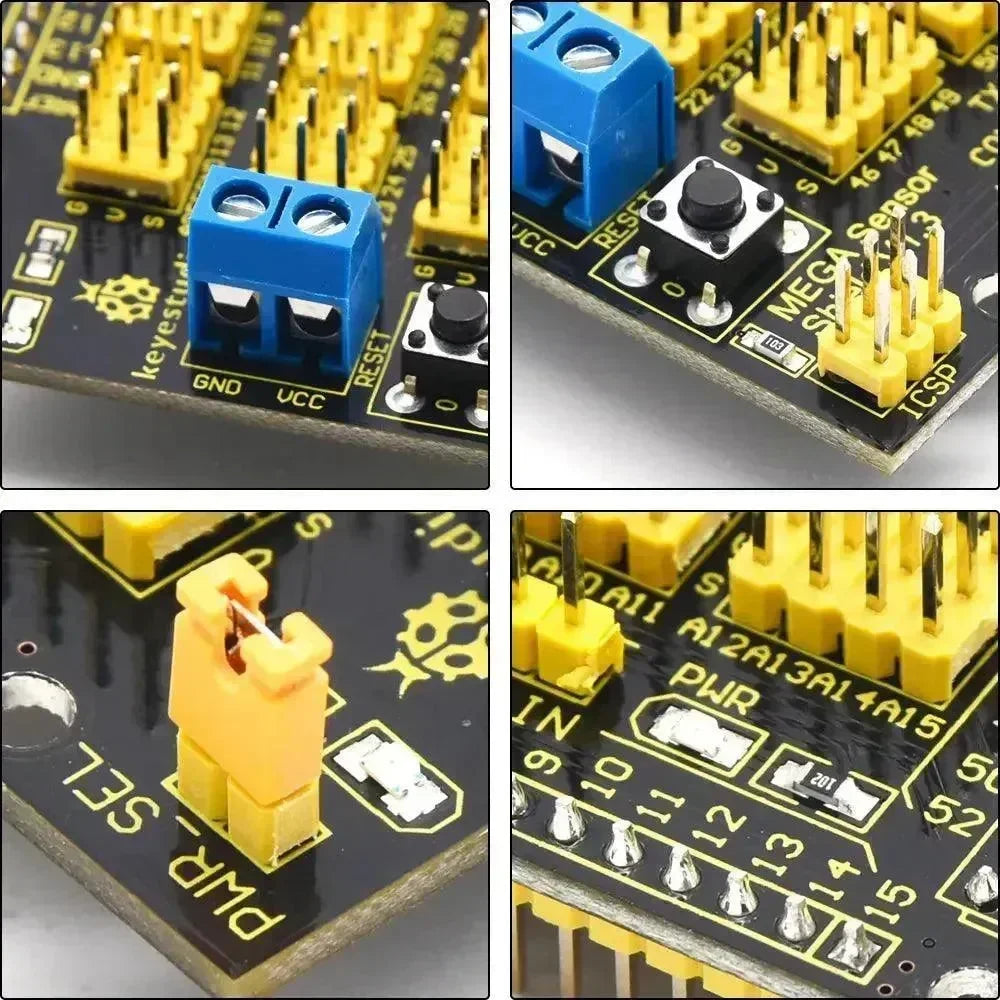

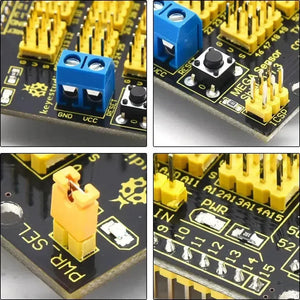

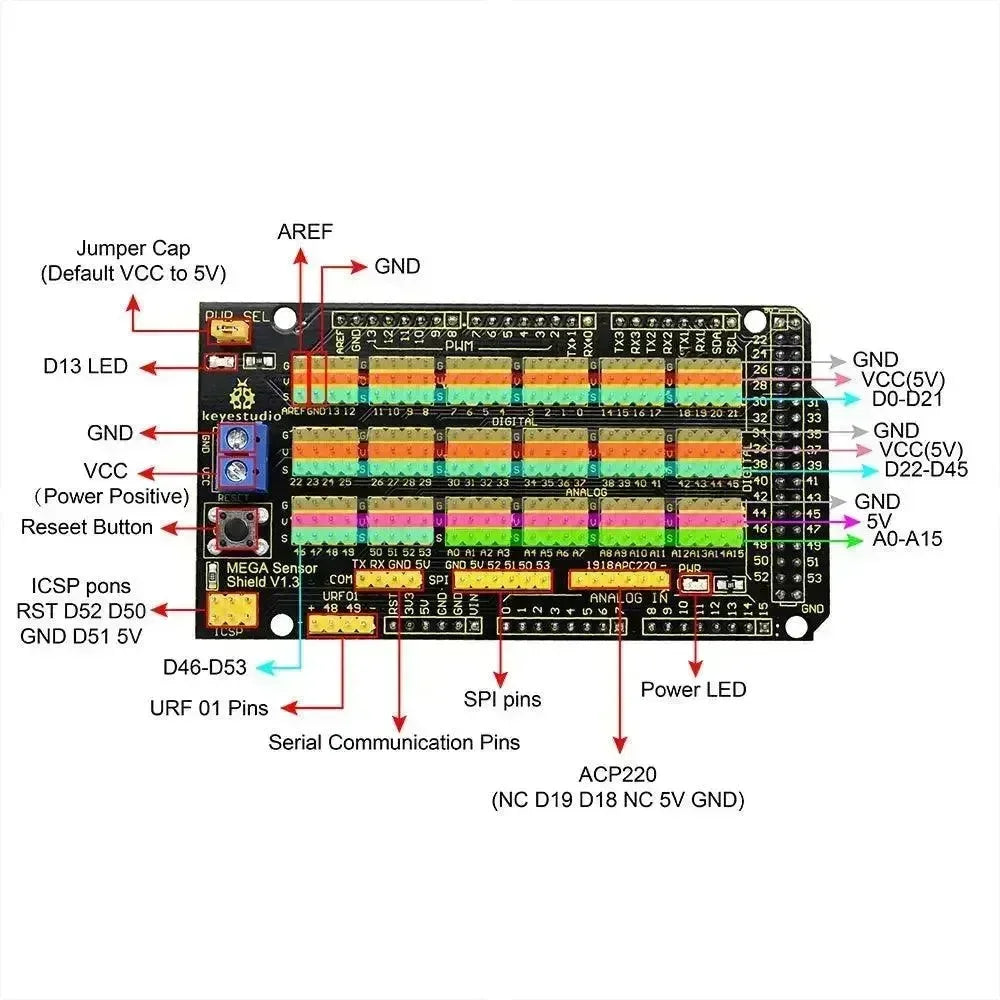

Extends the digital and analog interface of MEGA into 3PIN
Comes with a serial communication interface
Extends an ICSP interface
Extends a SPI interface
Extends a URF01 interface
Extends an APC220 interface
Able to supply the voltage to sensor modules via the terminal block (jumper cap off)
Dimensions: 100mm x 54mm
Weight (only MEGA sensor shield): 39.2g
