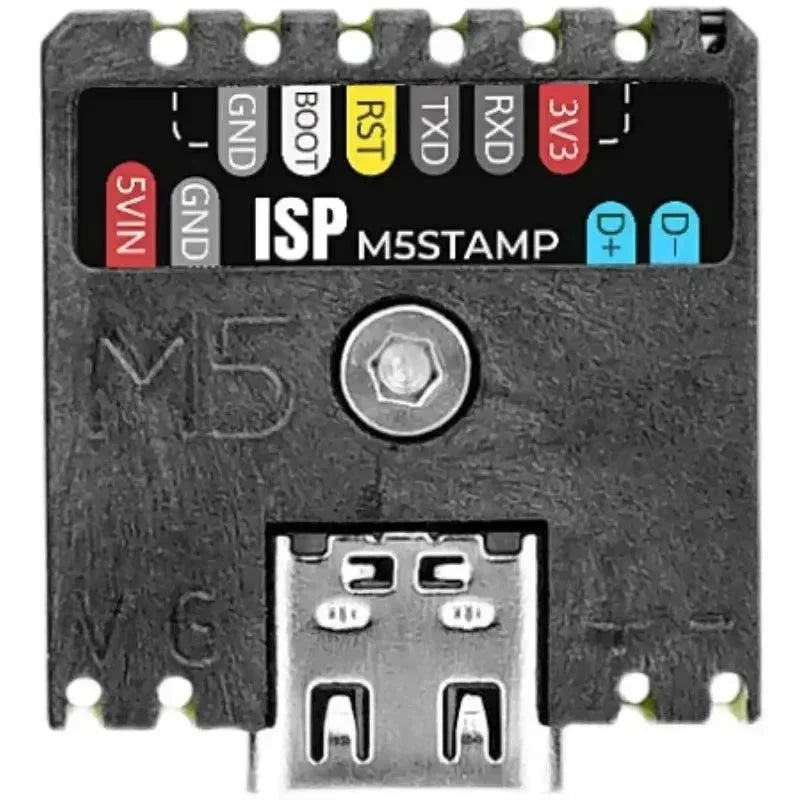

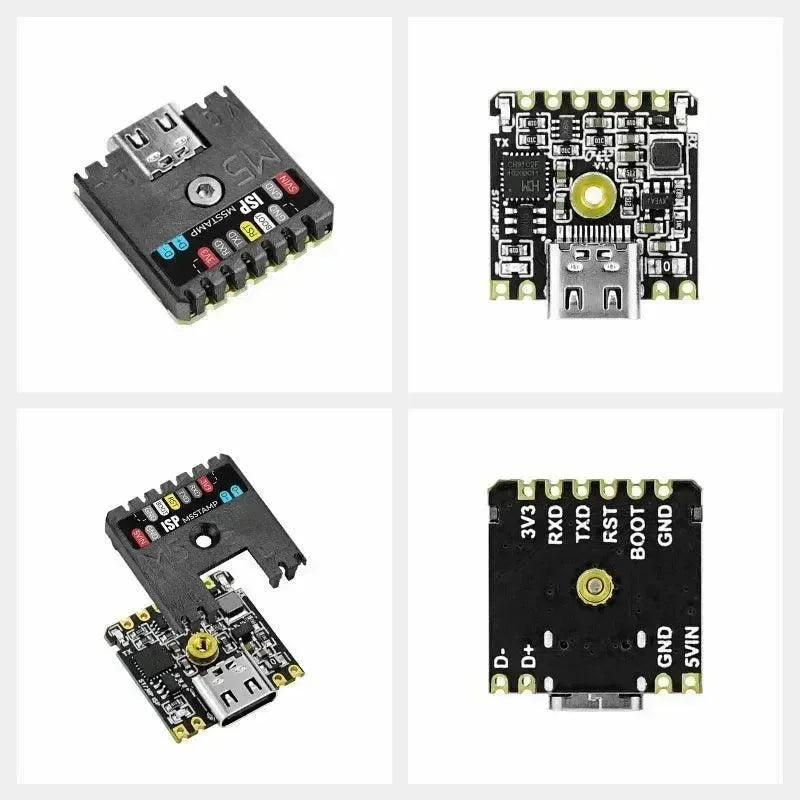

StampISP is an ESP32 programming tool with USB to serial port in STAMP series package, using CH9102 chip inside, and built-in 3.3V DCDC circuit, 5V power supply and USB D+/D- signal line led out on the side of the PCB. It adopts STAMP package and can support SMD, DIP, flying wire and other uses. This product can be used for ESP32 circuit download, embedded part of product ISP function, etc.
Full speed USB device interface, USB 2.0 compatible，Type C interface.
Hardware full duplex serial UART interface
supports communication baud rate varies from 50bps to 4Mbps.
3.3V OUTPUT
±8kV ESD protection
Program download indicator (red/blue)

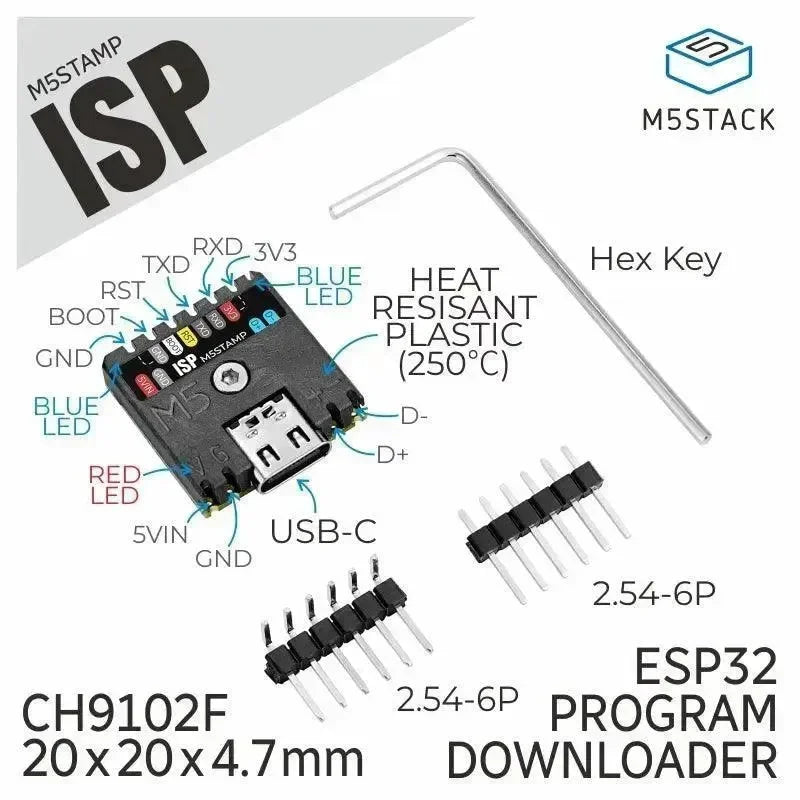

1*Stamp ISP
1x 1.5mm hex key
1 × 2.54-6P Curved needles
1 × 2.54-6P Inline needles
ESP32/ESP8266 program download
Other serial port communication
| Resources | Parameters |
|---|---|
| USB communication chip | CH9102F |
| Step-down DCDC power supply chip | SY8089 |
| USB interface type | Type C |
| Output voltage | 3.3V |
| ESD protect | ±8kV |
| Product Size | 20mm × 20mm × 4.7mm |
| Package Size | 136mm × 92mm × 13mm |
| Product Weight | 2.9g |
| Package Weight | 6.8g |
