M5Stack just added a new family to its popular series of modules with the Stamp-C3. the new Stamp-C3 featuring ESPRESSIF ESP32-C3 RISC-V MCU with Wi-Fi connectivity for IoT edge devices such as home appliances and Industrial Automation. Combining RSA-3072-based secure boot and the AES-128-XTS-based flash encryption, also makes it optimal for industrial IoT equipment collecting sensor data within a factory or a building.
The Stamp-C3 is based on 32-bit RISC-V a microcontroller and operates at a maximum clock frequency of 160 MHz. With 400 KB of internal RAM and 4 MB Flash, it can facilitate many different use cases involving connected devices. Furthermore, the exceptional heat resistance plastic enclosure is sustained at a higher operating temperature.
Product Features
MULTIPLE STYLE:

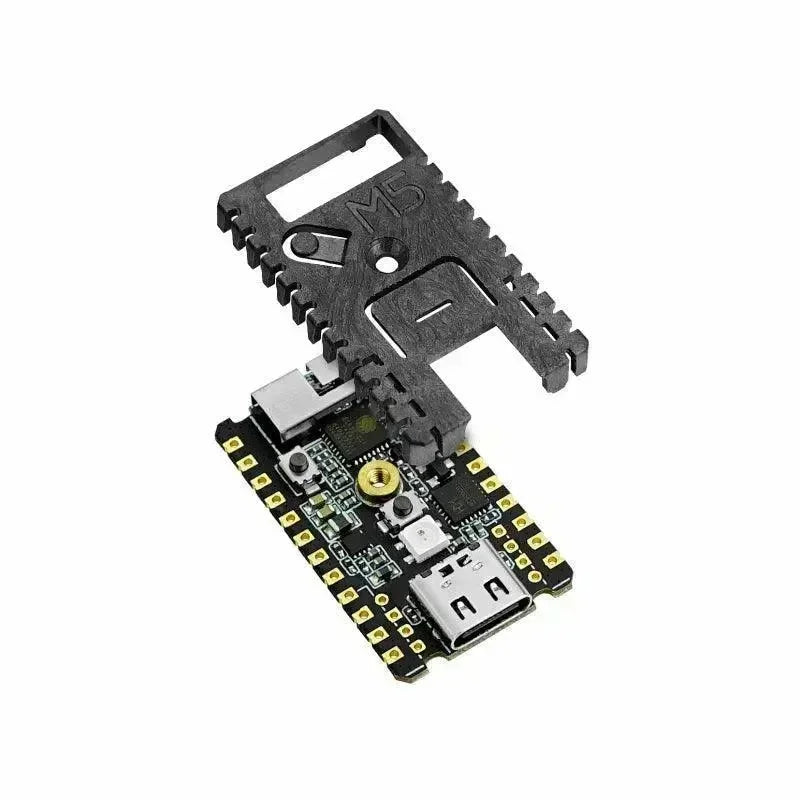

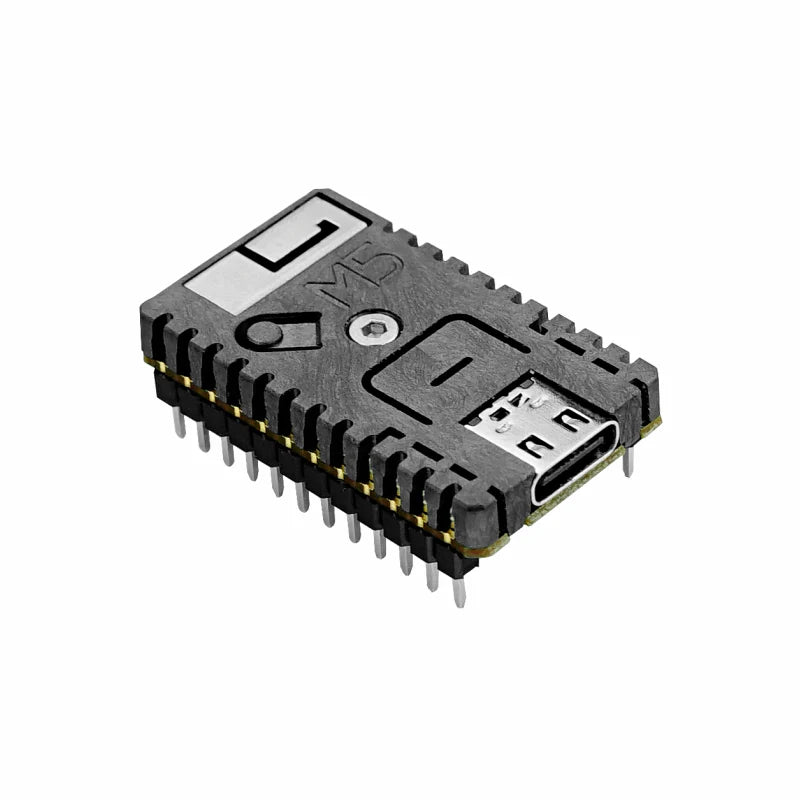

Three types soldering options are available(SMT, DIP, flywire), with a high-temperature resistant plastic enclosure, Peak temperature = 230℃
HIGH INTEGRATION:

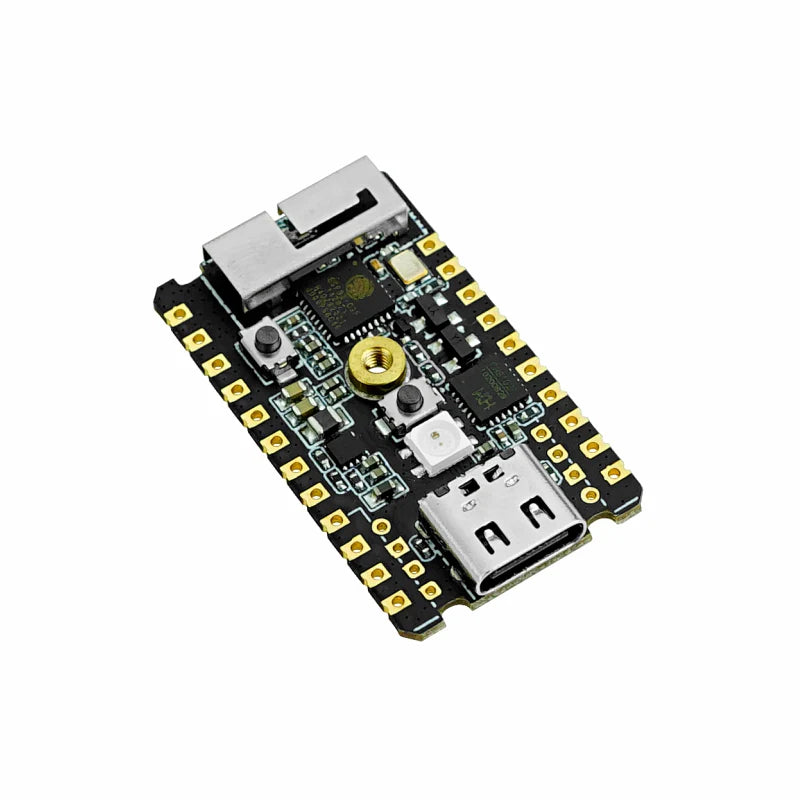

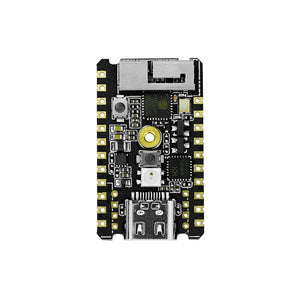

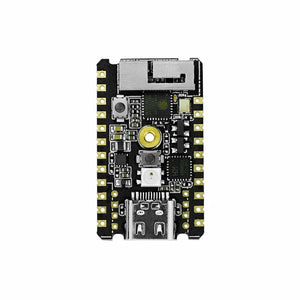

Stamp-C3 contains 5V->3.3V DC/DC design, GPIOx13, programmable RGB LED x1, Reset button x1, button x1, and 3D antenna, providing stable and reliable wireless communication.
LOW-CODE DEVELOPMENT:
Stamp-C3 is fully compatible with Arduino, ESP32-IDF, and other mainstream development platforms to quickly build various applications. (UIFlow support coming soon)
Include

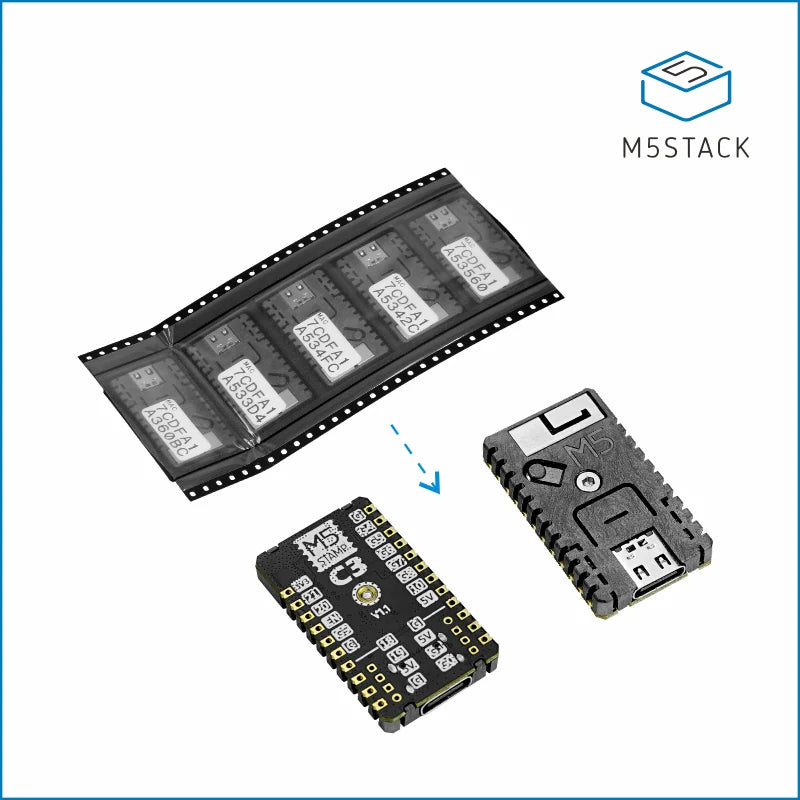

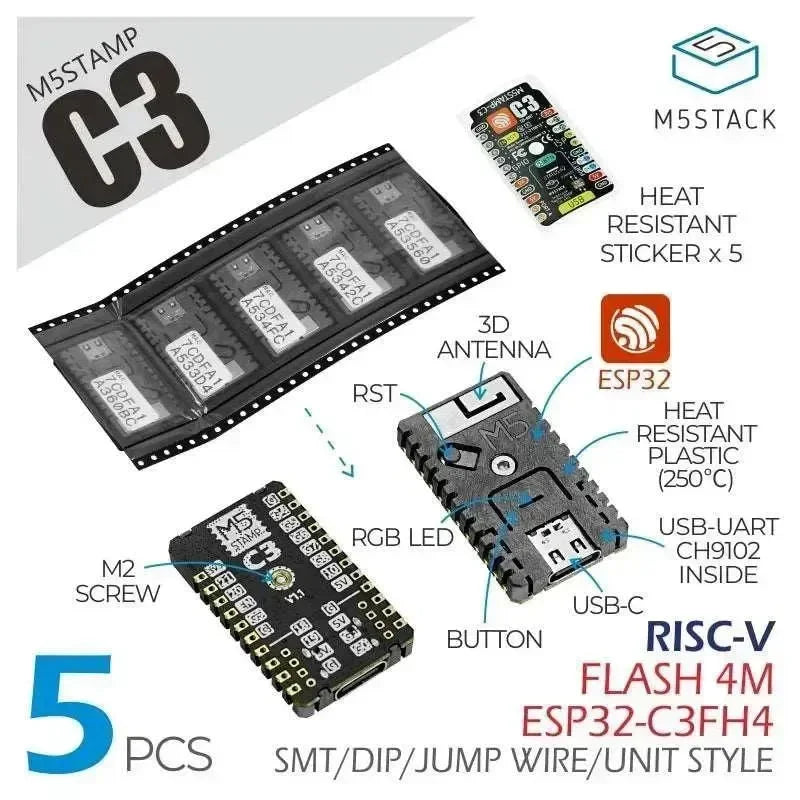

M5Stamp C3 (5pcs):
5 x M5Stamp C3
5 x Heat Resistant Sticker
Application
-
DIY Prototyping
-
Home Appliances
-
Industrial Automation
Specifications
| Specifications | Parameters |
|---|---|
| ESP32-C3 | 32bit RISC-V single-core processor clocked at 160 MHz |
| Storage | 384KB ROM, 400KB SRAM, 8KB RTC SRAM, 4MB FLASH |
| Wi-Fi | 2.4 GHz band supports 20 MHz and 40 MHz bandwidth, IEEE 802.11 b/g/n protocol, data rate up to 150 Mbps |
| Input voltage | 5V @ 500mA |
| HMI | Programmable physical button x 1, reset debugging button x 1, programmable RGB LED (SK6812) x 1 |
| USB interface | TypeC x1 |
| Antenna Type | 2.4G 3D Antenna |
| Module peripheral interface resources | ADC, GPIO, SPI, UART, I2C, I2S, PWM, RMT, DMA, USB serial port, TWAI |

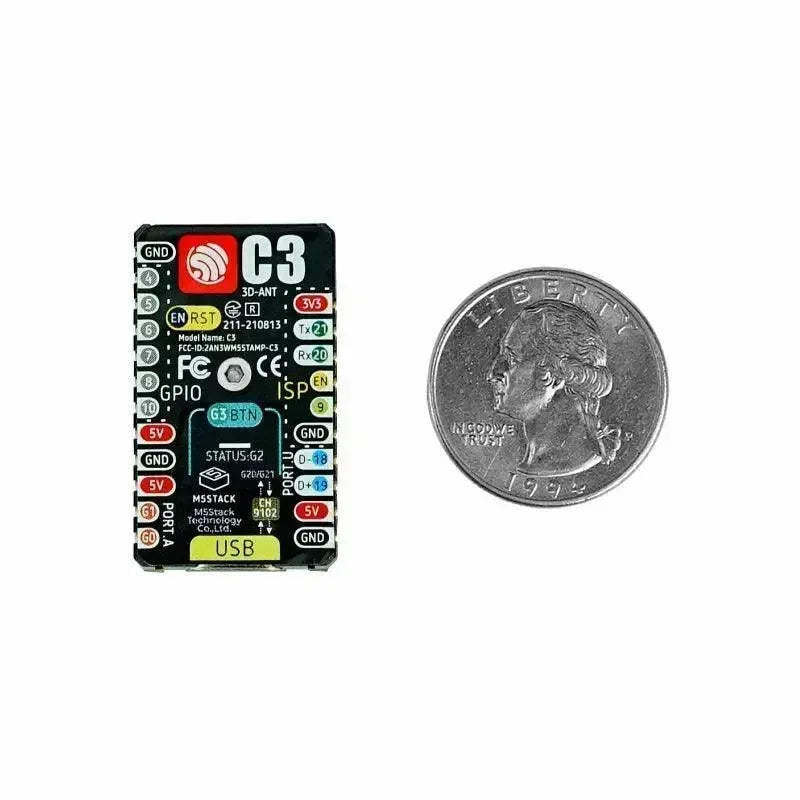

| IO interface x13 | G21, G20, G9, G18, G19, G1, G0, G10, G8, G7, G6, G5, G4 |
| IO interface spacing | 2.54mm |
| Net weight | 3.8g |
| Product size | 34 * 20 * 4.6mm |
| Packing size | 85*55mm sealing bag (translucent) |
