M5Stack ATOM Matrix ESP32 Development Kit

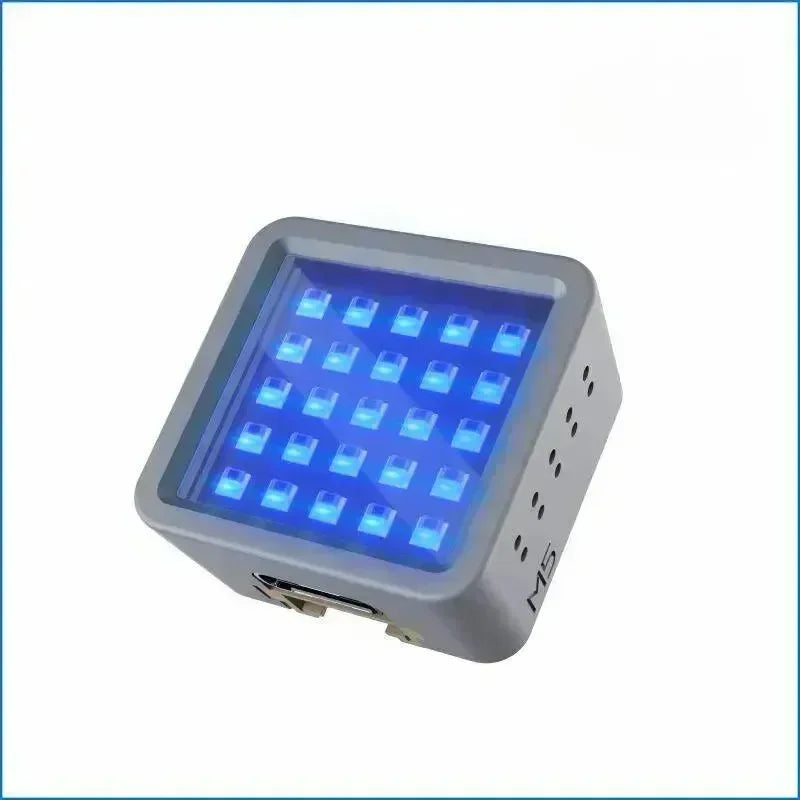

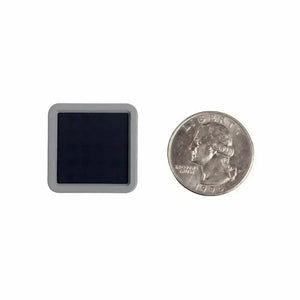

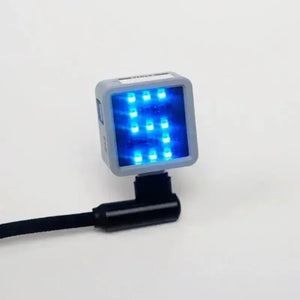

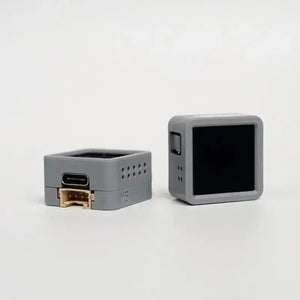

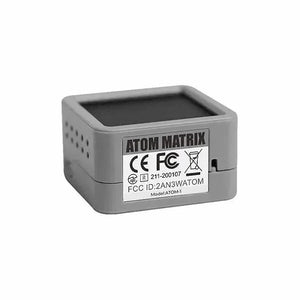

ATOM Matrix is a compact development board in the M5Stack development kit series, measuring only 24*24mm, suitable for handheld and micro-embedded device development. It is driven by an ESP32-PICO-D4 chip with integrated Wi-Fi technology and 4MB SPI flash memory to ensure good connectivity and storage capacity. The board is equipped with IR LEDs and a 5*5 RGB LED matrix to support rich visual display, as well as a built-in IMU sensor (MPU6886) and HY2.0 interface to enhance motion sensing and device communication. Programmable buttons and a Type-C USB interface simplify the development process.
Product Features
-
ESP32 PICO-based
-
Programmable button
-
5 * 5 RGB LED matrix panel(WS2812C)
-
Built-in MPU6886 Inertial Sensor
Include
-
1x ATOM Matrix
Applications
-
Internet of things terminal controller
-
IoT node
-
Wearable peripherals

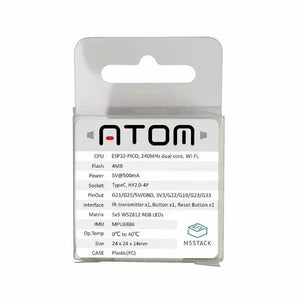

Specification
| Resources | Parameter |
|---|---|
| ESP32 | 240MHz dual core, 600 DMIPS, 520KB SRAM, Wi-Fi |
| Flash | 4MB |
| Power Input | 5V @ 500mA |

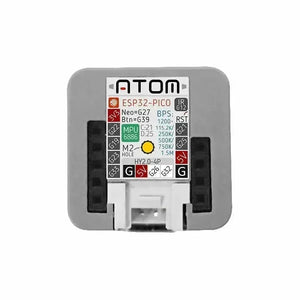

| Port | TypeC x 1, GROVE(I2C+I/0+UART) x 1 |
| PIN Port | G19, G21,G22,G23,G25, G33 |
| RGB LED | WS2812C 2020 x 25 |
| MEMS | MPU6886 |
| IR | Infrared transmission |
| Button | Custom button x 1 |
| Antenna | 2.4G 3D Antenna |
| Operating Temperature | 0°C to 60°C |
| Net weight | 3g |
| Gross weight | 14g |
| Product Size | 24*24*14mm |
| Package Size | 43*43*20mm |
| Case Material | Plastic ( PC ) |
