M5Stack Timer Power Unit with OLED Display (INA3221)

M5Stack Timer Power Unit with OLED Display (INA3221)

€14,04

M5Stack Timer Power Unit with OLED Display (INA3221)

€14,04

Note: All products are tax-inclusive.

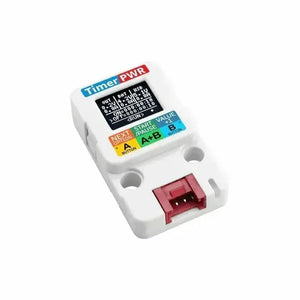

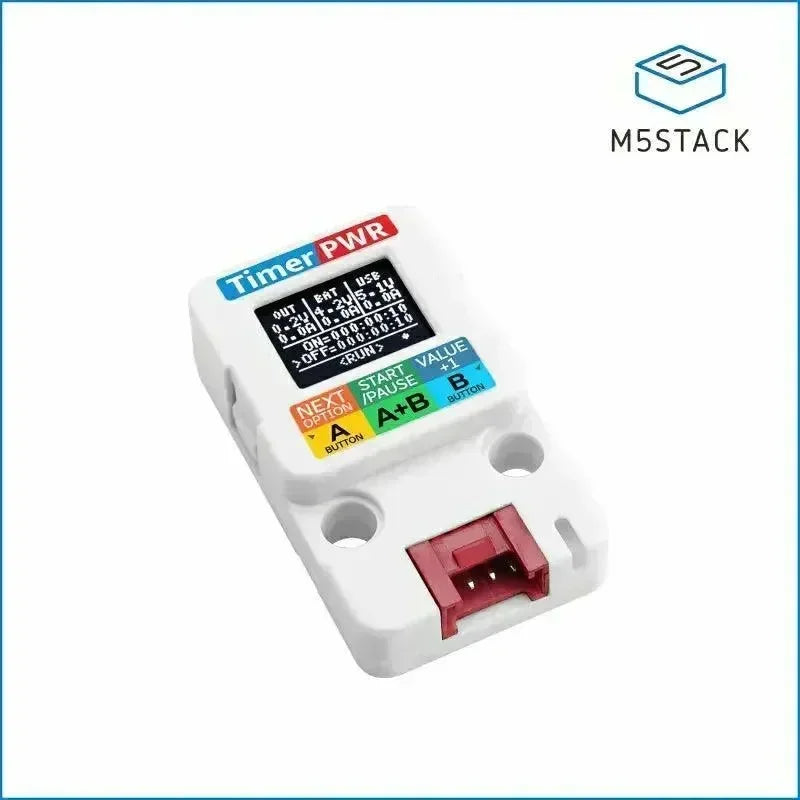

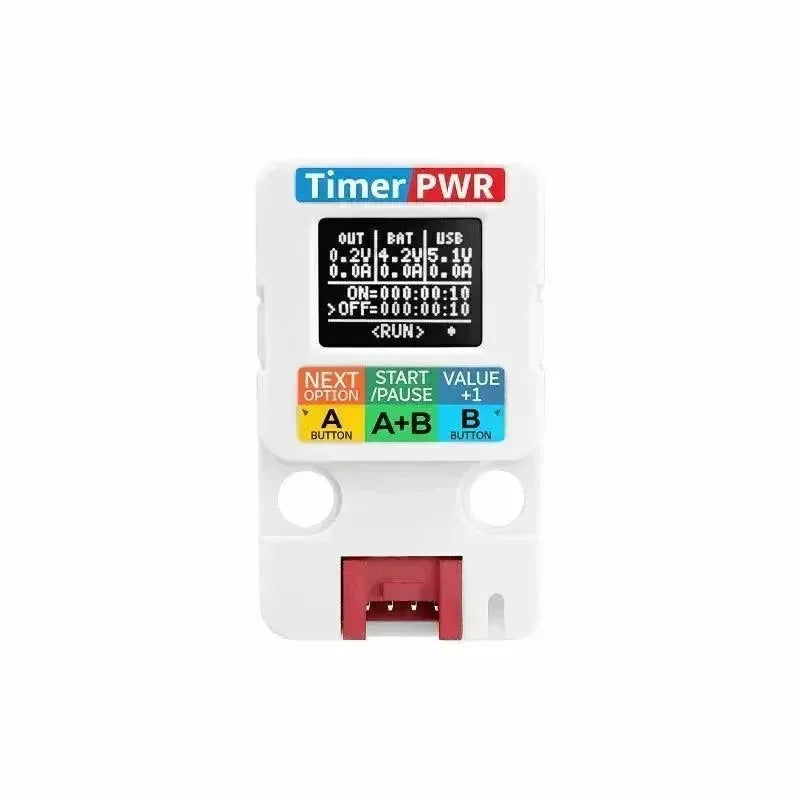

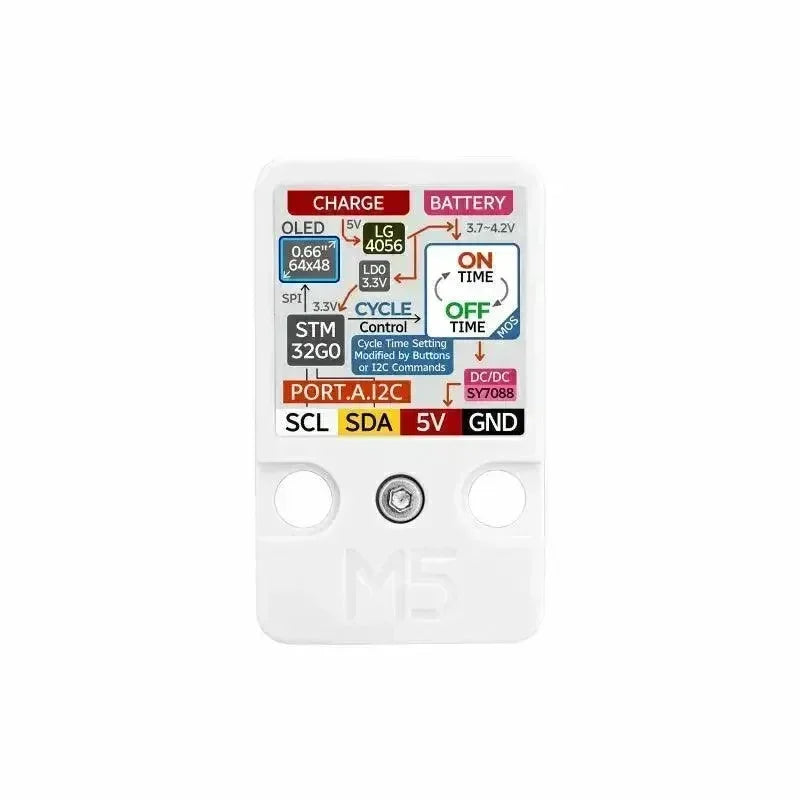

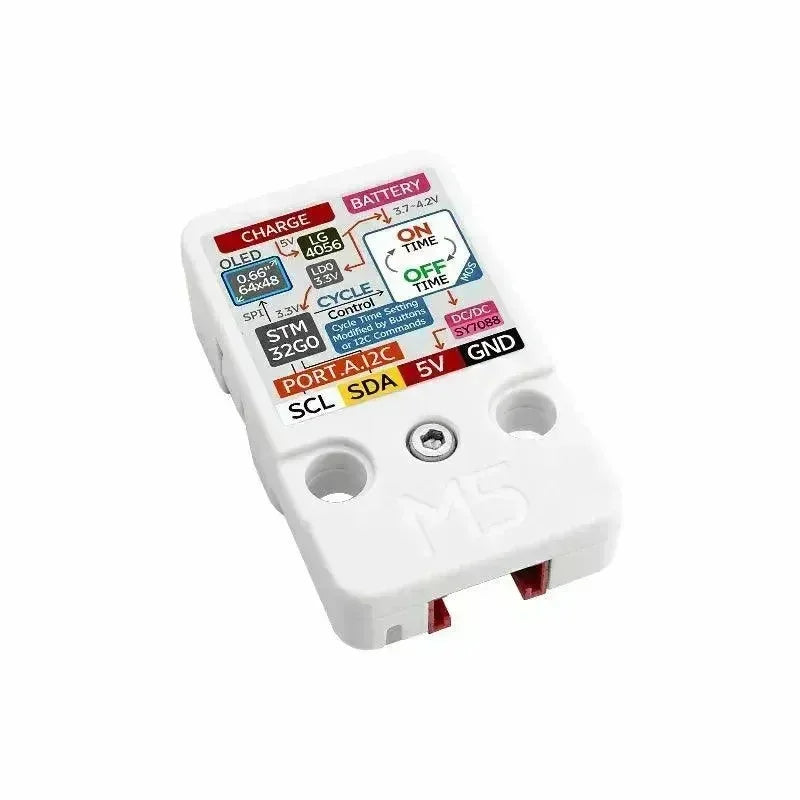

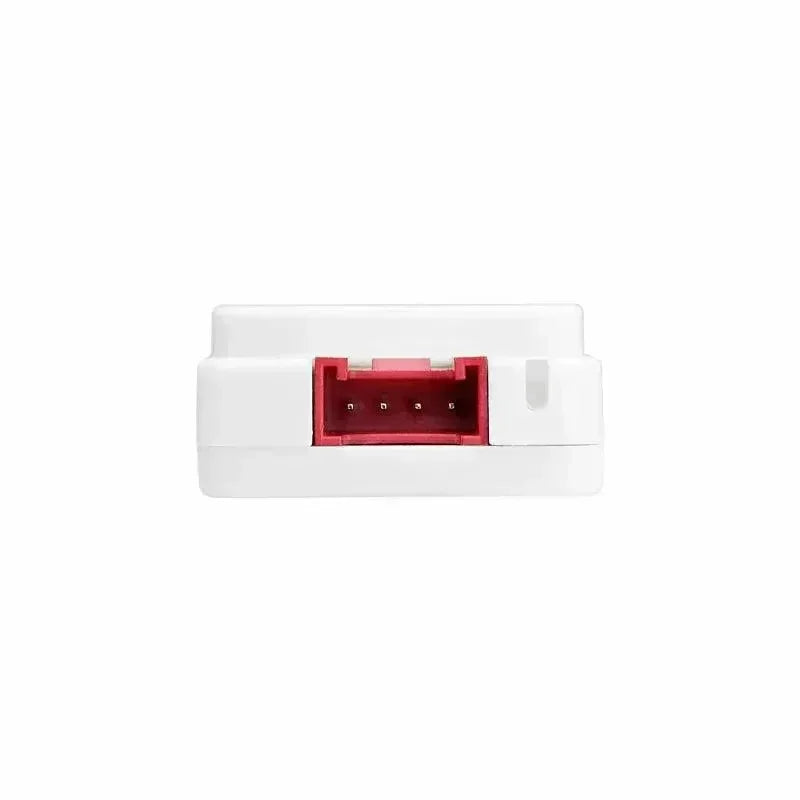

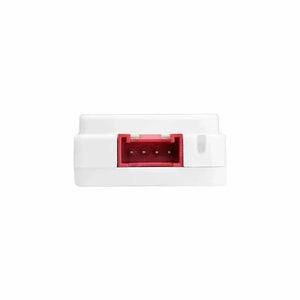

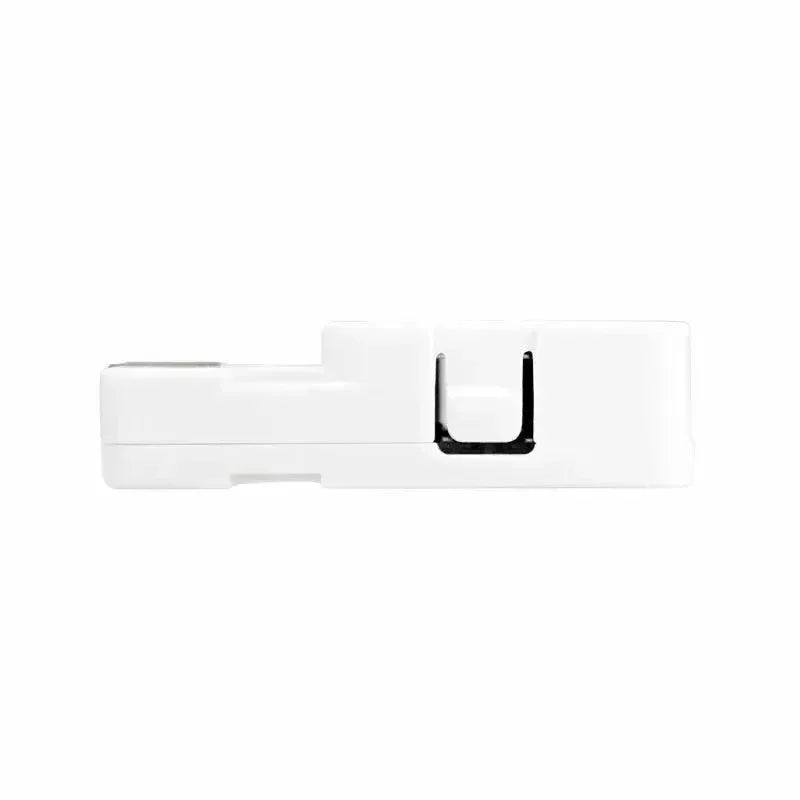

The TimerPWR Unit is a timed power supply unit that offers a range of functions, including charging and discharging, timed switching, screen display, and boost output. The device features an internal STM32 microcontroller that implements RTC and overall control, allowing users to set automatic power on/off times as required. The device is powered via the Type-C interface and can be connected to an external rechargeable battery via a 1.25-2P interface. The unit includes a built-in battery charging circuit that supports a charging current of 330mA. Furthermore, the unit incorporates an integrated DCDC boost circuit that provides a 5V/800mA (1400mA @ 1C battery power) power output to external devices via the Grove port. Furthermore, the INA3221 sensor is integrated into the design, enabling real-time monitoring of power input and output current and voltage. The unit is equipped with a 0.66-inch OLED display and two side buttons for user interaction, allowing users to view real-time system status and modify settings with ease. Parameters such as power on/off can be set using the side buttons or via the I2C bus through the Grove interface with I2C commands. This product is suitable for smart homes, industrial automation, and timed control devices.





M5Stack Timer Power Unit Guide

How to Use M5Stack TimerPWR Unit: Full Features Guide



Features

  • RTC cycle timing control
  • Battery power supply
  • Built-in DCDC boost circuit
  • Current/voltage monitoring
  • OLED display
  • Grove interface
  • Button-controlled power on/off mode



Includes

  • 1x TimerPWR Unit
  • 1x HY2.0-4P Grove cable (20cm)



Applications

  • Timed control devices
  • Portable electronic devices
  • Powering sensor nodes



Specifications

Specification Parameters
MCU STM32G031G8U6
Input Voltage Supports 5V DC input (via Type-C interface)
Output Voltage Built-in DCDC boost circuit, output 5V for external devices
Battery Power Supply 3.7V Polymer Lithium Battery
Display Screen 0.66-inch OLED display, resolution 64x48, SPI communication

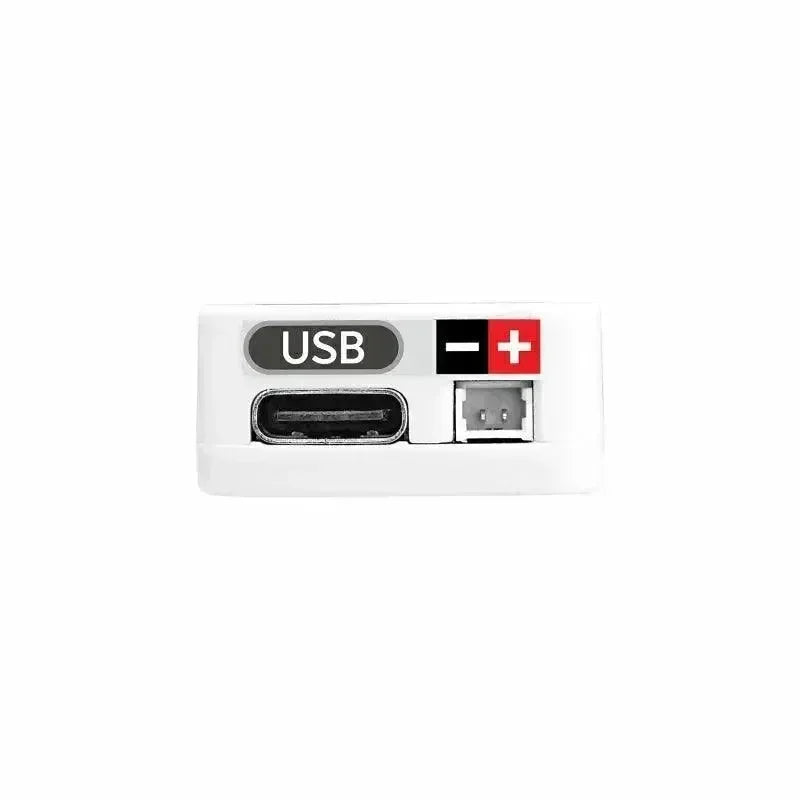

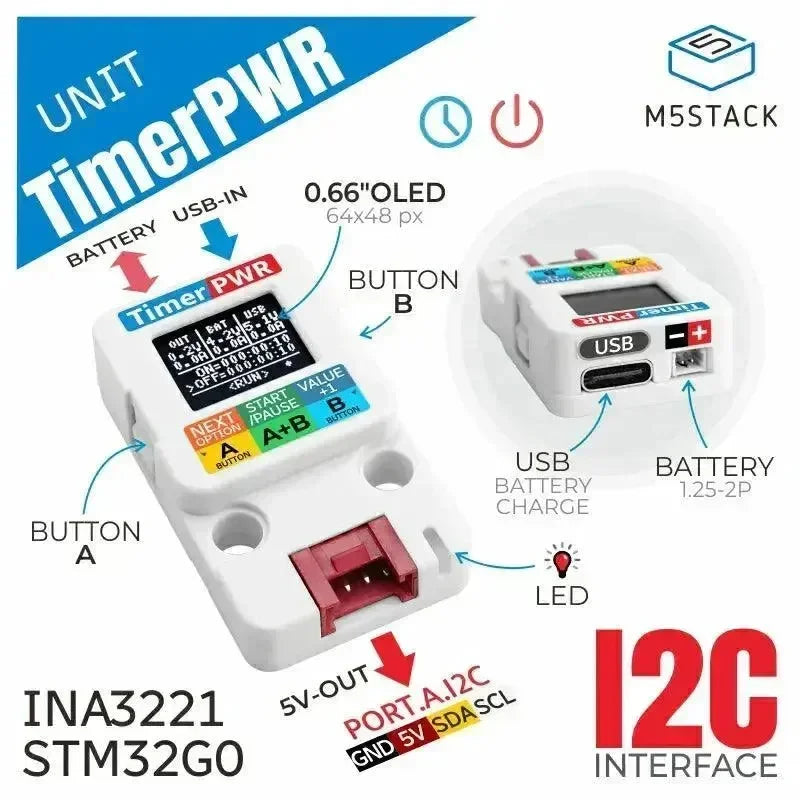

Interfaces Type-C interface: for battery charging (cannot power Grove port directly)
Grove interface: for external sensors and modules, supports communication and power output
Battery interface: 1.25mm@2P
I2C Communication Address 0x56
Current Sensor INA3221
Charging Current DC5V@330mA
Charging Chip LGS4056H
Charging Temperature 55°C
Grove Port Max Current Output Dependent on battery capacity and discharge ability, e.g.:
1400mAh@1C 3.7V: DC4.96V@800mA
500mAh@1C 3.7V: DC4.97V@700mA
110mAh@1C 3.7V: DC5.03V@400mA
Standby Current [email protected]
Operating Temperature 0-40°C
Product Dimensions 40*24*11mm
Package Dimensions 136*92*14mm
Product Weight 7.6g
Package Weight 12.9g



schematics
