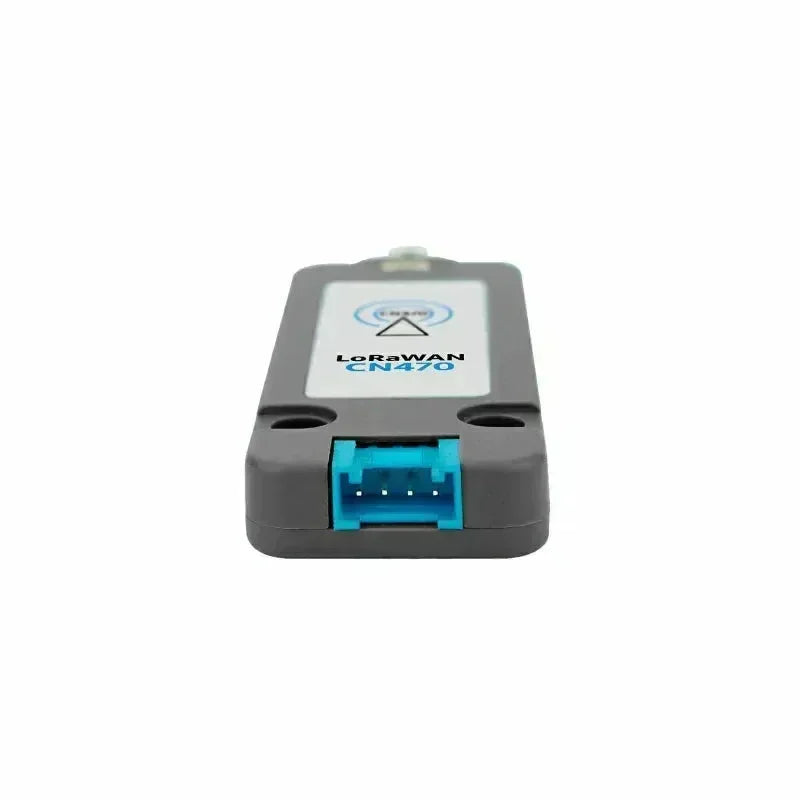

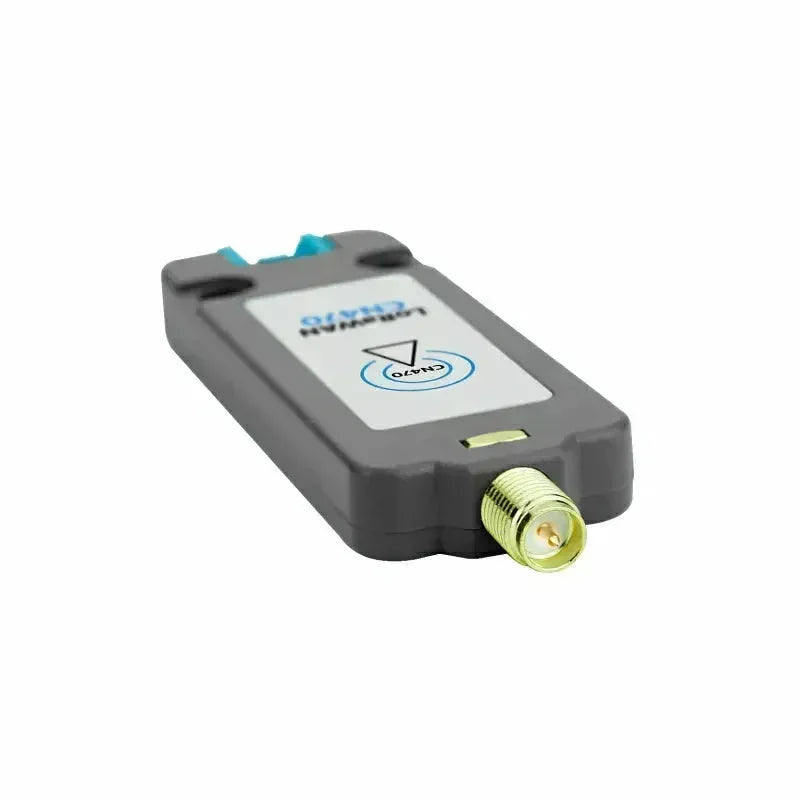

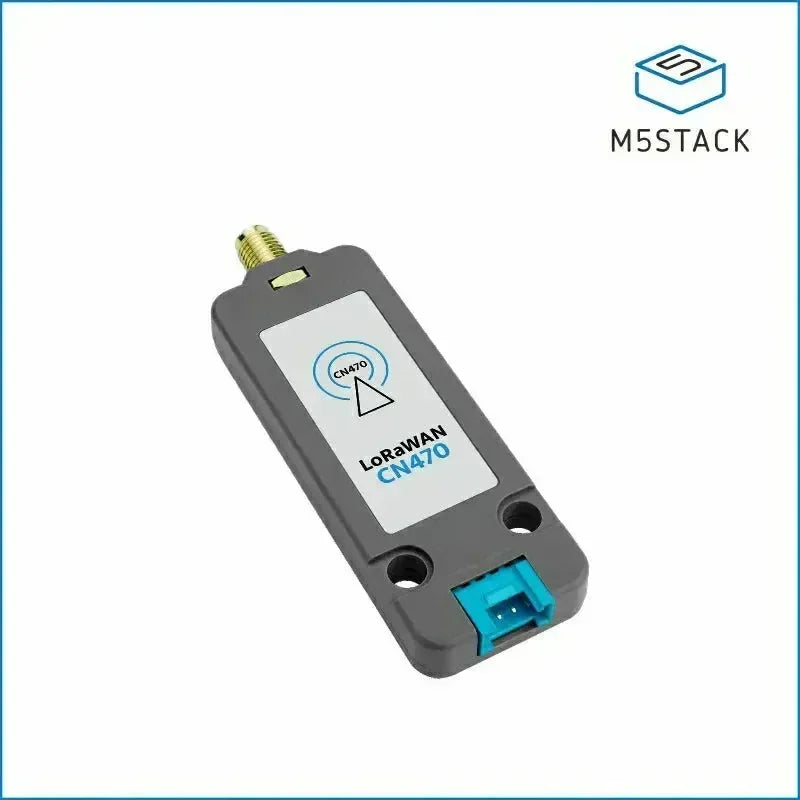

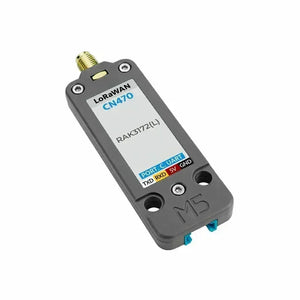

M5Stack LoRaWAN Unit CN470 (STM32WLE5) with Antenna
Shipping within 72 hours
*Excluding pre-order items
- • EU & US Delivery: 10 working days
- • Other Countries: 15 working days
Need it faster? Contact us via phone or email for expedited delivery.
M5Stack LoRaWAN Unit CN470 (STM32WLE5) with Antenna
Unit LoRaWAN-CN470 is a LoRaWAN communication module based on LoRa technology, specifically designed for the CN470 frequency band, suitable for China and other regions using the CN470 frequency band. The module adopts the STM32WLE5 solution, supporting long-range communication with low power consumption and high sensitivity characteristics. The module integrates the LoRaWAN protocol stack and supports three operating modes: Class A, Class B, and Class C. It also supports point-to-point (P2P) communication mode and uses a UART communication interface (controlled by the AT command set) for flexible configuration. Additionally, the product features a high-performance rubber antenna, with an optimized antenna design that provides more stable signal coverage and longer communication distance, making it suitable for various complex environments. The module can be used as a data collection node to connect to a gateway for data collection and management, or it can enable direct communication between devices in scenarios where no gateway is needed. It is widely used in long-range, low-power IoT communication scenarios, such as smart agriculture, industrial monitoring, and environmental monitoring node deployments.
Features
- Compliant with LoRaWAN® 1.0.3 protocol
- Supports CN470 frequency band
- Supports LoRa® P2P (point-to-point) communication
- LoRaWAN activation modes: OTAA, ABP
- Serial communication (AT command)
- Equipped with high-sensitivity rubber duck antenna
- Low power consumption
- Compatible with LEGO holes
- Development platforms:

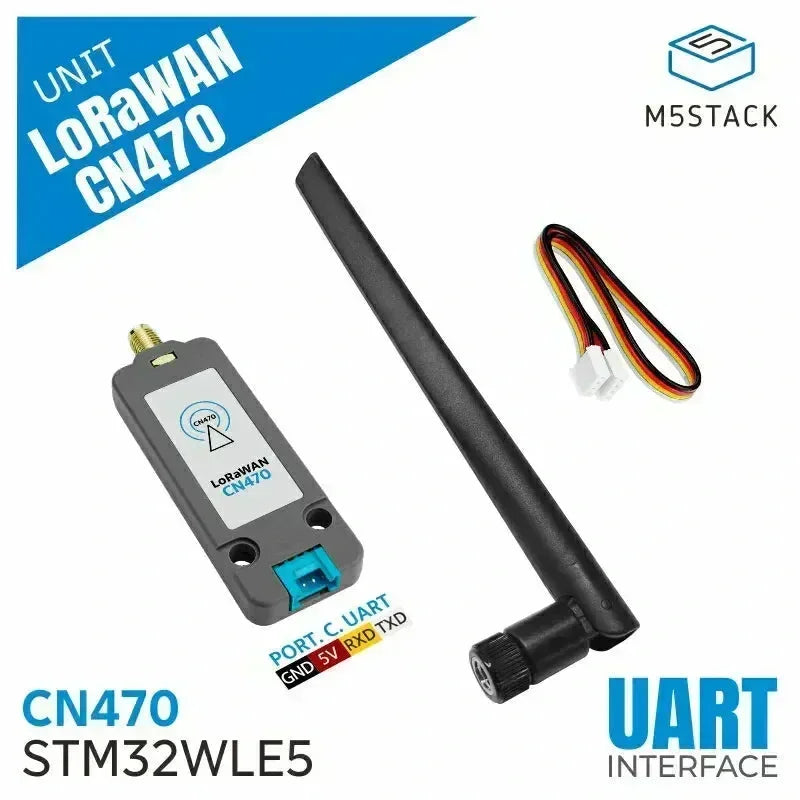

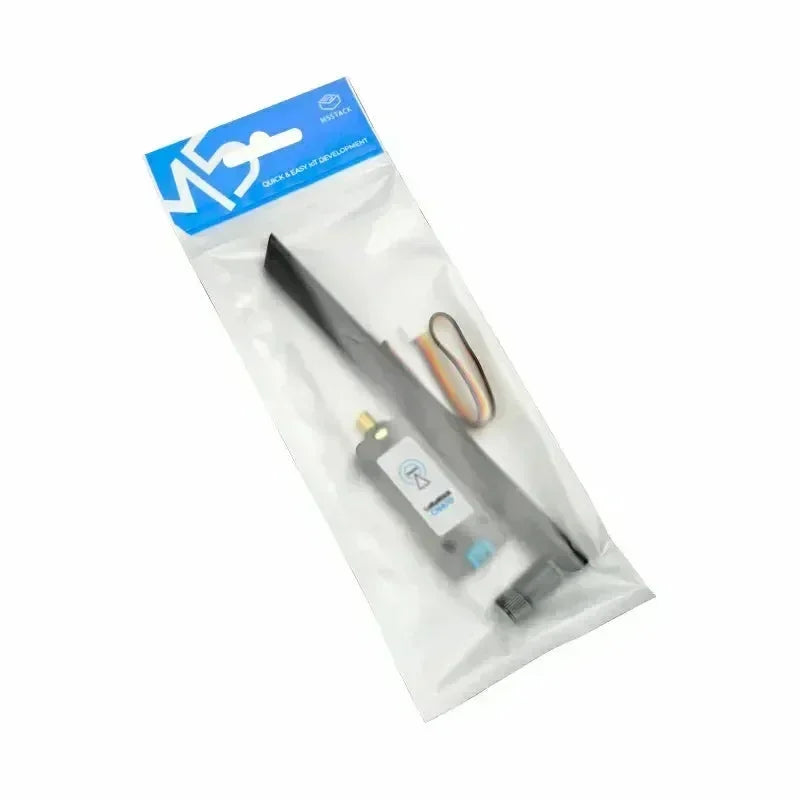

Includes
- 1x Unit LoRaWAN-CN470
- 1x HY2.0-4P cable (20cm)
- 1x Rubber duck antenna (@1.5dBi total length 195mm SMA inner pin)
Applications
- Smart Agriculture
- Industrial Monitoring
- Environmental Monitoring Node Deployment
Specifications
| Specification | Parameter |
|---|---|
| LoRa Solution | STM32WLE5 @256 KB Flash, 64 KB RAM |
| Supported Frequency | CN470 (470-510 MHz) |
| Protocol Support | LoRaWAN® 1.0.3 protocol (Class A, Class B, Class C) |
| Receive Sensitivity | -137 dBm |
| LoRaWAN Activation | OTAA, ABP |
| Communication Mode | LoRaWAN and Point-to-Point (P2P) |
| Interface Type | UART serial port, supports AT commands |
| Antenna Type | High-performance rubber duck antenna, 50 ohms impedance @1.5dBi total length 195mm SMA inner pin |
| Communication Range (P2P) | 2300m (125Kbps), 1300m (500Kbps) |
| Standby Power | Idle: DC5V/7.23mA Sleep: DC5V/28.61uA |
| Operating Current | (500Kbps) Data Receive: DC5V/9.20mA Data Send: DC5V/11.36mA (125Kbps) Data Receive: DC5V/8.43mA Data Send: DC5V/117.16mA |
| Operating Temperature | 0-40°C |
| Product Size | 71.4 * 24 * 8(mm) |
| Product Weight | 31.9(g) |
| Package Size | 240 * 92 * 10(mm) |
| Package Weight | 33.4(g) |
