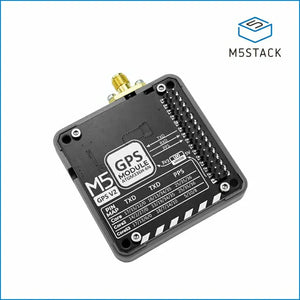

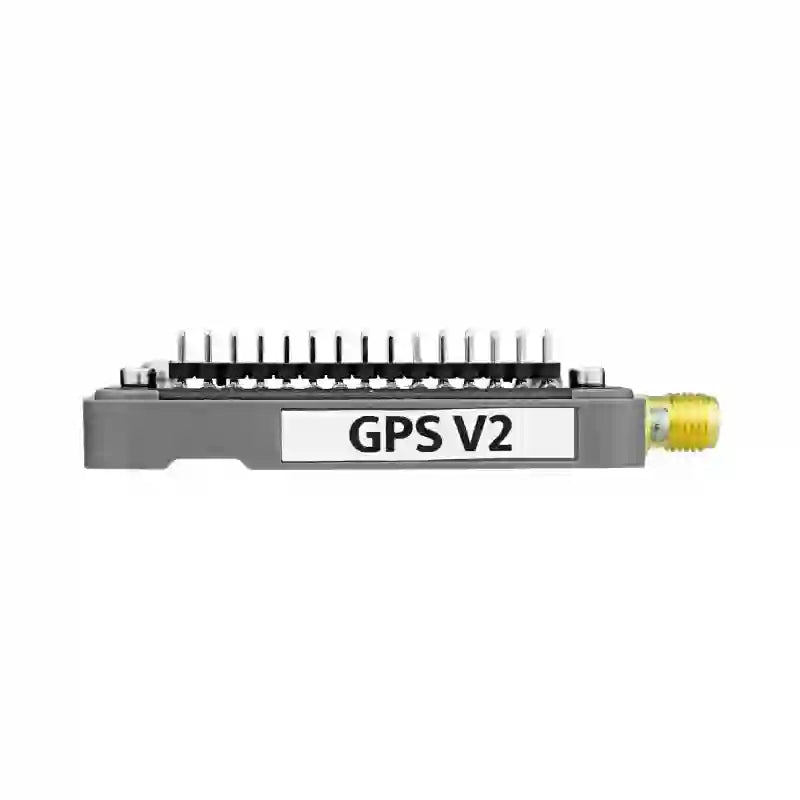

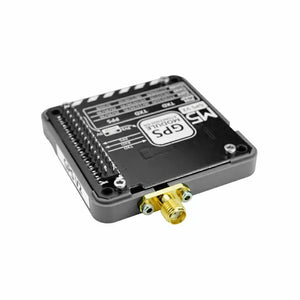

M5Stack GPS Module v2.0 with External Antenna (AT6668)

SKU: M5-M003-V2
Sale price 19,95 €
incl. VAT
excl. VAT
Checking inventory…

Need a larger quantity?

Need bulk pricing?

Get a formal quotation with lead time and volume pricing.

Request for Quote

For universities, companies, distributors, and project orders.

Add to Wishlist

Description

The GPS Module v2.0 is a high-performance GNSS positioning module built around the AT6668 chip for accurate and reliable satellite positioning. It supports multi-frequency and multi-mode GNSS reception across GPS/QZSS, BD2, BD3, GLONASS, GALILEO, and QZSS, enabling multi-system joint positioning or single-system independent positioning with strong anti-interference capability.

The GPS Module v2.0 includes an external active GPS/BD antenna with a 1 m cable, a DIP switch for flexible TX/RX and PPS pin routing, and PPS output for precise timing. It is designed for stackable M5Stack host systems and is suitable for navigation, IoT positioning, remote monitoring, smart city, home automation, and industrial automation projects.

Notice: This product is EOL (End of Life). For new designs, consider Module GPS v2.1 as the newer version.

When used with the Basic host, G12 is a strapping pin during startup and must remain low; switching it ON during startup may prevent the device from booting. G25 is shared between PPS output and the speaker input, and Core2 shares G2 with the speaker pin, so only one of the conflicting functions should be used at a time.

Features

  • GPS Module v2.0 supports GPS/QZSS, BD2, BD3, GALILEO, and GLONASS positioning systems.
  • Multi-frequency, multi-system GNSS reception with 50 channels.
  • Positioning accuracy below 1.5 m (CEP50) and update rate up to 10Hz.

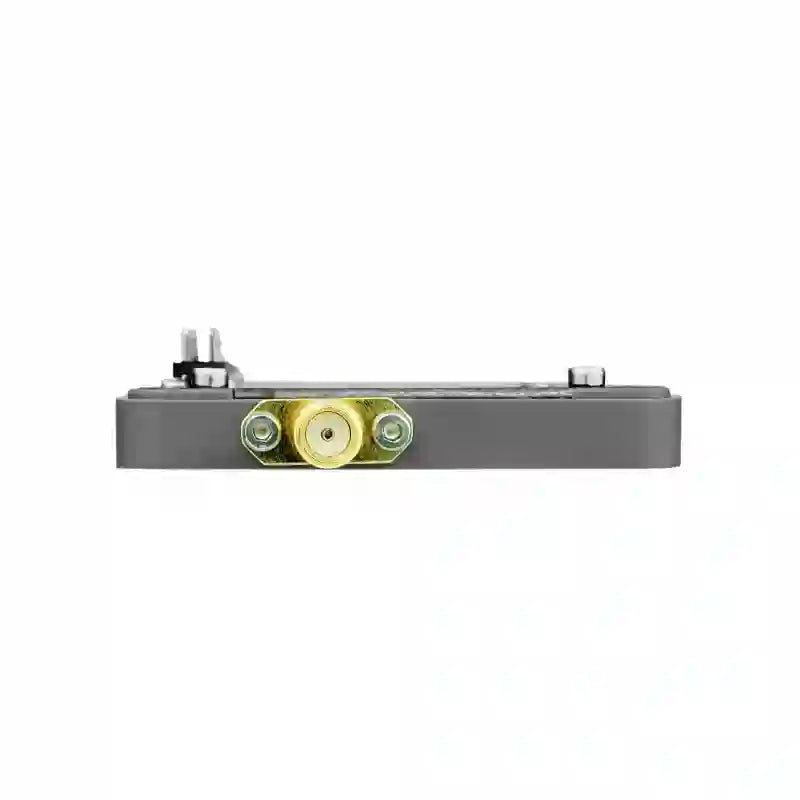

  • External active GPS/BD antenna through an SMA connector.
  • PPS signal output for precise timing applications.
  • DIP switch routing for selectable UART and PPS pin groups.
  • Supports module stacking and development with UiFlow1, UiFlow2, and Arduino IDE.

Specifications

Type GNSS positioning module with external active antenna
SoC AT6668
Supported satellite systems GPS/QZSS/BD2/BD3/GAL/GLO
Frequency bands BDS B1I+B1C; GPS/QZSS/SBAS L1; GALILEO E1; GLONASS R1
Channels 50 channels
Positioning accuracy <1.5 m (CEP50)
Positioning update rate Up to 10Hz
Protocol NMEA0183 4.1
Communication method UART 115200bps @ 8N1
Sensitivity Tracking -162dBm; acquisition -160dBm; cold start -148dBm
Start time Cold start 23 seconds; hot start 1 second
Power consumption Standby current DC 5V/42.78uA; operating current DC 5V/41.96mA
Module dimensions 54.0 x 54.0 x 13.1mm
Module weight 15.3g
Package size 126.0 x 68.0 x 22.0mm
Package weight 78.0g

Applications

  • Vehicle positioning and navigation systems.
  • IoT positioning devices and remote monitoring equipment.
  • Industrial automation and robot positioning.
  • High-precision surveying and geographic information systems.
  • Smart city and home automation systems that need the GPS Module v2.0 for reliable GNSS data.

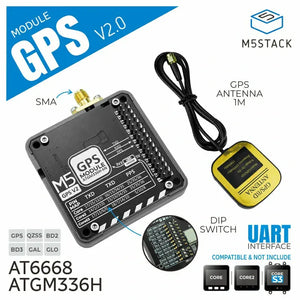

Product List

  • 1 x Module GPS v2.0
  • 1 x External active GPS/BD antenna (length: 1 m)

Other Content

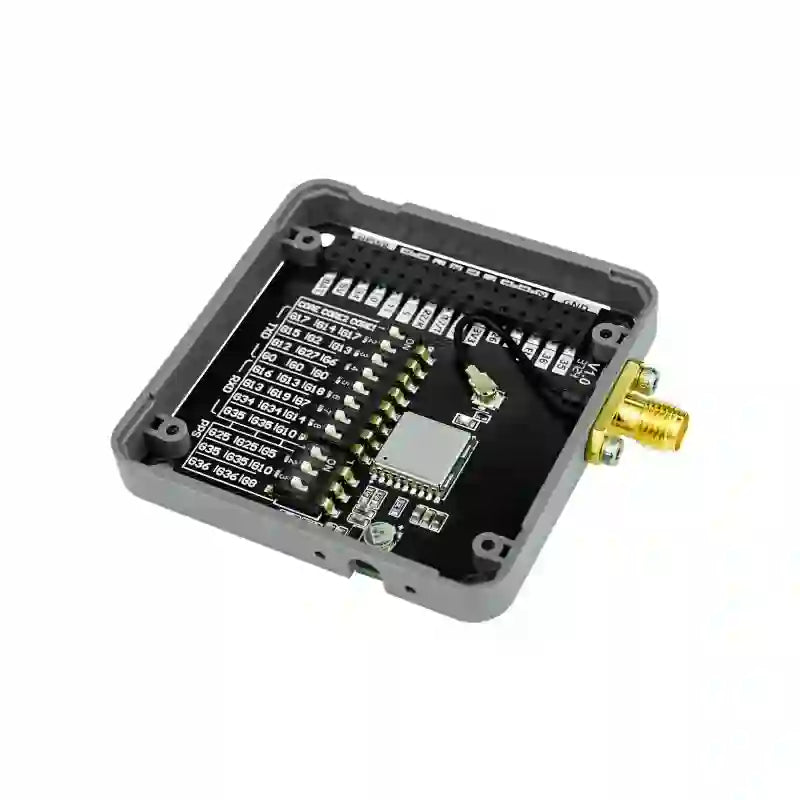

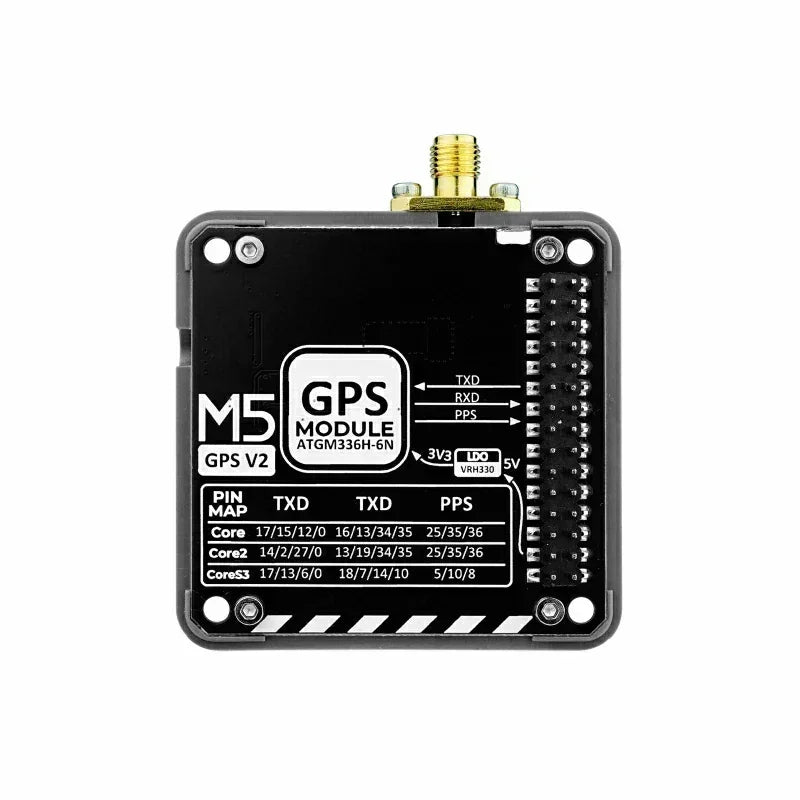

The GPS Module v2.0 uses switchable M5-Bus pins marked SW to adapt GNSS_TX, GNSS_RX, and PPS routing to different host controllers. Before development, confirm the host model, DIP switch positions, and firmware pin configuration so the selected UART and PPS signals match the application.

Compared with the earlier Module GPS based on NEO-M8N, the GPS Module v2.0 adds DIP switch pin routing and improves positioning accuracy from 2.5 m to 1.5 m in the product comparison data.

Resources

Module GPS v2.0 Product Documentation

Module GPS v2.0 Schematic PDF

Module GPS v2.0 PinMap Note Image

Module GPS v2.0 Model Size Image

ATGM336H-6N Datasheet

VRH3301NLX LDO Datasheet

CASIC Multi-mode Satellite Navigation Receiver Protocol Specification PDF

Module GPS v2.0 Arduino Guide

Module GPS v2.0 TinyGPSPlus Arduino Library

Module GPS v2.0 UiFlow2 Documentation

FAQ

Which satellite systems are supported?

The GPS Module v2.0 supports GPS/QZSS, BD2, BD3, GALILEO, and GLONASS positioning systems.

What antenna is included?

The package includes an external active GPS/BD antenna with a 1 m cable.

Can it provide precise timing?

Yes. The module supports PPS output for precise timing applications, but confirm the host pin conflicts before enabling PPS.

What should be checked before using the DIP switch?

Check the host controller pin map and avoid enabling conflicting speaker, PPS, or boot strapping functions at the same time.
