M5Stack CoreS3 SE IoT Controller w/o Battery Bottom

M5Stack CoreS3 SE IoT Controller w/o Battery Bottom

€43,95

Shipping & Delivery Information

🚚 In-Stock Items: Orders for in-stock products are shipped within 24 hours after the order is placed.

📦 Pre-order Items: If a product is marked as "Pre-order", it means it is currently out of stock. We'll dispatch your order once we have restocked, usually within 10 working days. For special pre-sale items, the expected arrival date will be noted in the product description.

✈️ Express Shipping: Need your order urgently? Please contact us via email or live chat, and we’ll help arrange express delivery for you.

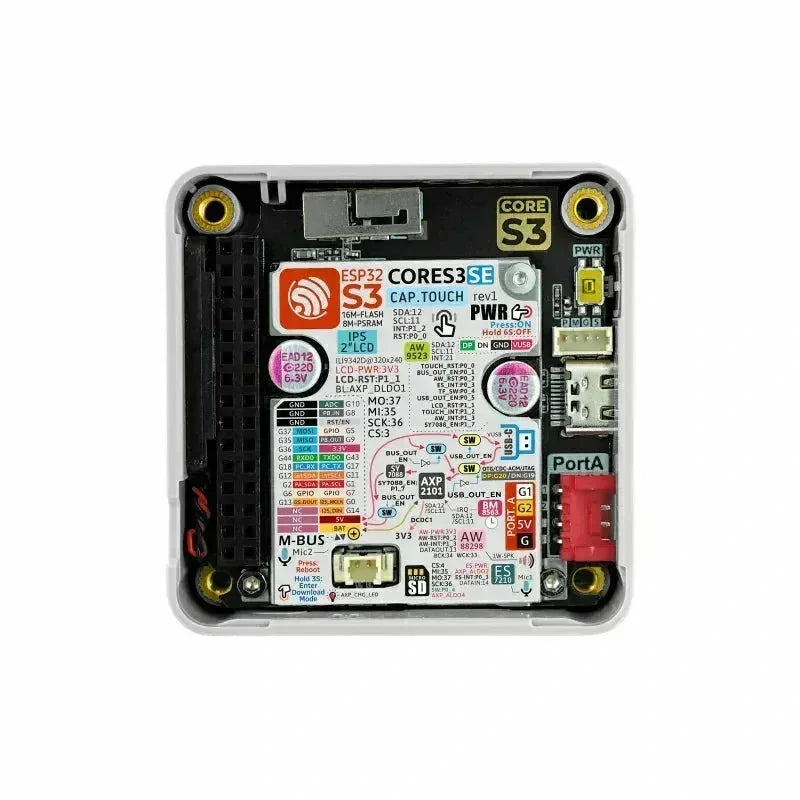

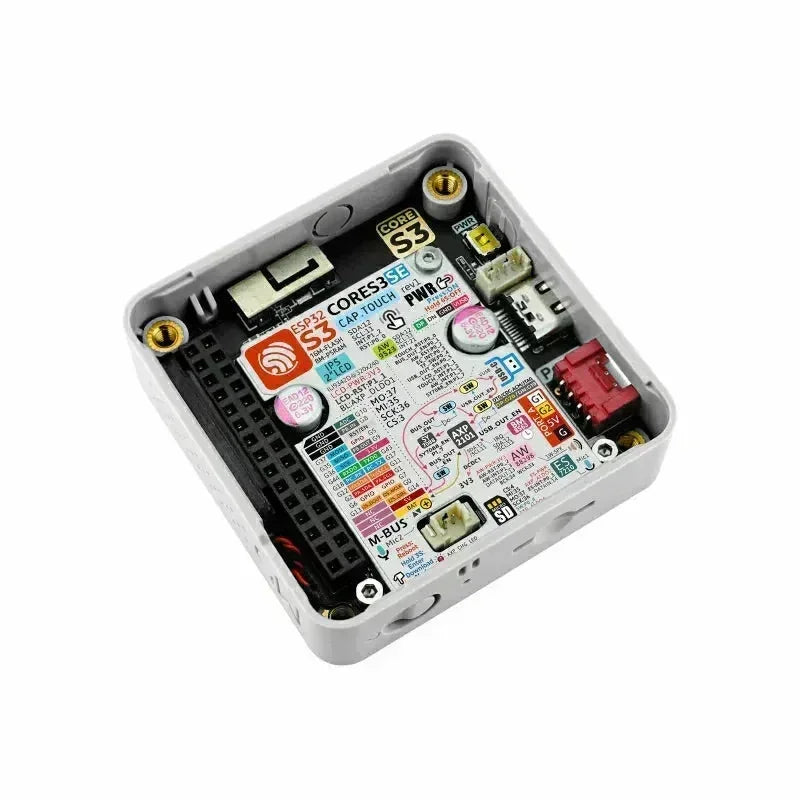

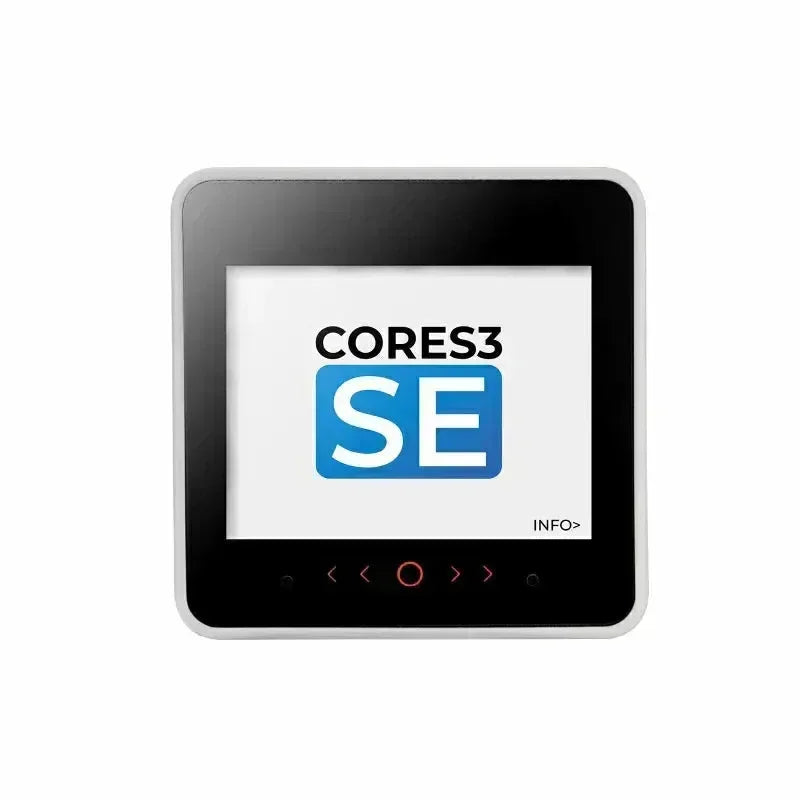

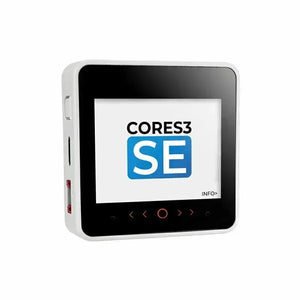

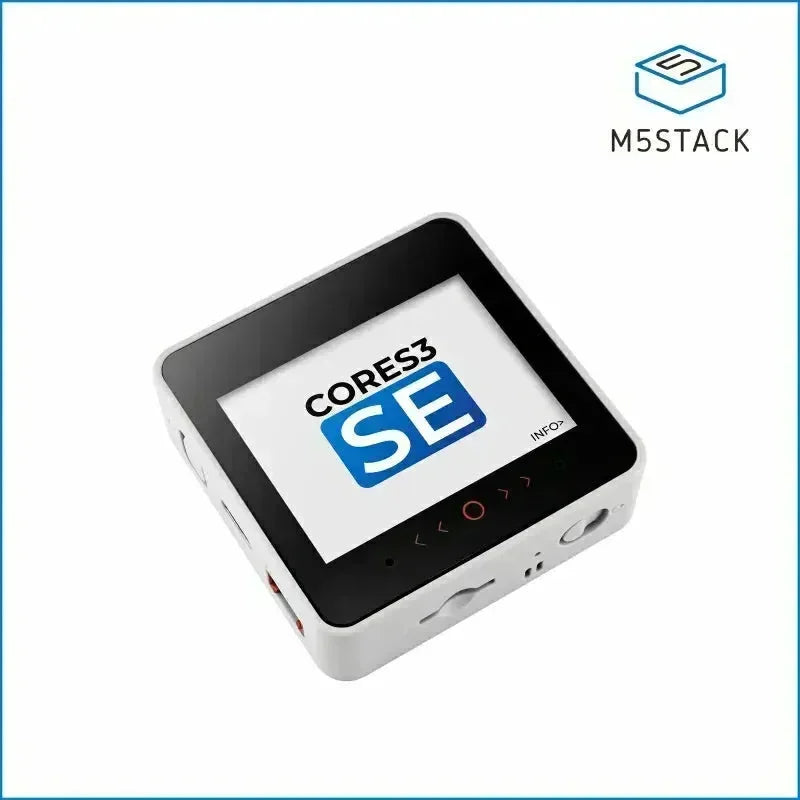

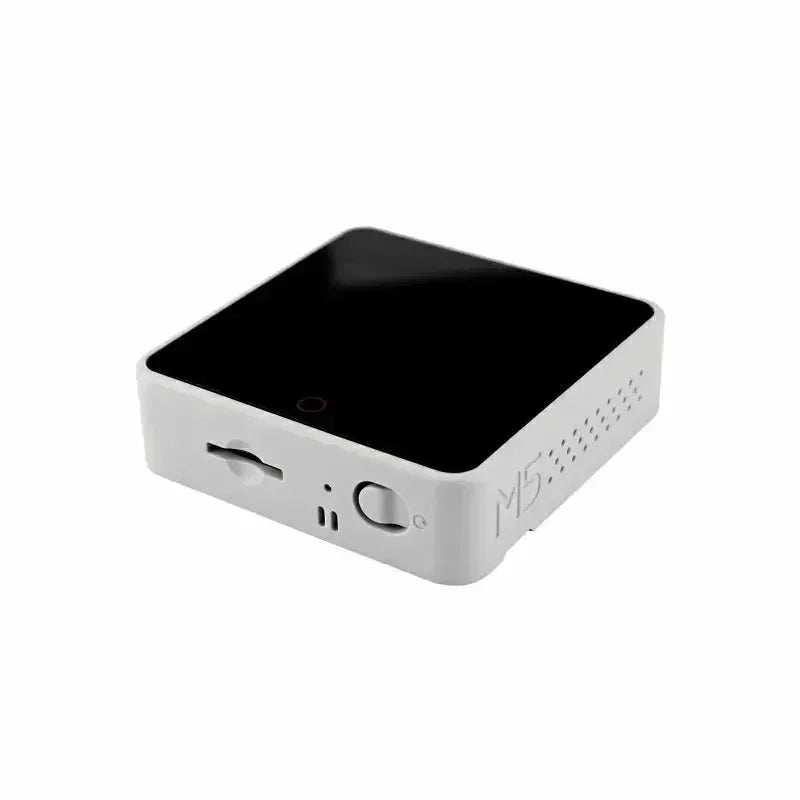

The M5CoreS3 SE is a lightweight version of the third-generation CoreS3 main unit in the M5Stack development kit series. It is powered by the ESP32-S3 solution, featuring a dual-core Xtensa LX7 processor with a main frequency of 240MHz, and comes with built-in (2.4G)WiFi functionality. It has onboard 16MB FLASH and 8MB PSRAM; programs can be downloaded via the TYPE-C interface, which supports OTG and CDC functions, making it convenient to connect USB devices and burn firmware. The front is equipped with a 2.0-inch capacitive touch IPS screen, with a high-strength glass panel.

Difference Between M5Stack CoreS3 and M5Stack CoreS3 SE

The power supply part uses the AXP2101 power management chip and 4-way power flow control circuit, designed for low power consumption overall. It has an onboard MicroSD card slot and a BM8563 RTC chip that provides precise timing and sleep-timer wake-up functions. For sound output, it uses a high-fidelity 16-bit I2S amplifier chip AW88298 and has a built-in 1W speaker. For sound input, it uses an ES7210 audio decoding chip with dual microphone input. The device body has an independent power button and reset (RST) button on the side, with a built-in delay circuit. Long pressing the reset button enters program download mode. This product is suitable for IoT development, various DIY project development, smart home control systems, and industrial automation control systems.

Version comparison

Compared to the M5CoreS3, the M5CoreS3 SE does not feature a camera (GC0308), proximity sensor (LCR-553ALS-WA), IMU (BMI270), or magnetic compass (BMM150). The M5CoreS3 SE uses a medium grey number different from the black-grey number of the M5CoreS3, and the glass panel touch area extends to the camera position. The DinBase base with the original M5CoreS3 kit was removed.

Hardware peripheral M5CoreS3 M5CoreS3 SE
Camera(GC0308) ×
Proximity Sensor(LTR-553ALS-WA) ×
IMU(BMI270) ×
Compass(BMM150) ×
RTC
MIC
SPEAKER
PMIC(AXP2101)
16MB FLASH and 8MB PSRAM
TOUCH

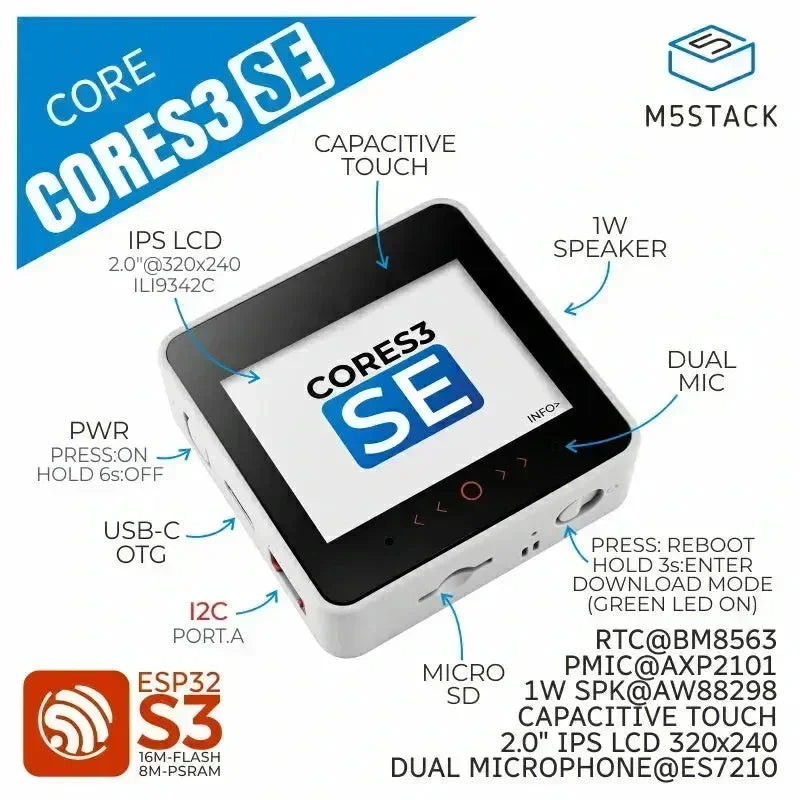

Features

  • Developed based on ESP32-S3, support WiFi @16MB Flash, 8MB PSRAM

  • Speakers, Dual microphones

  • Capacitive touch screen

  • MicroSD card slot

  • High-strength glass

  • Support OTG and CDC functions

  • AXP2101 power management, low power design

  • Supported programming platforms: Arduino, UIFlow



Includes

  • 1 × M5CoreS3 SE



Applications

  • IoT development

  • Various DIY project development

  • Smart home control system

  • Industrial automation control system



Specification

Resources Parameters
MCU ESP32-S3@Xtensa LX7, 16MB FLASH AND 8MB PSRAM, WIFI, OTG\CDC functions
Touch the IPS LCD screen 2.0"@320*240 ILI9342C
Power management chip AXP2101
RTC BM8563
Speaker 16bits-I2S power amplifier chip AW88298@1W
Audio decoding chip ES7210, dual microphone inputs
Grove Output maximum current (lithium battery powered) DC4.2V/940mA
Grove Output Maximum current (USB powered) DC5V/680mA
Power Dissipation Battery: Standby mode: DC4.2V/104.64uA Working mode:DC4.2V/109.67mA
USB power supply: In working mode: DC5V/166.27mA
Product Size 54*54*15.5mm
Package Size 133.4*95*21mm
Product Weight 38.4g
Package Weight 55.1g


I2C Address

Chip ADDRESS
AXP2101 ADDR 0x34
AW88298 ADDR 0x36
FT6336U ADDR 0x38
ES7210 ADDR 0x40
BM8563 ADDR 0x51
AW9523 ADDR 0x58



Schematics

Preview

Preview

Preview

Preview

Preview

Preview

Preview

PinMap

LCD Screen & MicroSD

LCD Pixel:320x240

MicroSD Specifications
MicroSD support up to 16GB
ESP32S3 Chip GPIO37 GPIO36 GPIO3 GPIO35 GPIO4
AW9523B AW9523B_P1_1
AXP2101 AXP2101_DCDO1 AXP2101_LX1
ILI9342C MOSI SCK CS DC RST BL PWR
TF Card SPI_MOSI SPI_SCK SPI_MISO TF_CS

CAP.TOUCH

ESP32S3 chip GPIO12 GPIO11 AW9523B_P1_2 AW9523B_P0_0
FT6336U I2C_SYS_SDA I2C_SYS_SCL TOUCH_INT TOUCH_RST

Microphone & amplifier

ESP32S3 Chip GPIO12 GPIO11 AW9523B_P1_3 AW9523B_P0_2 GPIO34 GPIO33 GPIO13 GPIO0
ES7210 I2C_SYS_SDA I2C_SYS_SCL AW_INT AW_RST I2S_BCK I2S_WCK I2S_DATO MCLK
AW88298 I2C_SYS_SDA I2C_SYS_SCL

AXP Power Led

AXP2101 AXP_CHG_LED
Red LED RTC_VDD

RTC

ESP32S3 Chip GPIO12 GPIO11 AXP2101_IRQ
BM8563 I2C_SYS_SDA I2C_SYS_SCL AXP_WAKEUP

Internal I2C connection

ESP32S3 Chip GPIO12 GPIO11
AXP2101 I2C_SYS_SDA I2C_SYS_SCL
BM8563 I2C_SYS_SDA I2C_SYS_SCL
ES7210 I2C_SYS_SDA I2C_SYS_SCL
AW88298 I2C_SYS_SDA I2C_SYS_SCL

PORT

Port Pin NOTE
PORT-A(RED) G2/G1 I2C
PORT-B(BLACK) G9/G8 GPIO
PORT-C(BLUE) G18/G17 UART(RX/TX)



Softwares

Quick Start

Arduino

NOTE
There are hardware differences between M5CoreS3 SE and M5CoreS3. The codes in the library file involving camera, proximity sensor, IMU, and magnetic sensor are not applicable to M5CoreS3 SE.

Platform.IO

Easyloader

Easyloader Download Link Notes
CoreS3 SE Factory Firmware Easyloader Download /



I2C Communication Addresses

Chip ADDRESS
AXP2101 ADDR 0x34
AW88298 ADDR 0x36
FT6336U ADDR 0x38
ES7210 ADDR 0x40
BM8563 ADDR 0x51
AW9523 ADDR 0x58
