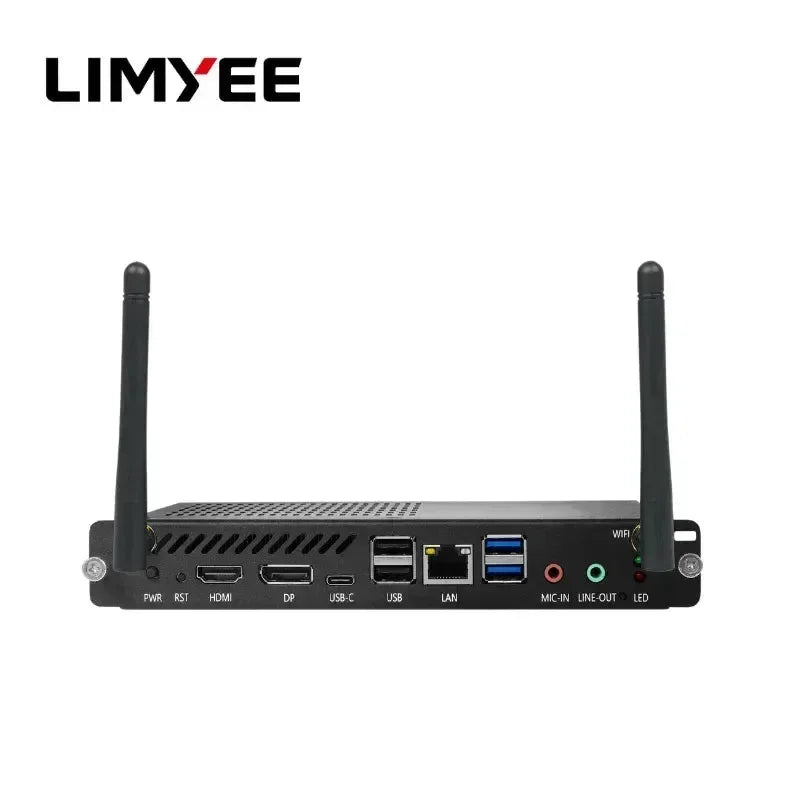

LIMYEE M161 (OPS PC module)

€550,00 EUR
€550,00 EUR
€550,00 EUR
Save €0,00
Type: 12450H/8G DDR4/M.2 256GB/WIFI 3165
Subtotal: €550,00

Free Shipping from 50€ in EU / 80€ Worldwide

- Product Inventory Location: China

- EU Countries Delivery Time: 1.5 weeks.

- Other Countries Delivery Time: 2 ~ 2.5 weeks.

LIMYEE M161 (OPS PC module)

LIMYEE M161 (OPS PC module)

€550,00

LIMYEE M161 (OPS PC module)

€550,00
Type: 12450H/8G DDR4/M.2 256GB/WIFI 3165

Features

  • Supports Intel 12th/13th Gen Alder Lake/Raptor Lake U/P/H i3/i5/i7 CPUs
  • Dual-channel 2*SO-DIMM DDR4 3200MHz memory, up to 32GB
  • I/O side display output: HDMI 2.0 + DP1.4, supports 4K 60Hz
  • OPS side display output: HDMI 2.0, supports 4K 60Hz
  • Onboard 1*1000M RJ45, with optional Intel vPro technology (vPro)
  • USB Ports: 2*USB 3.2 Gen2, 1*Type-C, 2*USB 2.0
  • Built-in 1*M.2 interface supports optional NVME and SATA SSDs
  • Built-in 1*M.2 E Key expansion slot, supports WiFi + Bluetooth
  • Metal shell and double-ball ultra-quiet radiator ensure stable operation



 Specifications

Item Type Content
CPU Supports Intel® 12th/13th generation Core™ i7/i5/i3 Alder Lake & Raptor Lake – U/P/H series CPU
Chipset SOC
BIOS AMI 128Mbit, supports write protection, diskless boot, network wake-up, power on, scheduled boot, remote power on/off, device intelligent identification, and other functions
Memory Capacity 2*SO-DIMM, DDR4 3200MHz, Max 32GB
Storage Port 1*M.2 2280 M Key, supports PCIe x4/SATA SSD
Graphics Intel® Iris Xe Graphics
I/O Display HDMI 2.0: resolution up to 4096×2304@60Hz
DP1.4: resolution up to 7680×4320@60Hz
OPS JAE Display HDMI 2.0: resolution up to 4096×2304@60Hz
Network Wire 1*1000Mbps RJ45 LAN
Wireless 1*M.2 Key E 2230 (supports WiFi + Bluetooth module)
USB Ports 2*USB 3.2, 2*USB 2.0, 1*USB 3.2 Type-C
I/O Ports LAN 1*RJ45
Power 1DC power socket + 1OPS 80pin
LED Indicators 1Power LED, 1HDD LED
Buttons 1Power button, 1Reset button (short press to restart, long press for CLR-CMOS)
Audio 1Line-out & 1Mic-in
Power Input DC 12–19V
Watchdog Function Restarts the system after downtime
Interval 1–65535 sec
Physical Dimensions Size 180 (L) x 118 (W) x 30 (H) mm
Operating System OS Support Windows 11 / Linux
Operating Environment Temperature Operating: 0°C – 60°C
Storage: -20°C – 70°C
Humidity 5% – 90%, non-condensing
