LILYGO T-Relay 5V 8 Channel Relay

€19,90

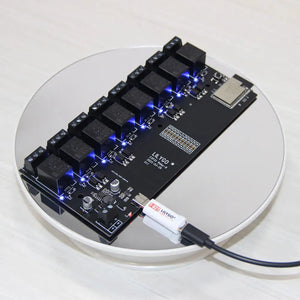

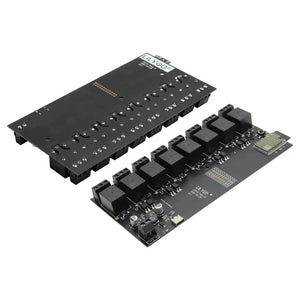

The T-Relay 5V 8 Channel Relay Module is a highly efficient ESP32-based development board with optocoupler isolation and Bluetooth/Wi-Fi support. It is designed for smart control applications and industrial automation, providing reliable and secure relay control for various electronic and home automation projects.


Features

  • ESP32-Wrover-E: Integrated with a powerful ESP32 microcontroller.
  • Wi-Fi & Bluetooth: Supports wireless connectivity for IoT applications.
  • 8-Channel Relay: Equipped with eight relays, each featuring an individual LED indicator.
  • Optocoupler Isolation: Ensures safety and stability in high-voltage applications.
  • Expandable GPIOs: Features 16 expansion GPIOs for added flexibility.
  • T-U2T Compatibility: Allows easy firmware upload via the T-U2T downloader.


Included Components

  1. T-Relay 8 Channel Relay Module
  2. PH2.54 Pin (1*11P)
  3. Protective Storage Box
  4. T-U2T Downloader (Optional in T-U2T Kit)
  5. T-Relay W5500 Shield (Optional in W5500 Kit)


Application

  • Home Automation: Remote control of household appliances.
  • Industrial Automation: Secure relay switching for machinery and devices.
  • Smart IoT Solutions: Wireless relay control for smart home systems.
  • Security Systems: Integration with alarm and access control systems.


Specifications

Parameter Specification
MCU ESP32-Wrover-E
Flash Memory 4MB
PS RAM 8MB
Wi-Fi 802.11 b/g/n
Bluetooth BLE V4.2
Bus Interfaces UART, SPI, I2C, CAN, 12S, SDIO
Onboard Functions 8 Relays, Reset Button
Optocoupler Isolation 16 Expansion GPIOs
Relay Type HRS4H-S-DC5V
Switching Voltage AC: 250V, DC: 28V
Power Input Range DC 12-24V
