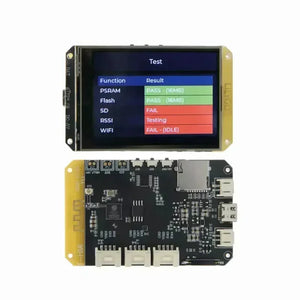

Details and Parameters of T-HMI
| Parameter | Details |
|---|---|
| MCU | ESP32-S3R8 Xtensa 32-bit LX7 dual-core processor |
| Wireless Protocols | 2.4GHz Wi-Fi and low-power Bluetooth (Bluetooth LE) |
| Programming Platforms | Arduino-ide, Micropython, PlatformIO-IDE |
| Flash | 16MB |
| PSRAM | 8MB |
| Reed Switch Pin Position | 1021 |

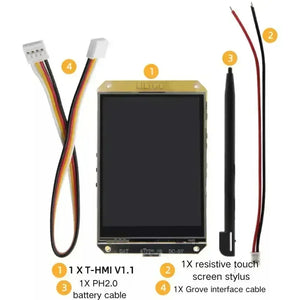

| On-board Functions | Boot button + Reset button + Power button + TF card + Battery-powered |
2.8 inch ST7789V IPS TFT LCD
| Parameter | Details |
|---|---|
| Resolution | 240×320 |
| Display Area Size | 48.6×64.8mm |
| 8-bit Parallel Interface | Yes |
| 2.8-inch Display Orientation | Horizontal |
| Screen Format | Graphic 240RGB×320 Dot-matrix |
