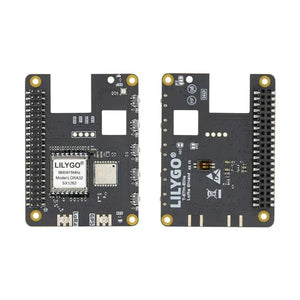

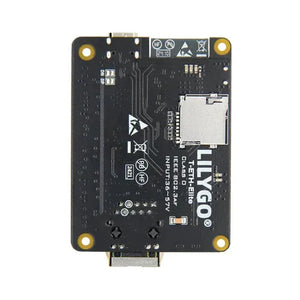

LILYGO T-ETH ELite SX11302 868MHz Module
The T-ETH ELite SX11302 868MHz Module is a powerful and versatile development board based on the ESP32-S3R8 dual-core LX7 microprocessor, tailored for advanced IoT and embedded system applications. This module provides robust wireless connectivity options, including 2.4 GHz Wi-Fi, Bluetooth 5.0 (LE), and an integrated W5500 Ethernet module that supports TCP, UDP, ICMP, IPv4, ARP, and PPPoE protocols, ensuring high-speed and reliable data transmission.
Equipped with Power over Ethernet (PoE), the T-ETH ELite SX11302 868MHz Module delivers both power and data over a single Ethernet cable, simplifying setup and improving overall efficiency. The board is also equipped with 16MB Flash and 8MB PSRAM, allowing it to handle complex IoT applications and store large amounts of data seamlessly.
The T-ETH ELite SX11302 868MHz Module is fully compatible with popular development platforms such as Arduino IDE, PlatformIO IDE, and ESP-IDF, enabling developers to streamline their workflows and boost productivity. For projects that require extended communication capabilities, the module supports expansion options for LoRa, GPS, and LTE modules, making it perfect for long-range communication, geolocation services, and reliable cellular connectivity.
Designed specifically for 868MHz LoRa applications, the T-ETH ELite SX11302 868MHz Module is ideal for projects in the 868/915MHz frequency band, offering excellent range and performance. With its flexible design and comprehensive features, this module is an ideal choice for IoT projects and embedded system development that demand reliable, long-range connectivity.
Specifications
| Feature | Details |
|---|---|
| MCU | ESP32-S3R8 Dual-Core LX7 Microprocessor |
| Wireless Communication | Wi-Fi: 2.4 GHz, IEEE 802.11 b/g/n; Bluetooth 5.0 (LE) |
| Flash | 16MB |
| PSRAM | 8MB |
| Ethernet Module | W5500 Ethernet Module |
| Ethernet Supported Protocols | TCP, UDP, ICMP, IPv4, ARP, PPPoE |
| Peripheral Interfaces | I2C, SPI, UART, SDIO, I2S, CAN |
| Power Supply | USB Type-C, PoE (Power over Ethernet) |
| Additional Features | LoRa, GPS, LTE support modules |
| Power Connector | JST PH 2.0mm Connector for battery or external power |
Sample Code For Reference [Github]
If you need technical support please check the link to find more details.
T-ETH ELite SX11302 868MHz Module
Applications
- IoT development
- Embedded systems
- Telecommunication projects
- Real-time networking applications
- Remote sensing and monitoring systems
Product Display

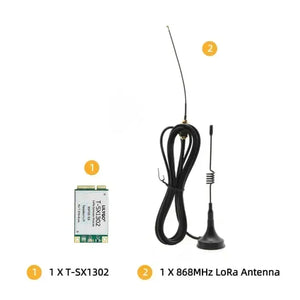

Includes
