LILYGO LoRa32 V2.1 ESP32 433/868/915MHZ 0.96 Inch OLED WIFI SD Card

EUUS
Sale price €23,85
incl. VAT
SKU: LILYGO-Q168
Type: Paxcounter 868MHz [Q168]
Add to Wishlist Add to Compare
Visa
PayPal
Mastercard
American Express
Shop Pay
LILYGO LoRa32 V2.1 ESP32 433/868/915MHZ 0.96 Inch OLED WIFI SD Card-1

LILYGO LoRa32 V2.1 ESP32 433/868/915MHZ 0.96 Inch OLED WIFI SD Card

Shipping & Delivery Information

🚚 In-Stock Items: Orders for in-stock products are shipped within 24 hours after the order is placed.

📦 Pre-order Items: If a product is marked as "Pre-order", it means it is currently out of stock. We'll dispatch your order once we have restocked, usually within 10 working days. For special pre-sale items, the expected arrival date will be noted in the product description.

✈️ Express Shipping: Need your order urgently? Please contact us via email or live chat, and we’ll help arrange express delivery for you.

The LILYGO Paxcounter Disaster-Radio LoRa V2.1_1.6.1 ESP32 is a versatile, high-performance module designed for a wide range of IoT applications, including passenger flow metering, disaster communication, and environmental monitoring. Powered by the LILYGO ESP32 microcontroller, this module supports LoRa communication at frequencies of 433MHz, 868MHz, and 915MHz, providing long-range, low-power connectivity ideal for projects using LILYGO LoRa32 V2.1 and TTGO T4 ESP32. The LILYGO platform is renowned for its reliability in various applications.

Main features of the LILYGO LoRa32 V2.1

  • LILYGO's Digital RSSI function
  • Automatic frequency correction by LILYGO technology
  • Automatic gain control for stable performance
  • Fast wake-up and frequency hopping capabilities
  • Highly configurable data packet handler for LILYGO devices
  • SMA Antenna for enhanced signal

LILYGO LoRa32 V2.1 ESP32 Module

Specifications of the LILYGO ESP32 Module

MCU ESP32
Flash 4MB
Serial Chip CH9102
Wireless protocol Wi-Fi + Bluetooth 4.2
Support TF card slot
Onboard functions Reset \ Power switch
Antenna

3D WiFi Antenna [Use by default]

(Support WiFi IPEX external antenna, but you need to jump resistance)
The LoRa antenna using LILYGO LoRa32 V2 for extended range

Power Supply

Support USB Micro / Li-Po Battery Dual Power Supply
JST GH 2pin 1.25mm
[USB can power the battery]

Sample Code For Reference [Github]

If you need technical support for LILYGO ESP32, please check the below link to find more details about the LILYGO LoRa32 V2.1 project.

ESP32-Paxcounter
TTGO-LoRa-Series

Paxcounter Testing

cyberman54-ESP32-Paxcounter

LoRa32 V2.1_1.6 Disaster-Radio

https://disaster.radio/
https://github.com/sudomesh/disaster-radio
https://github.com/sudomesh/disaster-radio/releases/tag/0.2.0

Note: Pay attention to the OLED when opening the box.

Long Range Low Power LoRa Transceiver

  • High sensitivity: -i48dBm
  • Transceive rate: 300 kbps
  • Optional Hardware

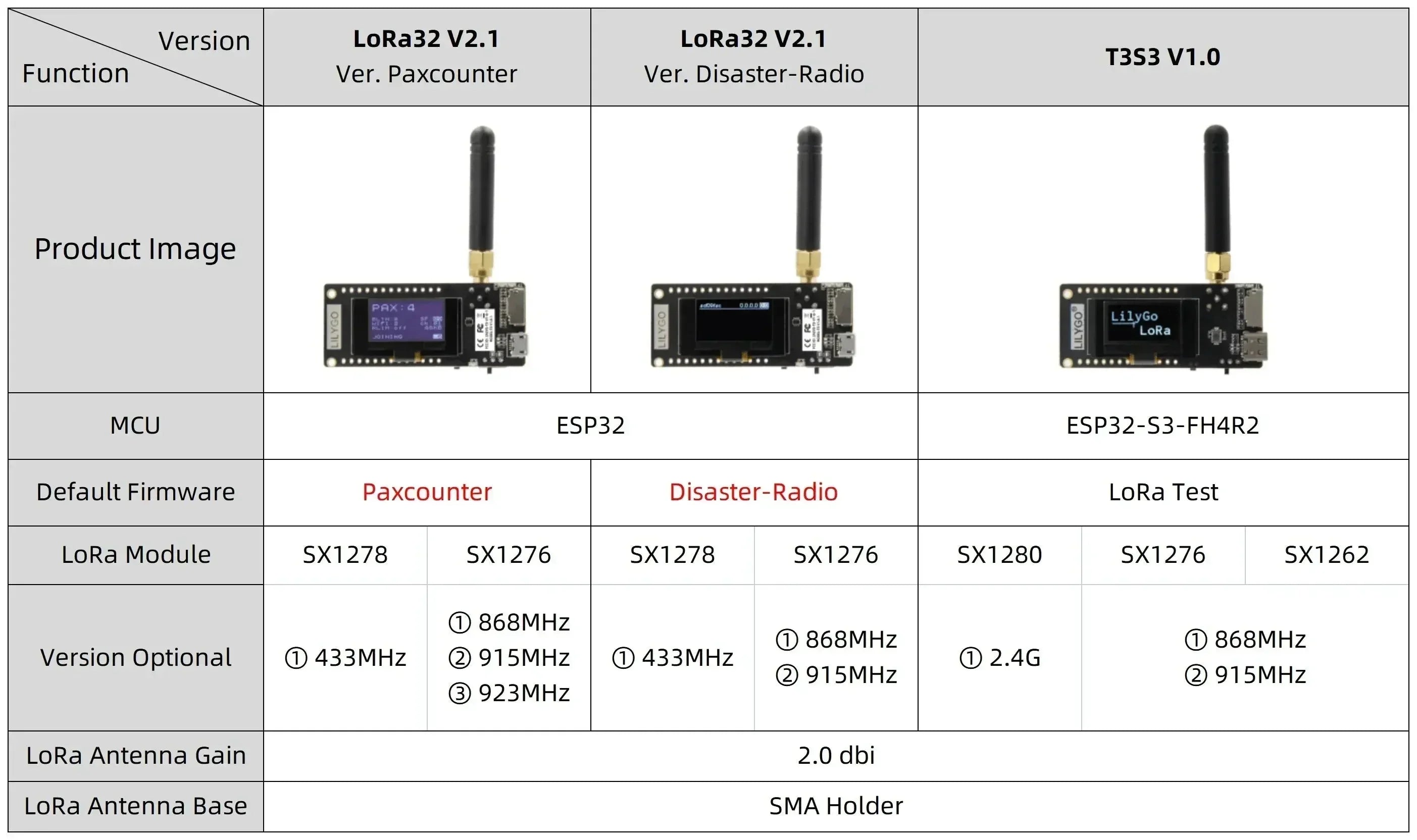

  • Version: SX1278[433Mhz] / SX1276[868/915Mhz] – compatible with TTGO 433 models.

LILYGO LoRa32 V2.1

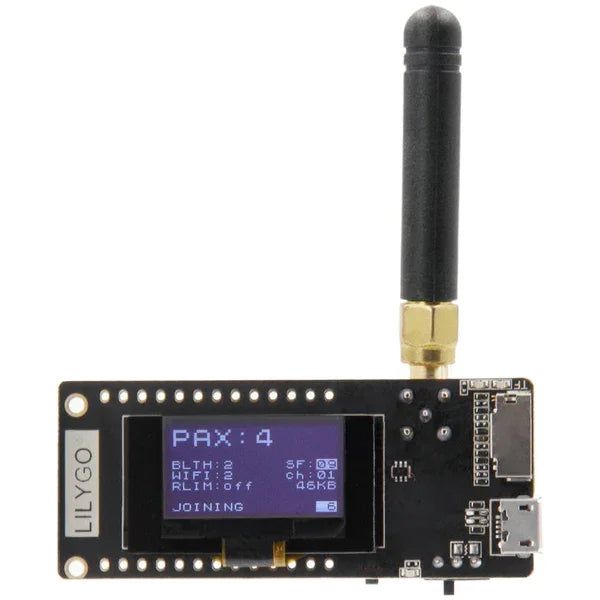

  • Paxcounter is an ESP32 MCU-based program for metering passenger flows in real-time. It counts how many mobile devices are around. This gives an estimation of how many people are around, especially useful for utilizing the LILYGO LoRa32 V2.1 in smart city projects.

  • Paxcounter detects Wi-Fi and Bluetooth signals in the air, focusing on mobile devices by evaluating their MAC addresses. This feature is particularly useful for projects using the LILYGO ESP32 line.

  • The intention of this project is to do this without intrusion into privacy: You don't need to track people's owned devices if you just want to count them.

  • Paxcounter does not persistently store MAC addresses and does no kind of fingerprinting of the scanned devices.

  • Data can either be stored on a local SD card, transferred to cloud using LoRa WAN network or MQTT over TCP/IP, or transmitted to a local host using a serial (SPI) interface.

  • Disaster. radio is an off-grid, solar-powered, long-range mesh network built on free, open-source software and affordable hardware. This makes it an excellent choice for LILYGO LoRa32 V2 and Lily Pi ESP32 users.

  • Designed to be open, distributed, and decentralized, disaster.radio is currently in the prototype/development phase.

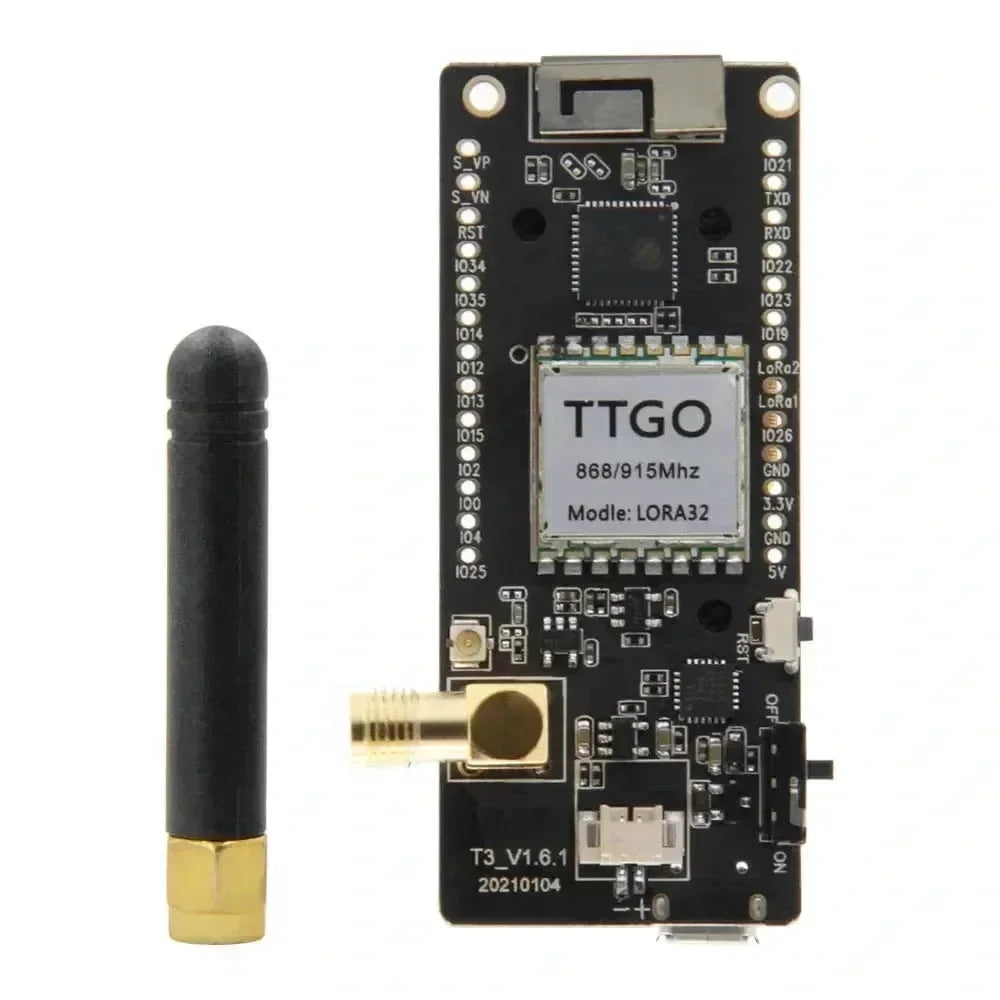

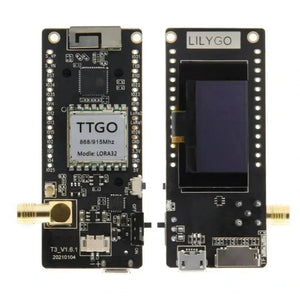

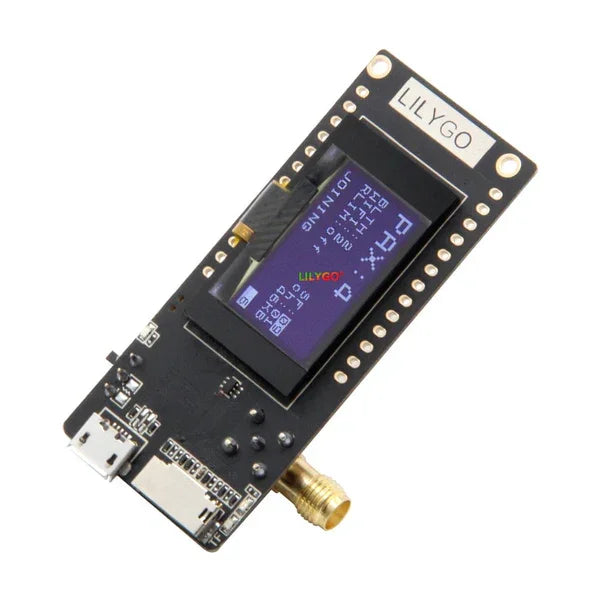

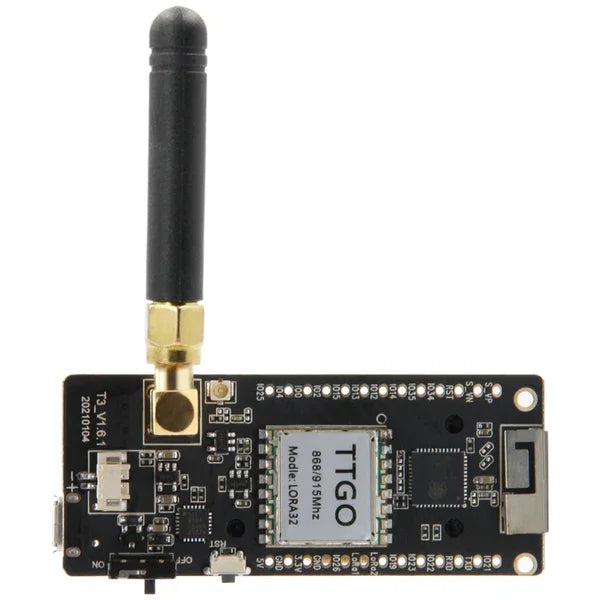

Product Display

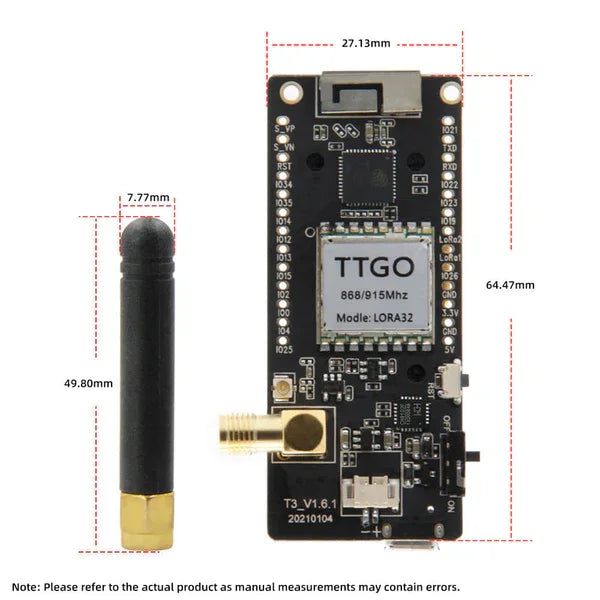

Size

Pin Diagram for LILYGO LoRa32 V2.1

Pin Diagram for LILYGO LoRa32 V2.1

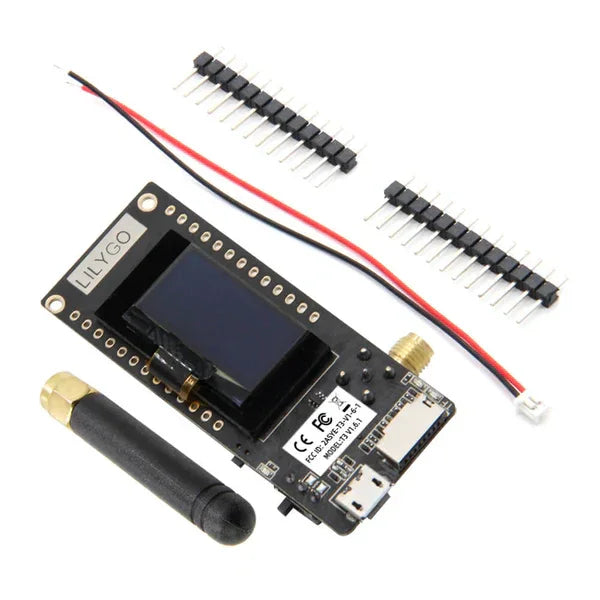

Shipping List

433/868/915 Mhz CH9102F Options

(Notice: The shipping list does not include battery and SD card.)

  • 1 X LILYGO LoRa32 V2.1 433/868/915 Mhz
  • 1 X Power Cable (JST 2pin 1.25mm)
  • 1 X Antenna
  • 2 X Pin
