HLK-LD2412 ±75° Human Presence Detection Distance Sensing Radar Module

HLK-LD2412 ±75° Human Presence Detection Distance Sensing Radar Module

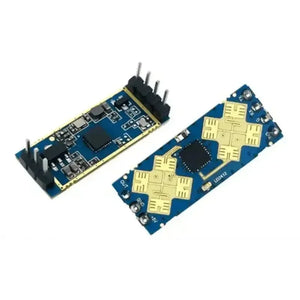

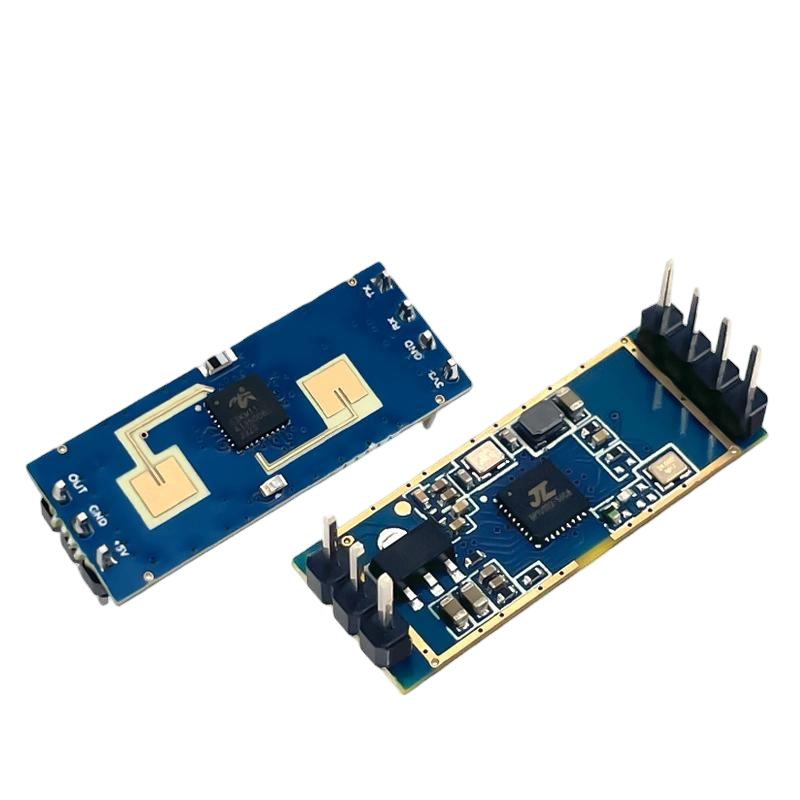

HLK-LD2412 ±75° Human Presence Detection Radar Module is a highly sensitive 24GHz radar sensor for human presence detection. It operates on the principle of FMCW frequency modulation continuous wave to detect human targets. With advanced radar signal processing and precise sensing algorithms, it achieves high sensitivity detection of both moving and stationary humans.

The HLK-LD2412 ±75° Human Presence Detection Radar Module is primarily used in indoor scenarios. It can detect human body movement or micro-movement in the perception area and output real-time results. It has a maximum sensing distance of 9 meters and a distance resolution of 0.75 meters. It also provides a visual configuration tool for customizing sensing distance range, sensitivity in different intervals, and unmanned delay time.

The HLK-LD2412 ±75° Module supports GPIO and UART outputs, offering plug-and-play convenience. It can be flexibly applied to various smart home sensor scenarios and IoT terminal products, enhancing system functionality and intelligence.



Features

  • Plug-and-play, simple assembly method

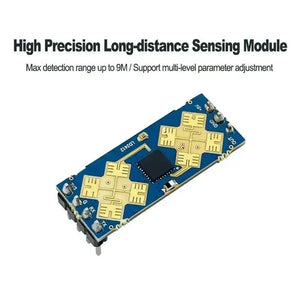

  • Maximum sensing distance up to 9 meters, configurable detection ranges

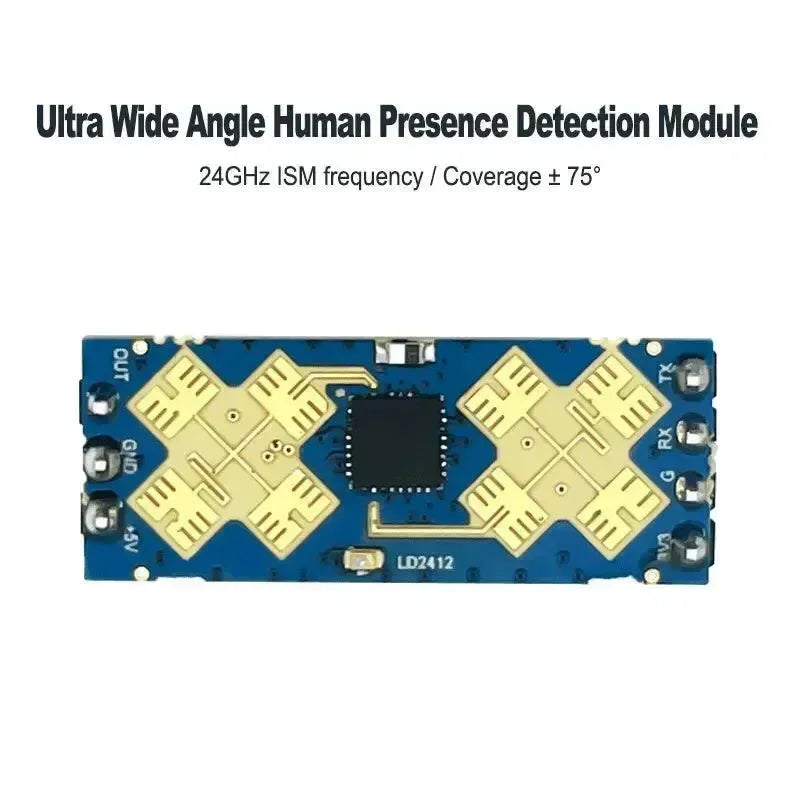

  • Wide detection angle: ±75° coverage

  • Multi-level intelligent parameter tuning for scene adaptation

  • Visual debugging and configuration tools

  • Compact design, supports ceiling and wall mounting

  • 24GHz ISM band, certified by FCC and CE

  • Highly cost-effective radar solution



Specifications

  • Frequency: 24G–24.25GHz
  • Modulation Type: FMCW
  • Detection Distance: Resolution 0.75m, adjustable 0.75m–9m
  • Detection Angle: ±75°
  • Power Supply: 3.3V or 5V (>200mA)
  • Current: ~90mA (Typ.)
  • Output Serial Port Level: 3.3V
  • Frequency Sweep Bandwidth: 250MHz (CE/FCC compliant)
  • Operating Temperature: -40°C to +85°C
  • Dimensions: 11mm × 28mm
  • Package Type: Default with pins

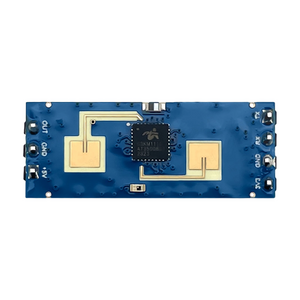

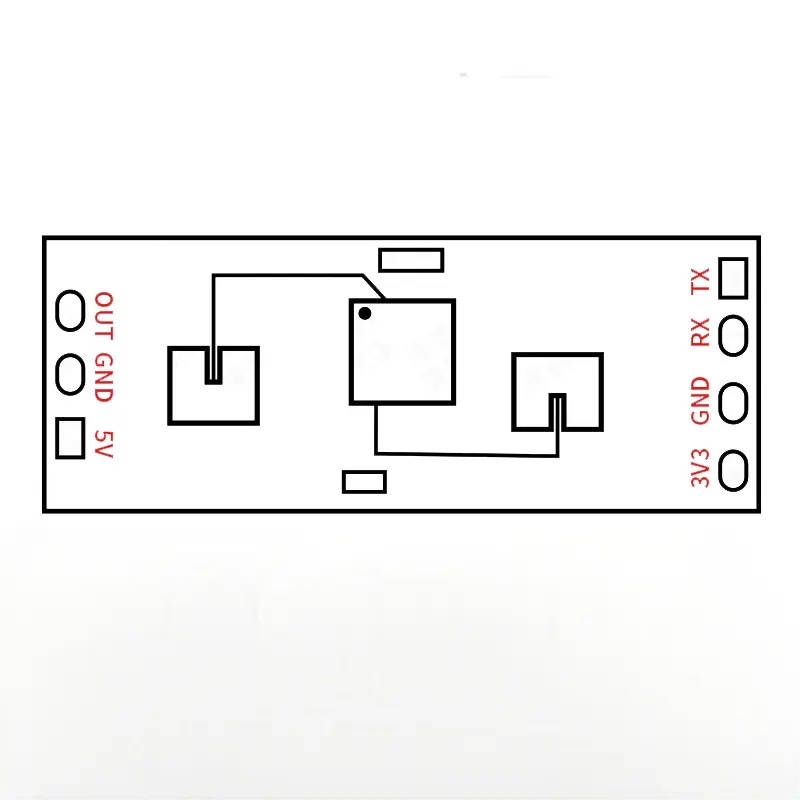

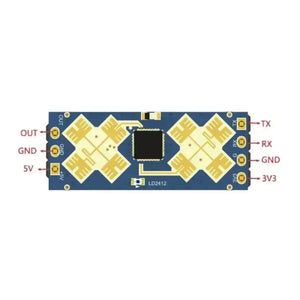

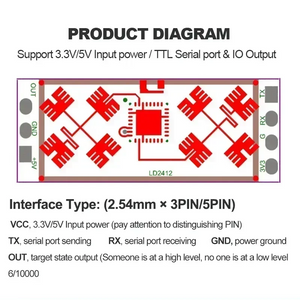

Pin Definition

Pin Symbol Name Function
OUT Target Status Output Detects presence: High level; No presence: Low level. Configurable via commands.
TX Serial Port Tx Tx pin of serial port
RX Serial Port Rx Rx pin of serial port
+5V 5V Power Input Power input: 5V; selectable 5V or 3.3V
3V3 3.3V Power Input Power input: 3.3V; selectable 5V or 3.3V
GND Ground Power ground
G Ground Power ground


Application

  • Human sensor light control
  • Advertising displays
  • Smart home appliances
  • Intelligent security systems



Packing List

HLK-LD2412

  • 1 × HLK-LD2412 Radar Module



HLK-Test-Kit

  • 1 × Test Kit w/o Module



FAQ

Q1: What is the maximum detection range?

A1: The HLK-LD2412 supports up to 9 meters with 0.75m resolution.

Q2: Can it detect micro-movements?

A2: Yes, it can detect micro-movements of stationary humans.

Q3: Is it certified for global use?

A3: Yes, it complies with FCC and CE spectrum regulations.

Q4: What output interfaces are supported?

A4: It supports GPIO and UART outputs.

Q5: Can it be installed on ceilings?

A5: Yes, it supports ceiling and wall mounting.



Download

HLK-2412 Tool Install
