LattePanda Mu - A Micro x86 Compute Module 8GB RAM

€209,95

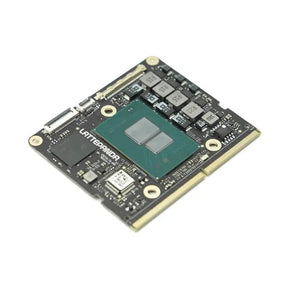

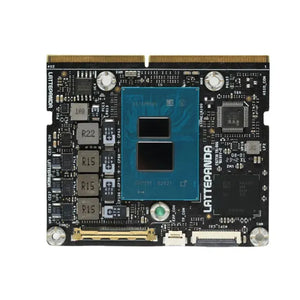

The LattePanda Mu is a powerful and flexible micro x86 compute module designed for industrial, embedded, and custom computing applications ⚙️. It features an Intel N100 quad-core processor, 8GB LPDDR5 memory, and 64GB eMMC 5.1 storage, offering strong multitasking and data processing capabilities in a compact footprint.

With extensive pin exposure, including up to 9 PCIe 3.0 lanes, 3 HDMI/DisplayPort outputs, USB 2.0/3.2, and 64 GPIOs, the LattePanda Mu provides unmatched expandability. It allows developers to easily build custom carrier boards using open-source KiCAD design files 🧩.



Features ⭐

  • Intel Processor N100, 4‑core up to 3.4GHz ⚡
  • 8GB LPDDR5 (4800MT/s) memory with IBECC
  • 64GB eMMC 5.1 onboard storage
  • Configurable TDP: 6W to 35W for efficient or high‑performance modes
  • 3 Display Outputs, max resolution up to 4096×2160 @ 60Hz
  • Rich I/O options:
    • Up to 9× PCIe 3.0 lanes
    • Up to 2× SATA 3.0
    • Up to 4× USB 3.2 (10Gbps)
    • 8× USB 2.0 (480Mbps)
    • UART, I2C, RS232, GPIO
  • Wide Power Range: 9V–20V
  • Multiple OS Support: Windows 10, Windows 11, Ubuntu, and other Linux distros
  • Compact Size: 69.6 × 60 mm
  • Environment: 0°C to 60°C, 0–80% relative humidity



Flexible Performance & Cooling ❄️🔥

The Intel N100 processor supports TDP adjustment from 6W to 35W, providing a range from energy‑efficient passive cooling to high‑performance active setups.

Cooling Options Available:

  • Standard fan (35W TDP)
  • Large passive heatsink (10W / 35W with fan)
  • Ultra‑thin heatsink (15W with external fan)



Expansion Pins & Interface Support 🔌

LattePanda Mu exposes extensive I/O pins for flexible integration:

  • Up to 9 PCIe 3.0 lanes
  • 2 SATA 3.0 ports
  • 4 USB 3.2 ports
  • 8 USB 2.0 ports
  • 3 HDMI/DisplayPort video outputs
  • 64 GPIOs, UART, I2C, RS232



Carrier Boards & Development Tools 🛠️

  • Lite Carrier Board – Essential interfaces for quick prototyping
  • Full‑function Evaluation Board – All pins accessible for testing
  • Open‑source Carrier Board Files (KiCAD) – Speed up custom board development



Multi‑System Compatibility 💻

Supports a wide range of operating systems:

  • Windows 10
  • Windows 11
  • Ubuntu
  • Debian, Fedora, Manjaro, Arch Linux, and more



Customized Solutions ⚙️

LattePanda provides full customization services:

  • Custom carrier boards
  • Boot screen design
  • BIOS feature adjustments
  • Pre‑installed operating systems



Variants (Selection Guide) 📦

Model CPU RAM Storage TDP
DFR1146 Intel N100 (4C, 3.4GHz) 8GB 64GB eMMC 5.1 6–35W
DFR1147 Intel N100 (4C, 3.4GHz) 16GB 64GB eMMC 5.1 6–35W
DFR1149 Intel Core i3‑N305 (8C) 16GB 64GB eMMC 5.1 9–35W

All models share the same form factor and interface layout. “ENT” suffix includes Windows 11 IoT license.



Ideal Applications 🚀

  • Edge AI and industrial computing
  • Embedded systems and smart devices
  • Network security appliances
  • Custom mini PCs and IoT controllers
  • Multi‑screen digital signage



Reference 📚

Open‑source Repository
