LattePanda 3 Delta 864 Windows / Linux Single Board Computer
📦 Location of the warehouse: China
Free shipping for you
Free Shipping from 30€ in Germany, 50€ in the EU!
Trustpilot rating: 4/5
Thank you for your support - rate us on Trustpilot!

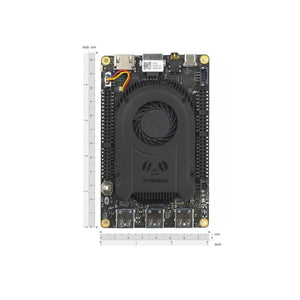

LattePanda 3 Delta 864 Windows / Linux Single Board Computer
LattePanda 3 Delta 864 is a high-performance, x86-based single board computer (SBC) built for powerful computing in a compact form. Now equipped with a 2.5G Ethernet port, it delivers outstanding connectivity and performance.
Powered by an Intel® N5105 quad-core CPU with turbo boost up to 2.9GHz and paired with Intel UHD Graphics, this upgraded model is 2x faster in CPU performance and 3x faster in GPU performance compared to LattePanda 2 Delta. Ideal for edge AI, robotics, automation, image processing, and IoT applications.
Rich Expandable Interfaces
The LattePanda 3 Delta x86 single-board computer is designed with a wide array of industrial-grade interfaces, including USB, HDMI, RS232, GPIO, Ethernet, eDP, and more. These versatile connections meet the diverse requirements of various industrial and embedded applications.
Additionally, the board features both M.2 B Key and M.2 M Key slots, enabling users to expand storage via M.2 NVMe or SATA SSDs and integrate 4G/5G communication modules for enhanced connectivity and system scalability.
Models
LattePanda 3 Delta is available in two versions. The model shown on this page is the x86 SBC variant that does not include the Windows 10 IoT Enterprise License.
Key Features
-
Intel N5105 Processor – Low-power, quad-core performance up to 2.9GHz
-
8GB LPDDR4 RAM & 64GB eMMC – High-speed memory & storage for multitasking
-
Ultra-Fast Connectivity – Wi-Fi 6, Bluetooth 5.2, 2.5G Gigabit Ethernet
-
Triple Display Output – HDMI, USB-C DP, and eDP, all supporting dual 4K HDR
-
Expansion Ready – Dual M.2 slots for NVMe SSD, 4G/5G modules, or SATA drives
-
Rich GPIOs & Arduino ATmega32U4 Coprocessor – Ideal for maker, industrial, and embedded projects
-
OS Compatibility – Supports Windows 10/11 and Linux distributions
-
Advanced BIOS Functions – Auto power-on, watchdog timer, and more
Specifications
Processor & Graphics
-
Intel® Celeron® N5105 (Quad-core, 2.0–2.9GHz, 10W TDP)
-
Intel® UHD Graphics (450–800MHz)
Memory & Storage
-
8GB LPDDR4 @ 2933MHz
-
64GB eMMC v5.1
Networking & Wireless
-
Intel 2.5G Ethernet
-
Wi-Fi 6 (2.4GHz & 5GHz)
-
Bluetooth 5.2
Display Outputs
-
HDMI 2.0b: 4096×2160 @ 60Hz HDR
-
DP 1.4 over USB-C: 4096×2160 @ 60Hz HDR
-
eDP: Up to 1920×1080 touch display support
USB Ports
-
2× USB 3.2 Gen1 Type-A
-
1× USB 3.2 Gen2 Type-A
-
1× USB Type-C (PD, DP, USB 2.0)
-
1× USB 2.0 Pin Header
Expansion Slots
-
1× M.2 M Key (NVMe SSD)
-
1× M.2 B Key (4G/5G module, SATA SSD, USB, SIM)
Other Interfaces
-
TPM 2.0 (Built-in)
-
Arduino Leonardo Coprocessor (ATmega32U4)
-
Audio: Mic + Headphone combo
-
GPIO: Up to 12x Analog, 20x Digital I/O (7 PWM), UART, SPI, I2C, RS232, Audio Header
-
Fan Port, Power Header, USB 2.0 Header
Power & Environment
-
Input: 12V DC (PH2.0), 15V via USB-C PD
-
RTC Battery: CR927
-
Operating Temp: 0°C–60°C
-
Dimensions: 125 × 78 × 16 mm
-
Certification: CE, FCC, KC, RoHS
Software & OS
-
Pre-installed with Windows 10
-
Fully compatible with Windows 11 and major Linux distributions
Video Output
LattePanda 3 Delta supports 3 simultaneous video outputs (HDMI, USB-C DP, eDP), all with dual 4K HDR capability—perfect for multitasking and display flexibility.
Professional Technical Support
LattePanda offers fast and reliable support for configuration, system integration, or troubleshooting.
Customizable for Your Needs
Hardware and software customization available, including BIOS features, OS modifications, and more.
Use Cases
-
Edge AI and machine learning
-
Robotics and industrial control
-
Portable PC for developers and makers
-
High-performance multimedia or multi-screen displays
-
Embedded IoT device prototyping
