Home KST X15-755X Coreless Mini Digital Metal Gear Tail Servo

KST X15-755X Coreless Mini Digital Metal Gear Tail Servo

SKU: KST-X15-755X
Regular price €99,17 Sale price €93,75
5% OFF
incl. VAT

Shipping within 72 hours

*Excluding pre-order items

Add to Wishlist Add to Compare
Visa
PayPal
Mastercard
American Express
Shop Pay
📦 From 50€ in Germany, 100€ in the EU, 45€ in the US!
  • EU & US Delivery:  10 working days
  • Other Countries:  15 working days
🚀
Express Shipping Available:
Need it faster? Contact us via phone or email for expedited delivery.

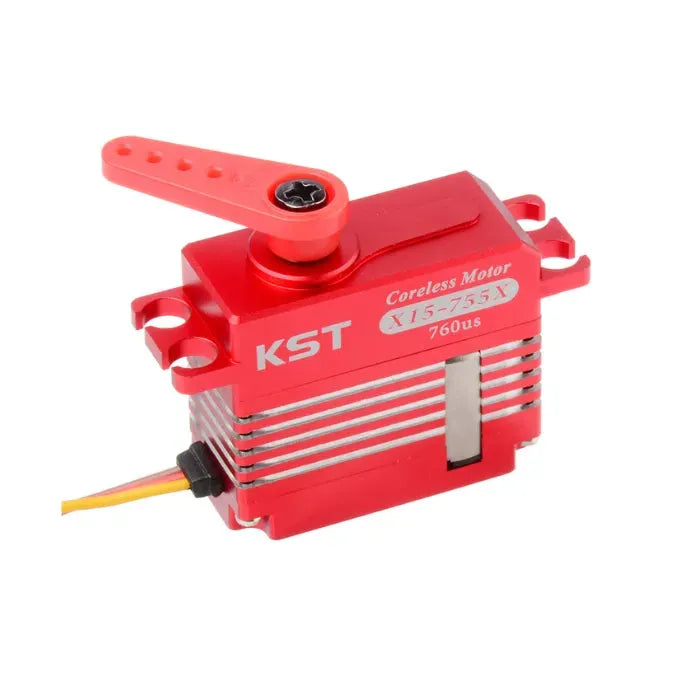

KST X15-755X Coreless Mini Digital Metal Gear Tail Servo

KST X15-755X Coreless Mini Digital Metal Gear Tail Servo

€93,75

KST X15-755X mini tail digital servo is a great choice for helicopters ranging from 325mm-425mm rotor blade sizes! It features an extremely fast speed of 0.04sec and 10.2Kgf.cm ultra high torque. It's critical to ensure your gyro has the capability to operate 760μs tail servos, ensuring that the KST X15-755X operates correctly.

X15-755X Digital Metal Gear Coreless Servo 10.2kg.cm 0.04sec for RC Helicopters



Features

  • Support High Voltage 8.4V
  • Extreme Torque and Excellent Speed
  • Dual Ball Bearings
  • Coreless DC Motor
  • Hardened Steel Gears
  • CNC Aluminium Case



Specification

  • Item: X15-755X Servo
  • Rated Voltage: DC7.4V
  • Voltage Range: DC6.0V-8.4V
  • Torque: 7.2Kgf.cm@6.0V,  9.0Kgf.cm@7.4V, 10.2Kgf.cm@8.4V
  • Speed: 0.06sec/60°@6.0V, 0.05sec/60°@7.4V, 0.04sec/60°@8.4V
  • Working Frequency: 760μs/560Hz
  • Temperature Range: -10℃……+65℃
  • Case Material: Aluminum Alloy
  • Motor Type: Coreless DC Motor
  • Gear Set Material: Hardened Steel
  • Position Sensor: Potentiometer
  • Case Dimensions: 35.5mm*15mm*32.5mm±0.2mm
  • Weight: 40g±10%

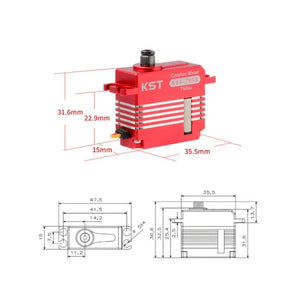

      Size

      KST X15-755X Digital Metal Gear Coreless Servo 10.2kg.cm 0.04sec for RC Helicopters

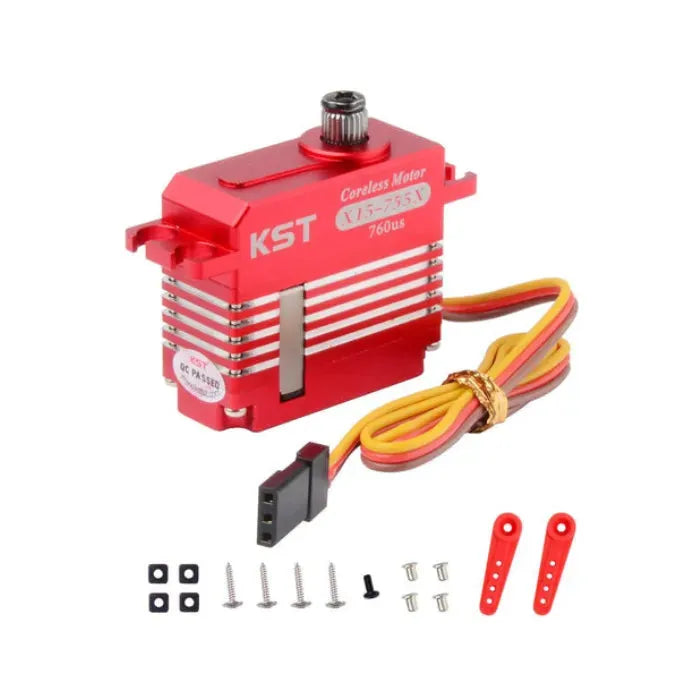

      Package Including

      • 1 * X15-755X Servo
      • 2 * Plastic Servo Horn
      • 1 * Servo Horn Screw
      • 4 * Mounting Screw
      • 4 * Rubber Grommet
      • 4 * Eyelet
      KST X15-755X Digital Metal Gear Coreless Servo 10.2kg.cm 0.04sec for RC Helicopters



      Download

      X15-755X Servo Technical Specification
