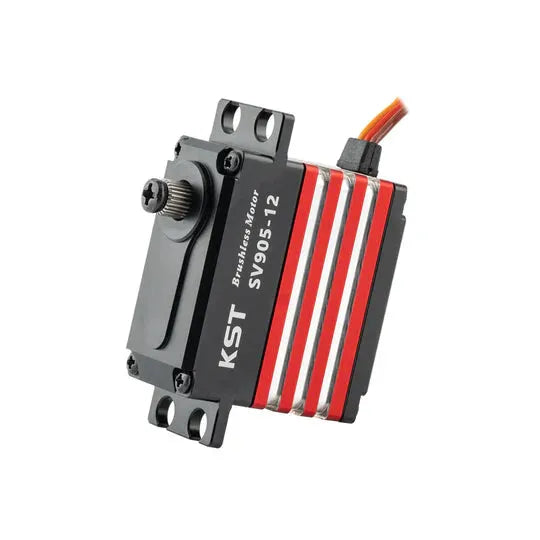

KST SV905-12 HV Brushless Metal Gear 17Kgf.cm 0.04sec Tail Servo
Unleash the ultimate tail performance for your 550-700 class RC helicopter with the KST SV905-12 HV tail servo! Designed for discerning enthusiasts who demand top-tier power and unwavering reliability, this servo delivers exceptional speed and torque, ensuring precise and responsive control. Experience the difference that high-voltage performance can make.
The SV905-12 HV tail servo is engineered for 12V LiPo direct drive, providing rock-solid stability and dependable performance in any flight condition. Boasting an impressive 17Kgf.cm of torque at 13V and an ultra-fast 0.04-second speed, this servo provides lightning-fast responsiveness for demanding maneuvers. The dual ball bearings ensure a smooth and precise gear train, guaranteeing seamless and pinpoint-accurate operation.
Key Features:
-
DC 12V Rated Voltage: Optimized for high-voltage performance.
-
8-13V High Voltage Support: Compatible with 2-3S LiPo direct drive for maximum power and efficiency.
-
High Frequency & Fast Response: Delivers lightning-fast response and precise control.
-
Ultra-High Torque: Powerful 17Kgf.cm torque at 13V for demanding tail control.
-
Excellent Speed: Ultra-fast 0.04sec/60° speed at 13V for precise and responsive handling.
-
Dual Ball Bearings: Ensures smooth and precise movement.
-
Brushless DC Motor: Offers increased power, efficiency, and lifespan compared to brushed motors.
-
Hardened Steel Gears: Provides exceptional durability and resistance to wear.
-
CNC Aluminum Case: Milled alloy case for superior strength and heat dissipation.
-
Programmable: Customize servo settings to optimize performance (refer to programming tool manual for correct voltage).
-
Ideal for 550-700 Class RC Helicopters: Perfect for demanding 3D flight and precision maneuvers.
Specifications:
-
Item: SV905-12 Tail Servo
-
Rated Voltage: DC12V
-
Voltage Range: DC8.0V-13V
-
Torque: 13Kgf.cm@8.4V / 16Kgf.cm@12V / 17Kgf.cm@13V
-
Speed: 0.06sec/60°@8.4V / 0.045sec/60°@12V / 0.040sec/60°@13V
-
Working Frequency: 760μs/560Hz
-
Temperature Range: -10℃.......+65℃
-
Programmable: Yes (Please refer to the Programming tool manual for correct voltage)
-
Case Material: Aluminium Alloy
-
Motor Type: Brushless DC Motor
-
Gear Set Material: Hardened Steel
-
Position Sensor: Potentiometer
-
Case Dimensions: 40.5mm*20mm*38mm±0.2mm
-
Weight: 70g±10%
-
Ball Bearing: 2BB





Size:

Package Includes:
-
1 * SV905-12 Servo
-
5 * Plastic Servo Horn
-
1 * Servo Horn Screw
-
4 * Grommet
-
4 * Eyelet
-
4 * Mounting Screw
